Yakima FatCat 4 Bedienungsanleitung

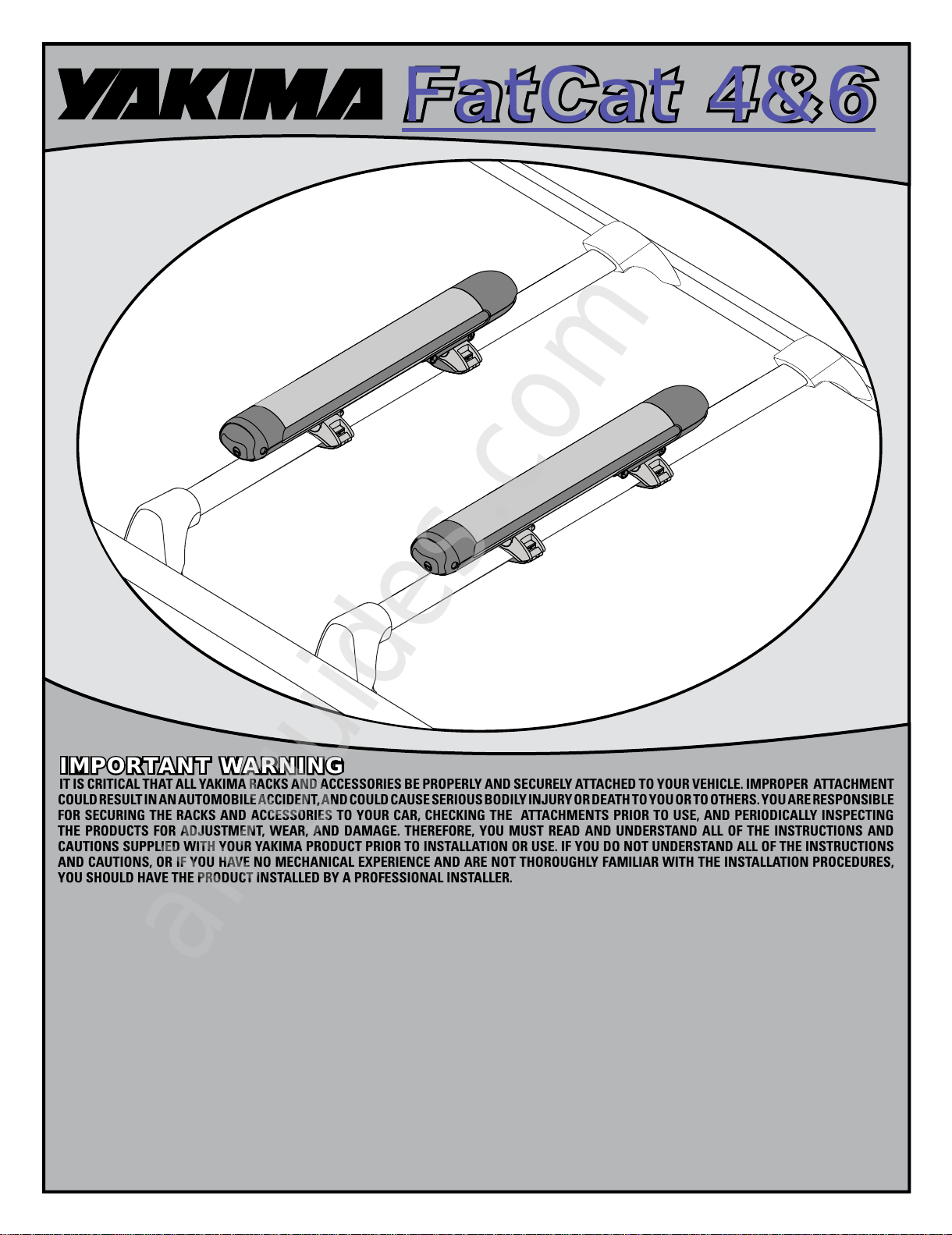

FatCat 4&6

IMPORTANT WARNING

IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT

COULDRESULTINANAUTOMOBILEACCIDENT,ANDCOULDCAUSESERIOUSBODILYINJURYORDEATHTOYOUORTOOTHERS.YOUARERESPONSIBLE

FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING

THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND

CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS

AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,

YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER.

All manuals and user guides at all-guides.com

all-guides.com

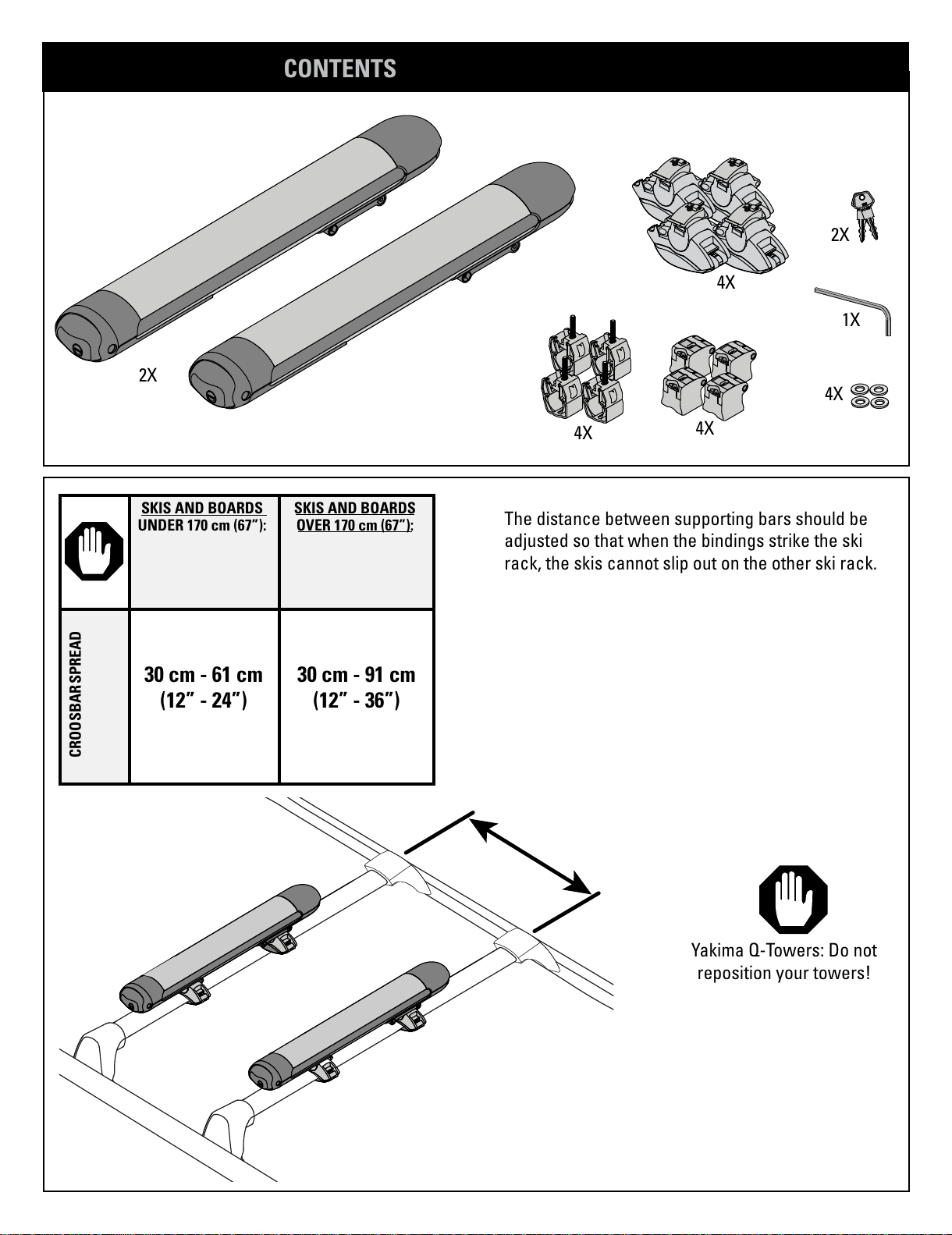

CONTENTS

CROOSBARSPREAD

SKIS AND BOARDS

UNDER 170 cm (67”): SKIS AND BOARDS

OVER 170 cm (67”):

30 cm - 61 cm

(12” - 24”)

30 cm - 91 cm

(12” - 36”)

The distance between supporting bars should be

adjusted so that when the bindings strike the ski

rack, the skis cannot slip out on the other ski rack.

Yakima Q-Towers: Do not

reposition your towers!

All manuals and user guides at all-guides.com

INSTALLATION

Aero Bars

Round Bar

Square Bar

Proceed to step 1.

Max. 88 mm (3.45”)

Max. 44 mm (1.75”)

Min. 16 mm (.63”)

Max. 88 mm (3.45”)

Max. 44 mm (1.75”)

Min. 16 mm (.63”)

All manuals and user guides at all-guides.com

Attach knobs.

Do not tighten.

Red wheel adjusts length of

strap. Adjust as needed.

All manuals and user guides at all-guides.com

6 7

The buckle must close with ﬁrm resistance. If it closes

too easily, or does not stay closed, adjust the red wheel

accordingly until the buckle closes with ﬁrm resistance.

Test by pushing and pulling each mount in all directions.

65N

(15lb)

All manuals and user guides at all-guides.com

Test the installation by pushing an pulling in all directions. If the carrier is loose, return to step 4 and tighten the

red wheel more.

All manuals and user guides at all-guides.com

all-guides.com

NOTE: Skis must be loaded

with their tips toward the rear

of vehicle.

SKI LIFT

Loosen (do not remove).

Remove.

B C

Do not tighten.

All manuals and user guides at all-guides.com

SKI LIFT

FAT CAT 6 FAT CAT 4

65N

(15lb)

65N

(15lb)

3.9Nm

(35lb-in)

All manuals and user guides at all-guides.com

ROUND/SQUARE BAR

Not needed for round/square bar.

All manuals and user guides at all-guides.com

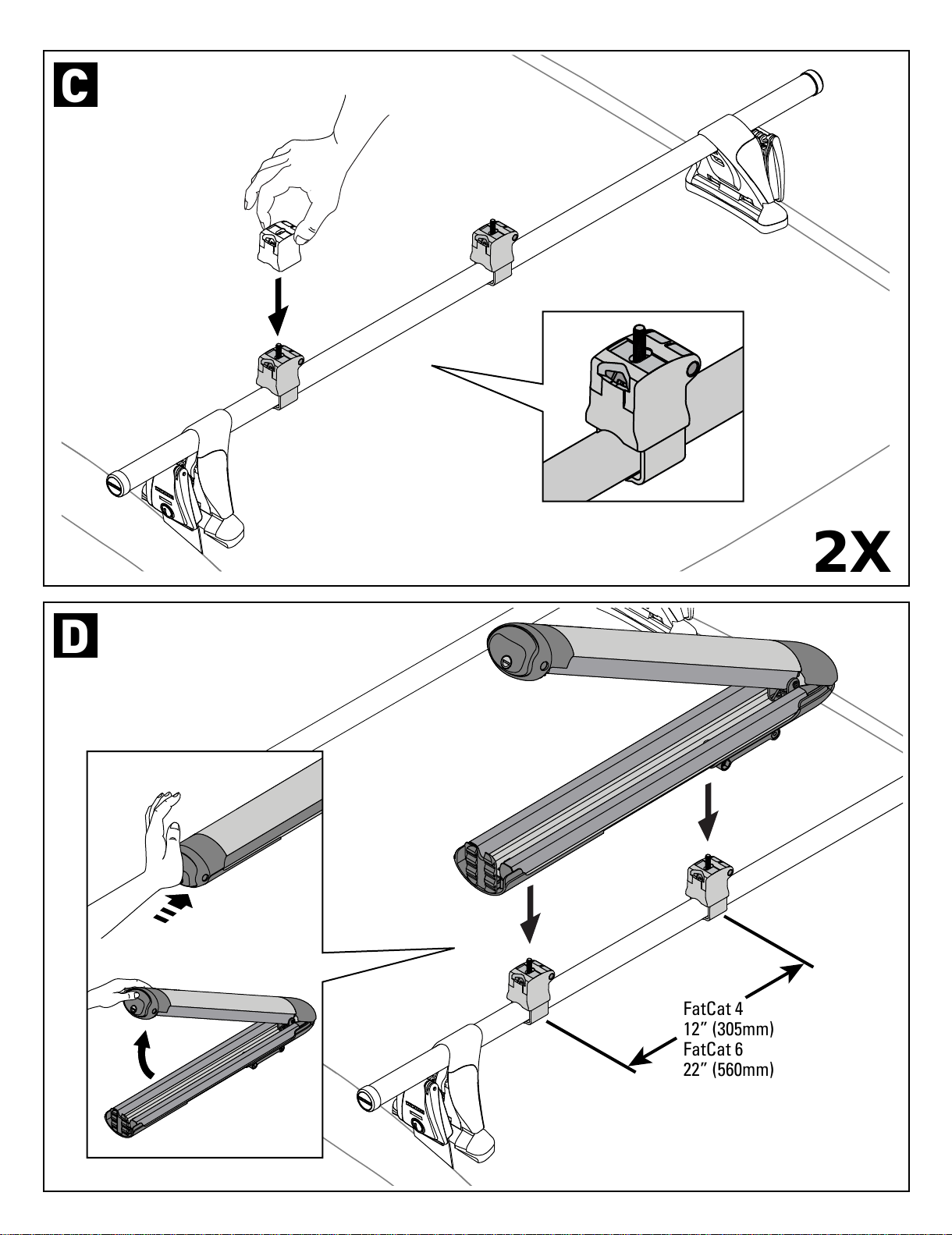

FatCat 4

12” (305mm)

FatCat 6

22” (560mm)

All manuals and user guides at all-guides.com
