Yakima Forklift Bedienungsanleitung

1033615B-1/24

IMPORTANT WARNING

IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER

ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR

TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS

PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND

UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER.

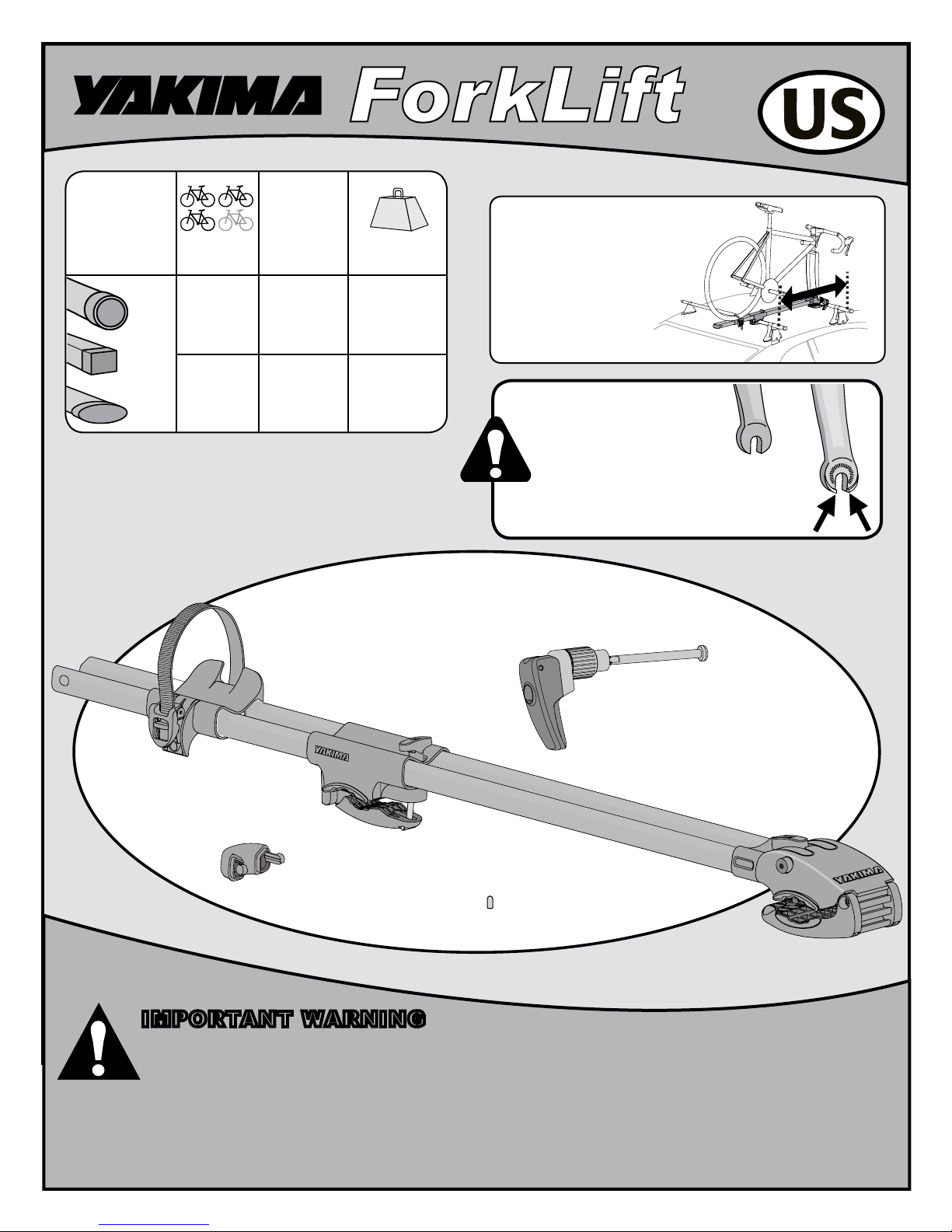

Part #1033615 Rev.B

FORKLIFT (1X)

LOCKING SKEWER (1X)

END CAP (1X)

VINYL CAP (1X)

CROSSBAR SPREAD

*CROSSBAR SPREAD

Your crossbar

spread is

the distance

between the

crossbars.

Round

Bar

Load

Min. and

Max.

Crossbar

Spread* Limits

Factory

Bar

Type of

Rack

DO NOT EXCEED RACK WEIGHT LIMITS!

Square

Bar

Forks with

Safety Tabs

DESIGNED FOR FORKS

WITH SAFETY TABS.

16" - 42"

41cm - 107cm

1 or more

bikes

16” spread =

35 lbs. / bike

41cm spread

15.9Kg / bike

18" - 42"

46cm - 107cm

3 or more

bikes

18” spread =

40 lbs. / bike

46cm spread

15.9Kg / bike

90°

1033615B-2/24

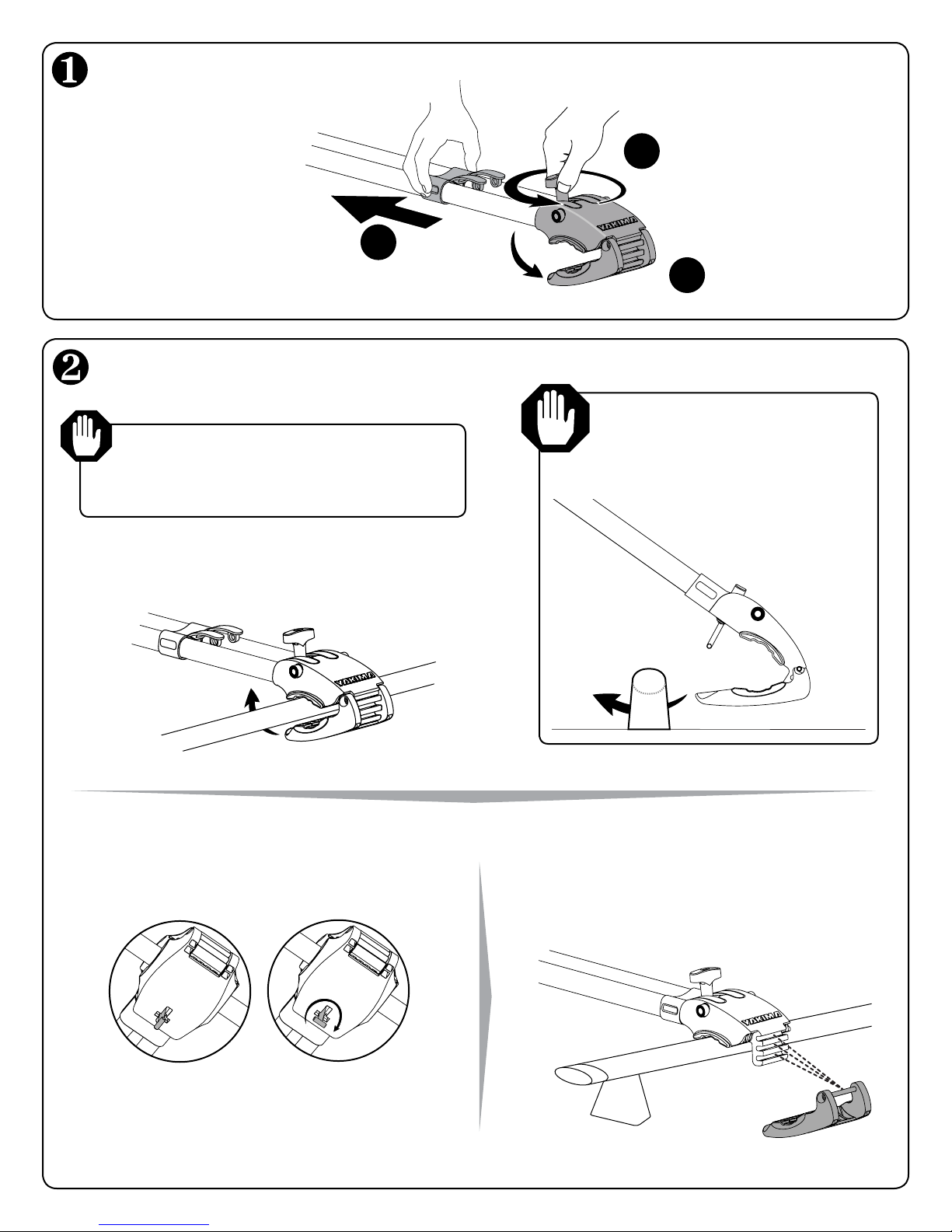

Open jaws.

Attach ForkLift jaws to front crossbar.

Close jaws around crossbar.

Pass the t-bolt through the opening in lower

jaw. Rotate t-bolt to rest in slot.

Tighten the knob, but don’t tighten all the

way. Final tightening will occur after rear

clamp has been installed.

Open slider.

Use caution to avoid hardware damaging

roof’s ﬁnish. A towel placed on the roof prior

to installation can help avoid scratches.

Loosen knob.

Open locking slider, loosen knob, open jaw.

For low clearance crossbars:

Hold ForkLift at an angle

while positioning jaw around

crossbar to avoid any contact

with your vehicle’s roof.

For factory bars choose the best

position for most secure grip.

Adjust jaw if necessary.

(Upper notch for round

and square bars.)

If you don’t get a secure grip with

your factory bars adjust jaw.

90°

1033615B-3/24

Upper notch for round

and square bars.

For factory bars

choose the best

position for most

secure grip.

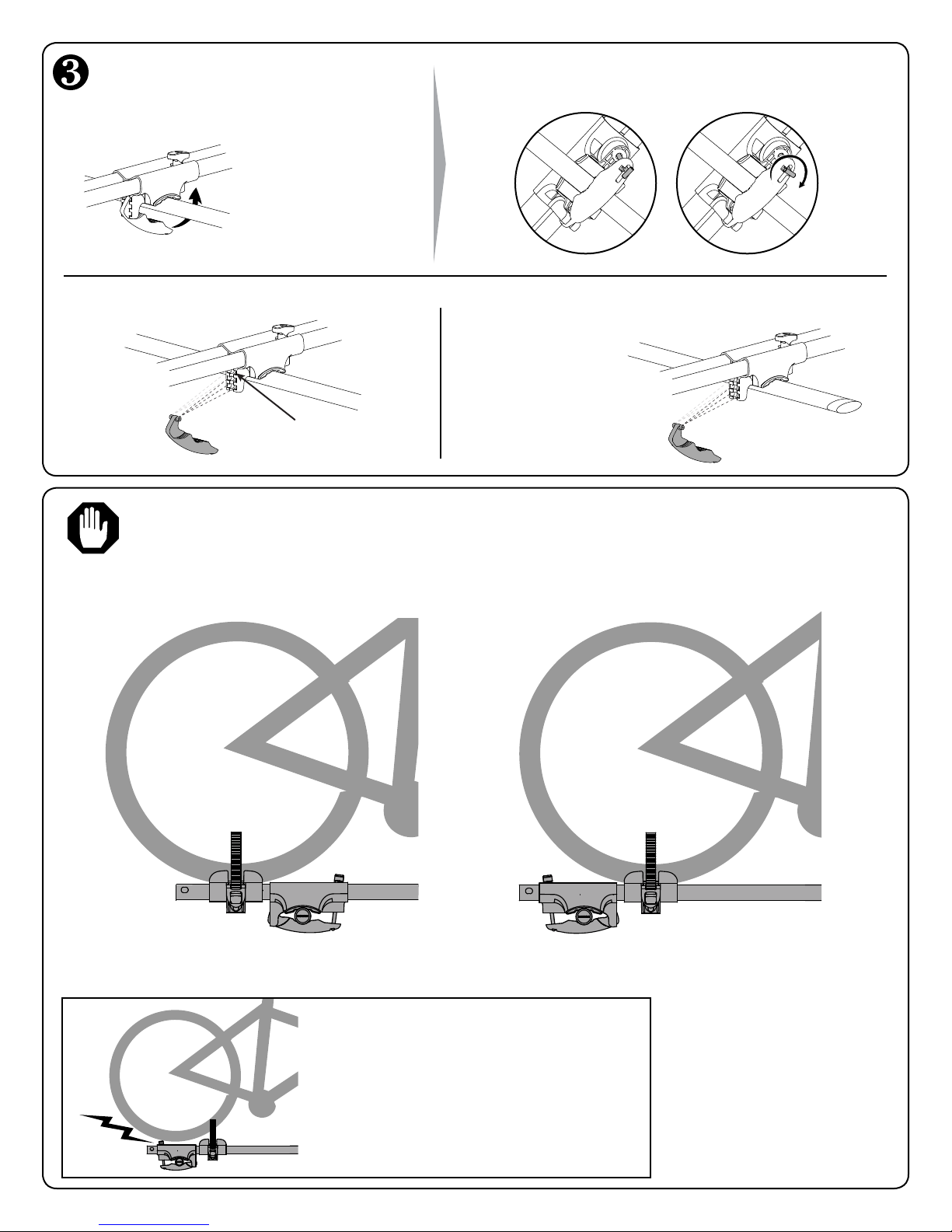

Close rear clamp

around crossbar.

Pass the t-bolt through the opening in bail.

Rotate t-bolt to rest in slot in bail.

Secure rear clamp.

Adjust clamp if necessary. If you don’t get a secure grip with

your factory bars adjust your clamp.

The rear clamp is conﬁgured for typical installations. In some situations adjustment may be

necessary if the wheel makes contact with the rear knob, or if the wheeltray cannot reach the wheel.

Wheel ahead of rear crossbar.

Wheel behind rear crossbar.

See next page for how-to.

OPTION A OPTION B

If changing the orientation of the rear

clamp still results in the rear wheel

contacting the knob, please contact our

customer service team (888-925-4621)

for a free, corrective adapter.

1033615B-4/24

Fully tighten

the rear knob.

Fully tighten the front knob. Close locking

slider.

TIGHTEN DOWN KNOBS, close locking slider.

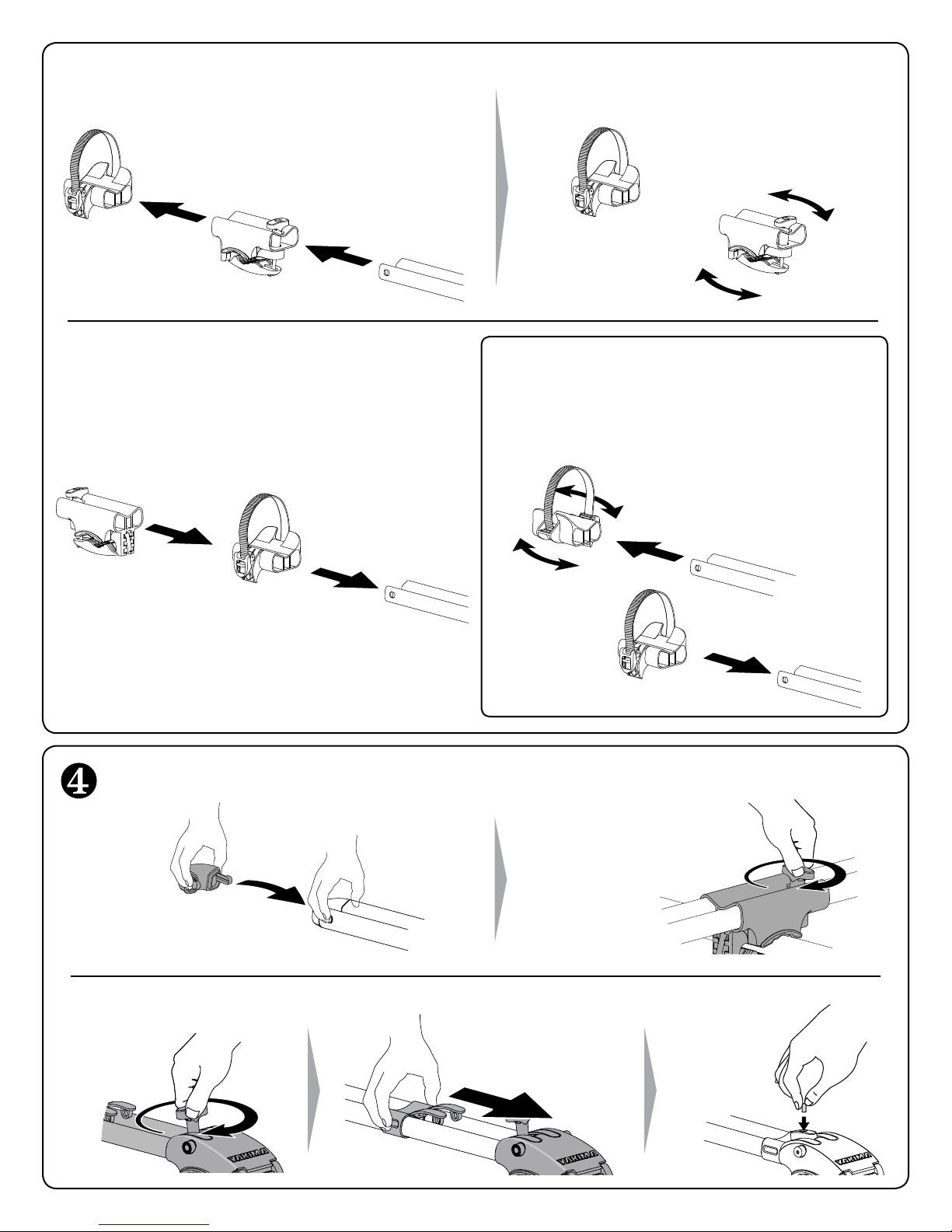

Remove wheeltray and rear clamp.

Flip orientation of rear clamp 180˚.

Install endcap.

Continued from previous page...

NOTE: You can ﬂip the wheeltray or rear clamp

independently as needed. For instance if you

needed the buckle on the opposite side you

could ﬂip the wheeltray as shown.

Slide wheeltray and rear

clamp back onto forks.

Install vinyl

cap.

1033615B-5/24

Remove front wheel and load your bike.

Set bicycle forks vertically onto skewer.

BE SURE FORKS ARE FULLY SEATED!

Prevent damage

to your forks!

Tuck wheelstrap into the

slot to make way for the tire.

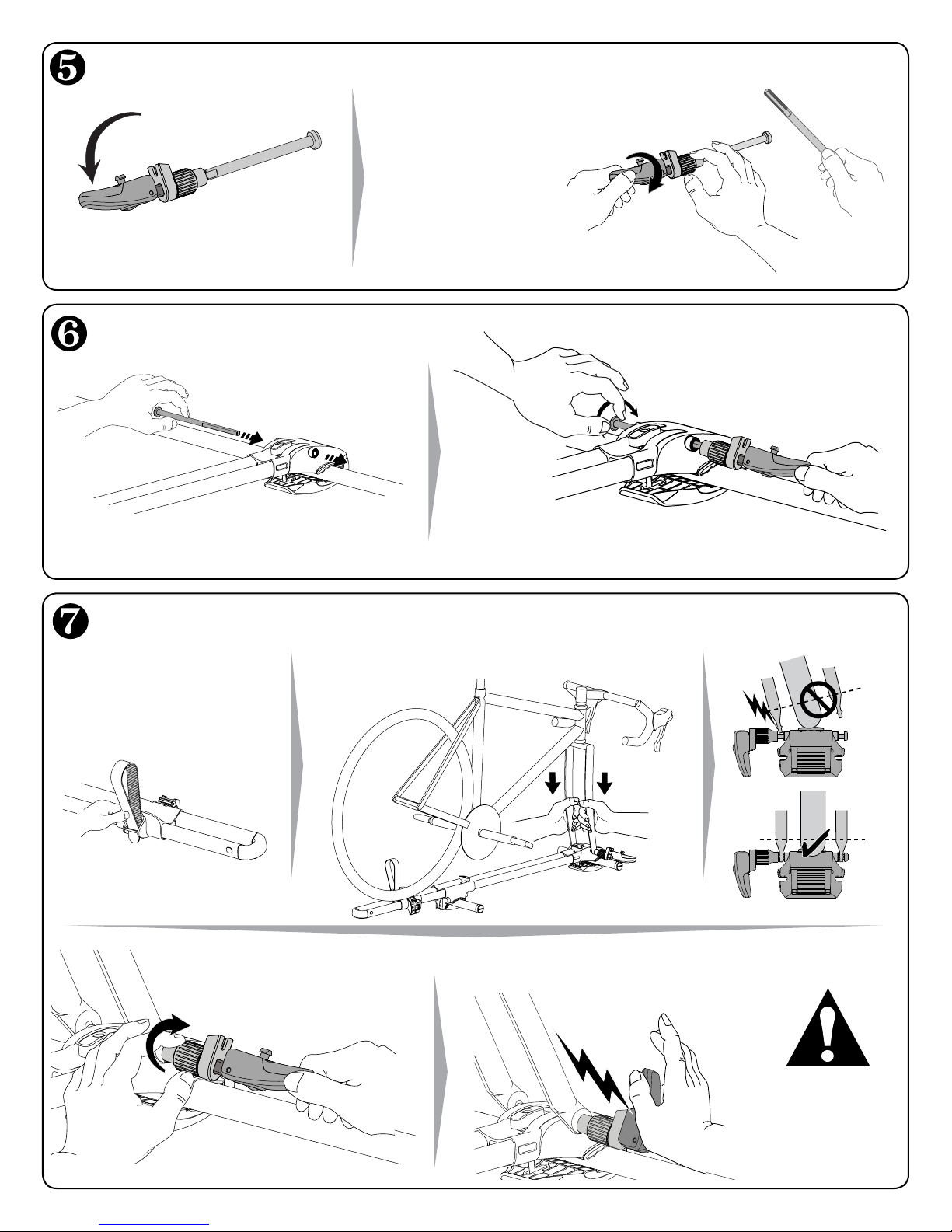

SEPARATE THE SKEWER’S SHAFT FROM ITS HANDLE.

Open handle. Hold the adjustment knob.

Turn handle clockwise to

remove the shaft.

INSTALL SKEWER. Hold the shaft at the far

end. Join the handle with

the shaft, turn the shaft

counter-clockwise.

NOTE: Adjustment knob will turn with shaft.

Skewer direction is your choice:

Consider lock access.

Gently push and

wiggle skewer

through ForkLift head.

With lever open, tighten

adjustment knob clockwise

until the lever closes with

FIRM resistance.

NOTE: Shaft will turn with adjustment knob.

CLOSE THE LEVER. It should close with

FIRM RESISTANCE against the forks.

Your bike’s forks

are secure ONLY

after the lever

closes with SOLID

RESISTANCE.

1033615B-6/24

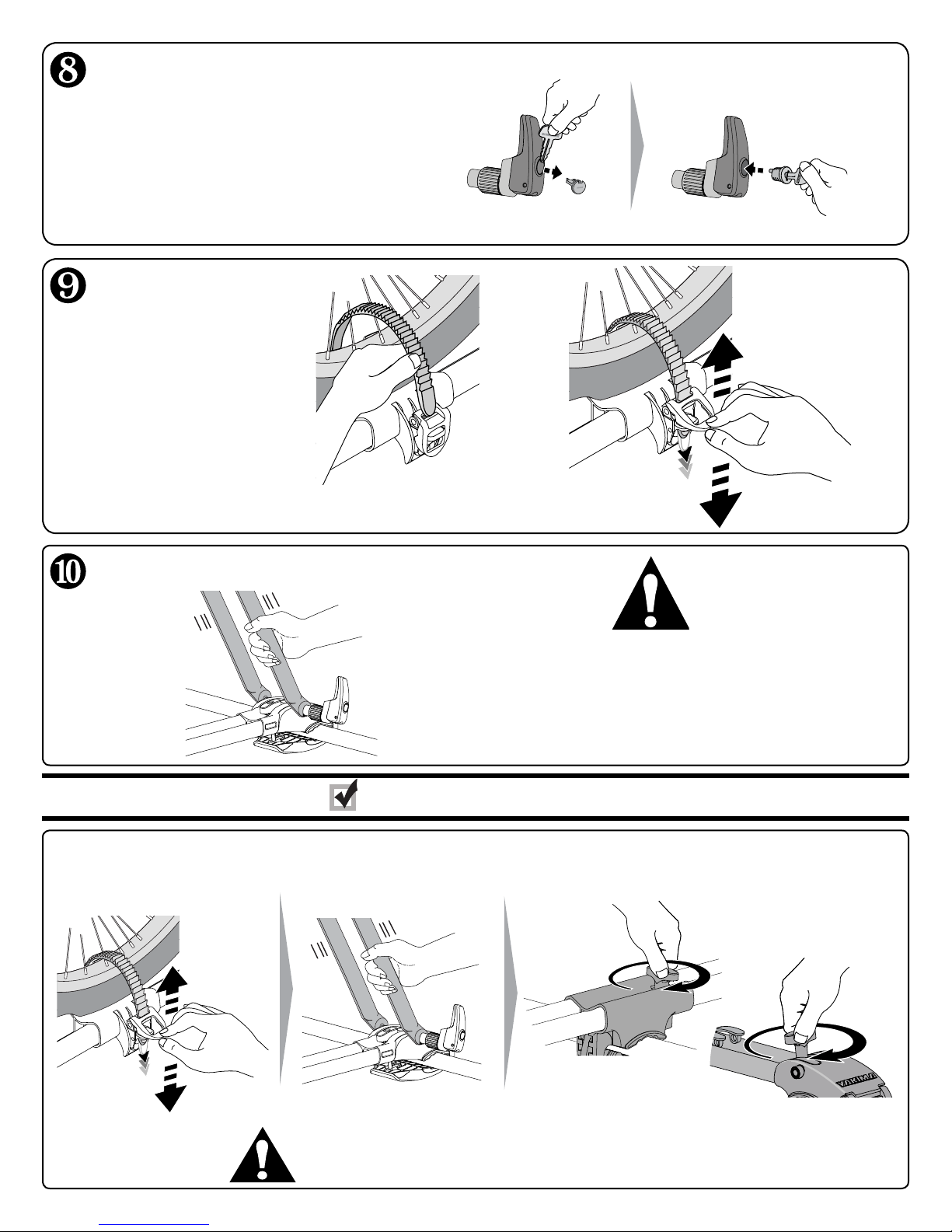

Insert strap end into buckle.

Install lock core.

Secure rear wheel.

Tug on bike fork.

Check to make sure bike is secure.

If you have purchased a lock, follow

lock core instructions to install.

Pull strap through

wheel spokes.

Do not let strap push

against valve stem.

Move the

ratchet tab up

and down to

tighten strap.

BEFORE DRIVING AWAY

• CHECK REAR WHEEL.

Tighten the strap if needed.

• CHECK THAT BIKE

FORK IS SECURE.

• PERIODICALLY CHECK THAT KNOBS

ARE ADEQUATELY TIGHTENED.

NOTE: Always check your base system to ensure crossbar stability!

TEST YOUR

INSTALLATION! If forks

can move in the mount,

open the lever and

tighten the adjustment

knob more.

R8A9N1D

ºC ºF

1033615B-7/24

BE SURE ALL HARDWARE IS SECURED ACCORDING TO

INSTRUCTIONS. ATTACHMENT HARDWARE CAN LOOSEN OVER

TIME. CHECK BEFORE EACH USE, AND TIGHTEN IF NECESSARY.

Use non-water soluble lubricant on screws. Use a soft cloth

with water and mild detergent to clean plastic parts.

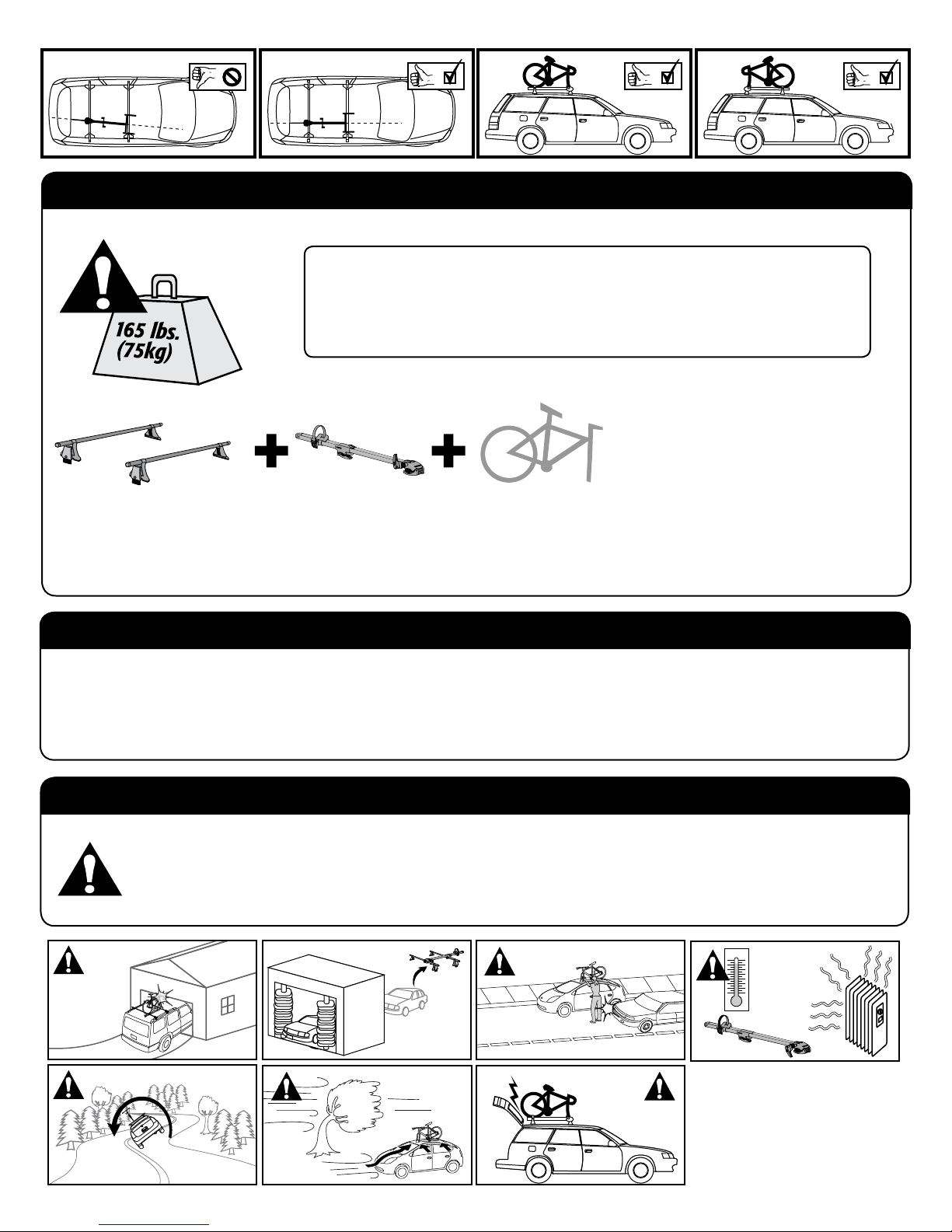

LOAD LIMIT

MAINTENANCE

WARNING

Not more than 165

lbs. (75 kg) unless

otherwise noted.

Follow the YAKIMA Fit List or check online at

Yakima.com for your rack’s weight limit. Do not

exceed the weight limit of your vehicle’s rack.

*(Some vehicles will be rated lower than 165 lbs. (75 kg))

RACK THIS PRODUCT

(7 lbs. / 3.2 kg)

LOAD

(40 lbs./ 18.1Kg maximum)

1033615B-8/24

READ THESE WARNINGS:

KEEP THESE INSTRUCTIONS!

REPLACEMENT PARTS

REINSTALLATION

TECHNICAL ASSISTANCE OR REPLACEMENT PARTS

Contact your dealer, or visit www.yakima.com, or call

(888)925-4621 Monday through Friday, 7:00 AM to 5:00 PM, PST

If you remove carrier, follow instructions to reinstall.

FOLLOW SAFETY CHECKS AFTER EVERY INSTALLATION.

• This bike carrier is designed for bikes that use standard 100mm x 9mm quick release front hubs. Do

not carry bikes with other hub standards (qr15, all thru-axles, maverick, lefty, etc.) Without approved

adapters.

• Bicycle fork must be equipped with safety tabs. Removal or alteration of safety tabs will void warranty

when used with this carrier.

• Failure to properly install, adjust, use, and maintain the quick release mechanism on this carrier may

result in damage to the vehicle and bike as well as serious personal injury.

• Any modiﬁcation to bike dropouts can cause insufﬁcient fork mount clamping pressure and may result

in damage or loss of bike.

• Do not carry bikes with disk wheels, wheels covers, baby seats, panniers, bike covers or motors.

• Do not carry tandem or recumbent bicycles.

• Off-road driving is not recommended.

• Not all forks are compatible with Yakima mounts. If your fork has a unique feature or design that

prevents the mount from being used in accordance with these instructions, do not use it.

LIMITED LIFETIME WARRANTY

This product is covered by YAKIMA’s “Love It Till You

Leave It” Limited Lifetime Warranty To obtain a copy of

this warranty, go online to www.yakima.com or email us

at [email protected] or call (888) 925-4621

1033615B-9/24

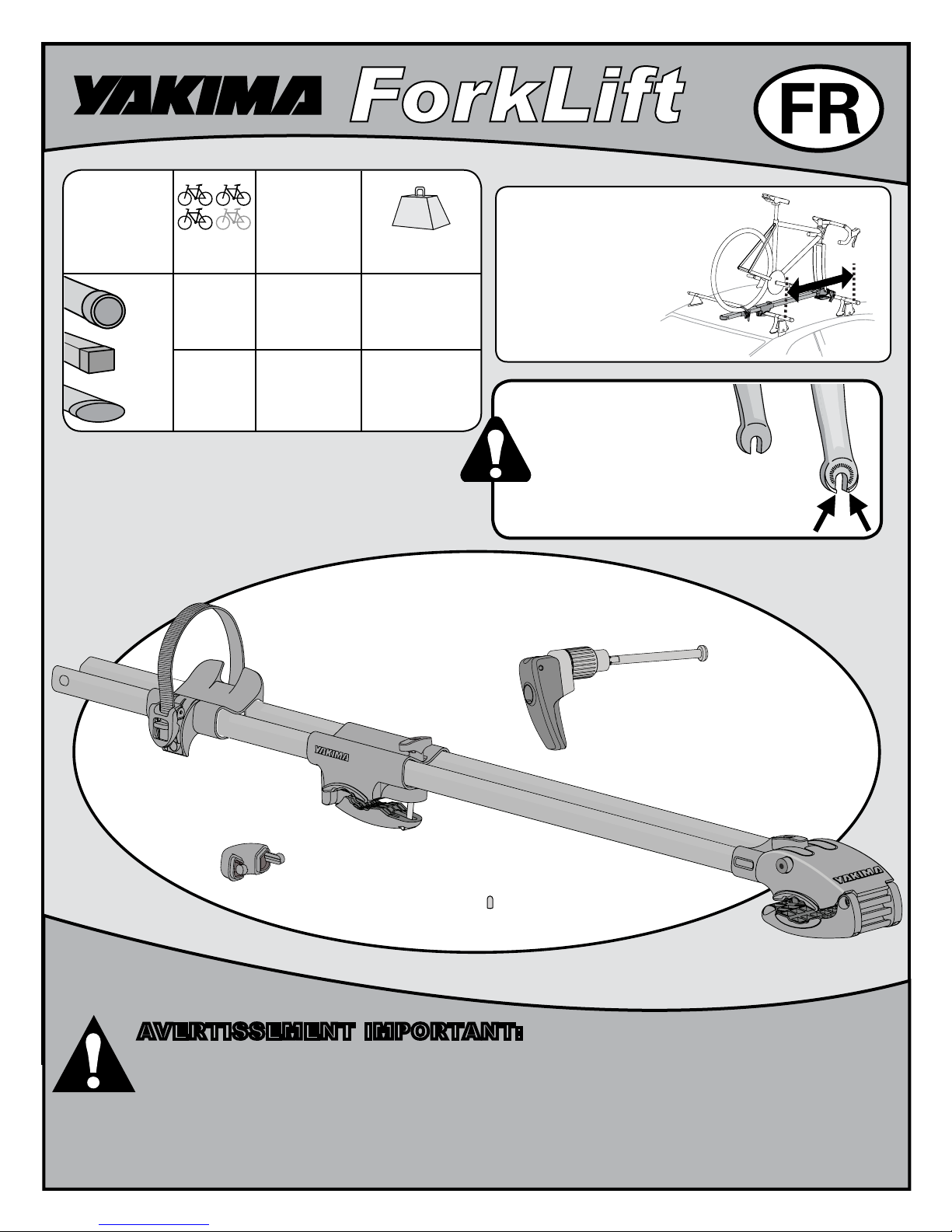

PORTE-VÉLO FORKLIFT (X 1)

AXE À SERRAGE RAPIDE

VERROUILLABLE (X 1)

GARNITURE

D’EXTRÉMITÉ (X 1) CAPUCHON DE

VINYLE (X 1)

AVERTISSEMENT IMPORTANT:

IL EST IMPÉRATIF QUE LES PORTE-BAGAGES ET LES ACCESSOIRES YAKIMA SOIENT CORRECTEMENT ET SOLIDEMENT FIXÉS AU

VÉHICULE. UN MONTAGE MAL RÉALISÉ POURRAIT PROVOQUER UN ACCIDENT D’AUTOMOBILE, QUI POURRAIT ENTRAÎNER DES

BLESSURES GRAVES OU MÊME LA MORT, À VOUS OU À D’AUTRES PERSONNES. VOUS ÊTES RESPONSABLE DE L’INSTALLATION DU

PORTE-BAGAGES ET DES ACCESSOIRES SUR VOTRE VÉHICULE, D’EN VÉRIFIER LA SOLIDITÉ AVANT DE PRENDRE LA ROUTE ET DE LES INSPECTER

RÉGULIÈREMENT POUR EN CONTRÔLER L’ÉTAT, L’AJUSTEMENT ET L’USURE. VOUS DEVEZ DONC LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS

ET TOUS LES AVERTISSEMENTS ACCOMPAGNANT VOTRE PRODUIT YAKIMA AVANT DE L’INSTALLER ET DE L’UTILISER. SI VOUS NE COMPRENEZ PAS

TOUTES LES INSTRUCTIONS ET TOUS LES AVERTISSEMENTS, OU SI VOUS N’AVEZ PAS DE COMPÉTENCES EN MÉCANIQUE ET NE COMPRENEZ PAS

PARFAITEMENT LA MÉTHODE DE MONTAGE, VOUS DEVRIEZ FAIRE INSTALLER LE PRODUIT PAR UN PROFESSIONNEL.

CROSSBAR SPREAD

*DISTANCE ENTRE LES

BARRES TRANSVERSALES

La distance

entre les barres

transversales

c’est… la distance

entre les barres

transversales !

NE PAS DÉPASSER LA LIMITE DE CHARGE DU PORTE-BAGAGE !

Charge

Distance

mini – maxi

entre barres

transversales*

16" - 42"

41cm - 107cm

18" - 42"

46cm - 107cm

Limites

1 ou 2

vélos

3 vélos

ou plus

Type de

porte-

bagage

distance de 41 cm =

35 lb/vélo

15,9 kg/vélo

distance de 46 cm =

40 lb/vélo

18,1 kg/vélo

Barres rondes, Barres

carrées, Barres d’origine

Fourche

avec ergots

de sécurité

CONÇU POUR LES

FOURCHES MUNIES

D’ERGOTS DE SÉCURITÉ.

90°

1033615B-10/24

Ouvrir la mâchoire.

Accrocher la mâchoire à la barre avant.

Fermer la mâchoire sur la barre.

Enﬁler le boulon en T dans l’ouverture de la

mâchoire. Le tourner pour le caler dans la fente.

Serrer le bouton, mais pas complètement

: on terminera le serrage une fois que la

pince arrière sera installée.

Éloigner la fourchette

de verrouillage.

Faire attention de ne pas abîmer le ﬁni du

toit. Placer une serviette sur le toit pour

éviter les égratignures.

Desserrer le bouton.

Éloigner la fourchette de verrouillage, desserrer le bouton et ouvrir la mâchoire.

Si la barre est près du

toit :Relever le proﬁlé du

porte-vélo pendant que l’on

accroche la mâchoire à la

barre avant pour éviter le

contact avec le toit.

Pour les barres d’origine, régler la

mâchoire dans l’encoche qui offre

la meilleure prise.

Régler la position de la mâchoire si nécessaire.

(Encoche du haut pour les

barres rondes et carrées.)

Si la mâchoire n’accroche pas bien sur

la barre d’origine, régler la mâchoire.

Andere Handbücher für forklift

Inhaltsverzeichnis

Sprachen:

Andere Yakima Autozubehör Handbücher

Yakima

Yakima Universal MightyMount Bedienungsanleitung

Yakima

Yakima BuckHorn 4 Bedienungsanleitung

Yakima

Yakima LockNLoad 9831007 Bedienungsanleitung

Yakima

Yakima Safety Pole Bedienungsanleitung

Yakima

Yakima BackSwing Bedienungsanleitung

Yakima

Yakima K1249 Bedienungsanleitung

Yakima

Yakima K158 Bedienungsanleitung

Yakima

Yakima OverHaul HD Bedienungsanleitung

Yakima

Yakima Q6 Bedienungsanleitung

Yakima

Yakima Q102 Bedienungsanleitung

Yakima

Yakima RAILBAR COVER AND LATCH FIX KIT Bedienungsanleitung

Yakima

Yakima HoldUp Plus2 Bedienungsanleitung

Yakima

Yakima 8005017 Bedienungsanleitung

Yakima

Yakima BedRock Bedienungsanleitung

Yakima

Yakima Highroad Bedienungsanleitung

Yakima

Yakima FatCat 4 Bedienungsanleitung

Yakima

Yakima KayakStackers Bedienungsanleitung

Yakima

Yakima DoubleHaul Bedienungsanleitung

Yakima

Yakima RidgeBack 4 Bedienungsanleitung

Yakima

Yakima ReelDeal Bedienungsanleitung

Yakima

Yakima K1006 Bedienungsanleitung

Yakima

Yakima DryDock Bedienungsanleitung

Yakima

Yakima HighSpeed Bedienungsanleitung

Yakima

Yakima HullRaiser Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung

Prorack

Prorack K1163 Bedienungsanleitung

Yakima forklift Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken
