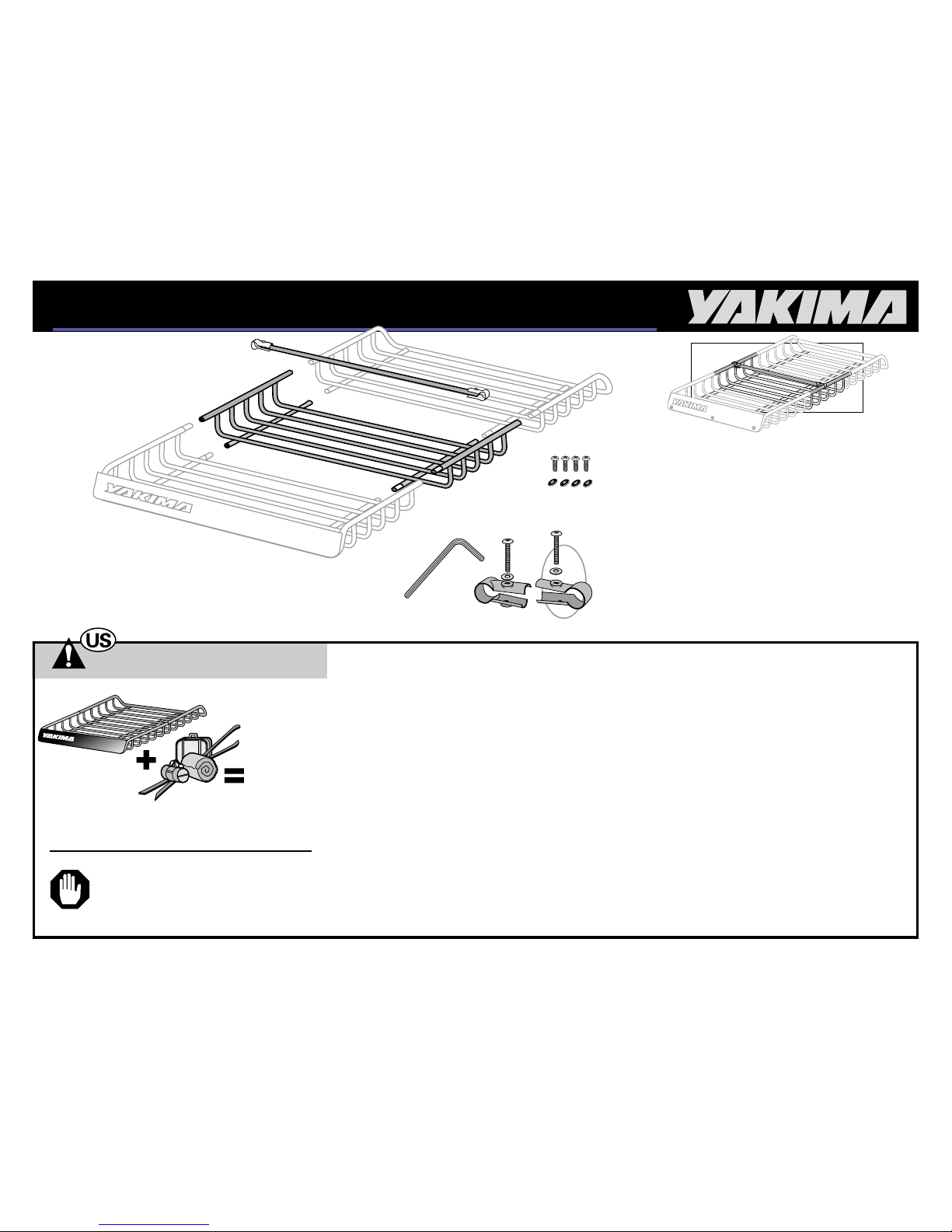

Yakima LoadWarrior Extension Bedienungsanleitung

LoadWarrior

Extension

LOAD LIMITS:

▲

30 lbs.

(13.5 kg) ▲

basket

contents

DO NOT

EXCEED

YOUR

RACK’S

weight limit!

DO NOT EXCEED

BASKET CONTENT WEIGHT LIMIT:

140 LBS. (63 KG)

Carry gear in the

basket, and attach

accessories directly

to the LoadWarrior

(using accessory

instructions).

(1x)

(2x)

(4x)

IF YOU HAVE BARS THAT CAN BE MOVED…

Move the bars apart to a range of 30" to 50".

LOAD BASKET ONTO RACKS.

Center basket over your rack’s

crossbars.

ATTACH BRACKETS TO BASKET SECTIONS ONLY.

For first time bracket installation, refer to LoadWarrior instructions.

•IF YOU HAVE FIXED BARS: •IF YOUR BARS MOVE:

(SIDE VIEW)

A friend

would make

this easier .

Q TOWER OWNERS:

NEVER REPOSITION THE Q TOWERS! TIGHTEN YOUR CROSSBARS

IF YOU LOOSENED THEM.

IF YOU HAVE “Q TOWERS”

OR BARS THAT CANNOT MOVE…

Continue to STEP .

T-BOLT IS LOCKED when the

“T”of the bolt is turned

inside the hole:

TIGHTEN

THE KNOBS.

SECURE THE BASKET TO

THE BARS.

Lock the T-Bolts.

ATTACH BOLTS AND KNOBS.

Insert bolts, engage the knobs.

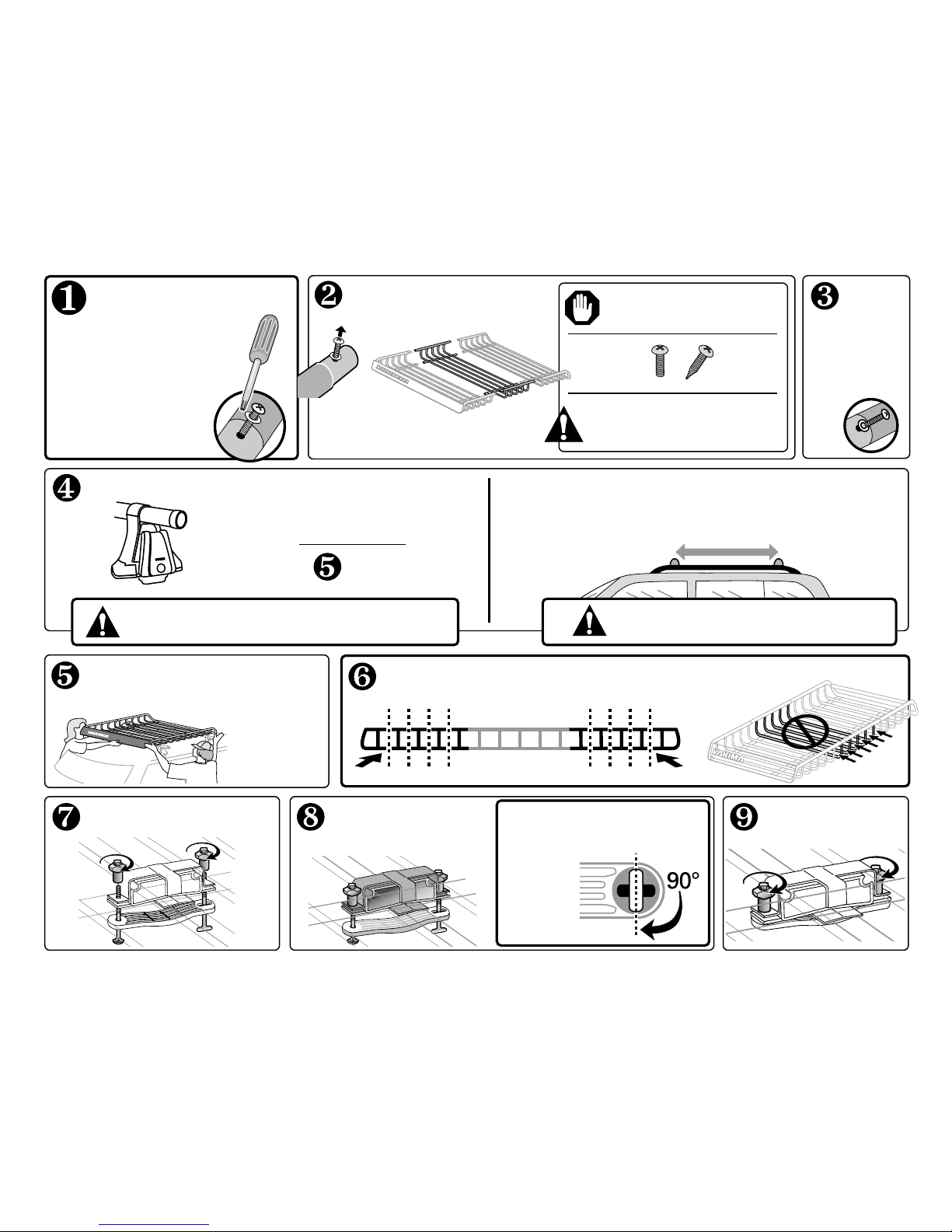

Remove the machine screws from

the ends of the Extension tubes.

•Insert the LoadWarrior Extension.

You may find tapered screws

with your LoadWarrior.

Insert correct

screws into

each of the

joints and

tighten them.

IF YOU ALREADY HAVE A

LOADWARRIOR

INSTALLED:

•Remove it from your car.

•Disassemble the brackets

and set them aside.

•Separate the two basket

halves by removing the

screws at the joints. NOTE: Always replace

machine screws (from Extension) into

same holes when reassembling.

MACHINE

SCREWS TAPERED

SCREWS

DO NOT insert the tapered screws

from LoadWarrior into your

Extension’s holes.

Tighten bolts while

pushing the end

clamps together.

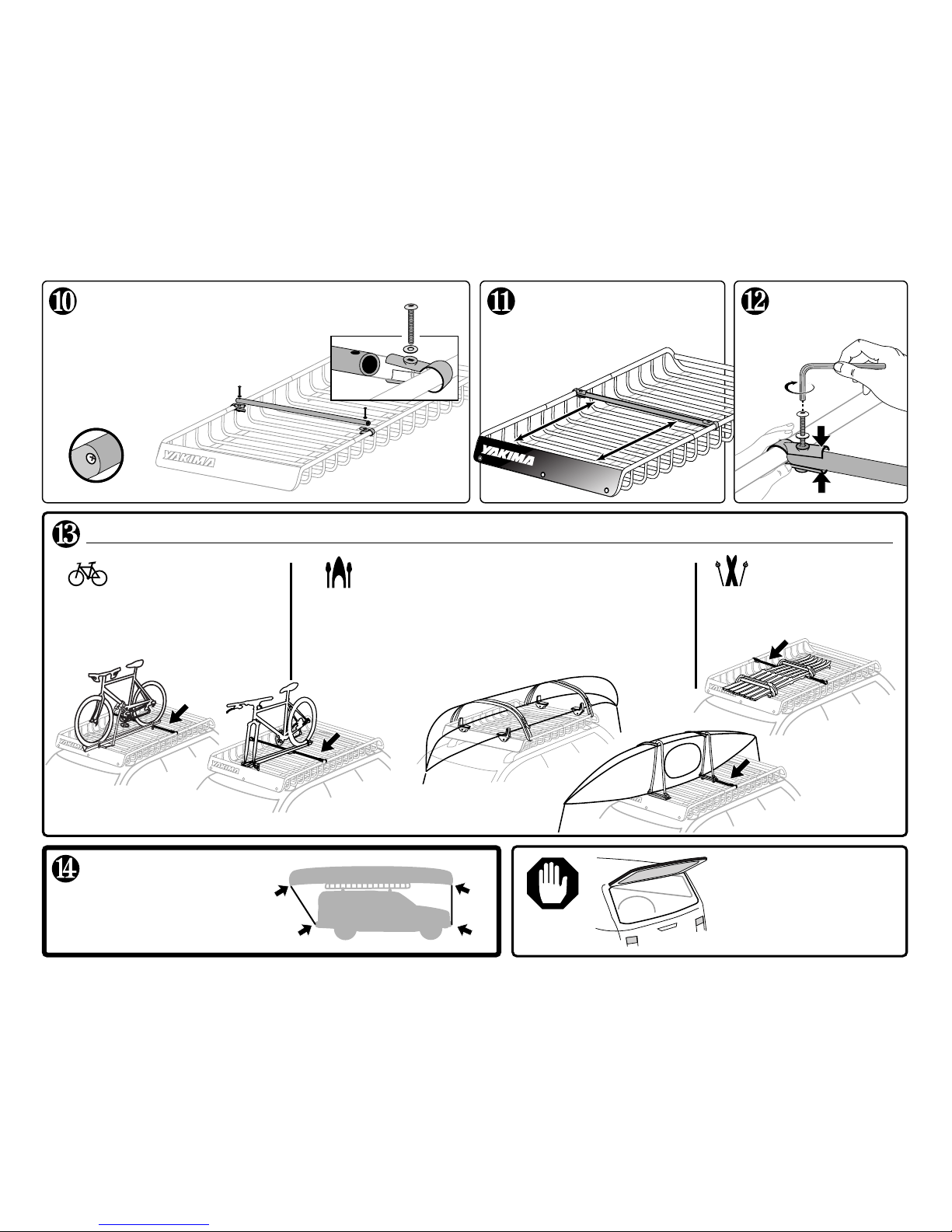

REFER TO THE DRAWINGS BELOW

FOR BAR PLACEMENT,

or to

determine if the bar is required.

With a washer on the bolt, align the end

clamps to the hole in the bar. Thread the

bolts into the embedded nuts.

DO NOT COVER

JOINT SCREWS WITH END

CLAMPS.

ATTACH LOAD BAR WITH END CLAMPS.

BIKES

•Attach carrier at front of basket

and to load bar.

•Adjust the bar for load stability.

BOATS

•For shorter boats, attach accessory at front of

basket and to load bar.

•Longer loads, such as canoes or sea kayaks,

require the load bar to be removed.

SKIS

•Attach accessory at front of

basket and to load bar.

Short boat

utilizing LoadBar

Long loads may interfere

with LoadBar

Upright carrier

utilizing LoadBar Fork style carrier

utilizing LoadBar

ACCESSORIES MUST BE ATTACHED TO THE FRONT OF THE BASKET (FRONT OF VEHICLE).

USE CAUTION WHEN

OPENING YOUR HATCH.

On some vehicles, hatch

interference is unavoidable.

ALWAYS TIE

DOWN LONG

LOADS TO FRONT

AND REAR OF

VEHICLE.
