Yale Luna Pro+ Bedienungsanleitung

Installation Guide

Part of ASSA ABLOY STC-Luna-49S00236

Yale Luna Pro+ / Pro

Yale Luna Pro+

FaceScan / CPU card /

Fingerprint / PIN code / Key

Yale Luna Pro

CPU card / Fingerprint / PIN

code / Key

Part of ASSA ABLOY

Yale Luna Pro / Luna Pro+ 3D人脸推拉锁安装指导书

材质：封面126g铜版纸，内页100g双胶纸双面单色印刷装订册

尺寸：205*140mm 24页

* The pictures in this installation manual are for illustration purposely,

and the actual product or parts may vary. *

Table of contents

1 Preparation before installation

2 Product installation

1.1 Product parts list

1.2 Optional accessories

1.3 Door direction confirmation

1.4 Mortise installation preparation

1.5 Fixing handing direction

1.6 Reversing handing direction (if needed)

1.7 Installation of threaded pull tube, positioning plug

and transmission plate

1.8 Main body handle cover removal

1.9 Door holes opening

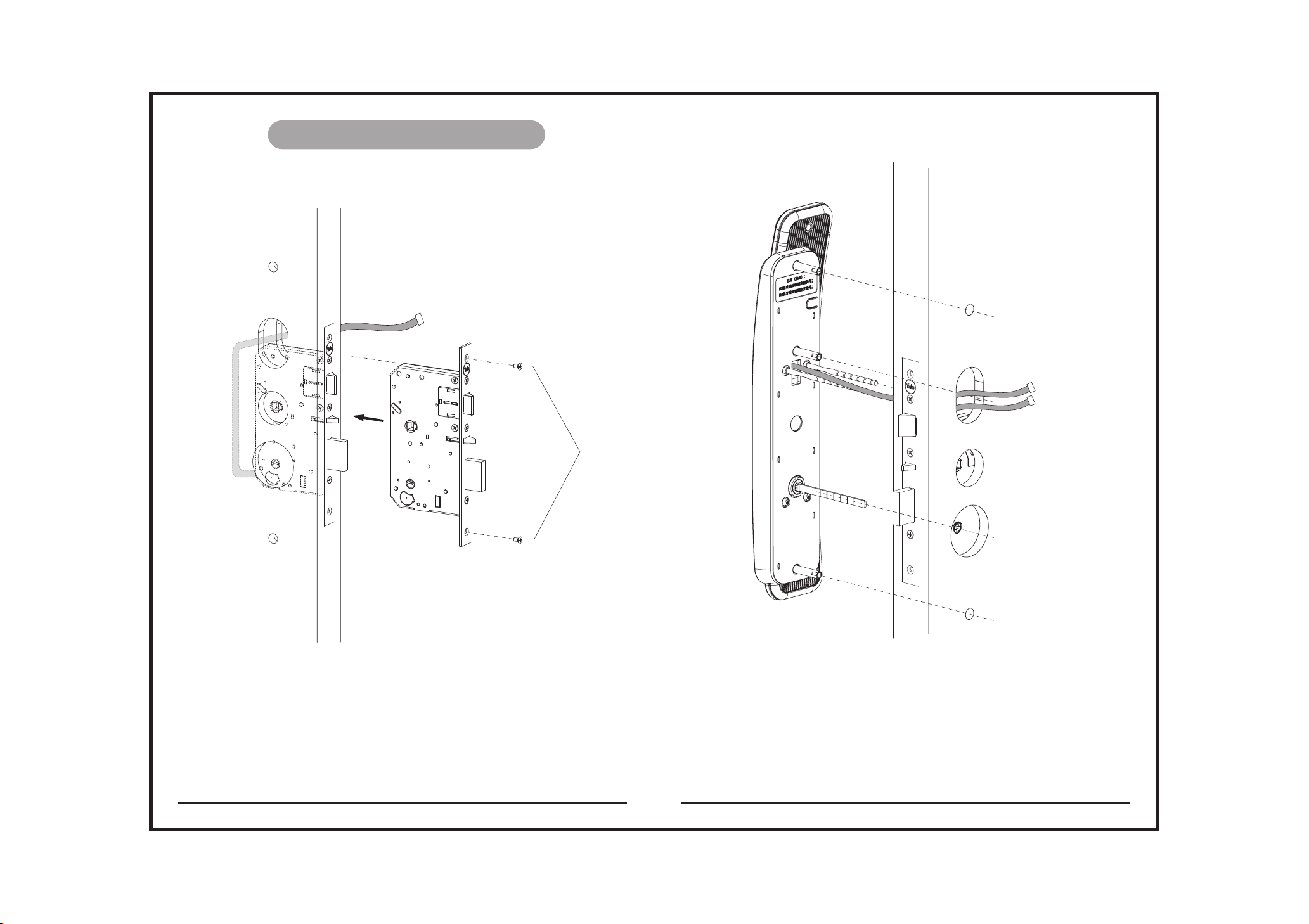

2.1 Mortise installation

2.2 Front body installation

2.3 Main body plate installation

2.4 Main body installation

2.5 Striker plate and striker box installation

2.6 Key installation

2.7 Acceptance test

................................

1.1 Product parts list

Product main parts

Mortise, striker plate, Striker box, screws

Front body

Left / right decorative panel

(1x each)

Main body plate

Main body

Mortise

Mortise screw

Wooden door

striker plate

* Select the appropriate striket plate

according to the application

Steel door

striker plate

Striker box

1x 10x

Preparation before installation

The battery type may vary depending on the model.

Please do not use or test the mechanical key override before the completion of installation to avoid potential complications

and damages.

Note

CPU card 2x

Lithium battery 1x

(Yale Luna Pro+)

Alkaline AA battery 8x

(Yale Luna Pro)

Type-C USB cable 1x

(Yale Luna Pro+)

Installation Accessories Kit

Accessories

Mechanical key override 2x

1. Threaded pull tube

30mm/50mm/70mm

3x each

5. Transmission plate 100mm

4. Positioning plug 100mm

2. Pull screw

35mm/50mm/70mm

3x each

3. Spindle

35mm/45mm/60mm/80mm

1x each

6. Round head screw M4x8

10x

7. Round head screw ST2.9x8

(for installation of decorative panel)

8. Screw cap 10x

Cover the screw at the back of

the front body

9. Cotter pin 1x

(for fixing of transmission plate)

10. Spindle Retaining Ring 1x

(For securing spindle position)

11. Cover plate 1x

(For covering the interior cables)

1.2 Optional accessories

Exterior

Round head screws

Interior

Exterior Interior

Remarks:

①Door thickness is the actual total thickness of the door.

②The default factory accessories package is only suitable for 35-100mm door thickness; other

door thicknesses require customized accessories package

Note

3 4

Length=35mm

Length=45mm

Length=60mm

Length=80mm

L1≥17mm

Remark

L1≥23mm

35-44

45-59

60-79

80-100

Spindle

Door

thickness

(mm)

Table 1.2.2 Selection of spindle

The distance from the mortise center line to the outdoor door edge is L1

cut 7 sections

cut 6 sections

cut 4 sections

cut 3 sections

cut 5 sections

cut 3 sections

Please refer to

Table 1.2.2

35-50

51-70

71-90

91-100

30 35

50 35

70 50

70 70

Threaded pull tube Pull screw Spindle Positioning plug Transmission plate

Door

thickness

(mm)

Table 1.2.1 Selection and customization of installation accessories

1 2 3 4 5

door thickness

Spindle

Mortise

center line

1.3 Door direction confirmation 1.4 Mortise installation preparation

Striker plate

Screw

Note

left opening door right opening door

Outward door - Door is pulled outwards.

Inward door - Door is pushed inward.

Interior

Left inward-opening Right inward-opening

Left outward-opening Right outward-opening

Exterior

Interior

Exterior

Rotate

180°

door open/close direction

Latch bolt reversing guide as below

Interior

Exterior

Interior

Exterior

5 6

Recommended door gap for installation: 3mm≤door gap≤8mm

This product can be applied to doors with four opening directions: left inward-opening, left

outward-opening, right inward-opening, right outward-opening. Take the person standing

outside facing the door as the standard: if the hinge of the door is installed on the left side, then

the door is a left opening door, and if the hinge on the door is installed on the right side, then the

door is a right opening door.

The latch bolt direction is determined by the door opening direction, either left

inward-opening, right inward-opening, left outward-opening or right outward-opening

To determine the latch direction by checking the door opening direction, either left inward-open-

ing, left outward-opening, right inward-opening, right outward-opening, this is to ensure that

when the door is closed, the latch bolt can be retracted under the pressure of door frame.

Step 1. Use a tool to remove screws as show in picture, and disassemble striker plate from

mortise.

Step 2. Remove by pulling out the latch bolt, change the latch bolt direction by rotating 180°

manually, and reinsert the latch bolt to the mortise.

Step 3. After reversing, reinstate the striker plate and screws.

Check and adjust the latch

bolt direction accordingly to

ensure the straight edge of

the latch bolt is perpendicu-

lar to the door opening

direction.

1.5 Fixing handing direction

For right-opening door, slide the handle to the right; for left-opening door, slide the handle

to the left.

Note

Decorative

panel (right)

. Handle

Front body

Cover plate

. Round head screws

(ST2.9) for handing fixing

. Round head screws

(M4) for handing fixing

. Round head screws

(M4) for securing cover plate

. Decorative

panel buckle

Handle direction to be determined by door handing direction..

Screw holes at the back panel,

to put on screw caps

7 8

Step 1. Handle is positioned at the center by default.

Step 2. Slide the handle to the desired position based on the door handing direction.

Step 3. Secure the cover plate with round head screws (M4).

Step 4. Ensure the decorative panel is secured into the decorative panel.

Step 5. Secure the corresponding decorative panel with round head screws (ST2.9).

Step 6. Secure the handle with the round head screws (M4)

1.6 Reversing handing direction (if needed)

. Cover plate

. Round head screws (M4)

for securing cover plate

. Decorative

panel (left)

. Decorative

panel buckle

. Decorative

panel buckle

. Handing fixing

screws (M4)

decorative panel and cover plate

9 10

If you need to change the door opening direction due to ie. changing of the door,

you will need to reverse the door handing direction.

Step 1. Unscrew the handing fixing screws and the cover plate screw at the back of the front

body.

Step 2. Push out the decorative panel from the buckle.

Step 3. Disassemble the decorative panel and cover plate.

Step 4. Slide the handle to the opposite position.

Step 5. Secure the cover plate with round head screw (M4).

Step 6. Ensure the decorative panel is secured into the decorative panel buckle.

Step 7. Secure the corresponding decorative panel with round head screw (ST2.9)

Step 8. Secure the handing fixing screws (M4)

. round head

screws (ST2.9)

. round head

screws (M4)

. round head

screws (M4)

. round head

screws ST2.9

1.7 Installation of threaded pull tube,

positioning plug and transmission plate

1.9 Door holes opening

1.8 Main body handle cover removal

Lock body hole template

screw hole

Mortise hole-opening template

Threaded pull tube

Positioning plug

Cotter pin

Transmission plate

Gasket

Step 1. Insert transmission plate

Step 2. Bend the cotter pin with a tool to secure the transmission plate.

Step 3. Cut the positioning plug to the required length according to Table 1.2.1 in section 1.2

11 12

Before installation, use a flat-headed screw driver to detach the handle cover on

the main body as shown in the picture above to expose the screw holes for

installation later.

Bore holes on the door using the installation template. Do not close the door

during the installation of the product.

Step 1. Make hole on the door according to the template provided, insert mortise into door

panel.

Step 2. Ensure the mortise cable is pulled out gently to the interior side of the door

through the top hole.

Step 3. Secure the mortise with the two mortise screws.

Step 1. Pull through the front body cable assembly through the top hole as shown in the


Step 2. Align the positioning plug and threaded pull tube to the respective holes, and

ensure the front body gasket is tightly secured on the door panel.

2.1 Mortise installation

2.2 Front body installation

Mortise cable assembly

Exterior Interior

Mortise screw

Product installation

13 14

Step 1. Pull both cable assembly through the main body plate

Step 2.1. Place the spindle retaining ring to the hole as shown in the picture.

Step 2.2. Insert the spindle into the mortise through the spindle retaining ring

Step 3. Secure the main body plate with the pull screws

Step 4. Remove the spindle retaining ring and the spindle

Step 5. Cut the transmission plate to the required length according to Table 1.2.1 in section 1.2

Insert the spindle into the main body

and ensure the positioning pin is

aligned and inserted to the designated

hole as shown in the picture

Step 1. Insert the spindle into the main body. Make sure the positioning pin is aligned and

inserted to the designated hole to secure the spindle

Step 2. Connect the cable assemblies to the respective connectors on the main body.

Tuck the excess cables into the door panel

Step 3. Secure the main body with the round head screws (M4)

Step 4. Install the handle cover then the battery

2.3 Main body plate installation 2.4 Main body installation

InteriorExterior

2.1

2.2

Pull screw

Spindle

Retaining Ring

positioning plug

Spindle Retaining Ring

Main body plate

Spindle

Pull screw

Cut the positioning plug and transmission

plate according to Table 1.2.1 in section 1.2

Lever

handle cover

Mortise connector (right)

Front body connector (left)

Spindle Retaining Ring

Mortise

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Yale Sperren Handbücher

Yale

Yale YD-01-CON-ZW-CH Bedienungsanleitung

Yale

Yale Real Living Assure Lock YRD226 Technische Daten

Yale

Yale Narrow Profile Series Bedienungsanleitung

Yale

Yale Assure Lock YRD426 Technische Daten

Yale

Yale GATEMAN YDM 3109 Bedienungsanleitung

Yale

Yale 4800LN Bedienungsanleitung

Yale

Yale eBOSS E5400LN Series Bedienungsanleitung

Yale

Yale inTouch Bedienungsanleitung

Yale

Yale YRC216 Technische Daten

Yale

Yale Assure Lock Lever Push Button YRL216 Technische Daten

Yale

Yale Real Living Assure Lock Technische Daten

Yale

Yale Real Living Technische Daten

Yale

Yale 540F Series Bedienungsanleitung

Yale

Yale Kyra Pro Bedienungsanleitung

Yale

Yale 0402 Leitfaden

Yale

Yale Conexis L1 Bedienungsanleitung

Yale

Yale Real Living Touchscreen Lever Installationsanleitung

Yale

Yale 420F Series Bedienungsanleitung

Yale

Yale Unity Bedienungsanleitung

Yale

Yale YRCB-490-BLE-WSP Bedienungsanleitung

Yale

Yale SL7100 Series Bedienungsanleitung

Yale

Yale Keyfree Connected Smart Lock Bedienungsanleitung

Yale

Yale Real Living YRDZW Technische Daten

Yale

Yale MORTISE 8800 SERIES Kurzanleitung

Beliebte Sperren Handbücher anderer Marken

Magic

Magic 105 Bedienungsanleitung

Gantner

Gantner GAT NET.Lock 7020 System Kurzanleitung

Wittkopp

Wittkopp Insys 7202 Bedienungsanleitung

Dorma

Dorma Studio Classic Bedienungsanleitung

Securam

Securam ECSL-601 Bedienungsanleitung

Sudhaus

Sudhaus 3003 Bedienungsanleitung

Safety 1st

Safety 1st 48517 Bedienungsanleitung

Pado

Pado FDS-10 Bedienungsanleitung

Esco

Esco systeQ Series Bedienungsanleitung

COMPX

COMPX National D8951 Bedienungsanleitung

secureo

secureo Key Box Bedienungsanleitung

Stock Loks

Stock Loks C8713 Bedienungsanleitung

COMPX

COMPX 1T-058 Betriebsanleitung

Auslock

Auslock T11 Bedienungsanleitung

ELCOM

ELCOM 7205 Bedienungsanleitung

Stealth SAFES

Stealth SAFES ShadowVault Bedienungsanleitung

Knox

Knox KeySecure 5 Bedienungsanleitung

Kwikset

Kwikset 48334/01 Bedienungsanleitung
