Yale Real Living Assure Lock YRD226 Technische Daten
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
1
Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.
Yale Assure Lock®
® Touchscreen Deadbolt
Installation and Programming Instructions
(YRD226/YRD620/YRD622)
This manual will walk you through all the required steps to add your new
Yale Assure Lock to your door.
• Remove existing deadbolt
• Double check door measurements
• Install your Assure Lock
• Program your Assure Lock
• Add your Assure Lock to your smart home system or Yale
Access app if purchased with Yale Smart Module or Yale Access
Upgrade Kit
Before you begin
Using the app on your smart
phone, scan this QR for step-by
-step installation instructions & to
register your lock
DOWNLOAD
THE BILT APP
Tools Needed
Standard
Phillips Head
Screwdriver
Tools Needed For New
Doors Or Adjusting Existing Door
Utility
Knife
Drill Wood
Mortise
Chisel
Pencil Tape
Measure Level
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
2

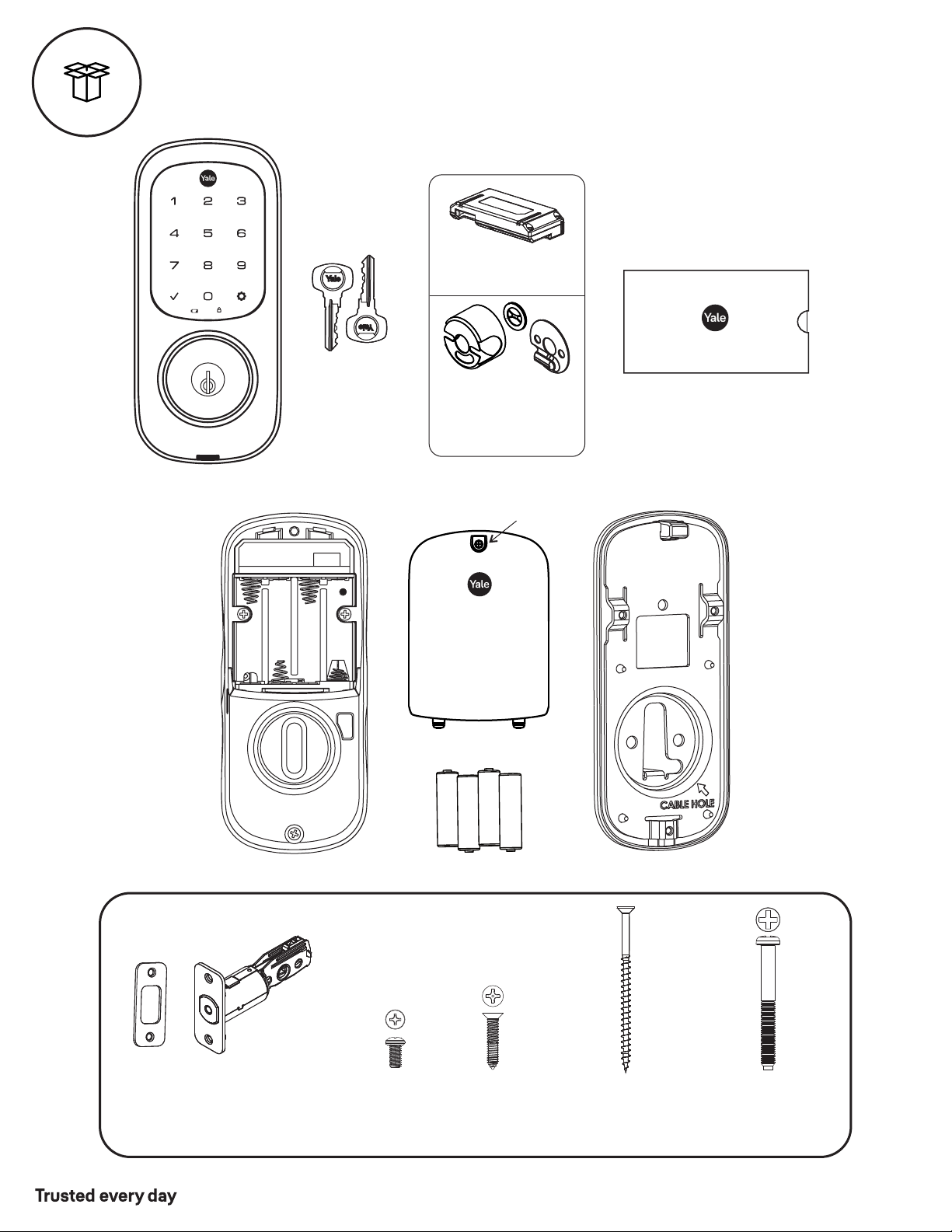

What's In The Box
Installation Guide
and Door Template
Mounting Hardware
Strike Plate Adjustable
Deadbolt
(AYRDB-DRIVE
Adjustable Drive-In Deadbolt
available for purchase)
Strike Plate
and
Deadbolt Screws
Inside Lock
Screws Optional
Security
Strike Plate Screws
Let's Get Started
Touchscreen Keypad
Long Through-bolt for
1-3/4" - 2-1/4"
Door Thickness
Yale Smart Module
(with select models)
Optional
Fire Kit Parts
(Required for
Fire Rated Openings)
x2 x2 x2
x4
Keys
Loosen screw to
remove cover
Battery Cover
Mounting Plate
Inside Lock 4 AA Batteries
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
3

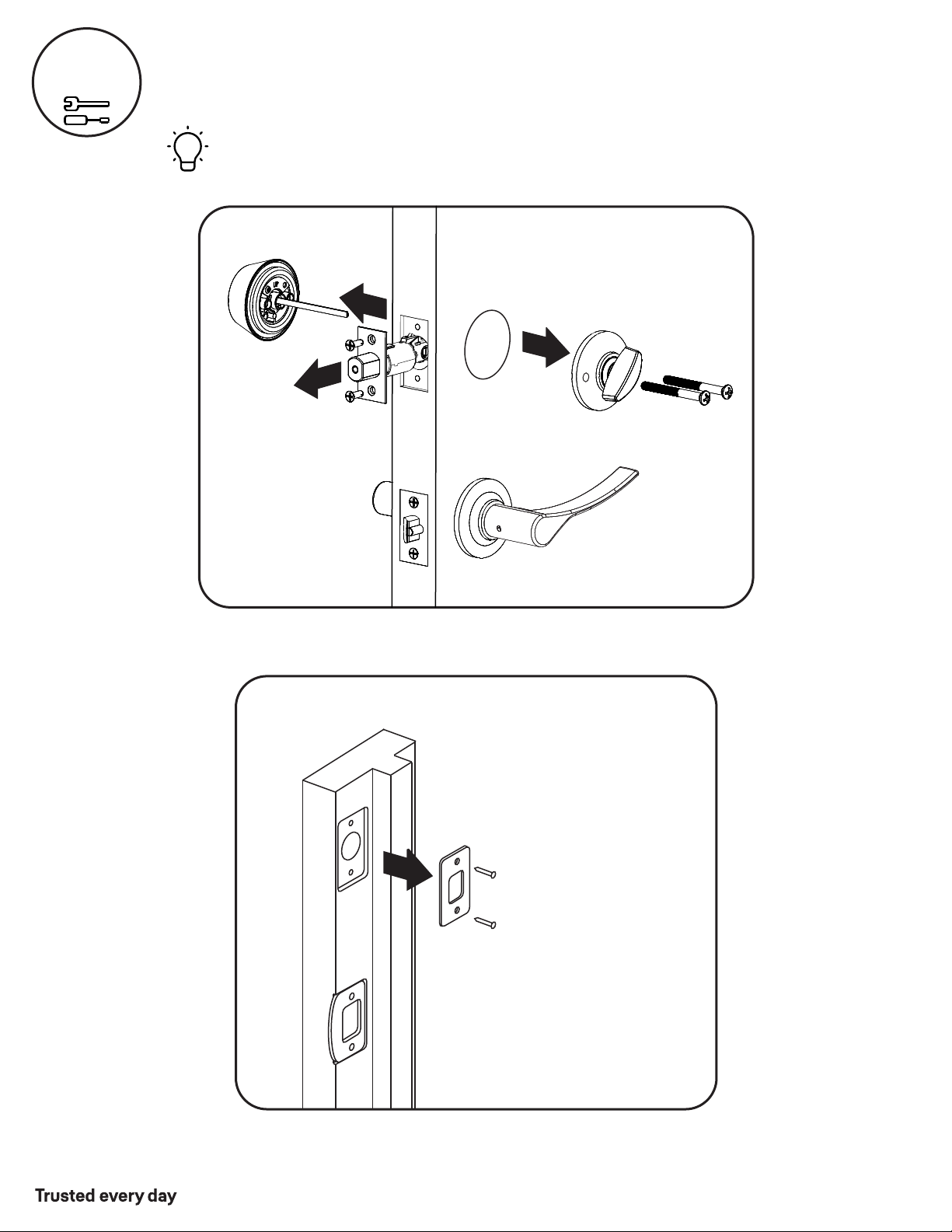

Remove Existing Deadbolt
Do not discard old lock hardware until Assure Lock has been successfully installed.
Frame
1
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
4

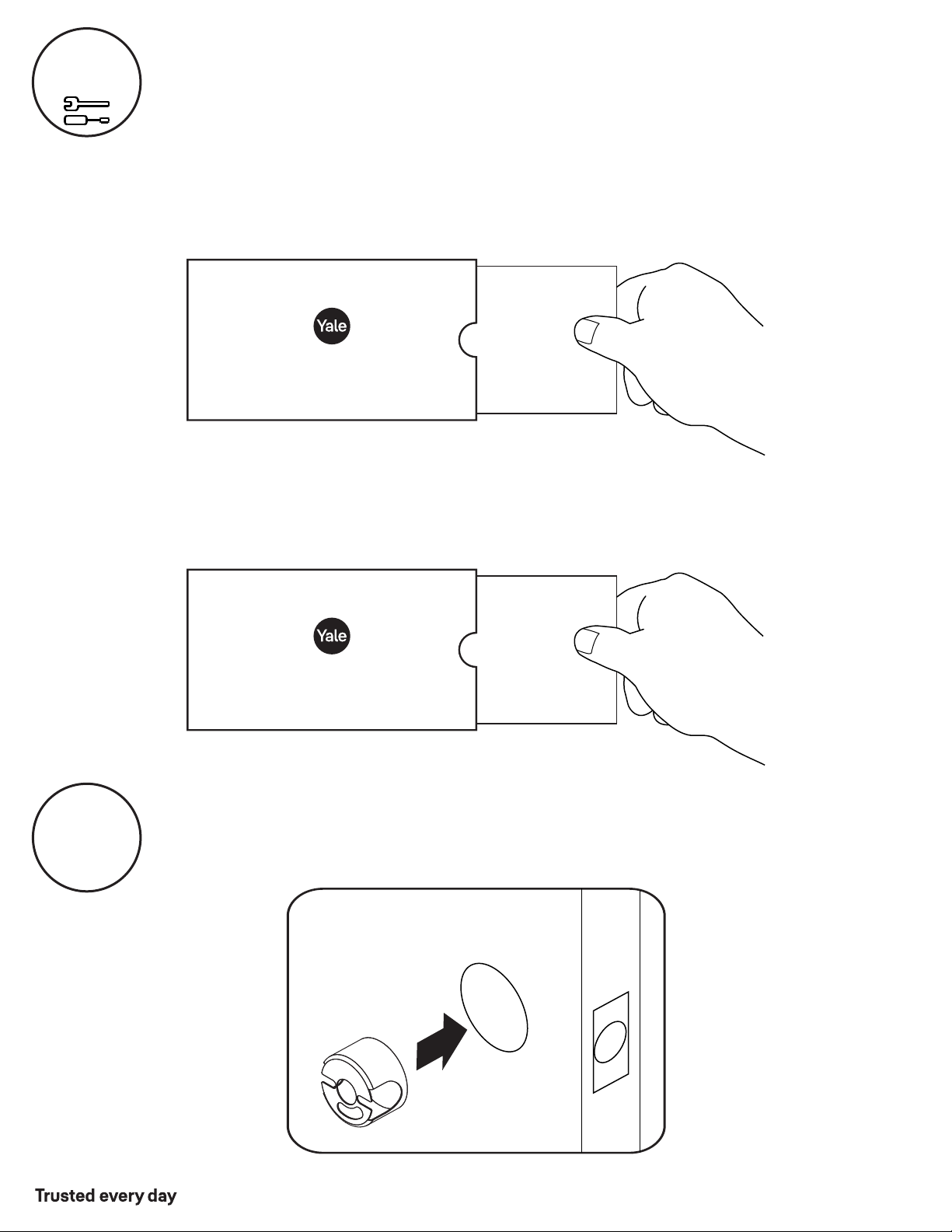

New Door Marking Template
2
Door Checker
Check Door Measurements And
Make Adjustments If Needed
Use door checker from installation guide envelope to verify your door
measurements and make any needed adjustments.
With the door checker, use the template from installation guide envelope
to prep a new door that has not been predrilled for hardware.
Inside of Door
O
optional
1 of 3
Install Optional Fire Cup for Fire Rated Openings
Only included with select models
New Door
Marking
Template
Check
Your Door
Guide
Let's Get Started
Let's Get Started
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
3Install Deadbolt and Strike Plate
x2
For Deadbolt
Actual Size
*Deadbolt position is based on
backset. Choose position
appropriate for your door.
Reference Door Checker
measurements E and F.
AYRDB-DRIVE
Adjustable Drive-In Deadbolt
available for purchase
optional
optional
*2-3/8" Backset, default
*2-3/4" Backset, optional
Press
Pull
Bolt must be in retracted (unlocked)
position. Note horizontal orientation of
tailpiece slot and UP orientation of
deadbolt latch.
Backset
For Strike Plate
Actual Size
x2
Choose
standard strike
plate screws
or security
screws.
For Strike Plate, optional
Actual Size
Bolt must be in
retracted
(unlocked)
position.
x2 O
5
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
6
4Install Touchscreen Keypad
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.
Outside of DoorInside of Door
To be used with Fire Cup
for Fire Rated openings
Door face hole
must be at least
2-1/8".
If hole is too
small, a door lock
installation kit or
jig should be used
to increase hole
size.
O
optional
2 of 3
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
7
5
x2
Actual Size

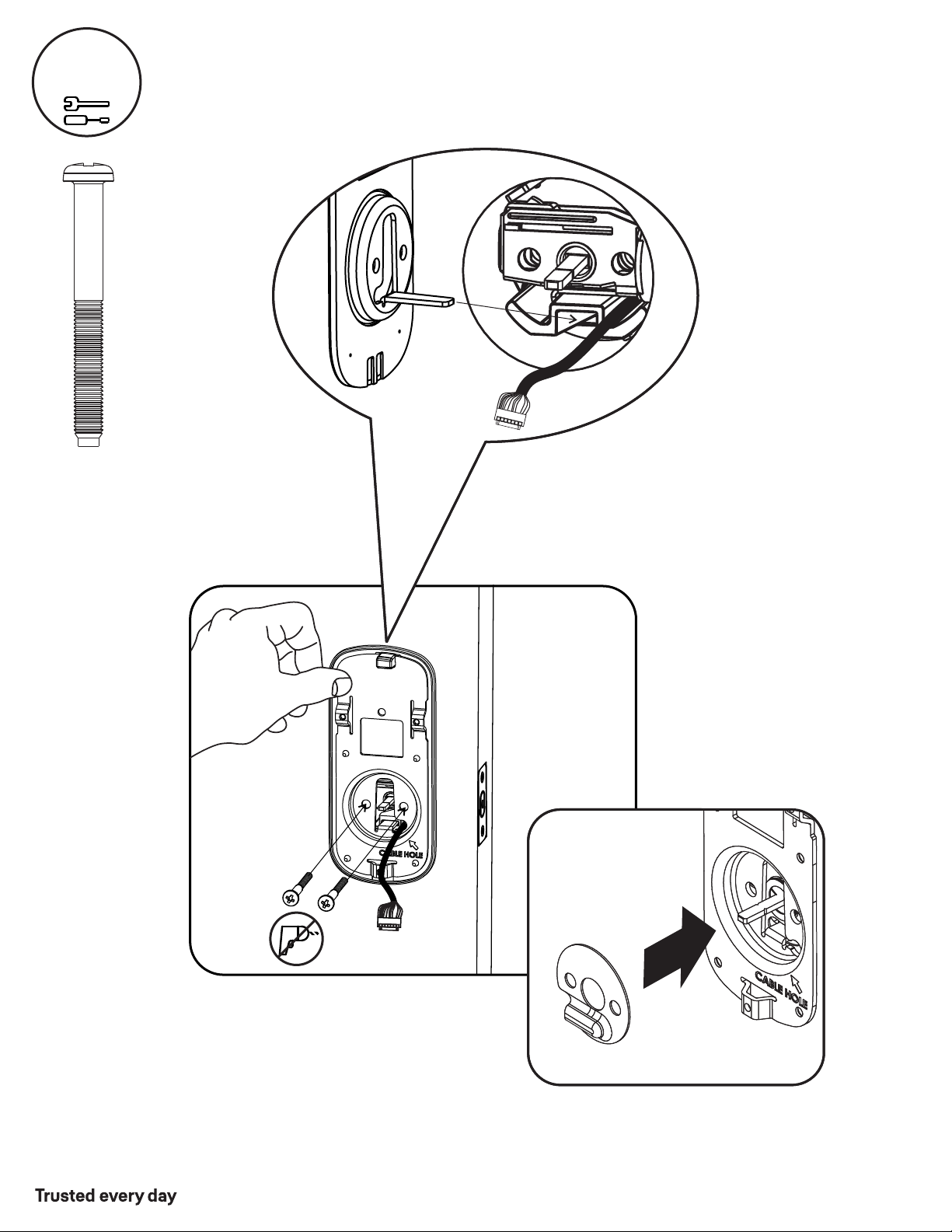

Install Inside Mounting Plate
To be used with Fire Cup
for Fire Rated openings
O
optional
3 of 3
6Attach Cable
This Side Up
mark
Make sure cable
is securely
attached
Use cable hooks for proper
routing, when possible. Position
wires carefully when not using
hook. Do not pinch wire.
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
8
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
9
x3
7Install Inside Lock
Actual Size
Make sure thumbturn
is vertical. If thumbturn does
not move freely, refer to
"Hardware Troubleshooting".
P/N YRD226-MNL-0001 Rev J Part of ASSA ABLOY
10

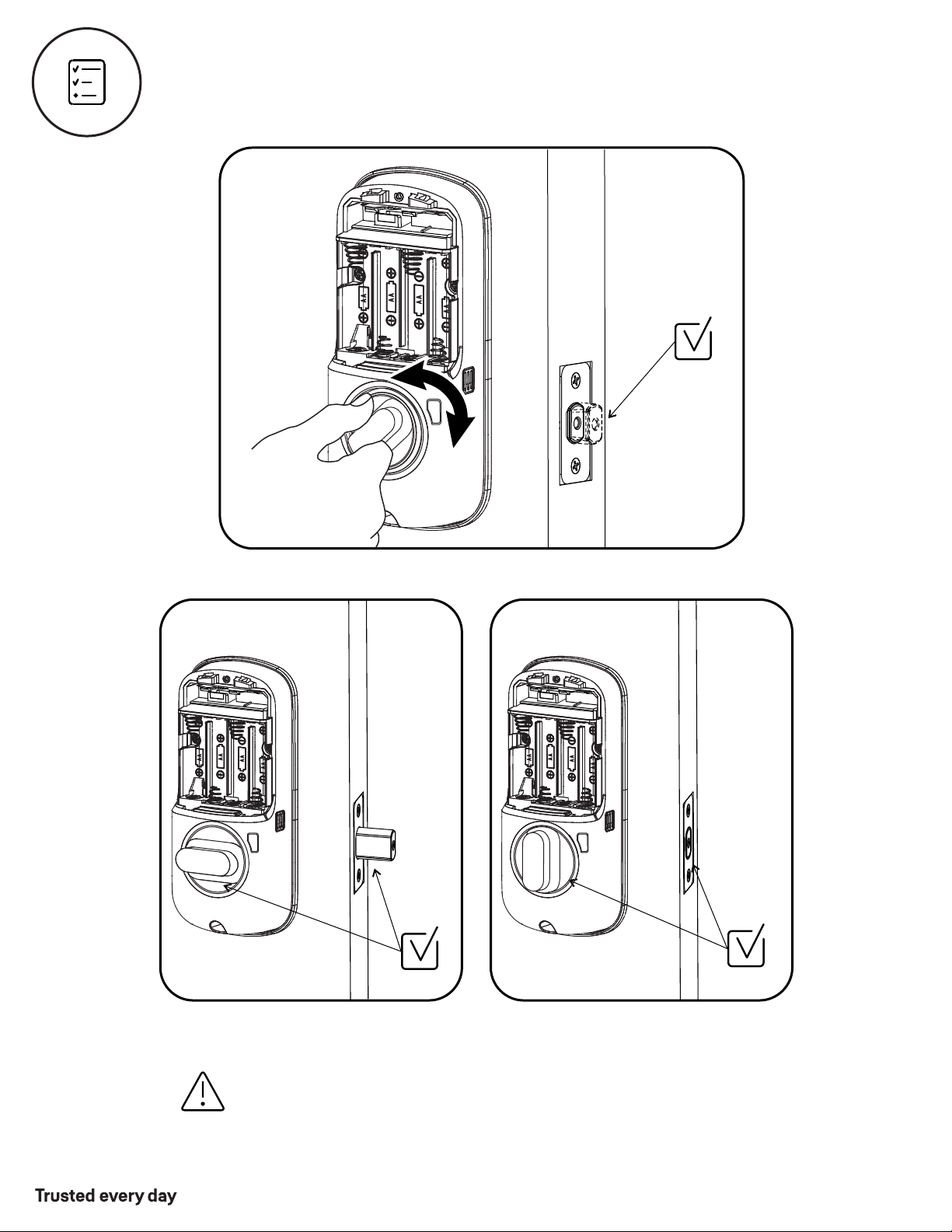

Test Mechanical Operation
If thumbturn operation fails, check the installation beginning with Step 7.
