Yealink VCC22 Bedienungsanleitung

包装清单

安装VCC22

你可以根据实际需要选择安装VCC22视频会议摄像机的方式：a. 平放安装 b.挂装 c.墙装 d.吊装 e.电视架或三脚架安装

请参阅亿联VC800会议电视终端快速入门指南了解安装方法。

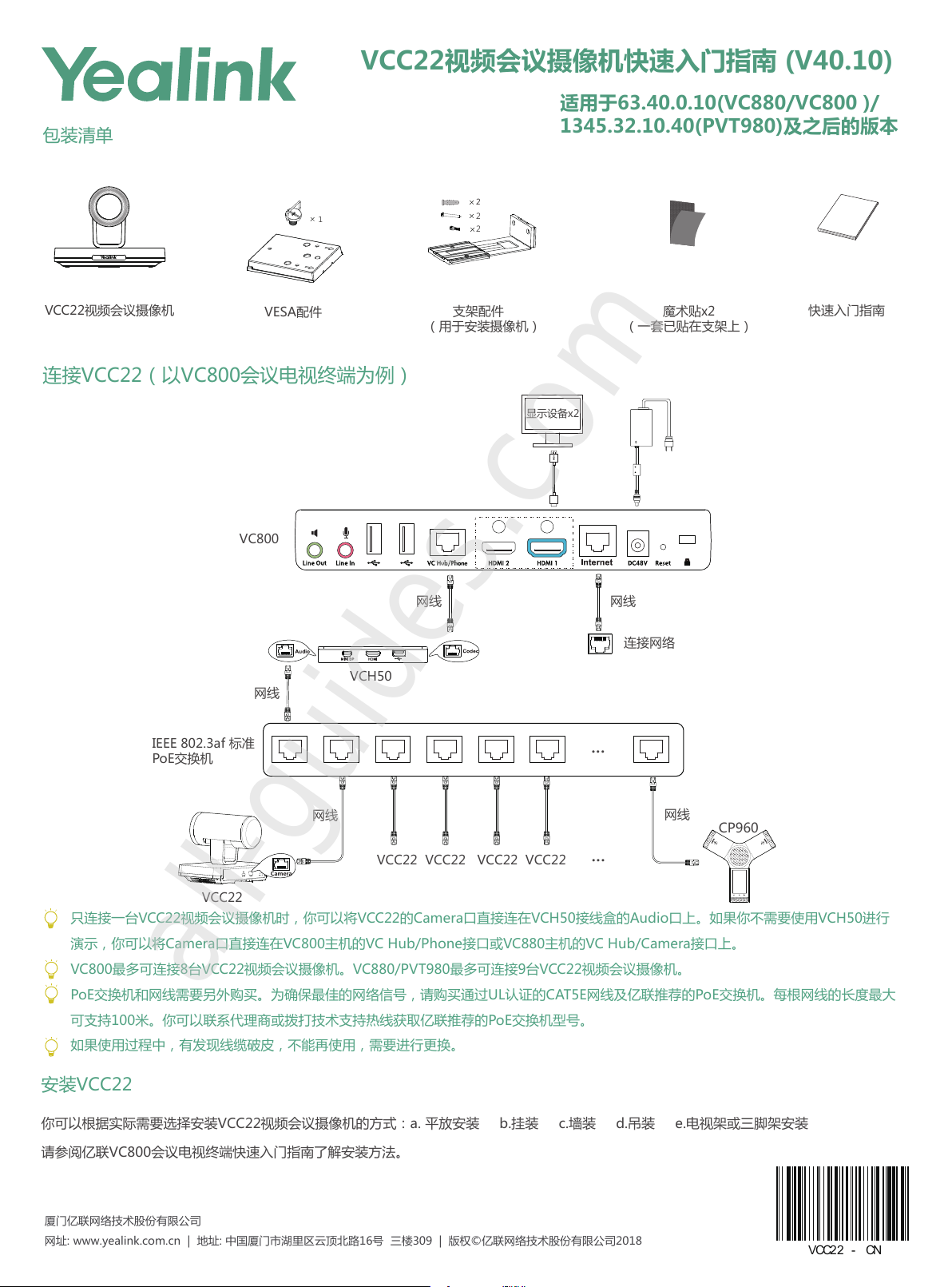

VCC22视频会议摄像机快速入门指南 (V40.10)

厦门亿联网络技术股份有限公司

网址: www.yealink.com.cn | 地址: 中国厦门市湖里区云顶北路16号三楼309 | 版权

©亿联网络技术股份有限公司2018

VCC22 - CN

VESA配件快速入门指南

连接VCC22（以VC800会议电视终端为例）

支架配件

（用于安装摄像机）

VCC22视频会议摄像机

只连接一台VCC22视频会议摄像机时，你可以将VCC22的Camera口直接连在VCH50接线盒的Audio口上。如果你不需要使用VCH50进行

演示，你可以将Camera口直接连在VC800主机的VC Hub/Phone接口或VC880主机的VC Hub/Camera接口上。

VC800最多可连接8台VCC22视频会议摄像机。VC880/PVT980最多可连接9台VCC22视频会议摄像机。

PoE交换机和网线需要另外购买。为确保最佳的网络信号，请购买通过UL认证的CAT5E网线及亿联推荐的PoE交换机。每根网线的长度最大

可支持100米。你可以联系代理商或拨打技术支持热线获取亿联推荐的PoE交换机型号。

如果使用过程中，有发现线缆破皮，不能再使用，需要进行更换。

魔术贴x2

（一套已贴在支架上）

显示设备x2

VC800

VCC22

...

Camera

VCH50

CP960

VCC22 VCC22 VCC22 VCC22

网线网线

网线

网线网线

连接网络

IEEE 802.3af 标准

PoE交换机

适用于63.40.0.10(VC880/VC800 )/

1345.32.10.40(PVT980)及之后的版本

All manuals and user guides at all-guides.com

all-guides.com

Installation

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.

Web: www.yealink.com | Addr: 309, 3th Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China

VCC22 - EN

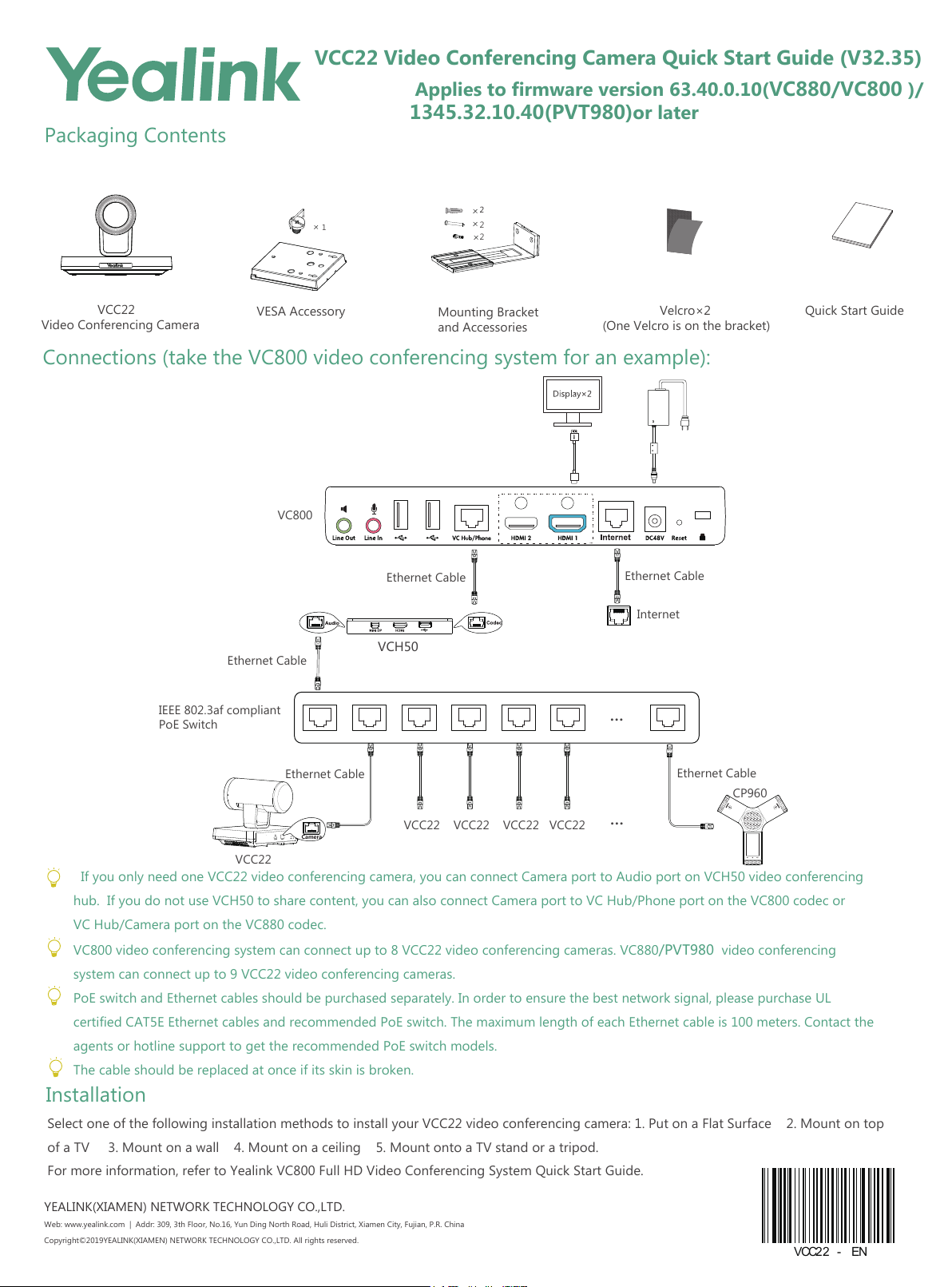

VCC22 Video Conferencing Camera Quick Start Guide (V32.35)

VC800

Internet

VCC22

...

Camera

VCH50

CP960

VCC22

Video Conferencing Camera

If you only need one VCC22 video conferencing camera, you can connect Camera port to Audio port on VCH50 video conferencing

hub. If you do not use VCH50 to share content, you can also connect Camera port to VC Hub/Phone port on the VC800 codec or

VC Hub/Camera port on the VC880 codec.

VC800 video conferencing system can connect up to 8 VCC22 video conferencing cameras. VC880/PVT980 video conferencing

system can connect up to 9 VCC22 video conferencing cameras.

PoE switch and Ethernet cables should be purchased separately. In order to ensure the best network signal, please purchase UL

certified CAT5E Ethernet cables and recommended PoE switch. The maximum length of each Ethernet cable is 100 meters. Contact the

agents or hotline support to get the recommended PoE switch models.

The cable should be replaced at once if its skin is broken.

Quick Start Guide

Mounting Bracket

and Accessories

VESA Accessory Velcro×2

(One Velcro is on the bracket)

Packaging Contents

Connections (take the VC800 video conferencing system for an example):

Ethernet Cable

Ethernet Cable Ethernet Cable

VCC22 VCC22 VCC22 VCC22

Select one of the following installation methods to install your VCC22 video conferencing camera: 1. Put on a Flat Surface 2. Mount on top

of a TV 3. Mount on a wall 4. Mount on a ceiling 5. Mount onto a TV stand or a tripod.

For more information, refer to Yealink VC800 Full HD Video Conferencing System Quick Start Guide.

IEEE 802.3af compliant

PoE Switch

Applies to firmware version 63.40.0.10(VC880/VC800 )/

1345.32.10.40(PVT980)or later

All manuals and user guides at all-guides.com
