Yeastar S300 VoIP PBX

Installation Guide

Version: 1.2

Date: 2016.09.02

Yeastar S300 Installation Guide

2/16

Content

Welcome……………………………………………………………………………………………………….3

Before You Start……………………………………………………………………………………………...4

Package Contents…………………………………………………………………………………………..4

Expansion Board……………………………………………………………………………………………4

Yeastar S300 Overview…………………………………………………………………………………….5

LED Indicators and Ports…………………………………………………………………………………..6

Installation…………………………………………………………………………………………………….8

Safety Disclaimers and Installation Warnings……………………………………………………………8

Telephony Module Installation……………………………………………………………………………..8

DSP Module Installation…………………………………………………………………………………..11

Hard Disk Installation……………………………………………………………………………………..12

Desktop Installation……………………………………………………………………………………….13

Rack Installation…………………………………………………………………………………………..13

Ground Connection……………………………………………………………………………………….14

Connecting the Equipment……………………………………………………………………………….15

Getting Started with the Configuration…………………………………………………………………16

Yeastar S300 Installation Guide

3/16

Welcome

Thank you for choosing Yeastar S300 IP PBX. S300 delivers enterprise-class IP telephony services

with a base configuration that supports 300 users. Expandable to 500 users, S300 grows with you

business and supports up to 24 analog ports, up to 24 BRI ports, up to 3 E1/T1/PRI ports, and up to

6 GSM channels.

This guide describes how to install the S300 and how to log in the web GUI to configure the system.

Once you complete the installation, refer to the Yeastar S-Series Administrator Guide for instructions

on how to perform configurations on the system.

Related Documents

This Installation Guide only explains the installation of Yeastar S300 IPPBX. For more functionality

and advanced settings, please refer to the relative documents as below:

Document

Description

Yeastar S-Series Datasheet

Datasheet for the Yeastar S-Series IPPBX.

Yeastar S-Series Administrator Guide

The administrator could refer to this manual for

instructions on how to configure, operate, monitor,

and maintain the Yeastar S300 IPPBX.

Yeastar S-Series Extension User Guide

Users could refer to the guide for instructions on how

to login the user portal, and how to configure their

accounts, listen to call recordings, check voicemail

messages, etc.

Yeastar S300 Installation Guide

4/16

Before You Start

Before you begin to install the S300 IP Phone System, please check the package contents to verify

that you have received the items below. If there is any problem, please contact your provider.

Package Contents

1* S300 PBX

1* Ethernet Cable

1* Power Cord

2 Rack Mounting Kits

1* Grounding Stud & Nut

4* Rubber Feet

1* Warranty card

1* Quick Start Guide

Expansion Board

Yeastar S300 supports up to 3 Expansion boards and 2 DSP modules.

Expansion Board –EX08

EX08 board supports up to 4 modules (8 ports).

Optional Module

O2 Module

S2 Module

SO Module

B2 Module

GSM Module

3G Module

Yeastar S300 Installation Guide

5/16

Expansion Board –EX30

EX30 board supports 1 E1/T1 port.

D30 Module

D30 is a DSP module, used to expand the capacity of PBX. With per D30 module added, the

extensions increase 100 and concurrent calls increase 30 in additional.

Yeastar S300 Overview

Front Panel (2*EX08 + 1*EX30)

Yeastar S300 Installation Guide

6/16

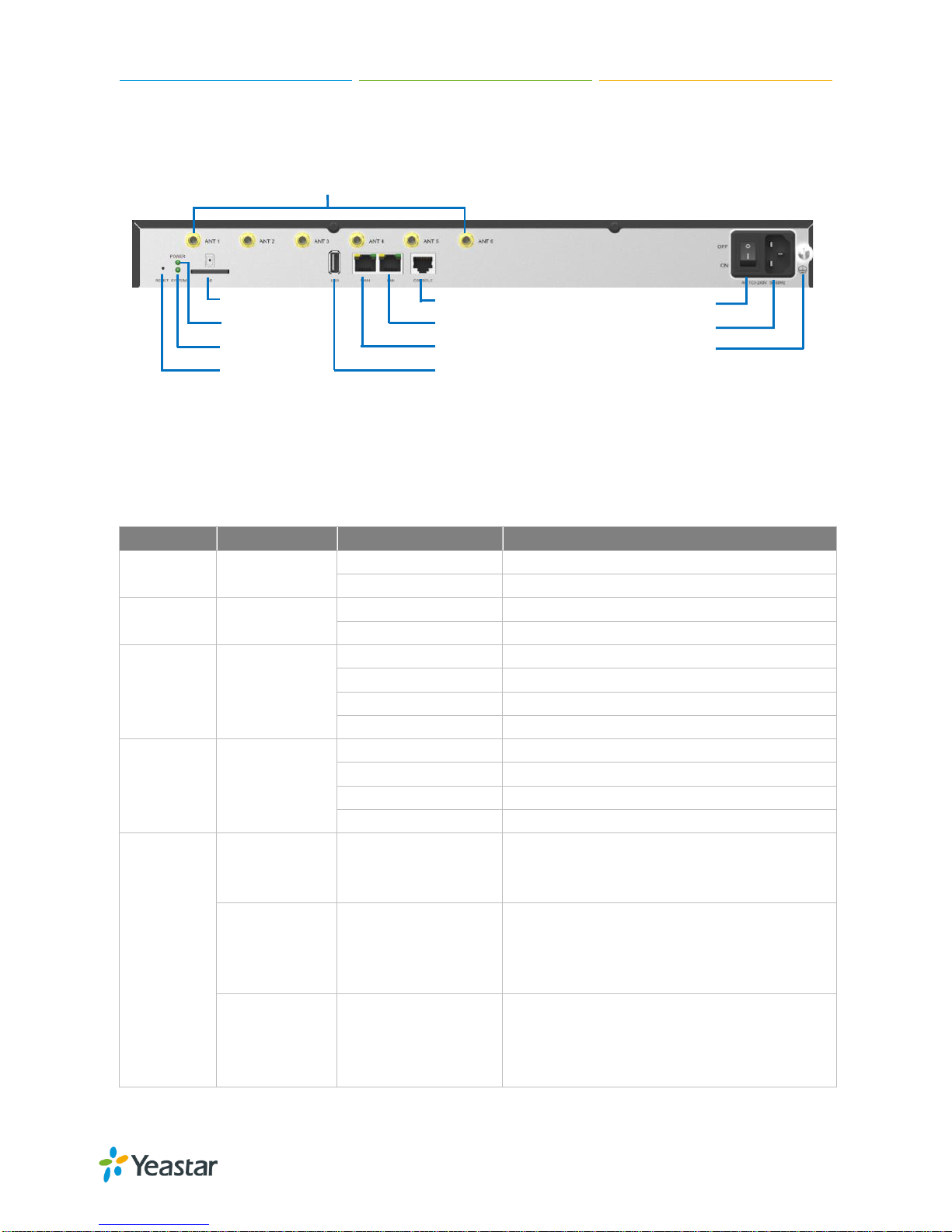

Back Panel

LED Indicators and Ports

LED Indicators

LED

Indication

Status

Description

POWER

Power status

The power is switched on

Off

The power is switched off

System

System status

Blinking

The system is running properly

Static/Off

The system goes wrong

WAN

WAN status

Static Green light

Linked normally, 10/100 Mbps.

Static Orange light

Linked normally, 1000 Mbps.

Blinking Orange light

In communication.

Off

Off-line.

LAN

LAN status

Static Green light

Linked normally, 10/100 Mbps.

Static Orange light

Linked normally, 1000 Mbps.

Blinking Orange light

In communication.

Off

Off-line.

Port Status

FXS

Green light

Static: the port is idle.

Blinking: there is an ongoing call on the

port.

GSM/3G

Red light

Static: the trunk is idle.

Blinking slowly: there is no SIM card

inserted.

Blinking rapidly: the trunk is in use.

BRI

Orange light

Blinking slowly: the BRI line is

disconnected.

Static: the BRI line is connected or in

use.

Antenna Sockets

SD Slot Console Power Switch

Power LAN Power Inlet

System WAN Protective Earth

Reset USB Slot

Yeastar S300 Installation Guide

7/16

FXO

Red light

Blinking slowly: no PSTN line is

connected to the port.

Static: the PSTN line is idle.

Blinking rapidly: the PSTN line is busy.

Port Description

Ports

Description

RJ11 Port

FXO port (red light): for the connection of PSTN lines or FXS ports of traditional

PBX.

FXS port (green light): for the connection of analog phones.

BRI port (orange light): for the connection of ISDN BRI lines.

Note: the sequence number of the ports corresponds to that of the Indicator

lights in the front panel. (I.e. the LED lights in the front indicate the connection

status of the corresponding ports at the front panel.)

E1/T1 Port

Connect the E1/T1 line.

ANT

Rotate the antenna into the Antenna Socket.

USB Slot

Connect a USB drive or mobile hard disk drive.

SD Slot

Insert a SD card.

Ethernet Port

Yeastar S300 provides two 10/100/1000 Mbps adaptive RJ45 Ethernet ports.

There are 3 Ethernet modes for the system. The default mode is “Single”.

Single: LAN port interface will be used for uplink connection. WAN port is

disabled.

Bridge: LAN port interface will be used for uplink connection. WAN port

interface will be used as bridge for PC connection.

Dual: both ports can be used for uplink connection.

Reset Button

Press and hold for 10 seconds to restore the factory defaults.

Power Inlet

Connect the supplied power supply to the port.

Power Switch

Switch on or off the device.

Yeastar S300 Installation Guide

8/16

Installation

This chapter explains how to install Yeastar S300 IP phone system.

Safety Disclaimers and Installation Warnings

To avoid unexpected accident, personal injury or device damage, please read the safety disclaimers

and installation warnings.

Power

Use only the power cord provided with the IP PBX.

Keep the power off during the installation.

Make sure that the supply voltage matches the specifications indicated on the back panel of the

device.

To avoid the electric accident, do not open or remove the cover of IP PBX when it is working as

well as off the power.

Before cleaning the device, cut off the power supply.

Environment

Install the Yeastar S300 IP PBX in a location that is clean, free from vibration, electric shock, and

temperature/humidity extremes. The operating temperature should be kept below 104°F (40°C).

Telephony Module Installation

STEP 1 Loosen the screws on the enclosure and then remove the upper cover.

Yeastar S300 Installation Guide

9/16

STEP 2 Push out the empty board from the inside of the device.

STEP 3 Push in the Expansion Board (EX08 or EX30).

STEP 4 Lock the screws to fix the Expansion Board.

Yeastar S300 Installation Guide

10/16

STEP 5 Insert theTelephony Modules on the EX08 Board. Skip this step for EX30 Board.

STEP 6 Insert a SIM card on the GSM/3G module following the instructions. Skip this step if no

GSM/3G module installed.

STEP 7 Close the cover and fix the screws.
