WOOD PELLET GRILLS
ZPG-1050 2B
OWNER’S MANUAL
MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME
SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS
EMAIL: support@zgrills.com
WEBSITE: www.zgrills.com
1
CONTENTS
IMPORTANT SAFETY INFO
3
COMPONENT LIST
6
ASSEMBLY INSTRUCTIONS
8
INITIAL FIRING INSTRUCTIONS
14
SUBSEQUENT START-UP
15
OPERATING TIPS
16
MAINTENANCE & CLEANING
17
TROUBLESHOOTING
19
DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM
21
Z GRILLS SUPPORT
22
3-Y LIMITED WARRANTY
23
2
SAVE THIS MANUAL FOR FUTURE REFERENCE
3
IMPORTANT SAFETY INFO
GENERAL WARNINGS
Please read this entire manual before installation and use of the pellet fuel-burning
appliance. Failure to follow these instructions could result in property damage, bodily
injury or even death.
Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
This grill is for outdoor use only. DO NOT use it in any enclosed area.
DO NOT store or use combustible materials or liquids near this appliance.
Keep children away while it is in use.
Maintain a safe distance between your grill and any combustible material.
DO NOT move your grill while operating or while it is hot. Wait until the grill is
completely cold.
If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO
NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the
fire.
Clean and maintain your grill after each use.
DO NOT use your grill on rainy days.
DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.
We suggest the use of heat-resistant gloves when operating this grill.
We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum
foil before using because it is easy to clean.
For convenient and safe assembly, use at least two people to assemble the grill.
Make sure the power cord is disconnected before performing any service or
maintenance.
4
DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or
similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids
well away from the appliance when in use.
Do not use accessories not specified for use with this appliance.
NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF
UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
5
PELLET RESTRICTIONS
This grill is designed for use of wood pellets only designed for burning in wood pellet
grills. Do Not Use Pellet Fuel Labeled As Having Additives.
We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically
made to work in our grills. There is no guarantee that other brands of pellets are
suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage
or injury caused by the use of any other brands of pellets.
Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart
and even jam the feed system if the pellets get wet or are exposed to high humidity.
CARBON MONOXIDE WARNING
Follow these guidelines to prevent this colorless, odorless gas from poisoning you,
your family or others.
Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,
nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s
ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness
and death.
See a doctor if you or others develop cold or flu-like symptoms while cooking or in
the vicinity of this appliance. Carbon monoxide poisoning, which can easily be
mistaken for a cold or flu, is often detected too late.
Alcohol consumption and drug use increase the effects of carbon monoxide
poisoning.
Carbon monoxide is especially toxic to mother and child during pregnancy, infants,
the elderly, smokers, and people with blood or circulatory system problems, such as
anemia, or heart disease.
6
COMPONENT LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
1
1
Lid
23
2
Wheels
2
2
Chamber Hinge
24
1
Right Front Leg
3
1
Lid Handle
25
1
Right Rear Leg
4
2
Handle Guide
26
1
Grease Drain Pan Support
5
2
Furnace Hinge
27
1
Hopper Lid
6
1
Grill Chamber Assembly
28
1
Upper Hopper Safety Grate
7
1
Smoke Stack Gasket
29
1
Hopper Part
8
1
Smoke Stack
30
1
Hopper Handle
9
1
Chimney Cap
31
1
Digital Control
10
1
Grease Bucket
32
1
Hopper Bottom Shelf
11
1
Ash Tray
33
1
Power Cord
12
2
Top Warming Rack
34
1
Firepot Assembly
13
1
Middle Warming Rack
35
1
Thick Gasket
14
2
Porcelain Grills
36
1
Hot Rod (Ignitor)
15
1
Grease Drain Pan
37
1
Auger Drive Motor
16
1
Heat Baffle
38
1
Auger Nylon Ring
17
1
Hopper Assembly
39
1
Auger
18
1
Left Rear Leg
40
1
Cable Clip
19
1
Left Front Leg
41
1
Fan
20
2
Foot Pad
42
1
Hopper Burner Assembly
21
1
Bottom Shelf
43
1
Hopper Insulation Cotton
22
1
Axle
44
2
Meat Probe
7

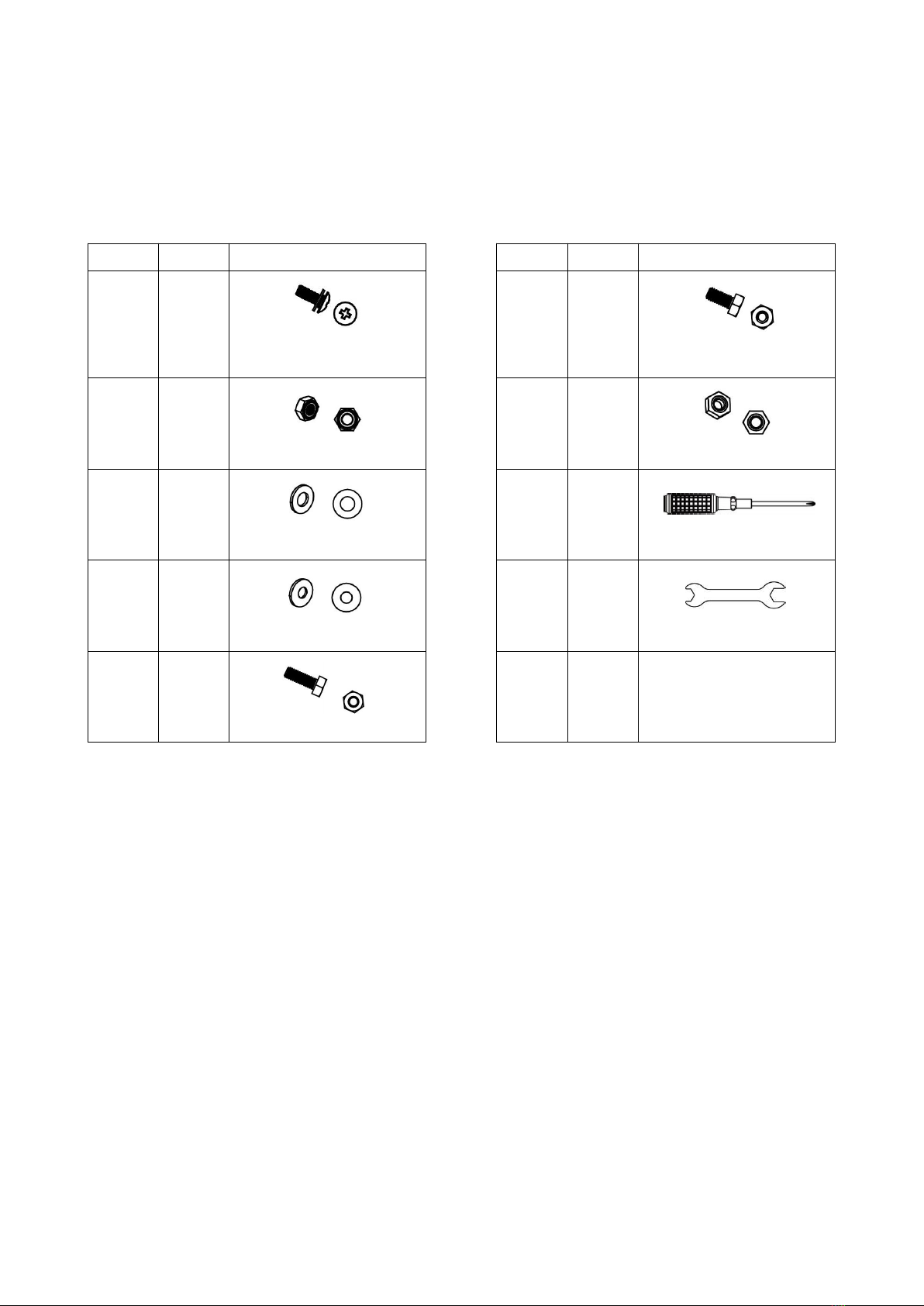

HARDWARE PACKAGE LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
A
16
Phillips Head Lock Screw
1/4-20×5/8
F
4
Hexagon Bolt 1/4-20×1/2
B
2
Nut 5/16-18
G
4
Nut 1/4-20
C
4
Gasket (OD0.8×ID0.4)
H
1
Phillips Screwdriver
D
10
Gasket (OD0.8×ID0.25)
I
2
Caster Wrench
E
6
Hexagon Bolt 1/4-20×3/4
8
ASSEMBLY INSTRUCTIONS

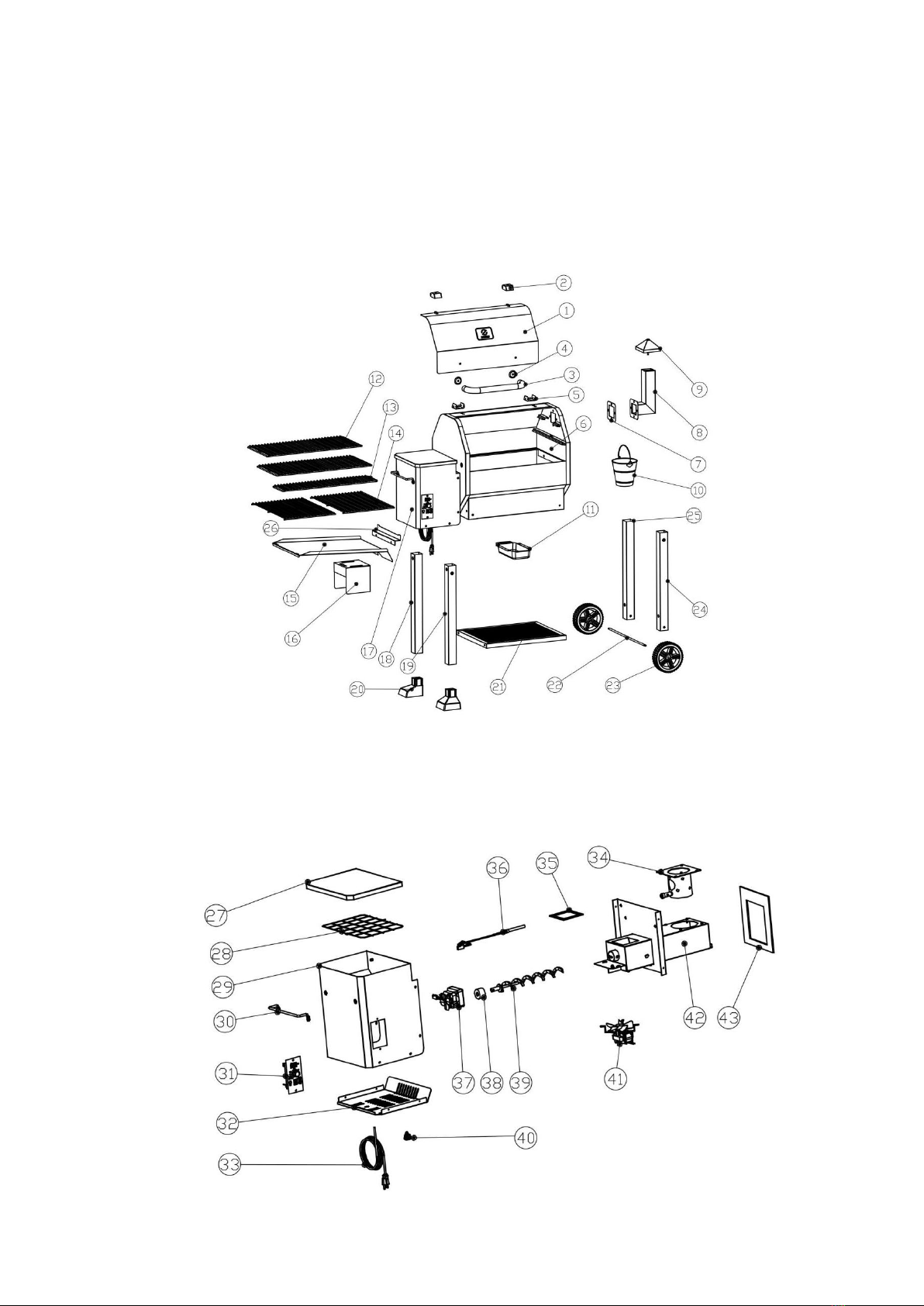

PARTS DIAGRAM:
HOPPER BURNER ASSEMBLY:
