Z GRILLS ZPG-200A Bedienungsanleitung
VN102021
WOOD PELLET GRILLS
ZPG-200A
OWNER’S MANUAL
MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME
SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS
EMAIL: support@zgrills.com
WEBSITE: www.zgrills.com
1
CONTENTS
IMPORTANT SAFETY INFO
3
COMPONENT LIST
6
ASSEMBLY INSTRUCTIONS
8
INITIAL FIRING INSTRUCTIONS
13
SUBSEQUENT START-UP
14
OPERATING TIPS
15
MAINTENANCE & CLEANING
16
TROUBLESHOOTING
18
DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM
20
Z GRILLS SUPPORT
21
3-Y LIMITED WARRANTY
22
2
SAVE THIS MANUAL FOR FUTURE REFERENCE
3
IMPORTANT SAFETY INFO
GENERAL WARNINGS
Please read this entire manual before installation and use of the pellet fuel-burning
appliance. Failure to follow these instructions could result in property damage, bodily
injury or even death.
Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
This grill is for outdoor use only. DO NOT use it in any enclosed area.
DO NOT store or use combustible materials or liquids near this appliance.
Keep children away while it is in use.
Maintain a safe distance between your grill and any combustible material.
DO NOT move your grill while operating or while it is hot. Wait until the grill is
completely cold.
If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO
NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the
fire.
Clean and maintain your grill after each use.
DO NOT use your grill on rainy days.
DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.
We suggest the use of heat-resistant gloves when operating this grill.
For convenient and safe assembly, use at least two people to assemble the grill.
Make sure the power cord is disconnected before performing any service or
maintenance.
DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or
4
similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids
well away from the appliance when in use.
Do not use accessories not specified for use with this appliance.
NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF
UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
5
PELLET RESTRICTIONS
This grill is designed for use of wood pellets only designed for burning in wood pellet
grills. Do Not Use Pellet Fuel Labeled As Having Additives.
We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically
made to work in our grills. There is no guarantee that other brands of pellets are
suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage
or injury caused by the use of any other brands of pellets.
Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart
and even jam the feed system if the pellets get wet or are exposed to high humidity.
CARBON MONOXIDE WARNING
Follow these guidelines to prevent this colorless, odorless gas from poisoning you,
your family or others.
Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,
nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s
ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness
and death.
See a doctor if you or others develop cold or flu-like symptoms while cooking or in
the vicinity of this appliance. Carbon monoxide poisoning, which can easily be
mistaken for a cold or flu, is often detected too late.
Alcohol consumption and drug use increase the effects of carbon monoxide
poisoning.
Carbon monoxide is especially toxic to mother and child during pregnancy, infants,
the elderly, smokers, and people with blood or circulatory system problems, such as
anemia, or heart disease.
6
COMPONENT LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
1
1
Chamber Lid
23
1
Hot Rod
2
2
Handle Tube Assembly
24
1
Heat Insulation Cotton1
3
1
Lid Handle Tube
25
1
Heat Insulation Cotton2
4
2
Handle Tube Plug
26
1
Sealed Insulation Cotton
5
2
Connect pieces
27
1
Cooking Grid
6
1
Decorating Plate
28
1
Firepot Assembly
7
1
Hopper Handle
29
1
Grease Drain Pan
8
1
Hopper Lid
30
1
Firepot Handle
9
1
Hopper Assembly
31
1
Sealing Strip
10
1
Temperature Rod
32
1
Thermal Baffle
11
1
Funnel
33
1
Grease Bucket
12
1
Power cord
34
2
Upper Hinge
13
1
Digital Control
35
1
Fan
14
4
Leg Plug
36
1
Binder Plate1-1
15
4
Leg
37
1
Auger Driver Motor
16
2
Lock Catch
38
1
Binder Plate1-2
17
2
Lock Support
39
1
Auger
18
2
Side Handle
40
1
Binder Plate2
19
1
Cable Clip
41
1
Heat Insulation Cotton3
20
2
Lower Hinge
42
1
Funnel Welds
21
2
Middle Hinge
43
1
Heat Insulation Cotton4
22
1
Hopper burner Assembly
44
1
Binder Plate3
7
HARDWARE PACKAGE LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
A
2
Bolt 1/4-20×3/4
D
2
Gasket
(OD0.79xID0.26)
B
4
Bolt 1/4-20*2-3/8
E
4
Mica Plate
C
4
Bolt 1/4-20×1/2
F
1
Screwdriver
8
ASSEMBLY INSTRUCTIONS

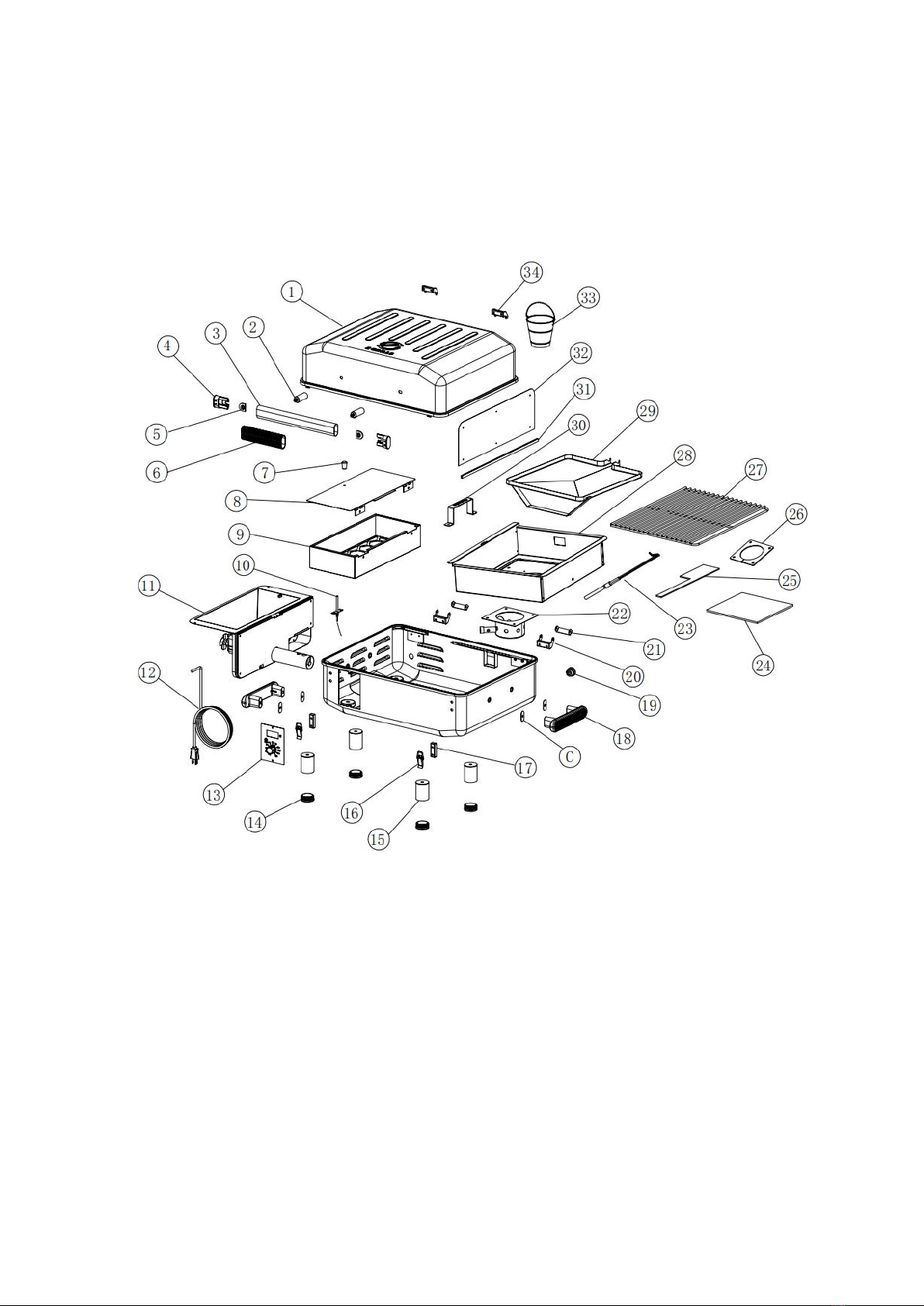

PARTS DIAGRAM
