Zagg VYVPA-BK04 Bedienungsanleitung

Wireless Bluetooth Keyboard User's Guide

Thanks for purchasing this Bluetooth Keyboard, it's with standard 80 keys as well as 14 function keys.

This creative and easy-to-use Bluetooth Keyboard will bring you a whole new wireless life experience.

System Requirement

liPad, Mac OS.

lWindows OS(Windows XP, Windows Vista, Win7).

Main Features

lBluetooth Version: Bluetooth V3.0, in BROADCOM 20730 chipset

l80keys design, with 14 multi-function keys

lScissor-switch keypad design, comfortable and ergonomic design

lBuilt-in intelligent power manage software for power conservation

lBuilt-in software solutions with Bluetooth human interface device and comply with the standard

version of the Bluetooth SIG Bluetooth 3.0

lPower by build-in Li-ion rechargeable battery

lWorking range: 10m

Specifications:

- Frequency band: 2.4 - 2.4835GHz unlicensed ISM band

- Receiving sensitivity: -75bm (standard)

- Battery Volumn: 310mA

- Working Current:>4mA

- Standby current: 1mA

- Charging time: 3-4 hours

- RF output power: up to 4bm as maximum, good for your health with lowest radiates

- Operation distance: 0 - 10 m

- Dimension: 220*120*7.5(5.5)mm

- Net weight: 205g

0 1

Multimedia Function With iPad

F1: Spotlight search

F2: Screen light down

F3: Screen light up

F4: Picture frame mode

F5: Virtual keyboard

F11: Volume down

F7: Previous track

F12: Volume up

F8: Play/Pause

F9: Next track

F10: Mute

Turn off backlight

Home

USB Charging Slot

Power Button

Pairing Button

LED

ON Off

Screen lock

0 2

Installation Guide

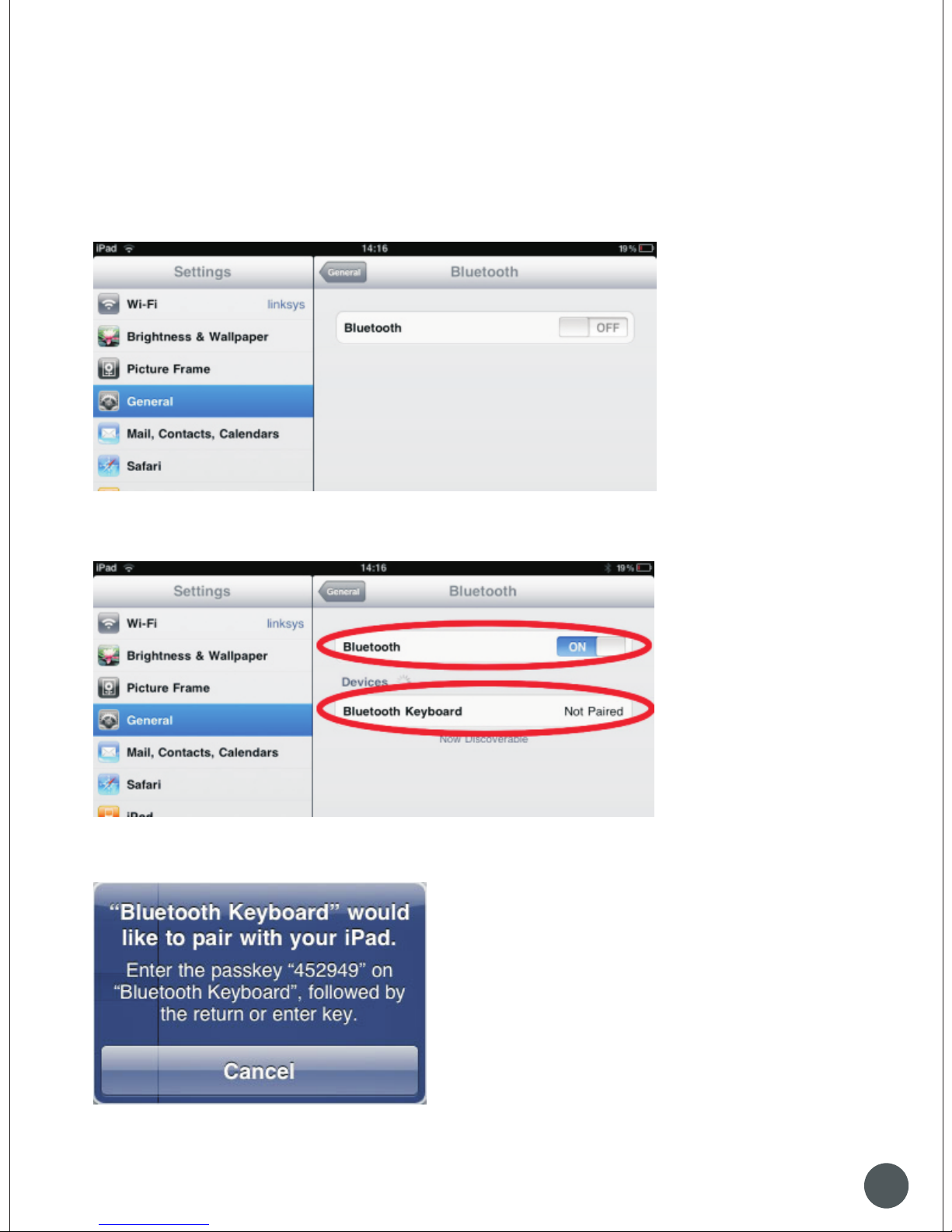

Connect with iPad / iPhone4.0

1.Push the power button to “ON”, and press “PAIRING” button. The blue light is flashing,

now the keyboard is in pairing mode.

2. On your iPad / iPhone4.0, select “settings”---“General”.

3. Turn “Bluetooth” on, it will start searching bluetooth devices.

4. Once your device finds the keyboard, select “Bluetooth Keyboard” from the list.

5. Your device will now give you a 6 or 4 digit passkey. Enter this key onto the keyboard, and press Enter to

complete the pairing(also on the keyboard).

Now the keyboard is connect with your iPad successfully.

0 3

0 4

Connect with computer

Before you connect the Bluetooth Keyboard, please make sure there is bluetooth function in your

computer.

Software available like Widcomm(Recommended), IVT or the Microsoft built-in software...

1.Turn the keyboard ON, and press the pairing button. The blue light is flashing, now the keyboard is in pairing mode.

A: Match on Widcomm (recommended)

1. Double click the Icon , the main Window pops up; select Bluetooth ---Add

Bluetooth facility. Click Next button In the Setup Guild window.

3. Input the stochastic Match Code in bluetooth keyboard, and press Enter.

0 5

Bluetooth

keyboard

2. When the system finds the Keyboard, select it and click Next.

4.Now you can use your keyboard at ease.

Tips:

If no signal received after 10 minutes, the keyboard will change to the power safe model. If you want to

“”

make it into use, just click the Enter key. After the connection between the keyboard and dongle, if

“”

you drag off the Dongle or turn off the Computer, the keyboard will shut down, click the Enter key of

the keyboard will wake it up.

B. Match on Microsoft built-in software

1. Make sure that the Bluetooth Function has been activated. Double click the Bluetooth Icon on the

“ “

”“ ”

Task Bar or in the Control Panel, open the Bluetooth Management window, click Add , tick off

“

” ”

acility is ready for searching , click Next

0 6

0 7

“”

2. Wait till the keyboard is found, select keyboard and click Next ..

0 8

Bluetooth keyboard

3. Select Choose a pass key for me, click Next.

4. Input the pass key and press Enter in bluetooth keyboard, click Next, the system will finish the

installation of the new facility automatically.

0 9

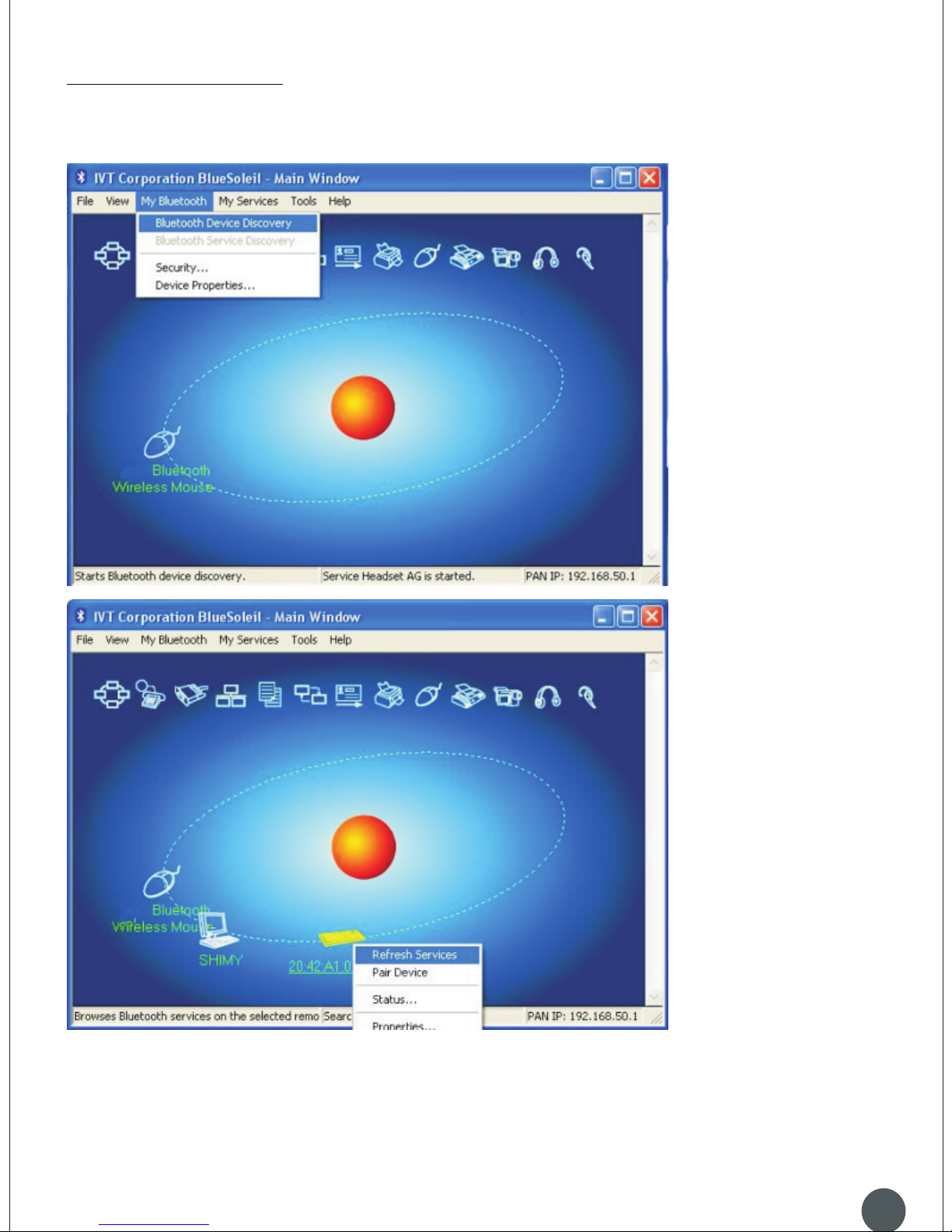

C. Match on IVT Software

1. Make sure that the Bluetooth function is active. Double click the Bluetooth Icon, open the

Management window, select Search for Bluetooth facilities or click the Round Ball in the middle of

the window.

2. Click the Bluetooth Keyboard found, click the right button for Refresh Service.

3. Select the Bluetooth Keyboard again, click the right button for Connect-Bluetooth Input Service,

input the stochastic pass key, the system will auto install the HID facility. After that you can use your

Bluetooth Keyboard at ease.

1 0
