Zavio D3100/D3200 Quick Installation Guide

Please follow the installation steps below to set up D3100 / D3200 Fixed Dome IP Camera.

Check the package contents against the list below. See P.1

Physical overview. See P.2

I/O Terminal Block Circuit.See P. 3

I/O Terminal Block Pin Definition. See P.3

LED Indicator Definition. See P.4

Power mode. See P.4

Install the hardware and connect all cables. See P.4

Microsoft OS: Use the software CD to install Intelligent IP Installer. See P.7

Access the IP Camera using Intelligent IP Installer. See P.7

Mac OS using Safari Browser. See P.9

Change light environment setting. See P.10

Change the Web Interface into your preferred language. See P.10

Application of IP Camera. See P.11

For more information, please check the User Manual available in the Software CD or you can download the latest

software from http://www.zavio.com

Package Contents

Note:

CAT5 cables are supplied by user. RJ45 Ethernet network connection (using CAT5 standard UTP or better

quality cable) for Power over Ethernet (PoE 802.3af)

Camera D3100 / D3200 Fixed Dome IP Camera

Quick Installation Guide Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manuals

Language Packs

Accessory 6 pin terminal cable for DI/DO and audio

Screw pack for wall and ceiling mounting ( 2 screws, 2 plastic wall anchors )

Focus Adjustment

Drill Template

Physical overview

Built-in Microphone

Focus Adjustment Ring

MicroSD/SDHC

Ethernet / PoE

Reset

Power LED Indicator

Network LED Indicator

External I/O connector

Dome bubble

Slide cover

Mounting hole

Routing hole Leave the slide cover if you would like to plug in cables through

the side of top cover and through a hole on the ceiling or wall.

Top cover

180°mark

I/O Terminal Block Circuit

I/O Terminal Block Pin Definition

This Camera provides a external I/O terminal block which is used to connect input/ output devices.

The pin definitions are described below.

PIN Definition Description Max. V/A

1 Ground -

2 + 5V DC 5V DC

0.5W

3 AUDIO_In(+) Unbalanced, 1.4Vp-p, 1Vrms, terminal block -

4 AUDIO_In(+) Unbalanced, 1.4Vp-p, 1Vrms, terminal block -

5 Digital Output 1

Uses an NPN transistor with the emitter connected to the GND

pin. If used with an external relay, a diode must be connected in

parallel with the load for protection against voltage transients.

100 mA

24V

7 Digital Input 1 Connected to GND to activate, or leave floating (or unconnected)

to deactivate. 30V DC

LED Indicator Definition

LED Color Indication

Network Blue Flash blue while Network activity.

Power

Red Steady red for booting up process; Steady red 30 Seconds when WPS configure failed.

Blue Steady blue for booting up completion

Purple Flash purple during firmware upgrading; when reset button pressed for at least 5 sec.

to factory default

Unlit When you press reset button; or Power off

Power Mode

PoE Mode

Power

Requirement PoE (IEEE802.3af)

with Class 3

Power

Consumption

D3100: 2.5W

D3200: 5W

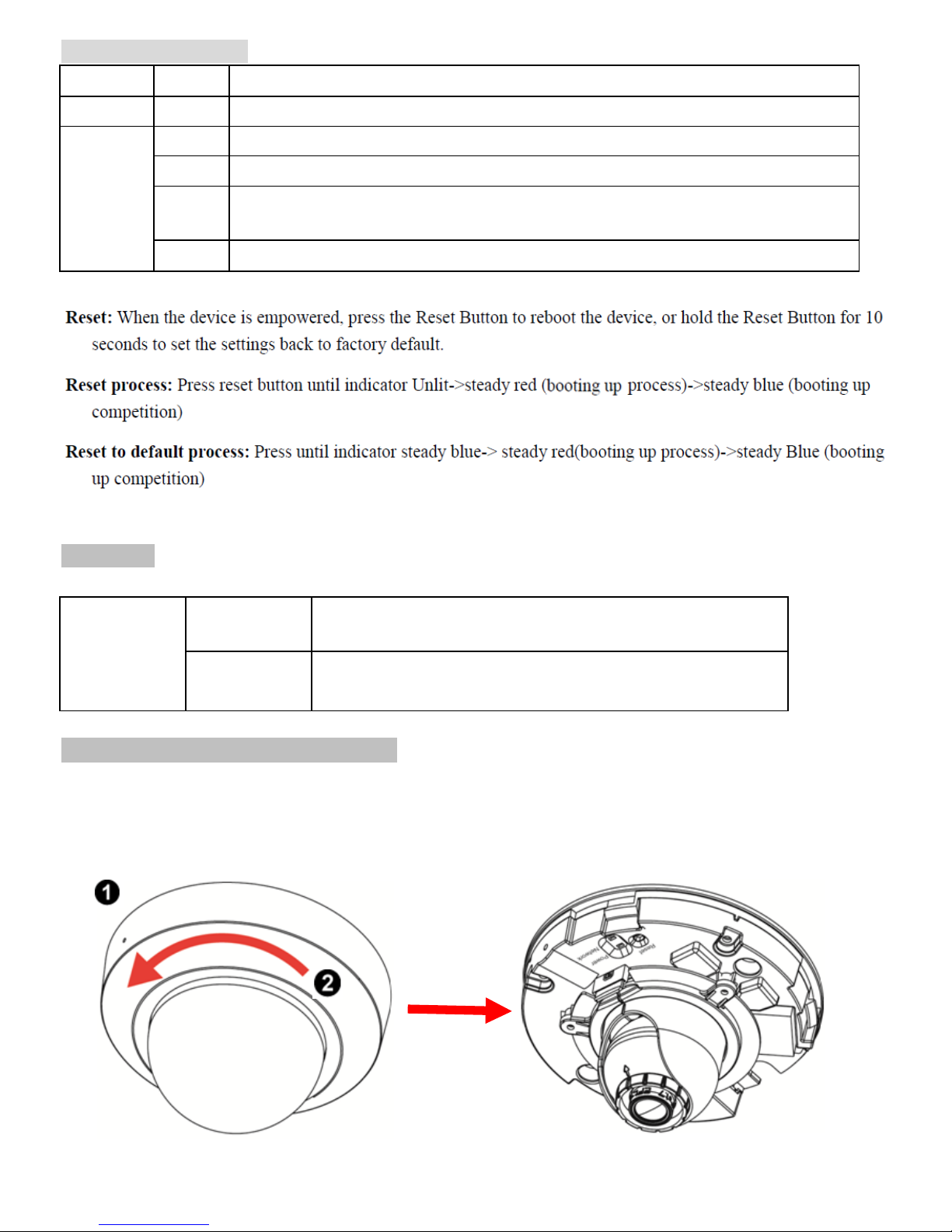

Install the hardware and connect all cables

a. Hardware Installing

1) Before connecting the Ethernet cable, please use one hand to hold top cover and another hand to press

the bottom of camera.

2) Then shift top cover to left (counter-clockwise) to open the dome cover.

(for F3105)

b. Wall mounting and Ceiling mounting

1) Attached the drill template to the wall. Drill three holes into the wall, which two for screws and one for cable

(if you want to route cables through conduit hole). Then hammer the supplied plastic anchors into the screw

holes and secure the plate with supplied screws.

2) Align the three holes on the base of camera with the two plastic anchors on the wall or ceiling, insert the

supplied screws to the corresponding hole and screw them.

3) Adjust the angle of camera to aim the shooting area.

Note:

When using this device, please use an Ethernet cable without the strain relief boot.

c. Lens focus range

d. Completion

The camera has only Power over Ethernet (PoE) built-in.

(there is no DC connector inside.)

1. Using a standard RJ-45 network cable, connect the IP

Camera to a PoE-enabled Hub / Switch / Router.

Note:

If using a non-PoE switch, please use a PoE power injector to connect the camera.

Rotate 360°

Tilt 79°

Pan 344°

Rotate Notice:

DO NOT rotate the lens over 2 rounds.

Doing so will damage the camera lens module.

e. Connect cables and power supply

1) Clean the dome bubble to remove the dust and finger print.

2) Align the slide cover down to the U-shape position.

3) Tighten the dome cover to the clockwise direction and make slide cover reaching the routing hole.

Microsoft OS:Use the software CD to install Intelligent IP Installer

Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to

install the firmware.

Access the IP Camera using Intelligent IP Installer

1. Please check two settings before using Intelligent IP Installer .

Select “Intelligent IPInstaller” and follow the installation process to complete the installation.

a. Browser’s Internet Properties → Security

→ Default Level

b. Browser’s Internet Properties → Privacy

→ Uncheck Pop-up Blocker

2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active

camera and video server devices. Select the relevant IP camera from the list and click Link to IE.

3. Enter your Username and Password

to login to the IP Camera.

(Default is admin / admin)

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:

This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install.

Mac OS using Safari Browser

7. Live video displays in the centre of your web browser.

1. Select Safari icon

2. Click Bonjour function and select the camera

you wish to access.

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

4. The monitor image will be displayed in your browser.
