ZAVIOMotorizedOutdoorIRDome
Quick Installation Guide
1
Quick Installation Guide
Please follow the installation steps below to set up your IP Camera.
Check the package contents with the list below. See P.1
Physical overview. See P.2
I/O Terminal Block Circuit. See P.3
I/O Terminal Block Pin Definition. See P.4
LED Indicator Definition. See P.4
Installation of hardware and connection of all cables. See P.4
Windows: Go to Zavio website and download Camera Installation Tool. See P.6
Access the IP Camera using Camera Installation Tool. See P.6
MAC OS: using Safari Browser. See P.10
Lighting environment. See P.12
Change language of the web interface. See P.12
Application of IP Camera. See P.13
Package Contents
Camera IP Camera
Quick Installation Guide Brief product information and quick installation
Accessory Alignment Sticker
Screw pack for wall and ceiling mounting
Desiccant bag
Terminal block 2 pin DC connector
Waterproof connector
Screwdriver
Software
The following software and information are available online:
- Video Management Software
- Camera Installation Tool
- User manuals
- Camera Language Packs
You may download the above at http://www.zavio.com/downloads.php or you
may scan the below QR-Code.
ToactivateVideoManagementSoftware,pleaseenterthelicensekeybelow.
2
Physical overview
3
Micro-SD Card Slot
The micro-SD card slot is built inside the housing. Remove the three screws of the
back housing as below No.1, and you’ll see the micro-SD card slot.
I/O Terminal Block Circuit
4
I/O Terminal Block Pin Definition
Definition Description Max. V/A
Alarm Input 1 Connect to GND to activate, or leave
floating/unconnected to deactivate. 30V DC
Alarm Input 2 Connect to GND to activate, or leave
floating/unconnected to deactivate. 30V DC
Alarm Output Relay contact output. Contact capacity with
resistance load.
0.3A at 125V AC
or
1A at 30V DC
LED Indicator
LED Color Indication
Network Green Solid green when network is established.
Orange Blink orange when there is network activity.
Install the hardware and connect all cables
A. Wall mounting and Ceiling mounting
1) Attach the alignment sticker to the wall/ceiling. Drill three holes into the
wall. Then hammer the supplied plastic anchors into the screw holes and
secure the mounting plate with supplied screws.
2) Attach the camera to the mounting plate and turn the camera clockwise
until the clips snap to the mounting plate.
Note: When the adjustment is finished,
please change the desiccant bag in
back cover.
5
B. Connect all cables
B1. Without Power over Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Use a standard RJ-45 network cable and connect the IP Camera to a
hub/switch/router.
B2. Power over Ethernet (PoE)
1. Use a standard RJ-45 network cable and connect the IP Camera to a
PoE-enabled hub/switch/router.
B3. RJ45 waterproof connector
1. Make sure all components are assembled as shown on the below graph.
2. Check that the Ethernet Port and the Waterproof main body are tightly fasten.
6

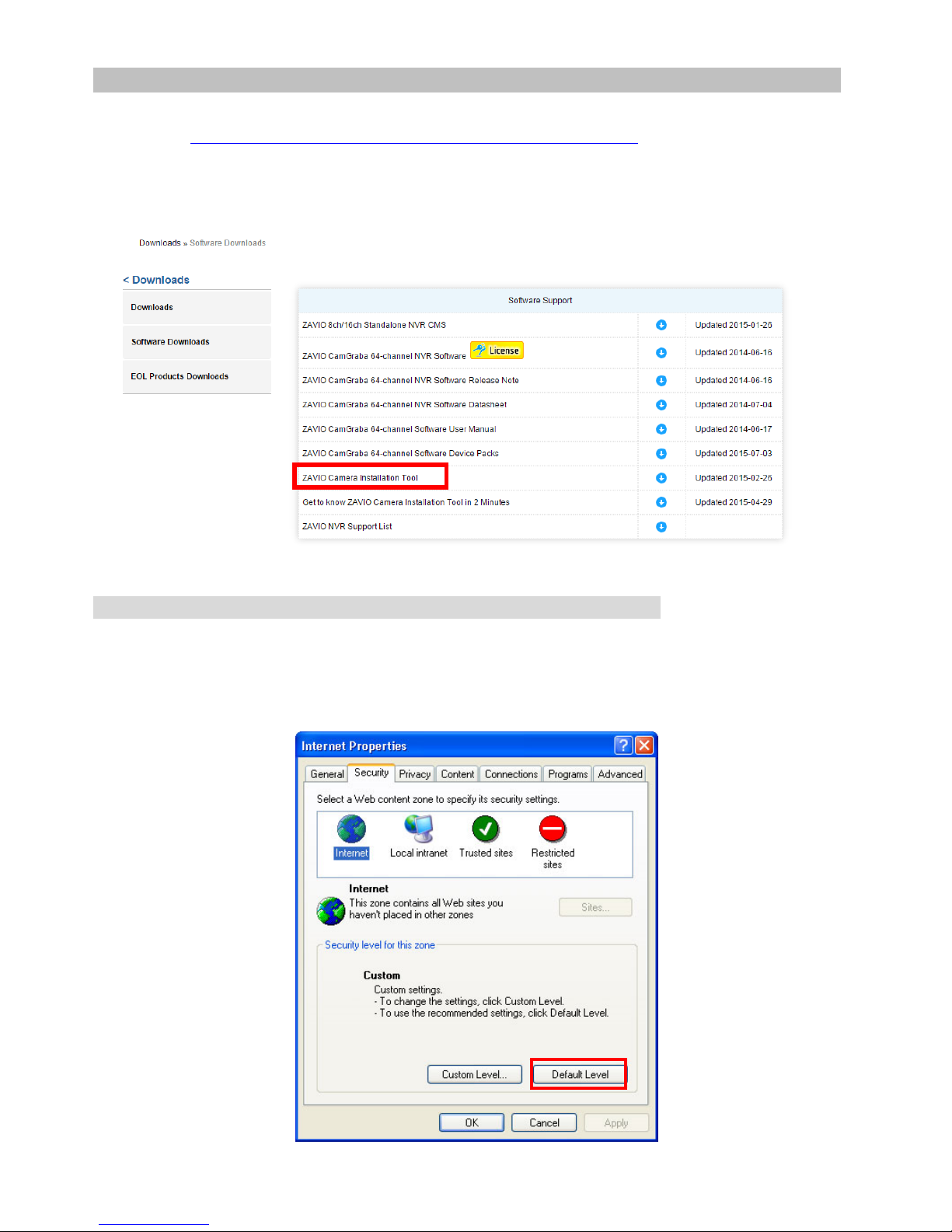

Windows: Go to Zavio Website and download Camera Installation Tool
Please go http://www.zavio.com/softwaredownloads.php download “Camera
Installation Tool”. And follow the installation process to complete the
installation.
Access the IP Camera using Camera Installation Tool
1. Please check two settings before using Camera Installation Tool.
a. Browser’s Internet Properties →Security→Default Level
7
b. Browser’s Internet Properties →Privacy →Uncheck Pop-up Blocker
2. Click the Camera Installation Tool Icon on your desktop. The main page will
show up listing all active camera and video server devices. Select the
desired IP cameras from the list and click Link to IE.
8
3. Enter Username and Password to login to the IP Camera.
(Default is admin / admin)
4. When accessing the IP Camera for the first time, a yellow information bar
appears below the address bar:This website wants to install the
following add-on: AxvideoView.cab from ‘Zavio Inc’.
9
5. Click the information bar, and select Install ActiveX control.
6. Click Install
7. Live video will display in the center of your web browser.
