Zeiss SL Imaging Solution Bedienungsanleitung
Quick Guide
ZEISS SL Imaging Solution
Capturing and editing quality images and video
2 of 6
ZEISS SL Imaging Solution Quick Guide
1. Access patient data
a. Search for existing patient
b. Enter new patient data
c. Choose from FORUM®modality worklist
2. Review data from previous visits
3. Click "Capture" to switch to the capture screen
(for exam documentation)
ZEISS SL Imaging Solution screen overview
Patient screen
Patient screen
1
a
b
c
2
3
3 of 6
ZEISS SL Imaging Solution Quick Guide
Capture images and videos using:
• ZEISS SL800 joystick trigger
– Short press to capture images
(likewise during recording)
– Long press (>1s) to start and stop
the video recording
– Rotate to change the predened
camera parameter
• Other ZEISS slit lamps
– Capture images using the footswitch
or keyboard spacebar, or click the
camera button (3)
– Click the record button (3) to start
and stop the video recording
Capture screen / Documentation examination
Review screen
1. Camera settings
2. Camera proles: Use predened camera proles for dierent
illumination conditions
3. Camera and record buttons
4. Layout templates: Choose a layout template to automatically create reports
during image acquisition for easy, streamlined documentation
a. Counter for capturedimages and videos
b. Create a new layout byselecting boxes
c. Last created layout
d. Quick access for favorite layouts with drag-and-drop placement feature
5. Review: Automatically creates a report using the selected layout
Capture screen Review screen
Review screen
Control mechanism for image
• Zoom: Use the mouse wheel
• Rotation: CTRL + mouse wheel
• Movement: CTRL + hold left mouse bar
Tools
Edit images and videos
Use Flicker to observe dierences
Export reports, videos and images to
FORUM/DICOM archive or share on a
predened network drive
Save data locally
Create a single image from a video
ab c d
2
1 3
4
5
4 of 6
ZEISS SL Imaging Solution Quick Guide
Adjust the white balance for more natural looking images
Camera settings
Without white balance adjustment With white balance adjustment
How to get quality images using the software
Override the default white balance by following the steps below:
• Hold a white sheet of paper in front of the slit lamp
• Swivel in the diuser for a homogeneous illumination
• Reduce illumination to a minimum (the test paper should appear grey on the screen)
• Make sure there is no glare
• Click the White balance button (each prole requires a separate white balance)
Image quality – Best: lower resolution, but higher frame rate
Automatic adaption of gain and exposure time – Increase illumination
on SL (may cause noise)
Exposure time – Dependent upon the movement of patient and SL; low
exposure time for videos and moving patients
Gain – Electronic amplication of the signal. The darker the output signal,
the higher the basic noise. Keep Gain as low as possible. Instead, increase
illumination at the SL.
Gamma – Changes black/white appearance without changing color
temperature (keep at 100%)
Fine setting – Color information; 100% = maximum color information,
0% = black/white image
Coarse setting saturation – Leave at 0% for the most natural impression.
Higher value will amplify the given color information.
5 of 6
ZEISS SL Imaging Solution Quick Guide
Option 1: Eyepiece with crosshair (recommended)
This method applies to all types of slit lamps
1. Insert the eyepiece with crosshair into the right side of the
binocular tube (this is where the camera is located).
2. Close the left eye and turn the diopter ring of the eyepiece
until the crosshair appears sharp. Start from maximum "+"
to avoid accommodation.
3. Ensure the crosshair and observed object are both in focus.
4. Check the monitor image; it should now be in focus.
Good image
Crosshair and image in focus
Poor image
Crosshair in focus, but view out
of focus » Focus slit lamp
Poor image
View in focus, but crosshair out
of focus » Focus eyepieces
Issue: Observer can compensate a misalignment of the instrument, the camera cannot
How to align the slit lamp and camera correctly
Option 2: Monitor focus (no crosshair eyepiece
or focus rod)
This method applies to all types of slit lamps
1. Attach an object (e.g., a business card) to the headrest.
2. Focus on that object using the highest magnication while
looking only at the monitor.
3. Block the slit lamp by activating the quick action break.
4. Looking through the microscope, without moving the slit
lamp, adjust your eyepieces (monocular).
Tips:
• Keep in mind which beam path is recorded to avoid
shadows and reexes
• Use the aperture to increase the depth of eld
• Use the optimal type of illumination
• Big illumination angle for 3D information
• For people who wear glasses, it is necessary to slide
in eyecups
• Reduce ambient light for better results
• Accommodation is more pronounced among younger
people (that’s why adjusting correctly, and Option 1,
is important)
1
2
3
4
en-INT_31_011_0021I Printed in the Germany. CZ-VII/2023 International edition: Only for sale in selected countries.
The contents of this brochure may differ from the current status of approval of the product or service offering in your country. Please contact our regional
representatives for more information. Subject to changes in design and scope of delivery and due to ongoing technical development. FORUM is a either a
trademark or registered trademark of Carl Zeiss Meditec AG or other companies of the ZEISS Group in Germany and/or other countries.
© Carl Zeiss Meditec Inc, 2023. All rights reserved
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51–52
07745 Jena
Germany
www.zeiss.com/SLImaging
Carl Zeiss Meditec, Inc.
5300 Central Parkway
Dublin, CA 94568
USA
www.zeiss.com/us/med
SL Imaging Solution
Inhaltsverzeichnis
Andere Zeiss Medizinische Geräte Handbücher
Zeiss

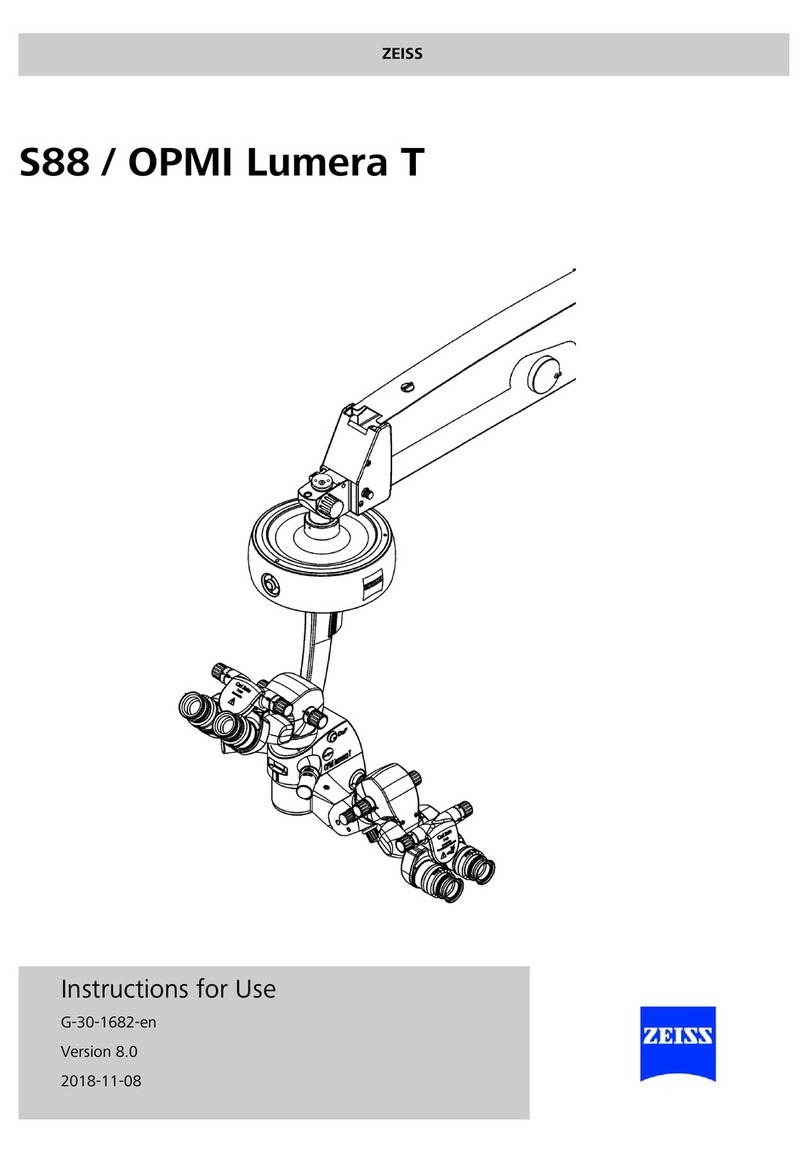

Zeiss OPMI Lumera T Bedienungsanleitung
