Zendure PVHub Mini Bedienungsanleitung
PVHub Mini
User Manual
support-eu@zendure.co
m
1
DISCLAIMER
CONTENTS
1. Before You Begin
2. Specications
Read all safety guidelines, warnings and other product information in this
manual carefully, and read any labels or stickers attached to the product
before using. Users take full responsibility for the safe usage and operation
of this product. Familiarize yourself with relevant regulations in your area.
You are solely responsible for being aware of all relevant regulations and
using Zendure products in a way that is compliant.
Keep this manual for future reference.
The information contained here in is subject to change without notice.
For the latest version, please visit
https://zendure.com/pages/download-center.
Model ZDPVHMM ZDPVHMF
Application For SBV For Satellite Battery
Weight ≈ 1.7kg
Control box dimensions 228*155*54mm
Cable lengh 60cm
Max connected Battery Capacity 6,438Wh(SSS) or 4,608Wh(LFP)
Wireless Type Wi-Fi , Bluetooth
Mounting Type Wall mount is availible
Input voltage VIN=40-60V
Input current Imax=30A
Rated output power Pe=800W (with one Micro-Inverter)
Pe=1600W (with two Micro-Inverter）
1. Before You Begin
2. Specications
3. Getting Started
3.1 What’s in the Box
3.2 Product Overview
3.3 Operation Guidelines
3.4 Connect with SuperBase V6400/ 4600 or Satellite Battery B6400/4600
4. FAQs
5. Troubleshooting
EN
2
3.1 What’s in the box
3.2 Product overview
3.3 Operation Guidelines
EN
3. Getting started
Mounting bracket &
Screw*2
Foot pad*4
User Manual
PVHub mini
LED indicator
IOT bottom
Battery connector
MC4 connector
No Item Action Indicator Remark
1Pairing(Wi-Fi/
Bluetooth)
Press and hold the IOT
buttom for 3 seconds
IoT white indicator
ashes
two
beeps
Paring completed IoT green indicator
on /
2Fault
reminder
APP prompts specic
information
Fault red indicator
on 5 beeps
3OTA Operate on APP IoT green indicator
ashe /
3
EN
Step 1
Make sure the SBV/Satelite Battery is powered off rst before connect the
PVHub Mini and Micro-Inverter.
Step 2
To pluy the PVHub Mini into the parallel port of SBV/Satelite Battery and MC4
connecte together with the MC4 of the micro-inverter , then plug the other end
of the micro-inverter into the household mains socket.
Step 3
Make sure the connections above before turning on the SBV/Satelite Battery
Step 4
To open the App and pair it with the SBV/Satelite Battery. After pairing
successfully , to set start output power from the SBV/Satelite Battery on the
App .
Step 5
Then open the App and press and hold the IoT button for 3 seconds to pair
with PVHub. At this time, the IoT indicator light ashes white quickly. After the
pairing is completed, the IoT indicator light stays green.
Step 6
Then to set connection with the Micro-inverter on the App by scan the barcode
on the backside of the Micro-inverter.
Step 7
Finally ,to set the output power of the microinverter in the App and it will work
normally.

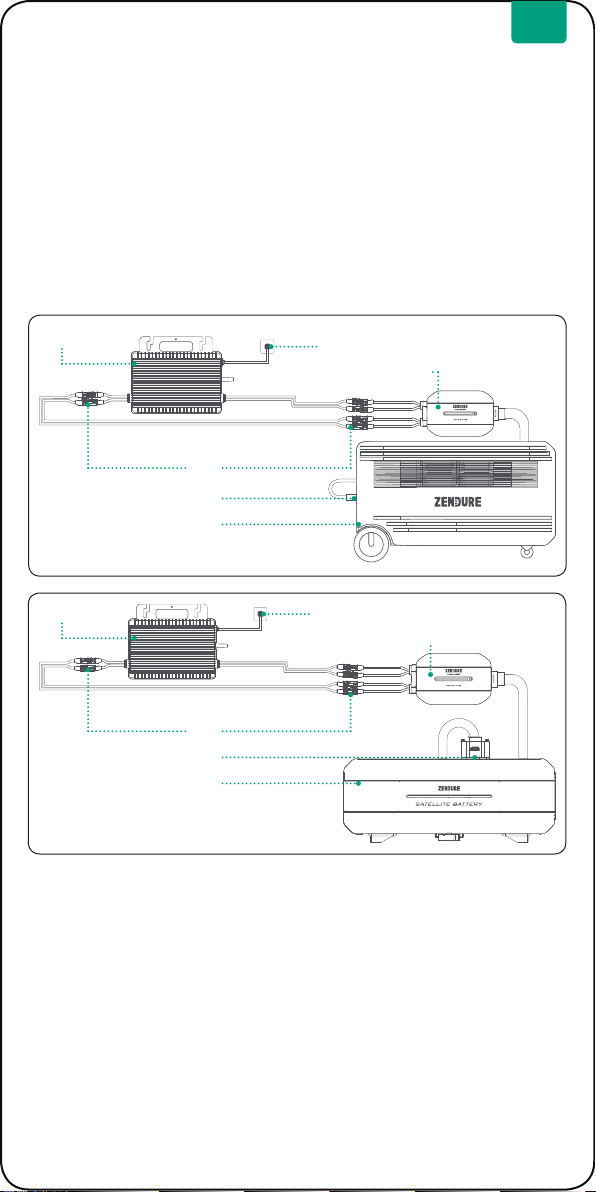

See below connection guideline pictures :
3.4 Connect with SuperBase V6400/4600 or Satellite Battery B6400/
B4600
Micro-inverter
Micro-inverter
MC4
MC4
PVHub Mini for SBV
PVHub Mini for Satellite battery
Parallel port
Parallel port
SBV
Satellite battery
Grid socket
Grid socket
4
EN
After successful pairing of
SBV/Satelite Battery
5
EN
6
EN
7
EN
8
4. FAQ
Q: Can the SBV/satellite battery pack be expanded in parallel when
connected to PVHub Mini?
A: No.
Q: Can photovoltaic panels be connected when PVHub Mini is
connected?
A: Yes. The XT-90 interface of SBV is 12-60VDC, 25A, 15,00W Max; the XT-90
interface of satellite battery pack is 12-60VDC, 10A, 600W Max.
Q: When connecti ng to PVHub Mini, can I connect to the Home panel?
A: Yes.
Q: After connecting the PVHub Mini, will the SBV/satellite battery pack
output power to the PVHub Mini after it is turned on?
A: To power on the SBV/satellite battery pack, you need to connect to
the App, and set up on the App to turn on the parallel port output to
supply power to the PVHub Mini.
Q: Can the microinverter output power be adjusted?
A: Yes, settings and adjustments can be made on the App.
Q: When the SBV/satellite battery pack is connected to the PVHub Mini,
do other AC/DC output ports still output?
A: There is output.
Q: Can PVHub Mini be connected to its brand of microinverters?
A: Not yet.
3.5 Firmware Update
Firmware Update
When using your PVHub Mini for the rst time, please check for the latest
rmware using the Zendure app.
The app facilities over-the-air (OTA) updates.
Read the Zendure app user guide and access the download link here: https://
app.zendure.com/download
https://zendure.com/pages/download-center
Tips:
• Do not turn off the device while rmware is updating.
• Please update the rmware when the capacity is more than 20%, if Home
Panel power by the SBV or Satelite Battery. in order to have enough power to
complete the update.
Privacy Policy
By using Zendure Products, Applications and Services, you
consent to the Zendure Terms of Use and Privacy Policy,
which you can access via the "About" section of the "User"
5. Troubleshooting
Indicator & alarm Potential issue Solution
Red fault indicator on &
5 beeps
Communication /Pairing
connection /Un-match
Micro-inverter
Turn off the machine
and turn on to pairing
again/connect the
match Micro-inverter .
In case any other questions , please refer to the Zendure App for details.
Or contact Zendure Customer Service for further information.
EN
