Zennio MAXinBOX SHUTTER 4CH Bedienungsanleitung



MAXinBOX SHUTTER 4CH / 8CH v2

4-Channel / 8-Channel Shutter Actuator

USER MANUAL

ZIOMBSH4V2

ZIOMBSH8V2

Application program version: [1.2]

User manual edition: [1.2]_a

www.zennio.com

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

CONTENTS

Contents ...................................................................................................................................2

1 Introduction ......................................................................................................................3

1.1 MAXinBOX SHUTTER 4CH / 8CH v2 ...............................................................................3

1.2 Installation ...................................................................................................................4

1.3 Start-Up and Power Loss ..............................................................................................5

2 Configuration ....................................................................................................................6

2.1 General ........................................................................................................................6

2.2 Outputs ........................................................................................................................8

2.3 Logic Functions.............................................................................................................8

2.4 Scene Temporisation....................................................................................................9

2.5 Manual Control ..........................................................................................................11

ANNEX I. Communication Objects ...........................................................................................15

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

1INTRODUCTION

1.1 MAXinBOX SHUTTER 4CH / 8CH v2

MAXinBOX SHUTTER 4CH v2 and MAXinBOX SHUTTER 8CH v2 from Zennio are

KNX specific actuators (of 4 or 8 channels, respectively) for controlling motorised

shutter / blind systems.

The most outstanding features are:

8 / 16 relay outputs, configurable as up to 4 / 8 independent shutter

channels (with or without slats).

20 customisable, multi-operation logic functions.

Scene-triggered action control, with an optional delay in the execution.

Manual operation / supervision of the shutter channels through the on-

board pushbuttons and LEDs.

Heartbeat or periodic “still-alive” notification.

Relay Switches Counter.

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

1.2 INSTALLATION

MAXinBOX SHUTTER 4CH / 8CH v2 connects to the KNX bus through the on-board

KNX connector.

Once the device is provided with power from the KNX bus, both the individual address

and the associated application program may be downloaded.

This device does not need any additional external power since it is entirely powered

through the KNX bus.

Figure 1. MAXinBOX SHUTTER 8CH v2

Note: the above figure is entirely analogous for MAXinBOX SHUTTER 4CH v2.

The main elements of the device are described next.

Test/Prog. Pushbutton (5): a short press on this button sets the device into

the programming mode, making the associated LED (3) light in red.

Note: if this button is held while plugging the device into the KNX bus, the

device will enter into safe mode. In such case, the LED will blink in red every

0.5 seconds.

Outputs (1 and 2): output ports for the insertion of the stripped cables of the

systems being controlled by the actuator (see section 2.2). Please secure the

connection by means of the on-board screws.

1. Upper Outputs.

2. Lower Outputs.

3. Prog./Test LED.

4. KNX Bus Connector.

5. Prog./Test Pushbutton.

6. Manual Control Pushbutton.

7. Output Status LED.

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

Manual control pushbuttons (6):pushbuttons for a direct control of the

shutter channels during the set-up process. See section 2.5.

To get detailed information about the technical features of this device, as well as on the

installation process and on security procedures, please refer to the corresponding

Datasheet, bundled with the original packaging of the device and also available at

www.zennio.com.

1.3 START-UP AND POWER LOSS

During the start-up of the device, the Test/Prog. LED will blink in blue colour for a few

seconds before the device is ready. External orders will not be executed during this

time, but afterwards.

Depending on the configuration, some specific actions will also be performed during

the start-up. For example, the integrator can set whether the shutter channels should

switch to a particular state and whether the device should send certain objects to the

bus after the power recovery. Please consult the next sections of this document for

further details.

On the other hand, when a bus power failure takes place, the device will interrupt any

pending actions, and will save its state so it can be recovered once the power supply is

restored.

For safety reasons, all shutter channels will be stopped (i.e., the relays will open) if a

power loss takes place.

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

2CONFIGURATION

2.1 GENERAL

After importing the corresponding database in ETS and adding the device into the

topology of the desired project, the configuration process begins by entering the

Parameters tab of the device.

ETS PARAMETERISATION

The only parameterisable screen available by default is General. From this screen it is

possible to activate/deactivate all the required functionality.

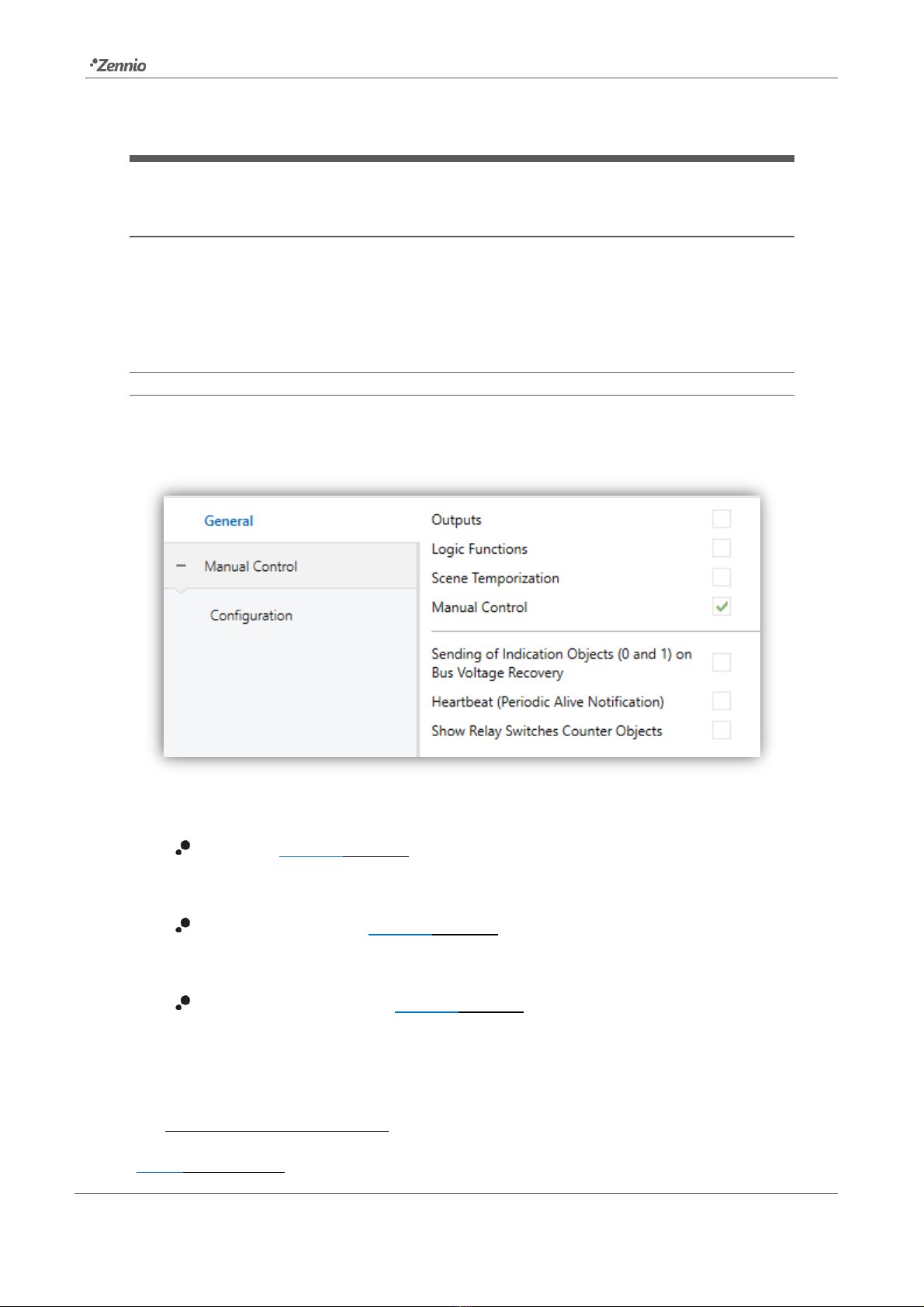

Figure 2. General screen

Outputs [disabled/enabled]

: enables o disables the “Outputs” tab on the left

menu. See section 2.2 for more details.

Logic Functions [disabled/enabled]: enables o disables the “Logic

Functions” tab on the left menu. See section 2.3 for more details.

Scene Temporization [disabled/enabled]: enables o disables the “Scene

Temporization” tab on the left menu. See section 2.4 for more details.

The default values of each parameter will be highlighted in blue in this document, as follows:

[default/rest of options].

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

Manual Control [disabled/enabled]: enables o disables the “Manual Control”

tab on the left menu. See section 2.5 for more details.

Sending of Indication Objects (0 and 1) on Bus Voltage Recovery

[disabled/enabled]: this parameter lets the integrator activate two new

communication objects (“Reset 0” and “Reset 1”), which will be sent to the

KNX bus with values “0” and “1” respectively whenever the device begins

operation (for example, after a bus power failure). It is possible to

parameterise a certain delay [0…255] to this sending.

Figure 3. Sending of Indication objects on bus voltage recovery.

Heartbeat (Periodic Alive Notification) [disabled/enabled]: this parameter

lets the integrator incorporate a one-bit object to the project (“[Heartbeat]

Object to Send ‘1’”) that will be sent periodically with value “1” to notify that

the device is still working (still alive).

Figure 4. Heartbeat (Periodical Alive Notification).

Note: The first sending after download or bus failure takes place with a delay

of up to 255 seconds, to prevent bus overload. The following sendings match

the period set.

Show Relay Switches Counter Objects [disabled/enabled]: enables two

communication objects to keep track of the number of switches performed by

each of the relays ("[Relay X] Number of Switches") and the maximum

number of switches carried out in a minute ("[Relay X] Maximum Switches

per Minute").

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

2.2 OUTPUTS

MAXinBOX SHUTTER 4CH / 8CH v2 incorporates 8 or 16 relay outputs, respectively,

configurable as up to 4 or 8 independent shutter channels, each of which will

operate one motorised shutter system.

For detailed information about the functionality and the configuration of the parameters

related to the shutter channels, please refer to the specific manual “Shutters”,

available in the MAXinBOX SHUTTER 4CH / 8CH v2 product section at the Zennio

homepage (www.zennio.com).

2.3 LOGIC FUNCTIONS

This module makes it possible to perform numeric and binary operations to incoming

values received from the KNX bus, and to send the results through other

communication objects specifically enabled for this purpose.

MAXinBOX SHUTTER 4CH / 8CH v2 can implement up to 20 different and

independent functions, each of them entirely customisable and consisting in up to 4

consecutive operations each one.

The execution of each function can depend on a configurable condition, which will be

evaluated every time the function is triggered through specific, parameterisable

communication objects. The result after executing the operations of the function can

also be evaluated according to certain conditions and afterwards sent (or not) to the

KNX bus, which can be done every time the function is executed, periodically or only

when the result differs from the last one.

Please refer to the specific “Logic Functions in MAXinBOX SHUTTER”user manual

(available in the MAXinBOX SHUTTER 4CH / 8CH v2 product section at the Zennio

homepage, www.zennio.com) for detailed information about the functionality and the

configuration of the related parameters.

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

2.4 SCENE TEMPORISATION

The scene temporisation allows imposing delays over the scenes of the shutter

channels. These delays, defined in parameters, are applied on the execution of one or

more scenes that may have been configured.

Please bear in mind that, as multiple delayed scenes can be configured for each

shutter channel, in case of receiving an order to execute one of them when a previous

temporisation is still pending in that channel, the channel will interrupt such

temporisation will be interrupted and only the delay and the action of the new scene will

be executed.

ETS PARAMETERISATION

Prior to setting the scene temporisation, it is necessary to have one or more scenes

configured in some of the channels. When entering the Configuration window under

Scene Temporization, all configured scenes will be listed, together with a few

checkboxes to select which of them need to be temporised, as shown in Figure 5.

Figure 5. Scene Temporization

Enabling a certain scene number nbrings a new tab with such name to the menu on

the left, from which it is possible to configure the temporisation of that scene for each of

the channels where it has been configured.

MAXinBOX SHUTTER 4CH / 8CH v2

http://www.zennio.com Technical Support: http://support.zennio.com

Figure 6. Configuration of Scene Temporization

Therefore, parameter “Scene m. Shutter Channel Z Delay” [0…3600 [s] / 0…1440

[min] / 0…24 [h]], defines the delay that will be applied to the action defined in Z for the

execution of scene m (where Z may be a specific shutter channel).

Note: In the configuration of a scene of a shutter channel it is possible to parameterize

several scenes with the same scene number. This means that several delay

parameters associated with the same output appear in the configuration tab of the

delays of that scene. With this parameterization, the behavior will be as follows: the

action and delay of the first scene parameterized with the same scene number will

always prevail, where the highest priority scene is 1 (the first in the scene configuration

tab) and the lowest priority is the last.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Zennio Controller Handbücher

Zennio

Zennio MINiBOX 0-10V X3 Bedienungsanleitung

Zennio

Zennio ZoningBOX 6 Leitfaden

Zennio

Zennio MAXinBOX Bedienungsanleitung

Zennio

Zennio HeatingBOX 230V 4X Leitfaden

Zennio

Zennio MAXinBOX SHUTTER 8CH v3 Leitfaden

Zennio

Zennio ZoningBOX 6 Leitfaden

Zennio

Zennio MAXinBOX 66 v2 Leitfaden

Zennio

Zennio MAXinBOX 8 v3 Leitfaden

Zennio

Zennio ZN1VI-TPZAS Bedienungsanleitung

Zennio

Zennio ZCL-MCC Bedienungsanleitung

Zennio

Zennio MINiBOX 25 v3 Leitfaden

Zennio

Zennio ALLinBOX 1612 v2 Bedienungsanleitung

Zennio

Zennio MAXinBOX 66 Bedienungsanleitung

Zennio

Zennio FANinBOX 110V 1CH Leitfaden

Zennio

Zennio IRSC Zone Bedienungsanleitung

Zennio

Zennio MAXinBOX 66 Leitfaden

Zennio

Zennio AudioInRoom Bedienungsanleitung

Zennio

Zennio ZN1CL-IRSC Bedienungsanleitung

Zennio

Zennio AudioInRoom ZMU-AUIR Bedienungsanleitung

Zennio

Zennio MAXinBOX FC 0-10V VALVE Bedienungsanleitung

Zennio

Zennio MAXinBOX FANCOIL 4CH2P Leitfaden

Zennio

Zennio MINiBOX 40 v3 Bedienungsanleitung

Zennio

Zennio ZoningBOX 6 Bedienungsanleitung

Zennio

Zennio ACTinBOX MAX6 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
