Zhiyun CRANE-M2 Bedienungsanleitung

The following features are available in

this PDF document.

Quick Keyword Search

Enter the keyword in the search

box and hit the search button

Quick Jump between

Chapters

Click the title of a specific chapter

on the Contents to jump to it

*Reading software such as Adobe Reader is

needed to support the functions above.

CRANE-M2

User Guide

ZHIYUN-EN-v1.00

Contents

■Packing List

Packing List····················································································1

■Get to Know CRANE-M2

Get to Know CRANE-M2 ································································2

■Charging Procedure

Charging Procedure········································································3

■Installation and Balancing

Tripod Installation ············································································4

Camera Installation ·········································································4

GoPro Camera Installation·······························································6

Smartphone Installation···································································6

Balance Adjustment Method ···························································7

■How to Use

Button Description··········································································9

Display Screen Description ·····························································10

Menu Option Description ································································11

Motor Torque Adjustment································································11

Control Mode Description ·······························································12

Manual Angle Lock·········································································14

Micro USB Power Outlet Usage ······················································14

■APP Operations

Download APP ···············································································15

How to Connect Stabilizer to Camera ··············································15

After First-time Connection······························································18

ZY Play Main Functions···································································18

■Calibration and Firmware Upgrade

When do you need to calibrate the stabilizer? ··································19

Initialization Method·········································································19

Six-Side Calibration ········································································20

Motor Fine-Tuning ···········································································22

Firmware Upgrade ··········································································22

■Calibration and Firmware Upgrade

■Product Specifications

■Disclaimer and Warning

■Warranty Terms

■Contact Card

Packing List

The product package comes with the following items. In case that any item is found

missing, please contact ZHIYUN or your local selling agent.

CRANE-M2 × 1 Tripod × 1 Quick Release Plate × 1

Wrist Strap × 1 USB Type-C Cable × 1 1/4" Camera Fixing

Screw × 1

Manual

Quick Start Guide x 1 Phone Holder x 1 Storage Case x 1

Get to Know CRANE-M2

1. Tilt Axis Thumb Screw

2. Quick Release Plate Thumb Screw

3. Pan Axis Latch

4. Trigger

5. Locking Pin

6. Memory Lock

7. Quick Release Plate

8. 1/4" Camera Fixing Screw

9. Pan Axis Thumb Screw

10. 1/4" Threaded Hole

11. Charging/Firmware Update Port

12. Zoom Slider

13. Wrist Strap Hole

14. Micro USB Power Outlet

15. Roll Axis Thumb Screw

16. Roll Axis Motor

17. Pan Axis Motor

18. Display Screen

19. Joystick

20. Photo/Video Button

21. Tilt Axis Motor

22. Safety Lock

23. Power Button

24. Menu Button

25. Mode Button

26. Tripod

Charging Procedure

When using CRANE-M2 for the first time, please fully charge the batteries to activate

them and to ensure the proper function of the stabilizer.

Charging method: please charge the stabilizer using a power adapter (not included in

the package) and the USB Type-C cable provided by connecting to the charging port

on the stabilizer.

Charging Procedure

USB 充电线

适配器电源

USB Type-C CablePower

Adapter

Electrical

Outlet

Installation and Balancing

Mount the stabilizer on the tripod and unfold the

tripod on a flat surface.

Tripod Installation

Camera Installation

Take Sony DSC-RX100M5 as example:

1. Take out the quick release plate, mount the camera on the plate and then tighten the

1/4" screw at its bottom.

2. Loosen the quick release plate thumb screw, slide the camera-mounted quick

release plate to the quick release module. Push the quick release plate towards the tilt

axis motor but not to rub the motor. Tighten the quick release plate thumb screw after

the safety lock is engaged.

① Long slot of the quick release plate is for installing

mirrorless camera, while the short slot is for compact

camera (Fuji mirrorless cameras can be installed in

the short slot).

② Before mounting the camera, make sure the

camera is ready for work. Remove the lens cap and

make sure the camera’s battery and memory card

are already inserted.

长槽短槽

The pan axis motor has a latch to lock and unlock the pan axis. Please unlock the pan

axis before using the stabilizer and lock it when not in use.

For storage, fold the arms (axes) in order as shown in the picture below; Press down

and stick roll axis to pan axis by the locking pin; Tighten the roll axis thumb screw to

finalize.

Long Slot Short Slot

收纳状态

When pressing down and locking the roll axis, the locking pin will bounce up to lock

the tilt axis as well; When unlocking and lifting the roll axis, the locking pin will retract

automatically to get the stabilizer ready for work.

Installation and Balancing

1. Lock the latch button

under pan axis;

4. The stabilizer is

folded up for storage.

3. Press down and

stick roll axis to pan

axis by the locking

pin; Tighten the roll

axis thumb screw to

finalize；

2. Fold the tilt axis in

line with the roll axis as

shown in the picture;

收纳状态

Installation

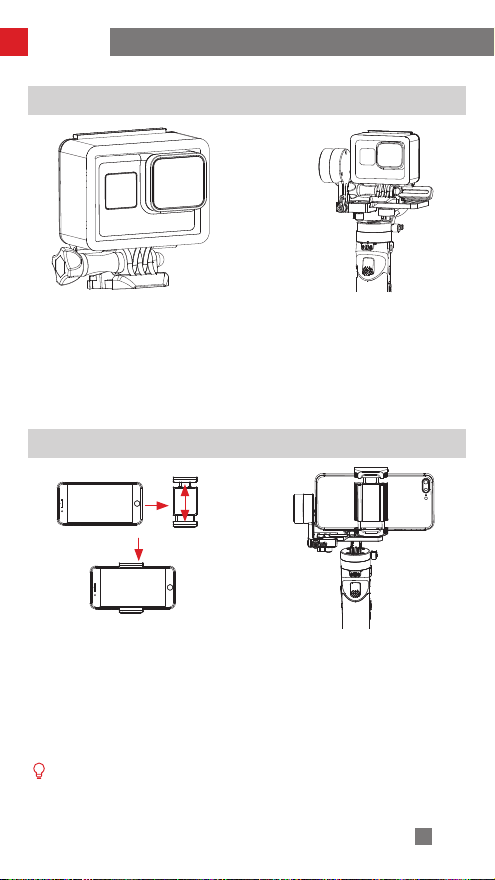

GoPro Camera Installation

1. Put GoPro camera into a GoPro

camera cage (not included in the

package). Follow the steps in “Camera

Installation” to mount GoPro camera

with its camera cage on the stabilizer.

Balance the combo according to the

steps listed in “Balance Adjustment

Method”.

2. The stabilizer is ready for use when it

is well balanced as shown above.

1. Put smartphone into the phone

holder and follow the steps in “Camera

Installation” to mount smartphone with

phone holder on the stabilizer. Balance

the combo according to the steps

listed in “Balance Adjustment Method”

(adjustable range of the phone holder is

59-90mm).

2. The stabilizer is ready for use when it

is well balanced as shown above.

There are two 1/4" threaded holes on the phone holder. Please use the shallower

one for mounting phone holder on CRANE-M2 and use the deeper one for

mounting on the tripod.

Smartphone Installation
