ZKTeco SpeedFace V5L QR Series Bedienungsanleitung

Quick Start Guide

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between

the actual product and the written information in this manual.

SpeedFace - V5L[QR] Series

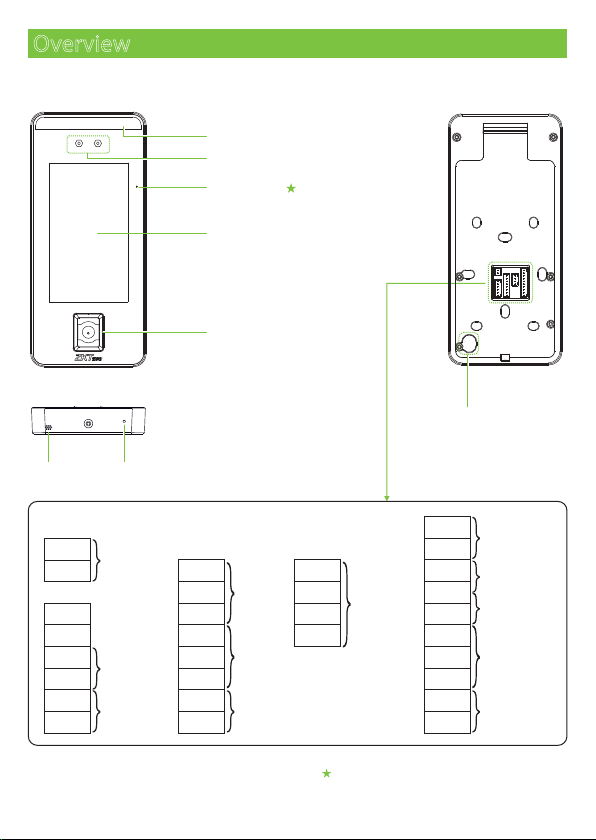

Overview

Magnetic Tamper

Switch

Reset

Speaker

RS232

RS485

485B

485A

GND

TXD

RXD

GND

TXD2

RXD2

RS232

GND

12V

+12V

GND

IWD0

IWD1

WD0

WD1

TX+

RX+

TX-

RX-

AUX

AL+

AL-

NC1

COM

NO1

BUT

GND

SEN

GND

Lock

Alarm

Exit Button

Sensor

Auxiliary

Input

Ethernet

Power In

Wiegand

Out

Note: Not all products have the function with , the real product shall prevail.

SpeedFace-V5L[QR]

Flash

Camera & Palm Collector

5" Touchscreen

Microphone

QR Code Scanner

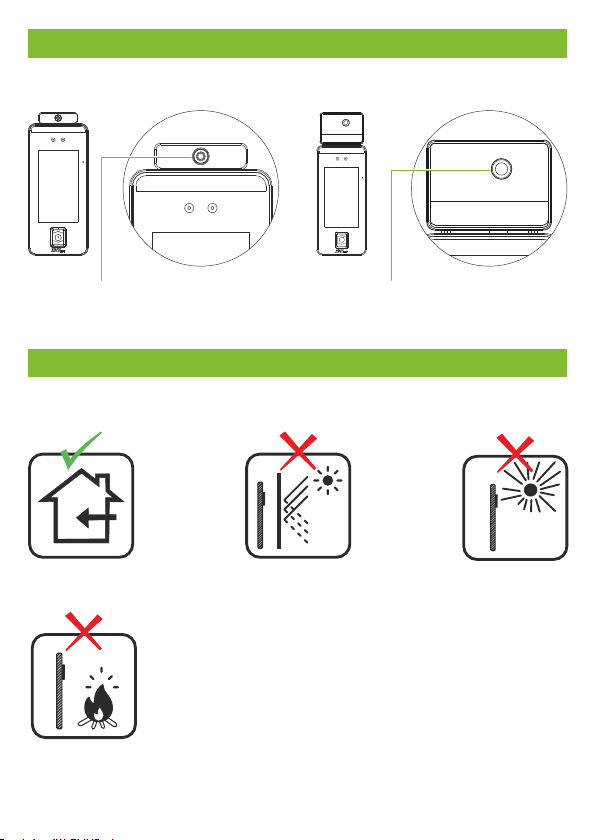

Overview

SpeedFace-V5L[QR][TD]

Thermal Infrared Temperature

Measurement Module

Thermal Imaging Temperature

Detection Module

SpeedFace-V5L[QR][TI]

Installation Environment

Please refer to the following recommendations for installation.

INSTALL INDOORS

ONLY

AVOID INSTALLATION

NEAR

GLASS WINDOWS

AVOID DIRECT

SUNLIGHT

AND EXPOSURE

AVOID USE OF ANY

HEAT SOURCE

NEAR THE DEVICE

KEEP EFFECTIVE

DISTANCE OF

0.3 to 2m

Recommended Palm Gestures

Note:

1. Place your palm within 30 to 50 cm of the device.

2. Place your palm in the palm collection area, such that the palm is placed parallel

to the device.

3. Make sure to keep space between your ngers.

KEEP EFFECTIVE

DISTANCE OF

30 to 50 cm

DO NOT KEEP

YOUR FINGERS

Recommended Standing Position

KEEP SPACES

BETWEEN

YOUR FINGERS

DO NOT KEEP

PALM OUTSIDE

COLLECTION AREA

DO NOT KEEP

YOUR FINGERS

FOLD/CURLED

30 to 50cm

orehead emperatur etection

Installation height: 1.55m

(ield iew) othe thermal

imaging de ice: 5

emperature detection distance:

.3m to 1.2m

eight o h ace adapte or

detection: 1.2m to 2m

155C

Specification Standard value Remark

Operating

Environment

Distance

(between face

and device)

Measurement

Accuracy

Indoor, Avoid wind, Avoid

direct sunlight,

16°C to 35°C (60.8°F to 95°F)

30 to 120cm (0.98ft to 3.94ft)

±0.3°C (±0.54°F)

The recommended operating

temperature is 25°C (77°F)

The recommended distance

is 80cm (2.62ft)

This value is tested at a distance

of 80cm or 2.63ft under 25°C

(77°F) environment.

Note: The temperature measurement data is only for reference, and not for any

medical purposes.

Installation Re uirements

The installation requirements and indications associated with the device are given

below:

Indoor constant emperature

n ironment

Standalone Installation

Device Installation

TCP/IP

Alarm Smoke

Detector

Lock

Exit Button

Door Sensor

Card

Reader

1 2 3

1.5m

Attach the mounting template sticker to the wall, and drill holes according to the

mounting paper. Fix the back plate on the wall using wall mounting screws.

①

②Attach the device to the back plate.

③Fasten the device to the back plate with a security screw.

Take SpeedFace-V5L[QR][TI] as an example:

①

②

ower Connection

12 C

Recommended power supply

thernet Connection

COMM. Ethernet IP Address , input the address and OK

6RJ 45

1) 12V ± 10%, at least 00mA.

2) To share the power with other devices, use a power supply with higher current

ratings.

Note: n A , addresses o the server ) and the device must e in the

same networ egment when connecting t io ecurity so tware.

The system supports both Normally Opened Lock and Normally Closed Lock.

The NO Lock (normally opened when powered) is connected with 'NO1' and

'COM' terminals, and the NC Lock (normally closed when powered) is connected

with 'NC1' and 'COM' terminals. The power can be shared with the lock or can be

used separately for the lock, as shown in the example with NC Lock below:

Lock Relay Connection

1 e ice not sharing power with the lock 2 e ice sharing power with the lock

Normally Closed Lock

R1 7

N 1

NC1

+12

DC12V

+12

R1 7

N 1

NC1

DC12V

Normally Closed Lock

DC12V

oor ensor it utton larm Connection

N 1

NC1

ow witch

tor

TXD

RXD

GND

RS232

Reader

485+

485-

GND

RXD

GND

TXD

RS232

Reader

RS485

Reader

RXD2

TXD2

GND

RXD

TXD

GND

485A

485B

RS485 and RS232 Connection

Wiegand Reader Connection

Wiegand Reader

Access Controller

+12V

IWD1

IWD0

GND

WD1

WD0

Wiegand card reader connects to the top 4 pins of the wiegand terminal and the last

two pins are used by the Access controller, as shown in the followinggure. It sends the

credentials to the device via wiegand communication.

The RS485 and the RS232 lets user connect to multiple readers to the device.Two RS232

and one RS485 can be connected to the terminal, as shown in the gure below.

User Registration

Method 1: Register on the device

When there is no super administrator set in the device, click on to enter the menu.

Add a new user and set User Role to Super Admin, then the system will request for the

administrator’s verication before entering the menu. It is recommended to register a

super administrator initially for security purposes.

Click on > [ ] > [ ] to register a new user. The options includeUser Mgt. New User

entering the user ID and Name, setting User Role, registering Palm, Face, Card

Number, Password and adding Profile Photo.

Main Menu

User Mgt. User Role COMM. System

Data Mgt.Personalize Attendance

Autotest System Info

Access

Control



User Mgt.

New User

All Users

Display Style

Welcome

2021-04-25 14:31

Sundayday

2021-04-25



Enroll Face

Enrolled Successfully

Palm Registration

Enrolled Successfully

*****

New User

User ID

Name

User Role

Palm

Face

Card Number

Password

Proﬁle Photo

Access Control Role

Normal User

Mike
