ZKTeco Green Label ProCapture-T Bedienungsanleitung

ProCapture-T Installation Guide 1

INSTALLATION GUIDE

ProCapture-T

Version: 1.1

Date: September 2021

ProCapture-T Installation Guide 1

Safety Precautions

Before installation, please read the following safety precautions for user

safety and to prevent product damage.

Do not install the device in a place subject to direct sun light, humidity, dust

or soot.

Do not place a magnet near the product. Magnetic objects such as magnet,

CRT, TV, monitor or speaker may damage the device.

Do not place the device next to heating equipment.

Do not to let liquid like water, drinks or chemicals leak inside the device.

Do not let children touch the device without supervision.

Do not drop or damage the device.

Do not disassemble, repair or alter the device.

Do not use the device for any purpose other than those specied.

Clean the device often to remove dust on it. In cleaning, do not splash water

on the device but wipe it out with smooth cloth or towel.

Contact your supplier in case of a problem!

2 ProCapture-T Installation Guide

Device Overview

Not all products have ngerprint or card function, the real product

shall prevail.

ProCapture-T

Camera

2.4-Inch Color Screen

Touch Keypad

Doorbell & LED Indicator

Fingerprint Sensor & Card

Reader Area

USB Slot

Reset Button

Front

Left Side

ProCapture-T Installation Guide 3

Device Overview

8 Pin Cable Connectors

4 Pin Cable Connectors Ethernet

2 Pin Cable Connectors

7 Pin Cable Connectors

12 Pin Cable Connectors

Tamper Alarm Button

RS485

RS232

Wiegand Out

Beep, LED

Wiegand In

Power Out

Power In

Alarm

Lock

Exit Button

Door Sensor

Doorbell

Auxiliary In

4 ProCapture-T Installation Guide

Product Dimensions & Installation

Product Dimensions

Mounting the Device on Wall

7.70 in

(195.5 mm)

3.43 in

(87 mm)

1.38 in

(35mm)

7.34 in

(186.5 mm)

3.0 in

(76.1 mm)

Fix the back plate onto the wall using wall mounting screws.

Note: We recommend drilling the mounting plate screws into solid

wood (i.e. stud/beam). If a stud/beam cannot be found, use supplied

drywall plastic anchors.

Insert the device to back plate. Use security screws to fasten the

device to back plate.

0.51 in

(13 mm)

ProCapture-T Installation Guide 5

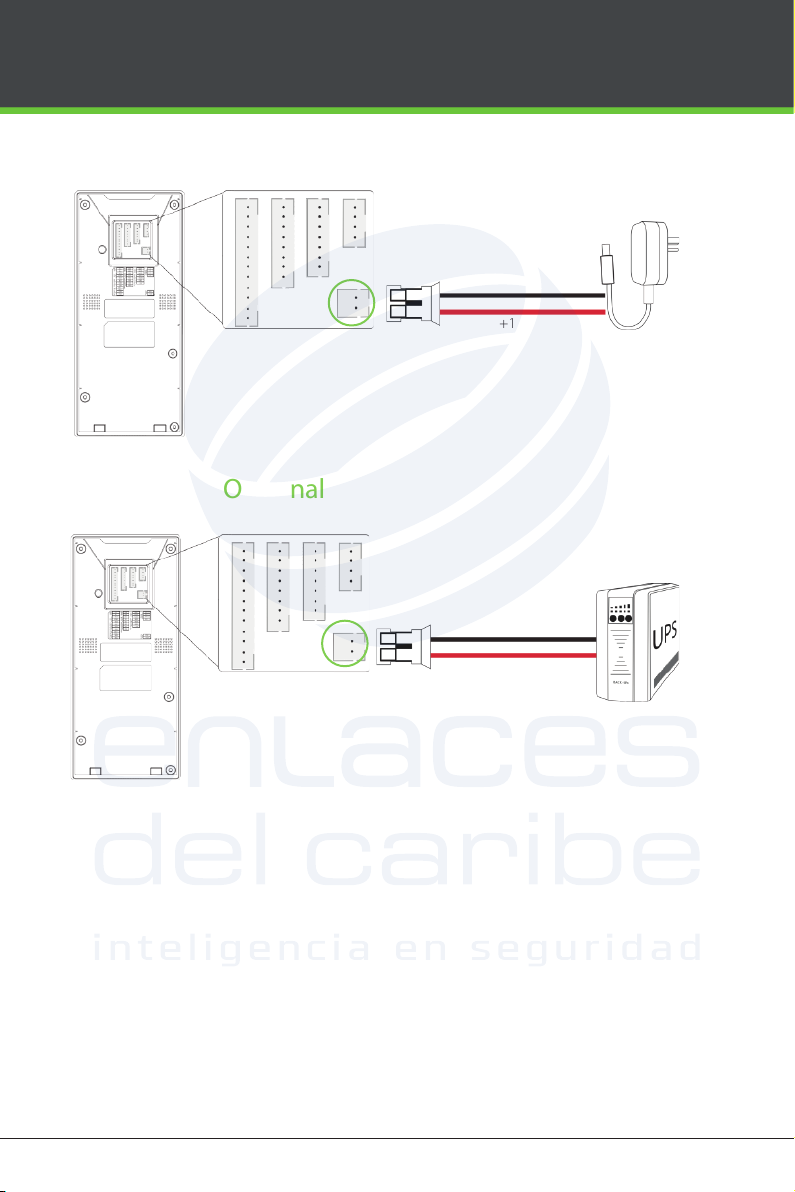

Power Connection

Without UPS

With UPS (Optional)

Recommended Power Supply

GND

+12V

12V DC Adaptor

GND

+12V

12V DC Adaptor

12V±10%, at least 500MA.

To share the power with other devices, use a power supply with higher

current ratings.

6 ProCapture-T Installation Guide

Ethernet Connection

LAN Connection

Network Cable Adaptor

Ethernet Cable

ProCapture-T Installation Guide 7

Ethernet Connection

Direct Connection

Network Cable Adaptor

Ethernet Cable

8 ProCapture-T Installation Guide

RS485 Connection

RS485 Fingerprint Reader Connection

RS485 Fingerprint Reader

DIP Settings

1. There are six DIP switches on the back of RS485 ngerprint reader,

switches 1-4 are for RS485 address, switch 5 is reserved, switch 6 is for

reducing noise on long RS485 cable.

2. If RS485 ngerprint reader is powered from the terminal, the length of

wire should be less than 100 meters or 330 ft.

3. If the cable length is more than 200 meters or 600 ft., the number 6

switch should be ON as below.

ProCapture-T Installation Guide 9

Lock Relay Connection

Device Not Sharing Power with the Lock

COM1 +12V

GND

Sensor NC1

FR107

Diode

12V DC Adaptor

Normally Closed Lock

Notes:

1. The system supports NO LOCK and NC LOCK. For example the NO

LOCK (normally opened at power on) is connected with 'NO1' and

'COM1' terminals, and the NC LOCK (normally closed at power on) is

connected with 'NC1'and 'COM1' terminals.

2. When electrical lock is connected to the Access Control System, you

must parallel one FR107 diode (equipped in the package) to prevent

the self-inductance EMF from aecting the system.

Do not reverse the polarities.

GND
