ZMODO Snap SD-H2304 Bedienungsanleitung
Quick Start Guide
Snap
SD-H2304
Getting to Know Your Snap
1
①
③
④
②
1080p HD Camera
Light Sensor
PIR Motion Sensor &
Power / Reset Button
Status Light
①
②③
④
Snap is a true wireless IP camera with a built-in rechargeable
battery. You can install your Snap anywhere in your home
without any complicated installation or wiring. Once you place
or mount your camera, you will be notified when your Snap
needs to be recharged from the meShare app.
⑤
⑥
⑤
⑥
Charging Zone
Status Light Indicator
⑦Power Port
1
⑦
Snap (Camera)
Charging Pad
Note:
*Press and hold the power / reset button for 3-5 seconds, Snap will be
powered on / off.
*Press and hold the power / reset button for longer than 10 seconds to
reset your Snap. Your Snap will be disconnected from any WiFi
network.
*If you cannot power on your Snap, it may need to be charged.
What’s in the Box :
Power Adapter
Wireless Charging Pad
Snap
(Wireless Camera)
Mounting Bracket Installation Hardware
2
Hub
Quick Start Guide
Quick Start Guide
Snap
SD-H2304
3
Mobile Setup
We are constantly working to improve our product and app. Please visit
www.zmodo.com/support for updated instructions, manuals, and more.
You will need a strong 2.4GHz WPA/WPA2 WiFi network
connection at the location of your hub.
Make sure you know the SSID (WiFi network name) and
password of the 2.4GHz WPA-PSK/WPA2-PSK WiFi
network that you want your hub to connect to. Your
network cannot be hidden.
TM
Download and install the "meShare" app from Google Play
TM ® TM
or the App Store (Compatibility: iOS 9.0+ or Android
4.0+). Launch the app and sign up for a free meShare
account. All of your devices will be bound to this account.
Before you begin:
Plug the hub into a power outlet near your WiFi router
for the initial setup.
Make sure your network has at least 2mbps upload
speed for each camera when live viewing or 4mbps
upload speed for each camera when using the cloud
service.
www.zmodo.com/support
2
Please refer to the following instructions to configure your
Snap. For detailed instructions and troubleshooting, please
visit:
meShare
4
Make sure that you have powered on
the hub, and then press and hold the
power button for at least 3-5 seconds
to power on your Snap.
Tap “Start installation” to proceed.
2
3Scan this QR code shown below when
prompted by the app.
Log in and press the Add Device
option in the upper right corner of the
Home Page.
+
1
4Follow the in-app instructions to complete the setup.
5
Keep away from sources of heat and fire, i.e. a space
heater or candle.
Safety Requirements:
Make sure that the hub is within range of your WiFi
router and within reasonable distance to your Snap.
Selecting a location for your hub:
Hub Placement Suggestions
Avoid a location with electronic appliances that
generate strong magnetic or electric fields, such as
microwave ovens or refrigerators.
Place in a cool and well-ventilated indoor area.
Do not expose to direct sunlight.
If water or liquid damage occurs, unplug the hub
immediately.
After completing setup, unplug your hub and follow the
instructions below to find an optimal location for it.
6
Charging Pad Status Light Definitions
Blinking blue
The camera is placed correctly and charging.
The charging pad is powered on, but no camera has
been placed on the pad, or the camera has been
placed improperly.
Solid red
Note: You will not be able to view or change the settings of your Snap
while it is charging.
Hub Status Light Definition
The hub is successfully connected to a WiFi network.
Blinking White
The hub is not yet connected to the WiFi network.
Solid White
Your Snap is connecting to the hub.
Blinking Blue
Snap Status Light
Your Snap is successfully connected to the hub.
Solid Blue
Snap is powering on.
Solid Green
Snap is ready for setup.
Blinking Green
3Status Light Definitions
4Charging your Snap
You will receive an alert on your smartphone through the
meShare app whenever your Snap needs to be recharged.
Please follow the steps below to charge your Snap:
Place your Snap on the charging pad (as shown). The
status light on your charging pad will tell you if it is
charging.
3
1
2
7
When it is fully charged, you will receive an alert on your
smartphone. Remove the camera and place it back into
the original position.
4
Plug in the wireless charging pad to a power outlet using
the included power adapter.
Remove the Snap from the mounting bracket if mounted.
5Mounting your Snap
Once your Snap has been connected to a WiFi network, you
can mount or place it on any flat surface. Please make sure
that your Snap is within range of the hub, and that it is fully
charged before installation.
1Line the camera bracket against the wall and mark the
appropriate holes. Drill two holes slightly smaller than the
wall anchor and use a hammer to gently insert the
anchors into the wall. Fasten the two screws through the
holes on the bracket into the anchors as shown.
8

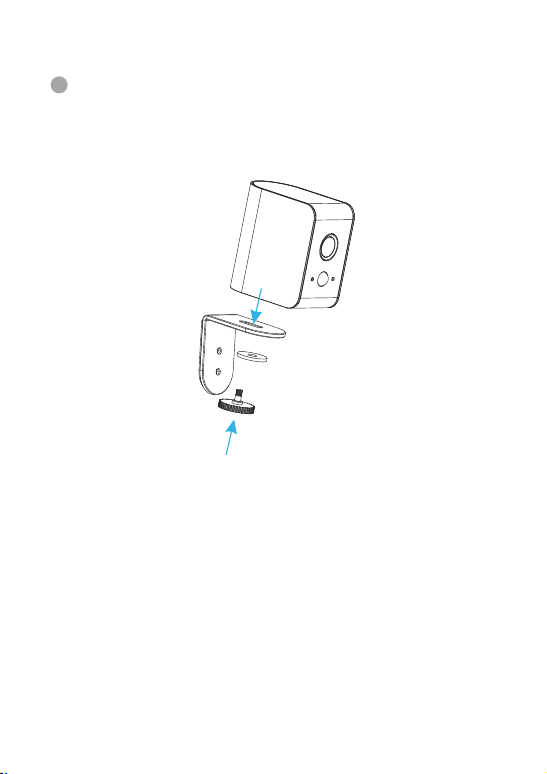

2Fasten the Snap to the mounting bracket using the
included screw and washer, and adjust the camera for
an optimal viewing angle.
9
