Functions added in Version 3.0

Monitoring the input signals of speciﬁc tracks (PFL/SOLO) ....................................................03

Setting the input source (Input Source)....................................................................04

Input limiter .........................................................................................05

Changing the automatic mixing setting (Auto Mix) ..........................................................11

Boosting headphone output to alleviate interference from recorded sound (HP Digital Boost) .........................12

Setting signals sent to the output jacks (Routing) ............................................................13

Correcting timecode errors after the power has been turned off ................................................17

Using SD card recording and audio interface functions at the same time (AIF with Rec)..............................19

Appendix

Detailed product diagrams .............................................................................21

Functions added in Version 3.0 Monitoring the input signals of speciﬁc tracks (PFL/SOLO)

FMulti Track Field Recorder

Monitoring the input signals of speciﬁc tracks (PFL/SOLO)

1. Press

lon the tracks that you want to monitor.

The selected track keys will light orange, and the PFL screen

will open.

"PFL" or "SOLO" appears at the top of the display, and you

will be able to monitor the input signal with headphones.

PFL mode

Track name

Level meter

(prefader input

signal level)

Parameter names

Parameter Explanation

Source This sets the input source. (→P4 )

Trim This sets the input level.

Fader This sets the fader level.

Pan This sets the panning.

Phantom This sets phantom power.

Parameter Explanation

HPF This sets the high pass ﬁlter.

Input Limiter This sets the limiter.

Phase Invert This sets the phase.

Input Delay This sets the input delay.

Stereo Link This sets the stereo link.

PFL Mode This sets the monitoring volume on the PFL screen.

NOTE

This does not change the signals output from MAIN OUT and SUB

OUT.

HINT

Use

Eto select parameters and change setting values.

2. Press

lor mfor the monitored tracks.

Open the Home Screen.

In Version 3.0, setting the input source was added. You can monitor the input signals of speciﬁed tracks. Even tracks that have

not been set to record can be input to the PFL screen and their input sounds monitored.This is convenient when using tracks as

return inputs.You can also make various settings for these tracks.

Functions added in Version 3.0

Functions added in Version 3.0 Setting the input source (Input Source)

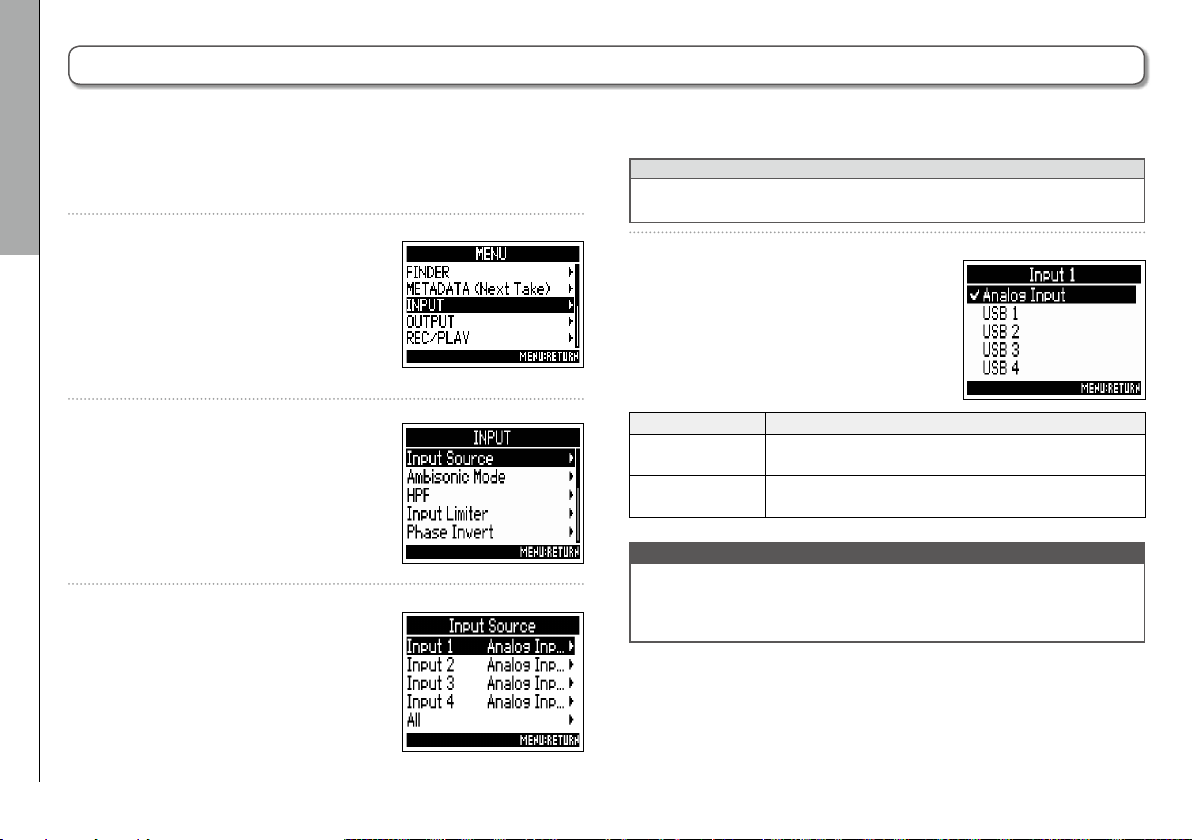

Follow these procedures to set the input source of each track.

1. Press m.

2. Use eto select

INPUT

, and

press E

3. Use eto select

Input

Source

, and press E.

4. Use eto select a track, and

press E.

Setting the input source (Input Source)

HINT

Select ALL to set all the tracks at the same time.

5. Use eto select the input

source, and press E.

Setting value Explanation

Analog Input This treats signals input through INPUT 1–4 as input

signals.

USB 1, USB 2,

USB 3, USB 4

When AIF with Rec (→P.19) is set to On,

computer output signals are treated as input signals.

NOTE

• The Input Source cannot bechanged for Inputs 5 and 6.

• When dual channel recording is enabled the Input Sourcecannot

be changed for the dual channel recording tracks.

Functions added in Version 3.0 Input limiter

FMulti Track Field Recorder

Attack

time

Threshold

Level Input signal

Signal after

limiter

Release

time

Time

When the limiter is ON, if the input signal level exceeds the

set threshold value, the signal level will be suppressed to pre-

vent the sound from distorting.

The amount of time after the input signal exceeds the thresh-

old until compression of the output signal is maximized is

called the “attack time”. The amount of time after the input

signal goes below the threshold until the limiter stops com-

pressing the signal is called the “release time”. You can change

these two parameters to adjust the sound quality.

HINT

The Fhas a newly designed limiter that provides 10 dB of

headroom, allowing signals to be kept well below the set threshold,

therefore more effectively preventing distortion.

1. Press m.

2. Use eto select

INPUT

and press E.

3. Use eto select

Input

Limiter

, and press E.

4. Use eto select the input,

and press E.

HINT

Select

ALL

to set all the inputs at the same time.

Input limiter

In Version 3.0, advanced limiter was added.The limiter can prevent distortion by controlling input signals that have excessively

high levels.

Using the limiter

5. Use eto select

On/Off

, and

press E.

6. Use eto select the setting,

and press e.

Setting value Explanation

Off This disables the limiter.

On (Normal) This applies an ordinary limiter.The ratio is 20:1.

On (Advanced)

By detecting the maximum level in advance, this optimized

limiter prevents distortion even more than ordinary limiter

operation.The ratio is ∞:1, providing increased internal

headroom.

NOTE

When set to On (Advanced), the input latency of the F

increases 1 ms. When monitoring sounds being recorded with a

mic in real-time, increased latency can cause interference between

sound transmitted through the air from the source and the delayed

monitored sound, possibly making accurate monitoring of the

sounds difﬁcult.

▶Continue to one of the following procedures.

Using the limiter................................................................P.06

Setting the type .................................................................P.07

Setting the threshold.........................................................P.08

Setting the attack time.......................................................P.08

Setting the release time ....................................................P.09

Setting the target level......................................................P. 1 0

On (Normal)

On (Advanced)

Before limiter After limiter

Peak might remain

Before limiter After limiter

threshold

target

level

Sudden peaks are

suppressed by detecting

maximum levels in advance

Functions added in Version 3.0 Input limiter

Input limiter (continued)

FMulti Track Field Recorder

Setting the type

5. Use eto select

Type

and press E.

6. Use eto select the type,

and press E.

Setting value Explanation

Hard Knee Only peaks that exceed the threshold are attenuated.There

is no effect below the threshold.

Soft Knee The limiter gradually affects the signal about 6 dB below

the threshold for a gentler effect.

NOTE

This setting can be made when On/Off is set to On (Normal).

NOTE

• When set to On (Advanced), the Sample Rate cannot be set to 192

kHz. Moreover, when the Sample Rate is set to 192 kHz, the On

(Advanced) setting cannot be selected.

Functions added in Version 3.0 Input limiter

Input limiter (continued)

Setting the attack time

This sets the amount of time until limiting starts after the

input signal exceeds the threshold.

5. Use eto select

Attack

Time

, and press E.

6. Use Eto adjust the time,

and press m.

HINT

This can be set from 1 to 4 ms.

NOTE

This setting can be made when On/Off is set to On (Normal).

Setting the threshold

This sets the level at which the limiter begins operating.

5. Use eto select

Threshold

and press E.

6. Use eto adjust the

setting, and press .

HINT

This can be set from −16 to −2 dBFS.

NOTE

This setting can be made when On/Off is set to On (Normal).

Functions added in Version 3.0 Input limiter

Input limiter (continued)

FMulti Track Field Recorder

NOTE

This setting can be made when On/Off is set to On (Normal).

Setting the release time

This sets the amount of time until limiting stops after the

input signal goes below the threshold.

5. Use eto select

Release

Time

, and press E.

6. Use eto adjust the time,

and press m.

HINT

• Limiter operation is linked for tracks that have stereo link or MS

stereo link enabled. If the signal for either linked channel reaches

the threshold, the limiter will operate on both tracks.

• When the limiter is operating, the right-most segment of the

level meter and the mixer limiter indicator on the display light.

Functions added in Version 3.0 Input limiter

Input limiter (continued)

Functions added in Version 3.0 Input limiter

Input limiter (continued)

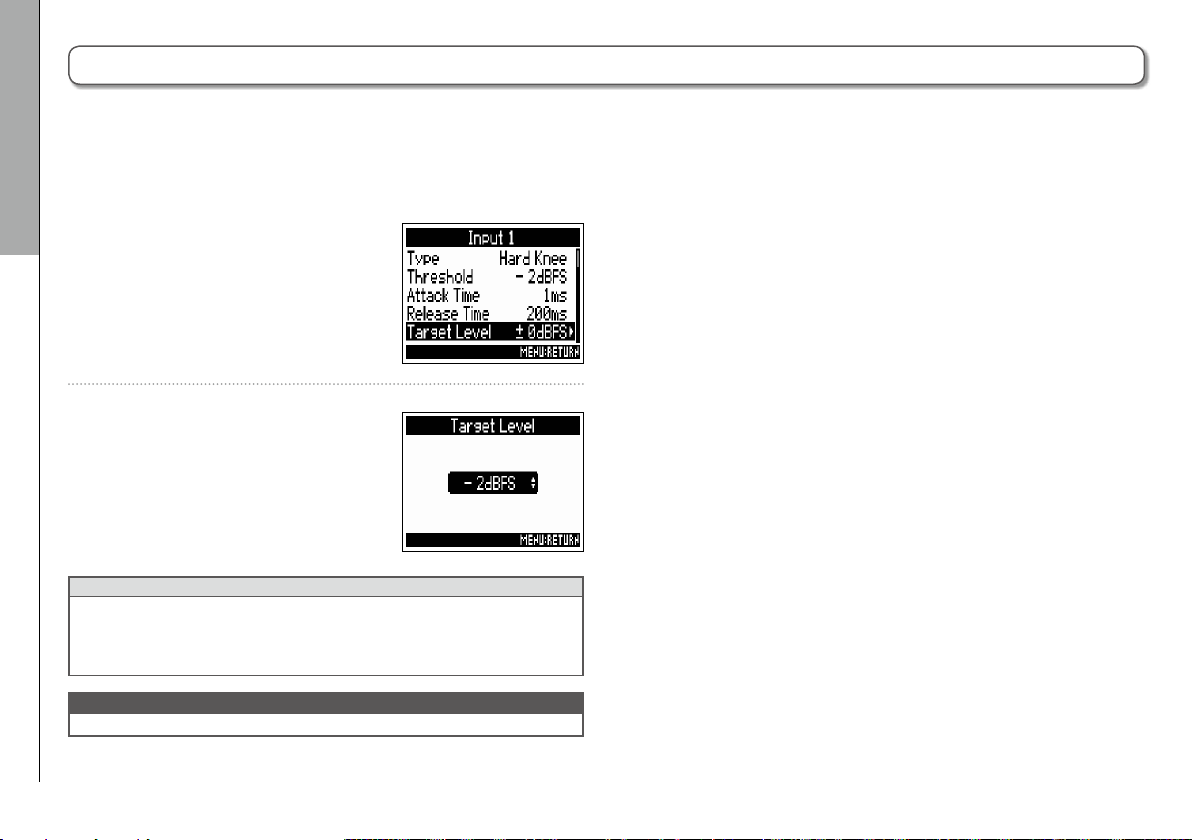

Setting the target level

When the limiter On/Off setting is set to On (Advanced), use

this to set the target output level for the signal.

5. Use eto select

Target

Level

, and press E.

6. Use eto adjust the setting,

and press m.

HINT

• This can be set from −16 to 0 dBFS.

• After a signal passes through the limiter, it will not exceed the set

target level value.

NOTE

This setting becomes available when On/Off is set to On (Advanced).
