Zortrax M200 Bedienungsanleitung

Extruder Cable Replacement

SOURCE:

https://support.zortrax.com/extruder-cable-replacement/

page 1 / 26

Table Of Content

Unplugging the Power Cable 4

Material Guide Removal 5

Unplugging the Extruder Cable 6

Changing the Printer's Position 7

Unscrewing the Bottom Plate, part 1 8

Turning the Printer 9

Unscrewing the Bottom Plate, part 2 10

Separating the Bottom Plate 11

New Version of the Motherboard 12

Adapter Removal 12

Extruder Cable Removal 12

Extruder Cable Assembly 12

Old Version of the Motherboard 16

Extruder Cable Removal 16

Extruder Cable Assembly 16

Bottom Plate Installation 19

Securing the Bottom Plate, part 1 20

Turning the Printer 21

Securing the Bottom Plate, part 2 22

Changing the Printer's Position 23

Plugging in the Extruder Cable 24

Material Guide Installation 25

Plugging in the Power Cable 26

page 2 / 26

The extruder cable allows the motherboard to transfer power and data to the

extruder and regulate the printing and calibration process. If you encounter any

problems connected with the extruder, for example, it doesn’t heat up sufficiently

(only up to 50%), or you can hear a clicking sound coming from the extruder

motor (the sprocket wheel moves back and forth), or your models are incomplete

(they have irregular layers/walls and there is a lack of material in their top and

bottom parts), the extruder cable may be faulty. To be extra sure, run the ribbon

cable test for your printer model and inspect the results: M200 or M300. If the

prints are of poor quality, replace the cable. Follow the steps from this manual to

see the correct replacement procedure.

The following manual shows the M200 repair work. For the M300, M200 Plus and M300

Plus, these procedures are the same.

page 3 / 26

Unplugging the Power Cable

Turn off the printer and unplug the power cable.

page 4 / 26

Material Guide Removal

Detach the material guide from the extruder cover. Next, separate the guide from the

extruder cable.

page 5 / 26

Unplugging the Extruder Cable

Detach the extruder upper printed cover and unplug the extruder cable.

page 6 / 26

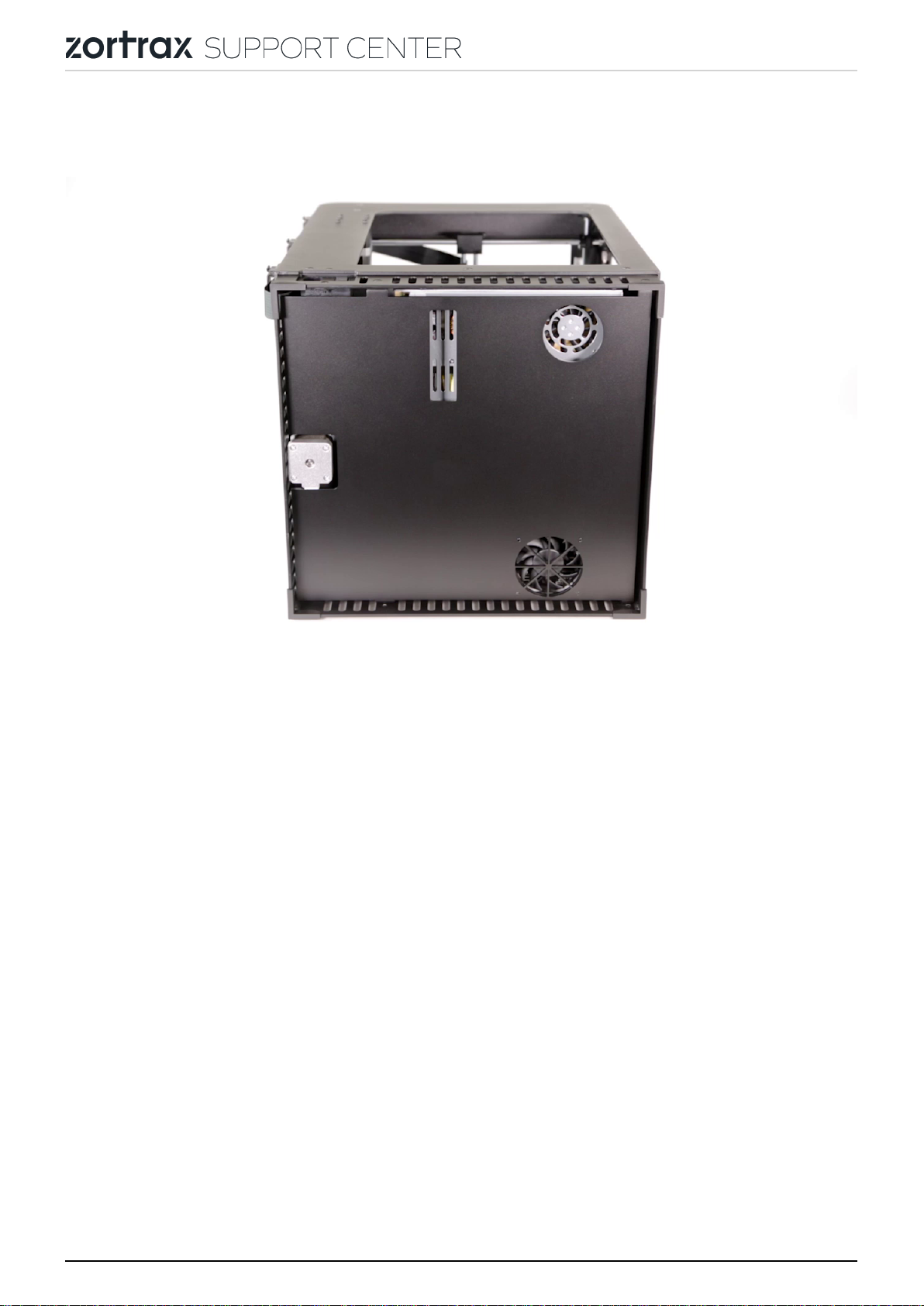

Changing the Printer's Position

Grab the printer’s housing and change the printer’s position so that you can easily

access the bottom plate.

page 7 / 26

Unscrewing the Bottom Plate, part 1

Unscrew the screws that secure the bottom plate on one side of the housing. Use a

2.5mm Allen key.

page 8 / 26

Turning the Printer

Turn the printer over.

page 9 / 26

Unscrewing the Bottom Plate, part 2

Unscrew the screws that secure the bottom plate on the other side of the housing. Use

the same key.

page 10 / 26
