Z-Axis Coupler Replacement

SOURCE:

https://support.zortrax.com/z-axis-coupler-replacement/

page 1 / 25

Table Of Content

Unplugging the Power Cable 4

Changing the Printer's Position 5

Unscrewing the Bottom Plate, part 1 6

Turning the Printer 7

Unscrewing the Bottom Plate, part 2 8

Separating the Bottom Plate 9

Providing Better Access to the Z-Axis Coupler 10

Unplugging the Z-Axis Motor Cable 11

Loosening the Z-Axis Coupler Screws 12

Unscrewing the Z-Axis Motor 13

Z-Axis Coupler Removal 14

Z-Axis Coupler Assembly 15

Z-Axis Motor Assembly 16

Tightening the Z-Axis Coupler Screws 17

Plugging the Z-Axis Motor Cable 18

Rearranging the Cables 19

Bottom Plate Installation 20

Securing the Bottom Plate, part 1 21

Turning the Printer 22

Securing the Bottom Plate, part 2 23

Changing the Printer's Position 24

Plugging the Power Cable 25

page 2 / 25

The Z-axis coupler is responsible for the platform’s movement along the Z axis.

Therefore, if the platform does not move at all or it moves with difficulties and

makes unusual noises, the Z-axis couple needs to be replaced. Before replacing

the coupler, make sure that the screws on the coupler are properly tightened.

More details can be found in the manual.

If the screws cannot be fully tightened, follow the steps from this manual to replace the Z-

axis coupler.

The following manual shows the M200 repair work. For the M300, these procedures are

the same.

page 3 / 25

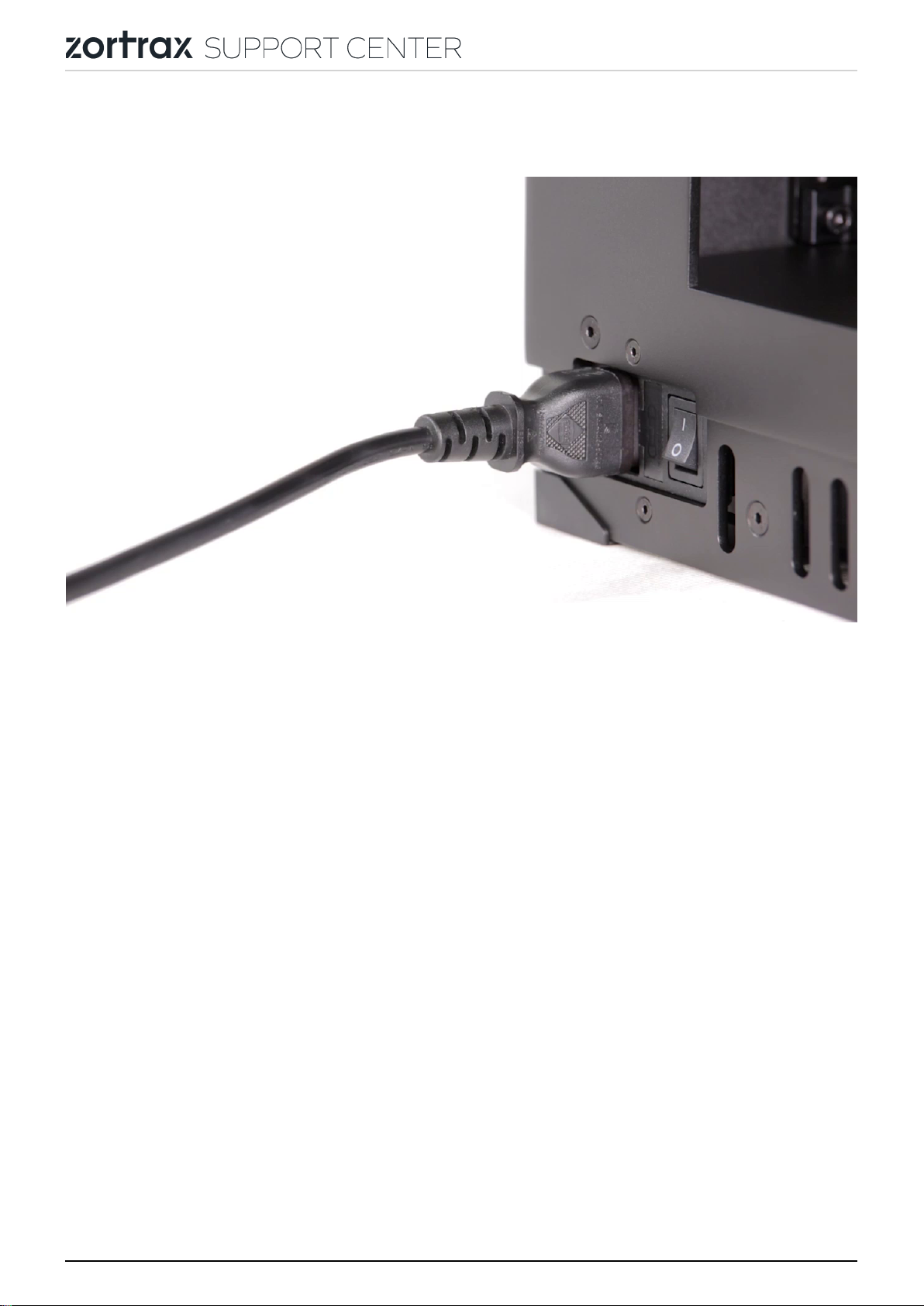

Unplugging the Power Cable

Turn off the printer and unplug the power cable. Wait a few minutes for all the capacitors

to discharge.

page 4 / 25

Changing the Printer's Position

Grab the printer’s housing and change the printer’s position so that you can easily

access the bottom plate.

page 5 / 25

Unscrewing the Bottom Plate, part 1

Unscrew the screws that secure the bottom plate on one side of the housing. Use a

2.5mm Allen key.

page 6 / 25

Turning the Printer

Turn the printer over.

page 7 / 25

Unscrewing the Bottom Plate, part 2

Unscrew the screws that secure the bottom plate on the other side of the housing. Use

the same key.

page 8 / 25

Separating the Bottom Plate

Separate the bottom plate from the printer and unplug the bottom fan cable from the

motherboard.

page 9 / 25

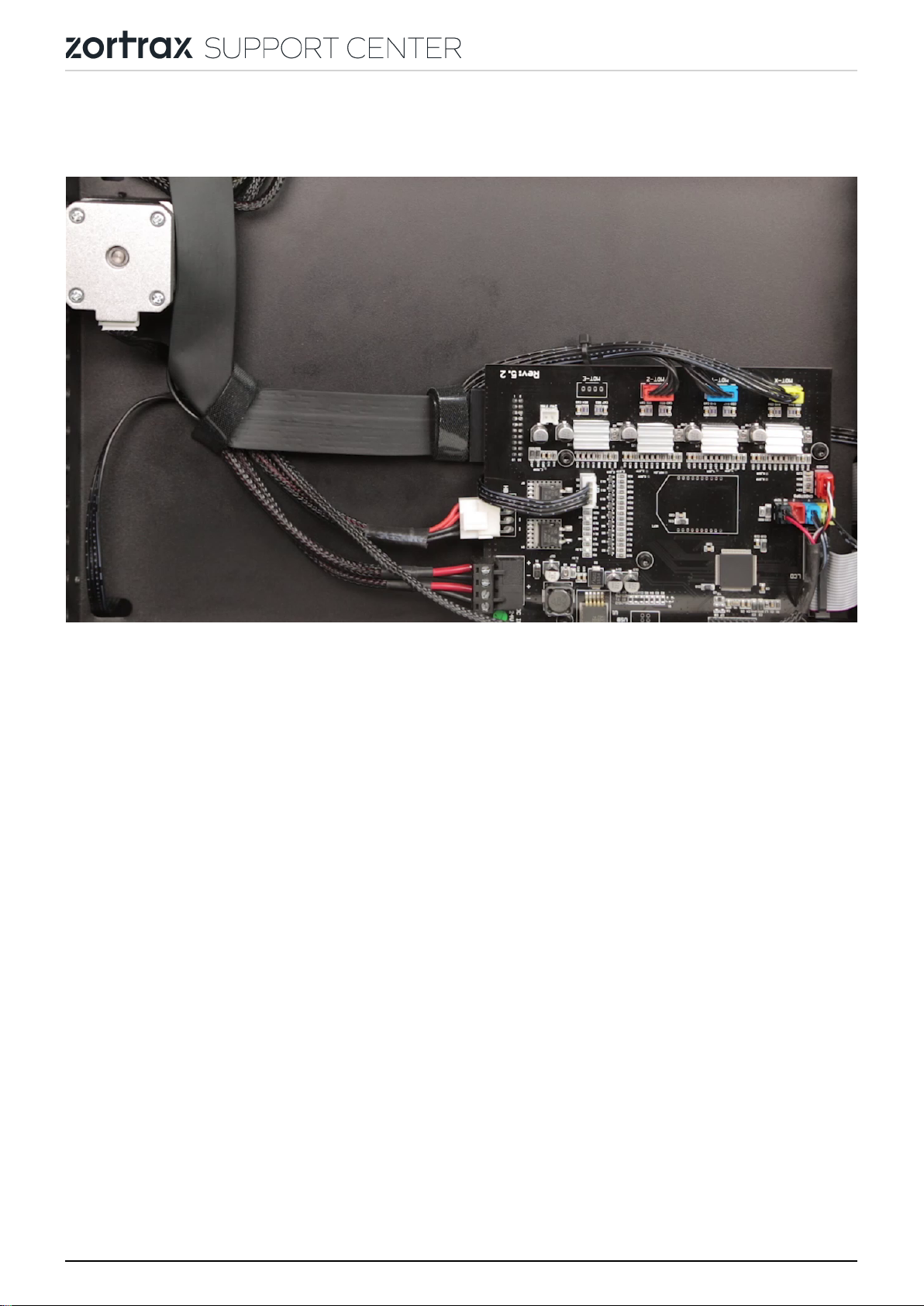

Providing Better Access to the Z-Axis Coupler

Unfasten the two extruder cable straps and unplug the cable from the motherboard.

Next, unfasten the third strap. Place the extruder cable between the power supply unit

and the housing. Finally, grab the cables next to the motherboard and fasten the strap.

This step is not necessary to follow, however it is recommended so as to avoid the risk

of damaging the cables and to get better access to the Z-Axis coupler.

page 10 / 25
