Zortrax M300 Betriebsanleitung

Maintenance Guide

SOURCE:

https://support.zortrax.com/m300-maintenance-guide/

Table Of Content

Main 3

Hotend 4

Platform 5

X/Y Axes; Extruder Guide Rails 6

Extruder 7

Z axis 8

Lifespan of particular components 9

Main

ACTIVITY FREQUENCY

Cleaning the machine, its interior and

surroundings, especially the bottom plate

under the platform

Before each printing

Hotend

ACTIVITY FREQUENCY

Checking if the hotend and the nozzle are

not clogged and if they are clean from

material residues

Before each printing

Cleaning the nozzle After finishing one spool of material

Checking if the screws that secure the

heater and thermocouple are tightened Every 300 working hours

Platform

ACTIVITY FREQUENCY

Cleaning the perforated plate with a spatula Before each printing

Checking the perforated plate for

deformation Before each printing

Autocalibration Every 200 working hours

Platform maintenance Every 300 working hours

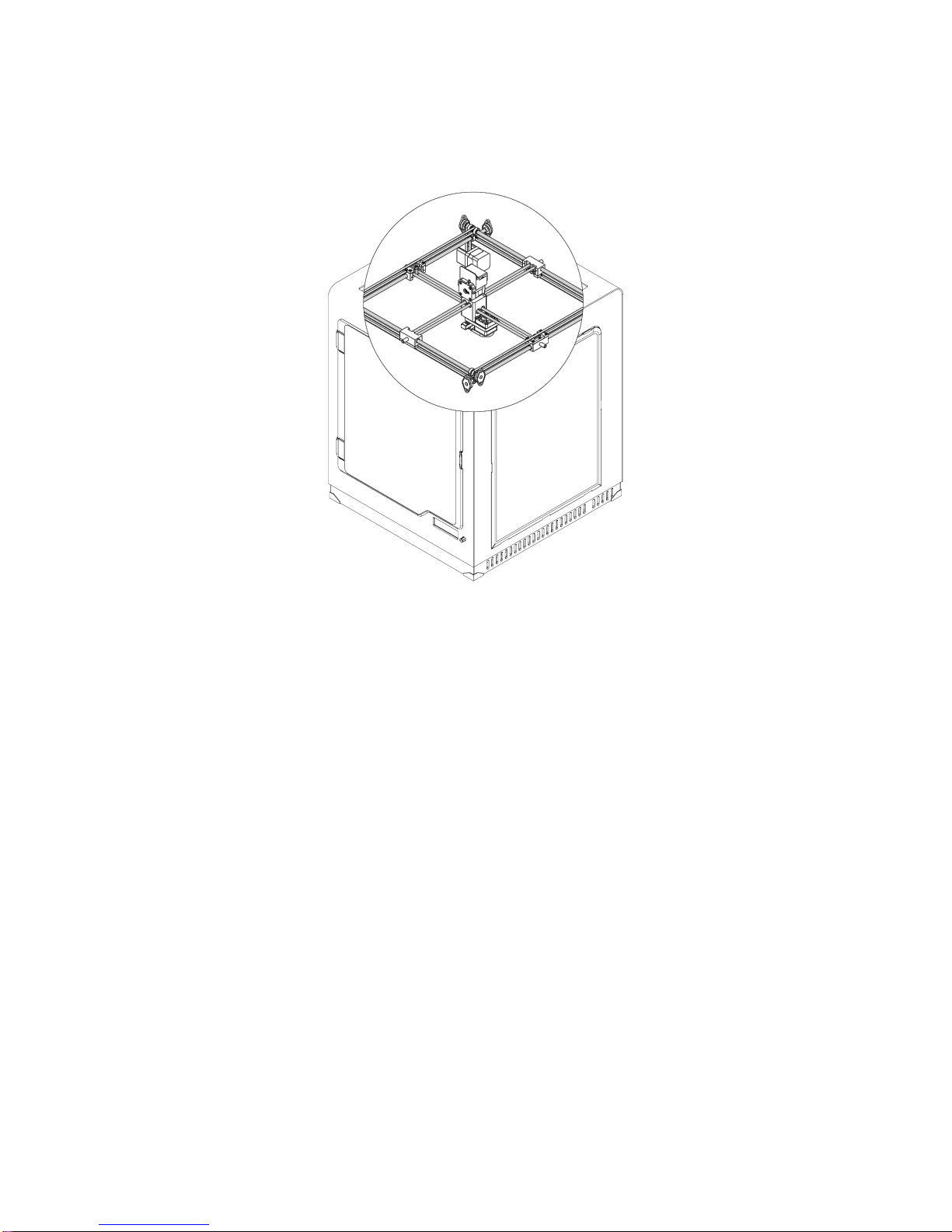

X/Y Axes; Extruder Guide Rails

ACTIVITY FREQUENCY

Checking if the axes and the extruder guide

rails are clean from material remains and

dust

Before each printing

Removing the material remains from the

axes and the extruder guide rails Before each printing

Checking the tension of the drive belts on

the X/Y axes Every 500 working hours

Checking the tension of the drive belts

between the motors and the X/Y axes Every 500 working hours

Checking if the screws on the X/Y axes and

the motors pulleys are tightened Every 500 working hours

Checking if the extruder moves freely when

the printer is off.

NOTE: To check the extruder’s mobility,

grab the X/Y axis block and move it

along the axis. It is better not to move

the extruder itself.

Every 500 working hours

Lubricating the X/Y axes and the extruder

guide rails Every 400 working hours

Extruder

ACTIVITY FREQUENCY

Checking if the screws that secure the

hotend are not loose and, if necessary,

tightening them

Every 300 working hours

Removing the material remains and lumps

from the extruder Every 300 working hours

Checking if the fans are working Every 300 working hours

Z axis

ACTIVITY FREQUENCY

Checking if the Z-axis screw and rails are

clean from

material remains

Before each printing

Checking if the screws and nuts are

properly secured.

NOTE: Due to design characteristics, the

screws that secure the Z-axis screw nut

cannot be fully tightened!

Every 700 working hours

Lubricating the Z axis and rails Every 400 working hours

Lifespan of particular components

The table shows an approximate lifespan of parts that are exposed to natural wear and

tear. In order to maintain the printer in good condition and to provide the highest priting

quality, it’s advisable to replace particular components after an appropriate period of

time indicated in the table.

Nozzle Hotend Perforated

Plate v2 Extruder

Cable Heater and T

hermocouple

Extruder

Fans 40×40

Every 250

working hoursEvery 350

working hoursEvery 700

working hoursEvery 500

working hours

(when using

Extruder

Printed Cover

v2)

Every 400

working hoursEvery 500

working hours
