ZOTAC ZBOX Giga

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means,except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX Giga

Table of Contents

Product specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX Giga ------------------------------------------------- 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

Setting up the ZOTAC ZBOX Giga ----------------------------------------------------------- 9

IR receiver --------------------------------------------------------------------------------------- 11

Remote control --------------------------------------------------------------------------------- 11

Function keys ------------------------------------------------------------------------------- 11

Lithium cell installation-------------------------------------------------------------------- 12

Installing drivers and software --------------------------------------------------------------- 13

Installing an operating system -------------------------------------------------------------- 13

Installing system drivers---------------------------------------------------------------------- 13

Using your ZOTAC ZBOX Giga --------------------------------------------------------------- 14

Conguring wireless connection ----------------------------------------------------------- 14

Conguring wired connection --------------------------------------------------------------- 14

Using a static IP ---------------------------------------------------------------------------- 14

Using a dynamic IP (PPPoE connection) -------------------------------------------- 15

Conguring audio output via an HDMI device ------------------------------------------ 15

ZOTAC ZBOX Giga

Product specications

Chipset

• Intel®H61 Chipset

Product Dimensions

• 210mm x 210mm x 67.5mm

Microprocessor support

• Intel®CoreTM i3-2100T (3M Cache, 2.50 GHz)

Onboard graphics

• Integrated Intel® HD Graphics 2000

• DX10.1 and OpenGL 3.0 are supported

• 3D Graphics Rendering Enhancements

• One HDMI port, one DisplayPort and one DVI-I port output support

Memory support

• 4 GB DDR3

USB ports

• Four USB 2.0 ports & two USB 3.0 ports

Storage

• 320 GB 2.5-inch SATA HDD

• One eSATA port

Network support

• Gigabit (10/100/1000Mbps) LAN

• IEEE 802.3 compatible

WiFi/Bluetooth support

• Compliant with IEEE802.11b/g/n standard

• Fully qualied Bluetooth v3.0

Audio

• 8 channel High Denition Audio (including one optical SPDIF output port)

• One SPDIF-out header on board

Operating System support

• Microsoft Windows XP, Windows Vista and Windows 7

• 32-bit and 64-bit support

Green Function

• ACPI (Advanced Conguration and Power Interface) compatible

DVDRW Drive Support

• DVD read and write compliant, max speed: 8X

• CD read and write compliant, max speed: 24X

• Supports 8cm & 12cm diameter

ZOTAC ZBOX Giga

Safety information

Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor-

mation technology equipment. However, to ensure your safety, it is important that you read

the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before you operate your system.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable surface with the provided stand. Never use the system

alone without the stand.

Openings on the chassis are for ventilation. Do not block or cover these openings.

Make sure you leave plenty of space around the system for ventilation. Never insert

objects of any kind into the ventilation openings.

Use this product in environments with ambient temperatures between 0℃and 35℃.

If you use an extension cord, please use the UL listed cord and make sure that

the total ampere rating of the devices plugged into the extension cord does not

exceed its ampere rating.

Care during use

Do not walk on the power cord or allow anything to rest on it.

Do not spill water or any other liquids on your system.

When the system is turned off, a small amount of electrical current still ows. Always

unplug all power, modem, and network cables from the power outlets before cleaning

the system.

If you encounter the following technical problems with the product, unplug the power

cord and contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled into the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

¾The system performance changes.

ZOTAC ZBOX Giga

Welcome

Congratulations on your purchase of the ZOTAC ZBOX Giga mini-PC. The following

illustration displays the package contents of your new ZOTAC ZBOX Giga. Please contact

your retailer If any of the below items are damaged or missed.

Package contents

• 1 x ZOTAC ZBOX Giga PLUS

• 1 x AC Adapter

• 1 x DVI-to-VGA Adapter

• 1 x Power Cord

• 2 x WiFi Antennas

• 1 x Remote Control with 2 x CR2032 batteries

• 1 x USB Extended IR Receiver for Remote Control

• 1 x PowerDVD Software

• 1 x Support DVD

• 1 x User Manual & Warranty Card

• 1 x Quick Start Guide

ZOTAC ZBOX Giga

Getting to know your ZOTAC ZBOX Giga

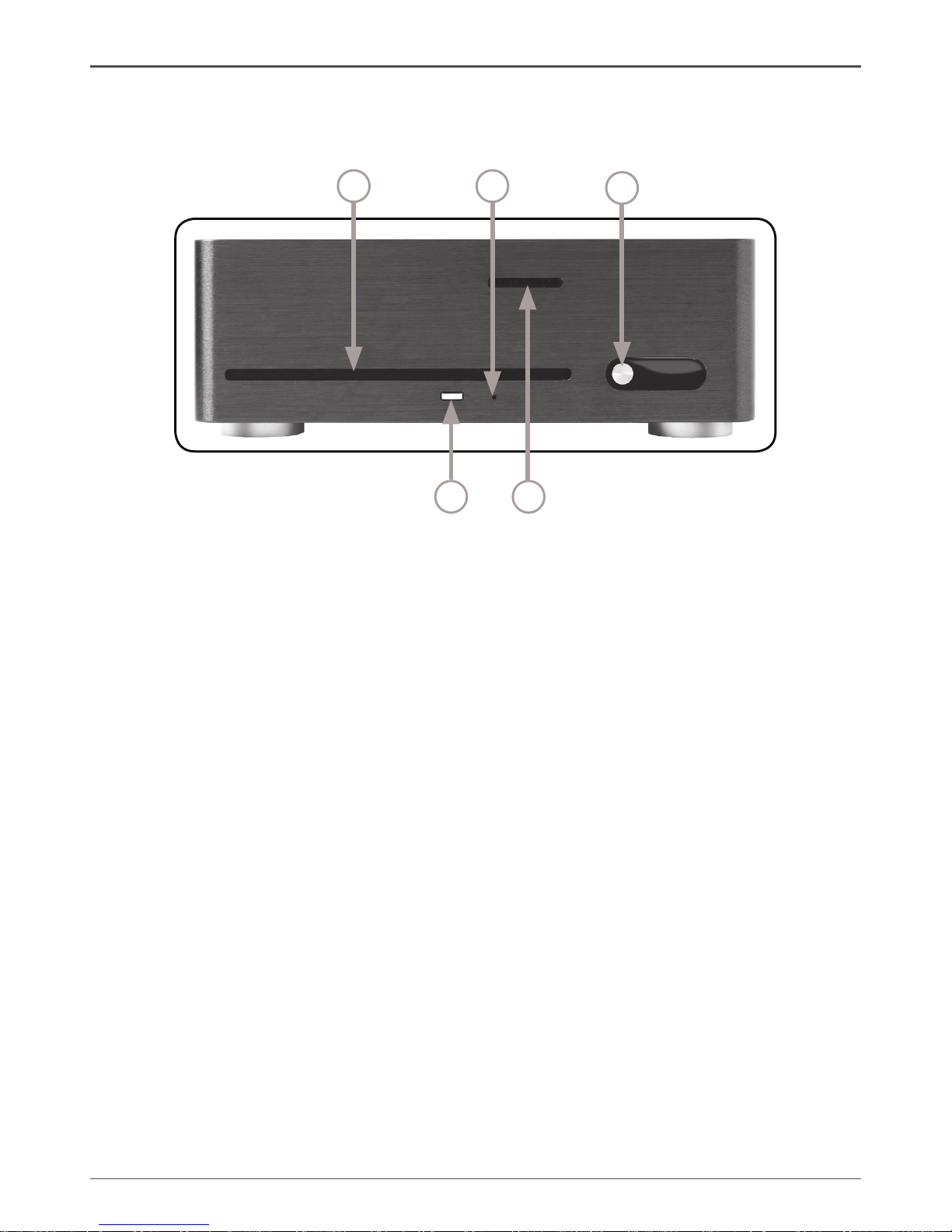

Front view

Refer to the diagram below to identify the components on this side of the system

1. Optical drive

The optical drive is a slot-in type drive which supports compact discs (CD), and

digital video discs (DVD).

2. Optical drive eject button

The optical drive eject button ejects the disc from the optical drive.

3. DVD drive emergency eject

Users can use a pin to insert into the DVD drive emergency eject pin-hole to

manually eject disc.

4. 6-in-1 Memory card slot

The built-in memory card reader reads and writes MMC/SD/SDHC/MS/MS Pro/xD

cards used in devices such as digital cameras, MP3 players, mobile phones and

PDAs.

5. Power switch

The power switch turns the mini-PC ON and OFF.

Note: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away

from your body.

ZOTAC ZBOX Giga

Rear view

Refer to the diagram below to identify the components on this side of the system.

1. PS2 Keyboard/Mouse port

The PS2 port is compatible with PS2 keyboard and PS2 mouse.

2. USB 3.0 ports

The USB 3.0 ports support the SuperSpeed USB 3.0 devices and are backwards

compatible with USB 2.0/1.1 devices. Use the ports for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

3. DisplayPort

DisplayPort supports both external (box-to-box) and internal (laptop LCD panel)

display connections.

4. HDMI output

The HDMI (High Denition Multimedia Interface) output supports Full HD 1080p

displays such as an HDTV or monitor.

5. WiFi antenna connector

The WiFi antenna connector supports WiFi antenna module.

6. DVI-I ports

The DVI-I ports support DVI-I (Digital Visual Interface-I) cables.

7. USB 2.0 ports

The USB (Universal Serial Bus) ports are compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

11 13

ZOTAC ZBOX Giga

8. eSATA port

The external SATA port is compatible with e.SATA devices such as external hard

drives and Blu-ray drives.

9. Ethernet port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a

local area network (LAN) with speeds of 10/100/1000Mbps.

10. Optical SPDIF output

The optical SPDIF output supports optical SPDIF output cable.

11. Audio ports

Use the audio ports to connect audio devices.

12. Safety lock

Connects to compatible Kensington Safety Lock.

13. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage

to the mini-PC, always use the supplied power adapter.

ZOTAC ZBOX Giga

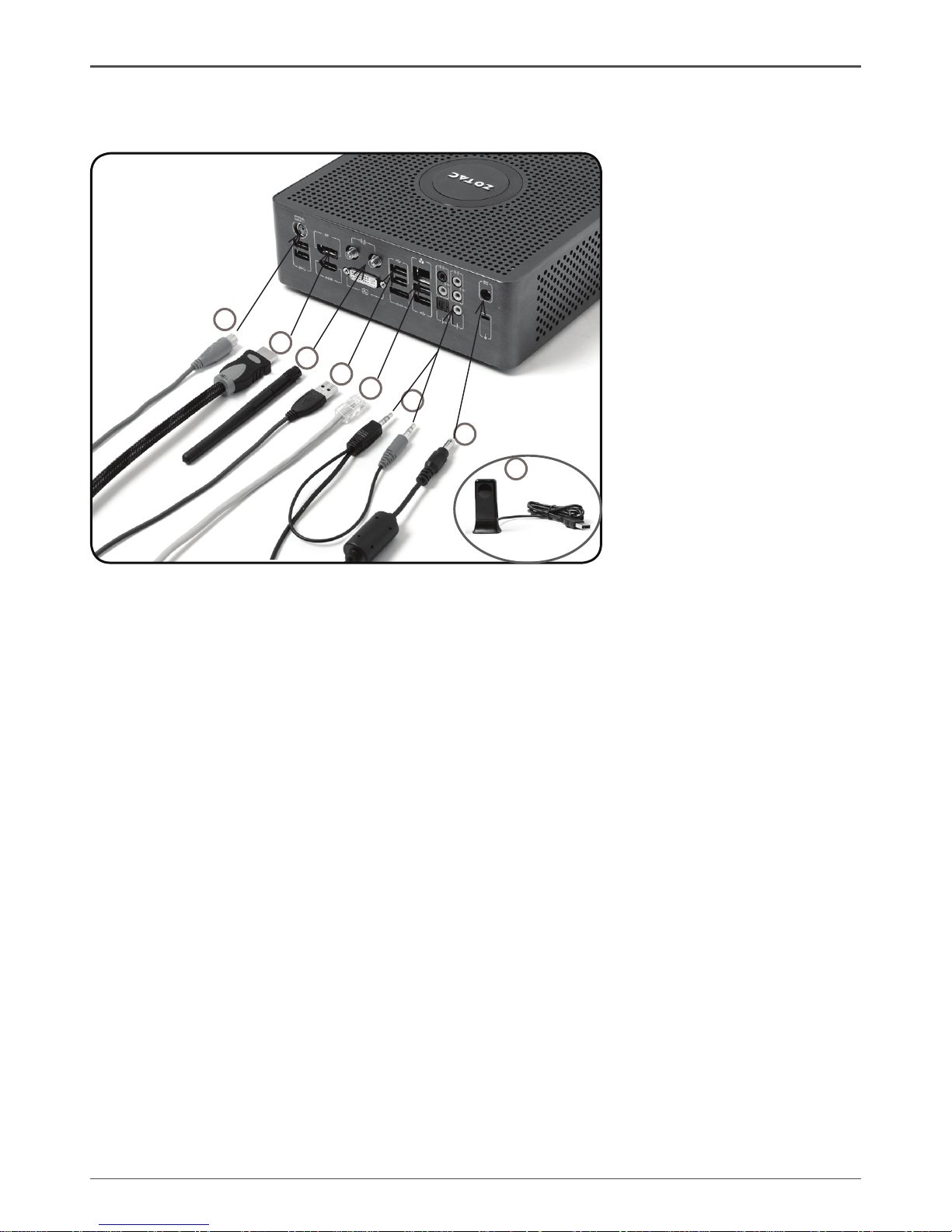

Setting up the ZOTAC ZBOX Giga

Please connect the peripherals before using the ZOTAC ZBOX Giga.

1. Connecting to PS2 Keyboard/Mouse

Connect a PS2 keyboard or PS2 mouse to the PS2 Keyboard/Mouse connector.

2. Connecting a DisplayPort display

Connect the DisplayPort connector to the DP port.

3. Connecting a WiFi antenna module

Connect a WiFi antenna module to the WiFi antenna connector.

4. Connecting USB 2.0 device

Connect USB 2.0 devices like wired/wireless keyboards (varying with areas),

mouse devices and printers to the USB 2.0 ports. The USB 2.0 ports also support

external USB IR receiver.

5. Connecting to a home network

Connect one end of a network cable to the LAN port on the system rear panel and

the other end to a network hub, switch or router.

6. Connecting audio ports

Connect audio devices (such as microphone, back surround and side surround) to

the audio ports.

7. Turning on the system

Connect the supplied AC adapter to the DC IN jack on the system rear panel and

then press the power switch on the front panel to turn on the system.

23456
