Zotac ZBOX PICO Bedienungsanleitung

1 ZOTAC ZBOX pico

ZOTAC ZBOX pico

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except by the

purchaser for backup purposes, without the express written permission of

ZOTAC.

Products and corporate names mentioned in this manual may be registered

trademarks or copyrights of their respective companies, and are used for

identication purposes only. All trademarks are the property of their respective

owners.

Every e󰀨ort has been made to ensure the contents of this manual are correct

and up to date. However, the manufacturer makes no guarantee regarding

the accuracy of its contents, and reserves the right to make changes without

prior notice.

ZOTAC ZBOX pico 2

Table of Contents

Product specications ----------------------------------------------------------------------------- 3

Safety information ----------------------------------------------------------------------------------- 4

Setting up your system -------------------------------------------------------------------------- 4

Care during use ----------------------------------------------------------------------------------- 4

Welcome ------------------------------------------------------------------------------------------------ 5

Package contents --------------------------------------------------------------------------------- 5

Getting to know your ZOTAC ZBOX pico ---------------------------------------------------- 6

Front view ------------------------------------------------------------------------------------------- 6

Rear view-------------------------------------------------------------------------------------------- 7

Customizing the ZOTAC ZBOX pico ---------------------------------------------------------- 8

Installing M.2 PCIe x4 / SATA SSD module ------------------------------------------------ 9

Mounting the ZOTAC ZBOX pico to an LCD monitor----------------------------------- 10

Using your ZOTAC ZBOX pico------------------------------------------------------------------12

Conguring a wireless connection -----------------------------------------------------------12

Conguring audio output via an HDMI device --------------------------------------------13

FCC Compliance Statement ---------------------------------------------------------------------14

3 ZOTAC ZBOX pico

Product specications

Product Dimensions

• 114.8mm x 76mm x 23.8mm

Processor

• Intel®Core™i3-N300 Processor (8-core 0.8GHz, up to 3.8GHz)

Graphics processor

• Intel UHD Graphics

• 1x HDMI 2.0 (max resolution: 3840x2160@60Hz)

• 1x DP 1.4 (max resolution: 4096x2160@60Hz)

• 1x DP 1.4 via USB-C (max resolution: 4096x2160@60Hz)

Memory

• 8 GB LPDDR5 onboard memory

USB ports

• 3x USB 3.2 (10 Gbps, 1x Type C)

Audio

• Analog audio combo (CTIA) for microphone output / Mic in

Storage support

• M.2 NVMe PCIe 3.0 x4 / SATA slot (2230, 2242, 2280)

• Micro SDHC/SDXC card reader

Networking

• 10/100/1000 Mbps Ethernet

Wireless networking

• Intel WiFi 6

• Bluetooth 5.2

Power

• 5V/5A Power Supply

Operating System

• Windows 11 ready

ZOTAC ZBOX pico 4

Safety information

Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for

information technology equipment. However, to ensure your safety, it is important that you

read the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before you operate your system.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable surface.

Openings on the chassis are for ventilation. Do not block or cover these openings.

Make sure you leave plenty of space around the system for ventilation. Never insert

objects of any kind into the ventilation openings.

Use this product in environments with ambient temperatures between 0℃and 35℃.

Care during use

Do not walk on the power cord or allow anything to rest on it.

Do not spill water or any other liquids on your system.

When the system is turned o󰀨, a small amount of electrical current still ows. Always

unplug all power, modem, and network cables from the power outlets before cleaning

the system.

If you encounter the following technical problems with the product, unplug the power

cord and contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled onto the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

5 ZOTAC ZBOX pico

Welcome

Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration

displays the package contents of your new ZOTAC ZBOX pico. Please contact your retailer

if any of the below items are damaged or missed.

Package contents

• 1 x ZOTAC ZBOX pico

• 1 x Mounting bracket

• 2 x Mounting screws

• 1 x AC adapter

• 1 x CTIA<=>OMTP adapter

• 1 x OS Recovery USB Drive (optional)

• 1 x Warranty Card

• 1 x Quick Start Guide

ZOTAC ZBOX pico 6

Getting to know your ZOTAC ZBOX pico

Front view

Refer to the diagram below to identify the components on the front of the ZBOX pico

1. Power button

The power button turns the system ON and OFF.

2. USB 3.2 Type-C port

The USB 3.2 type-C port supports the SuperSpeed USB 3.2 devices. Use this port

for USB 3.2 devices for maximum performance with USB 3.2 compatible devices.

It supports DisplayPort via USB-C to DisplayPort cable to broadcast high-deni-

tion video (cable not included).

3. USB 3.2 ports

The USB 3.2 port supports SuperSpeed USB 3.2 devices and is backwards com-

patible with USB 3.1/3.0/2.0/1.1 devices. Use this port for USB 3.2 devices for

maximum performance with USB 3.2 compatible devices.

4. Memory card reader

The built-in memory card reader reads micro SD/SDHC/SDXC cards used in

devices such as digital cameras, MP3 players, mobile phones and PDAs.

7 ZOTAC ZBOX pico

1. Power input (DC 5V, 5A)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage

to the mini-PC, always use the supplied power adapter.

2. DisplayPort

DisplayPort supports both external (box-to-box) and internal (laptop LCD panel)

display connections.

3. HDMI port

The HDMI (High Denition Multimedia Interface) port supports a UHD device such

as an LCD TV or monitor to allow viewing on a larger external display.

4. Combo Headphone/Microphone jack (3.5mm)

The combo headphone/microphone jack (3.5mm) is used to connect the system’s

audio out signal to amplied speakers, 3-pole headphones or 4-pole OMTP head-

phones.

Note: The combo headphone/microphone jack does not support the traditional

microphone.

5. Ethernet port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to

a local network.

Note 1: The power adapter may get warm or hot when in use. Do not cover the adapter and keep it away from your body.

Note 2: Due to the unique design, some connectors are placed upside down.

Rear view

2 3

ZOTAC ZBOX pico 8

Customizing the ZOTAC ZBOX pico

Before installing hardware, please follow the instructions below to remove the cover

of your ZOTAC ZBOX pico.

1. Loosen the 4 screws securing the bottom cover.

2. Remove the bottom cover.

9 ZOTAC ZBOX pico

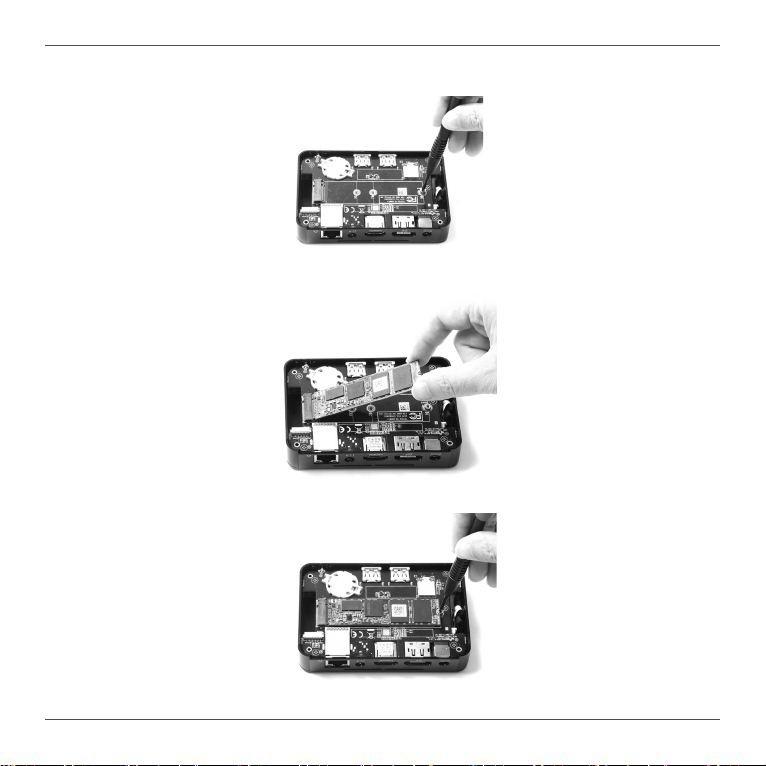

Installing M.2 PCIe x4 / SATA SSD module

1. Locate the M.2 SSD slot and remove the screw.

2. Insert an M.2 SSD module into the slot at a 45 degree angle.

3. Attach the screw to the M.2 SSD module as shown below.

Note: PLUS / Windows models include SSD pre-installed.
