Zte T230 Bedienungsanleitung

ZTE T230 USER GUIDE

WHAT’S INSIDE

A QUICK LOOK AROUND YOUR DEVICE1

GETTING STARTED.............................. 3

PHONE CALLS ................................... 21

CONTACTS ........................................ 30

MESSAGES........................................ 41

CONNECT TO A COMPUTER ............. 48

USING THE BROWSER ...................... 52

BLUETOOTH...................................... 53

USING MULTIMEDIA FUNCTIONS..... 55

PLAY VIDEOS .....................................59

GALLERY............................................59

SOUND RECORDER............................59

SECURITY ..........................................62

UPDATING YOUR DEVICE ..................64

TECHNICAL SPECIFICATIONS: ............65

TROUBLESHOOTING .........................66

WARRANTY INFORMATION...............72

SAFETY ..............................................73

A QUICK LOOK AROUND YOUR DEVICE

GETTING STARTED

INSERT YOUR SIM CARD

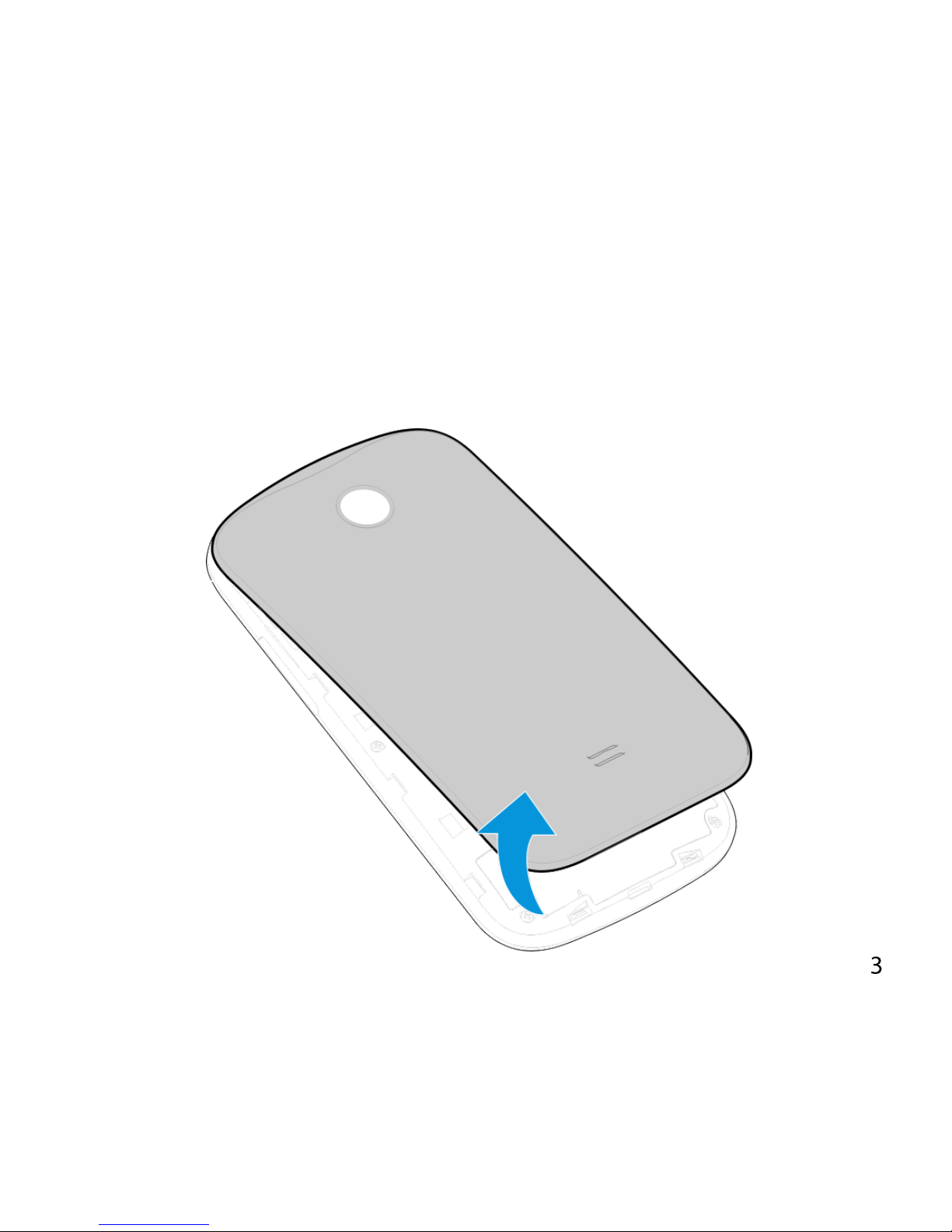

1. Open the back cover using the thumb notch in the bottom left

corner:

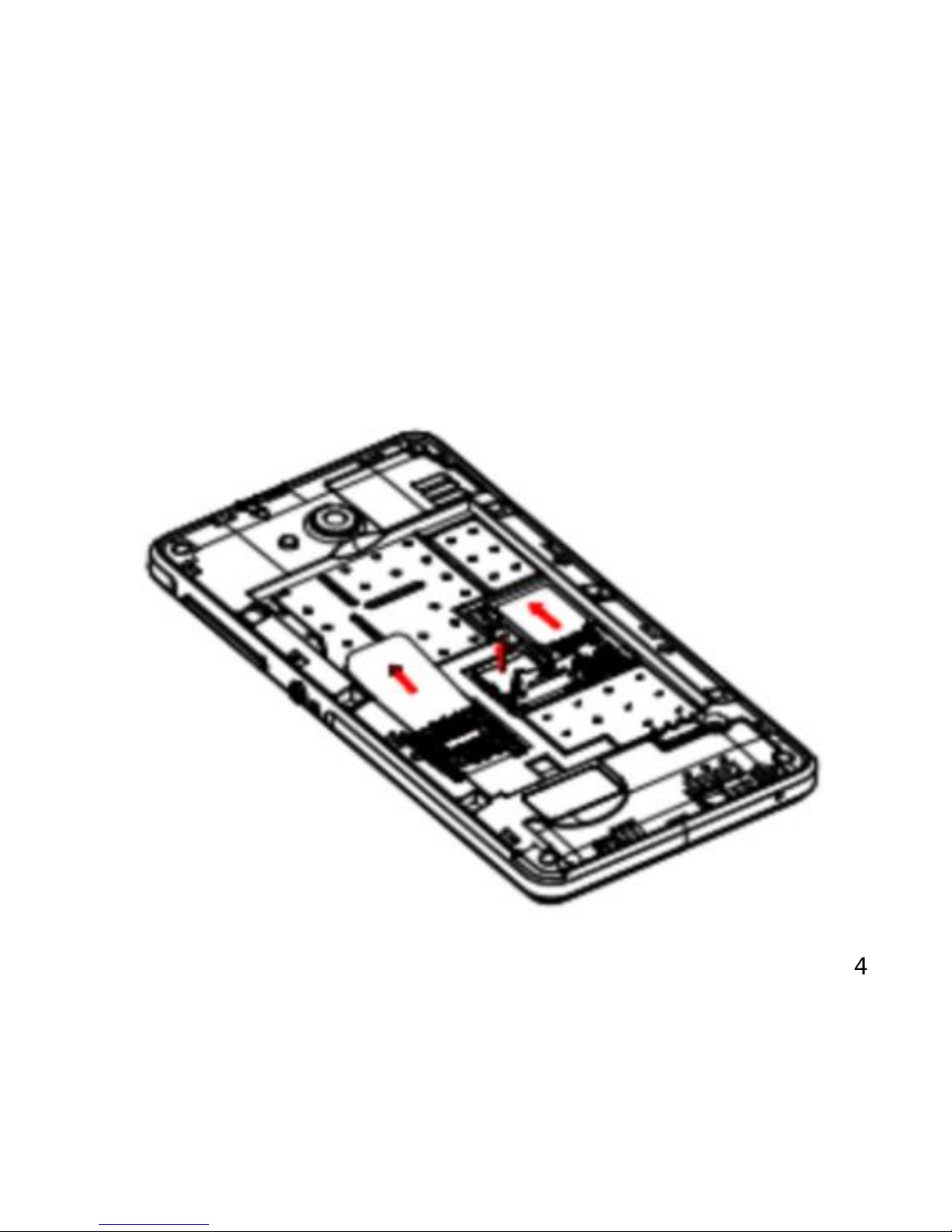

2. Insert your SIM(s) card(s) carefully into the SIM slot(s) as shown

below. Note that the larger SIM slot is marked as SIM Slot 1 & the

smaller SIM slot (Micro SIM –3FF) is marked as SIM Slot 2.

3. Expand the device memory with a microSD(HC) up to 32GB

(optional) by fitting it in the microSD card holder. See a tech bar

or salesman at Officeworks when you purchase the microSD card

to help fit the memory card. Or contact ZTE Australia with your

handset model via Facebook Message and we can provide a video

link of what to do.

4. The battery will only fit one way, just check the gold pads on the

battery line up with the gold springs in the phone.

5. Replace the battery cover and press to click into place.

SWITCH YOUR DEVICE ON OR OFF, CHARGE YOUR BATTERY

Press and hold the Power Key to turn on your phone.

To turn it off, press and hold the Power Key to

open the options menu.

CHARGE THE BATTERY

Check the correct orientation of the lead, then insert the charger lead

carefully.

Do not force the connector into the charger jack.

Connect the charger to a standard AC wall outlet.

Disconnect the charger when the battery is fully charged.

If the phone is on, you’ll see the charging icon / on the status bar.

If the battery is low, there will be a pop-up message on the screen. As

you charge your phone, the lock screen will tell you the battery level

each time you wake up your phone.

On first use please charge the battery for 3-4 hours. It is better to keep

your battery topped up than to let it fully discharge.

Important Notes:

Only use the AC charger and USB lead supplied.

Insert the charger lead carefully.

Check the plug and socket are aligned correctly.

Do NOT use excessive force which may damage the USB port.

Be careful to avoid tripping on the lead whilst it is plugged in.

Physical damage to the USB port is NOT covered by warranty.

Normal charge time is 3-4 hours.

Do not leave on charge for more than 24hrs.

To maximise battery life limit multimedia functions.

Charge the battery between 0°C~45°C. Charge the battery promptly

when flat.

With poor network conditions (less than 2 bars) battery life is

reduced.

When not using the phone for long periods remove the battery.

TIPS TO MAXIMISE BATTERY LIFE

After 2-3 charge / discharge cycles the battery life will improve. From

then on use top up charging to recharge frequently and always charge

promptly when flat.

To avoid the battery entering a deep discharged state charge the

battery promptly when flat.

If the battery is deeply discharged it can take 30 minutes to start

charging. Leave it on charge to recover the battery.

Keep your handset and battery cool. High temperatures degrade the

battery more quickly.

Normal charge time is 3-4 hours. Do not charge more than 24hrs.

When not using the phone for long periods charge to approx 40% and

remove the battery.

With low network signal conditions battery life is reduced.

Turn off Bluetooth and Wi-Fi when not in use, and set the screen

brightness to automatic to maximise battery life.

GOOGLE ACTIVATION WIZARD: CREATE OR LOG IN TO A GOOGLE ACCOUNT

We recommend you log in or create a Google account to enable on line

services.

Follow the on screen wizard to create or log in to an existing Google

account.

TIPS

If you set a lock code on your device and then forget the pattern or PIN

number it can be reset using your Google Account.

If you have not set a Google account then you need to do a factory

reset. From the lock screen condition, press the Emergency Call button,

then enter *983*987# into the dialler. Follow the prompts to reset

your phone.

WAKE UP FROM SLEEP MODE

Press the Power key to activate the

display.

Long press on the green Lock button to

unlock.

SWITCH YOUR HANDSET TO SLEEP MODE

Press the Power key to activate sleep

mode.

Sleep Mode activates automatically with

the timeout set from Options > Settings >

My Device Tab > Display > Sleep.

TIP

If you set an unlock pattern, PIN or password you need to enter it to

unlock the screen. If you forget your pattern or PIN use your Google

Account password to reset the phone. This will only work if you
