ZTE HSDPA USB Modem

User Guide

Contents

1 Modem Introduction .........................................................3

1.1 Introduction ..............................................................3

1.2 Warning and Notice .................................................3

1.3 Applicability..............................................................5

1.4 System requirements...............................................5

1.5 Functions..................................................................5

1.6 Specification.............................................................5

2 Installation .........................................................................7

2.1 Package Checking...................................................7

2.2 Software Installation.................................................7

2.3 Running Application Software................................12

2.4 Disconnect Modem Safely.....................................12

2.5 Software Uninstallation..........................................12

3 Functions & Operation ...................................................13

3.1 Interface Introduction.............................................13

3.2 Connecting to the Internet......................................14

3.3 Settings..................................................................20

3.3.1 Security Settings...........................................21

3.3.2 Network Settings...........................................23

3.4 Help......................... Error! Bookmark not defined.

4 FAQ & Answers ...............................................................25

1 Modem Introduction

1.1 Introduction

Thank you for using ZTE HSDPA USB Modem. To guarantee the modem

is always in its best condition, please read this manual carefully and keep

it for further use.

The ZTE HSDPA USB Modem is a type of multi-mode, 3G modem,

suitable for GSM/GPRS/EDGE/WCDMA/HSDPA networks. It adopts a

standard USB interface used by most notebook PCs. With the GSM/

GPRS/ EDGE/ WCDMA/ HSDPA mobile network, it can help you access

data services and will help you break away from the limits of a fixed

location, and realize wireless communication at any moment everywhere.

The pictures, symbols and content in this manual are just for your

reference. They might not be completely identical with your modem. We

operate a policy of continuous development. We reserve the right to

update the technical specifications in this document at any time without

prior notice.

1.2 Warning and Notice

To the owner

Some electronic devices, if inadequately shielded are susceptible to

electromagnetic interference sent by the modem, such as electronic

system of vehicles. Please consult the manufacturer of the device

before using the modem if necessary.

Operating of notebook PC and modem may interfere with medical

devices like hearing aids and pacemakers. Please always keep them

more than 20 centimeters away from such medical devices when they

are turned on. Turn the modem off if necessary. Consult a physician or

the manufacturer of the medical device before using the modem.

Be aware of the usage limitation when using the modem in places

where there are explosive gases or explosive products being used,

including petrol stations, chemical facilities, etc. Turn off your modem if

required.

Don’t touch the inner antenna area, otherwise it will affect your

modem’s performance.

Store the modem out of the reach of little children. The modem may

cause injury if used as a toy.

Modem

Please use original accessories or accessories that are authorized.

Using any unauthorized accessories may affect your modem’s

performance, and violate related national regulations concerning

telecom terminals.

Avoid using the modem near metallic structures, devices or

establishments that can emit electromagnet waves. Otherwise it may

adversely influence received signals.

The modem is not waterproof. Please keep it dry and store in shady

and cool place.

Do not use the modem immediately after a sudden temperature change.

In such case, it will produce dew inside and outside the modem. Please

wait until it dries before use.

Treat the modem carefully. Do not expose to shock or attempt to bend

or twist it, this could lead to irreversible damage.

Do not dismantle the modem. Any maintenance or repair should be

carried out by a ZTE approved agent. Please consult your distributor.

In Aircraft

Please power off the modem before take off. In order to protect an

airplane’s communication system from interference, modem use is not

permitted when in flight. Use before take off should be in accordance

with the relevant prevailing air safety regulations.

1.3 Applicability

The modem is suitable for use with Apple Macintosh Computers.

1.4 System requirements

Operating System：

Version 10.4 or above

Configuration：

CPU

PowerPC or Intel

Processor

500M or above

Memory

128M or above

The performance of the modem may be influenced if configuration

below recommended requirement.

1.5 Functions

Functions: Data service, Applications management, etc.

1.6 Specification

Networks

HSDPA/WCDMA/GSM/GPRS/EDGE

Frequency

Band

HSDPA/UMTS 2100MHz: 1920 MHz-1980 MHz/2110

MHz-2170 MHz (Up/Down-Link)

GSM/GPRS/EDGE 900MHz: 880 MHz-915 MHz/925

MHz-960 MHz (Up/Down-Link)

GSM/GPRS/EDGE 1800MHz: 1710 MHz-1785

MHz/1805 MHz-1880 MHz (Up/Down-Link)

GSM/GPRS/EDGE 1900MHz: 1850 MHz-1910

MHz/1930 MHz-1990 MHz (Up/Down-Link)

Dimension

43mm*88mm*10mm

Weight

40g

Data Rate

In HSDPA Mode，max download speed 7.2Mbps；

In WCDMA Mode，max speed 384 Kbps；

In EDGE mode，max speed 236.8Kbps

Working

Voltage

5V（Using the notebook PC power supply）

Current Loss

Sleep：80mA Max：500mA

Max Emission

Power

WCDMA Mode：250mW

GSM/GPRS Mode：2W

2 Installation

2.1 Appearance

2.2 Software Installation

Install the software before connecting your modem to your PC.

Insert the CD into your CD-ROM drive.

Download the installation software package, double click it, and then

follow the steps to install.

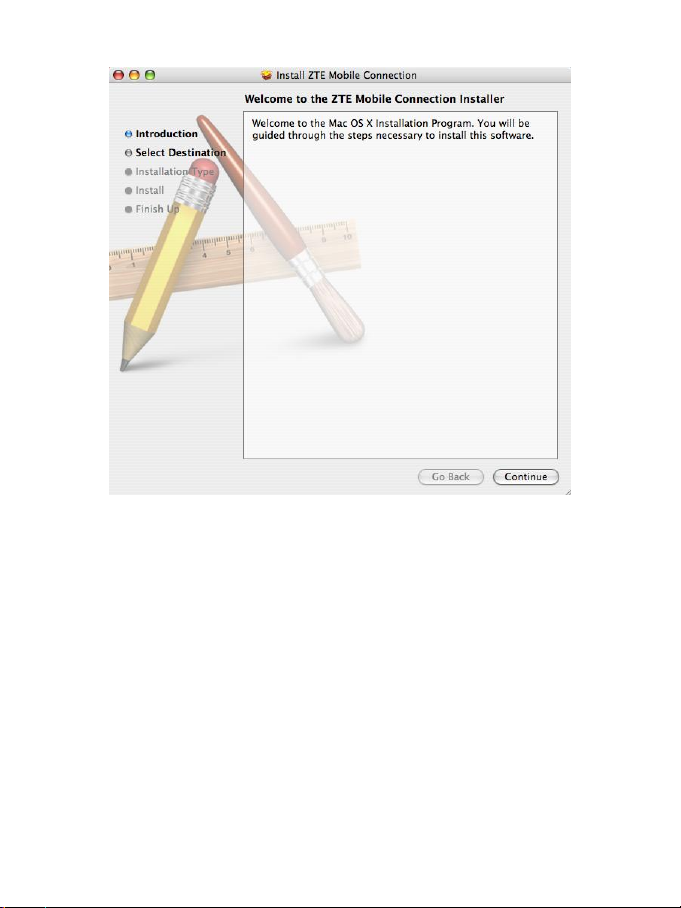

The following installation interface will show how to start installation.

Click Continue. You will be guided through the steps necessary to

install this software and click Continue.

Select a destination volume to install software on the volume

“Macintosh HD”, and then click Continue.

Please enter user name and password to be authenticated, and left

click OK to install.

Installation is in progress, after a while, there will be a tip as follows:
