Confidential and Proprietary Information of ZTE CORPORATION 1
Vodafone R209-Z
Quick Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
VODAFONE R209-Z Quick Guide
2 Confidential and Proprietary Information of ZTE CORPORATION
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors
or update specifications without prior notice.
Version No. : R1.0
Edition Time : 3.2014
VODAFONE R209-Z Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 3
Getting to Know Your Device

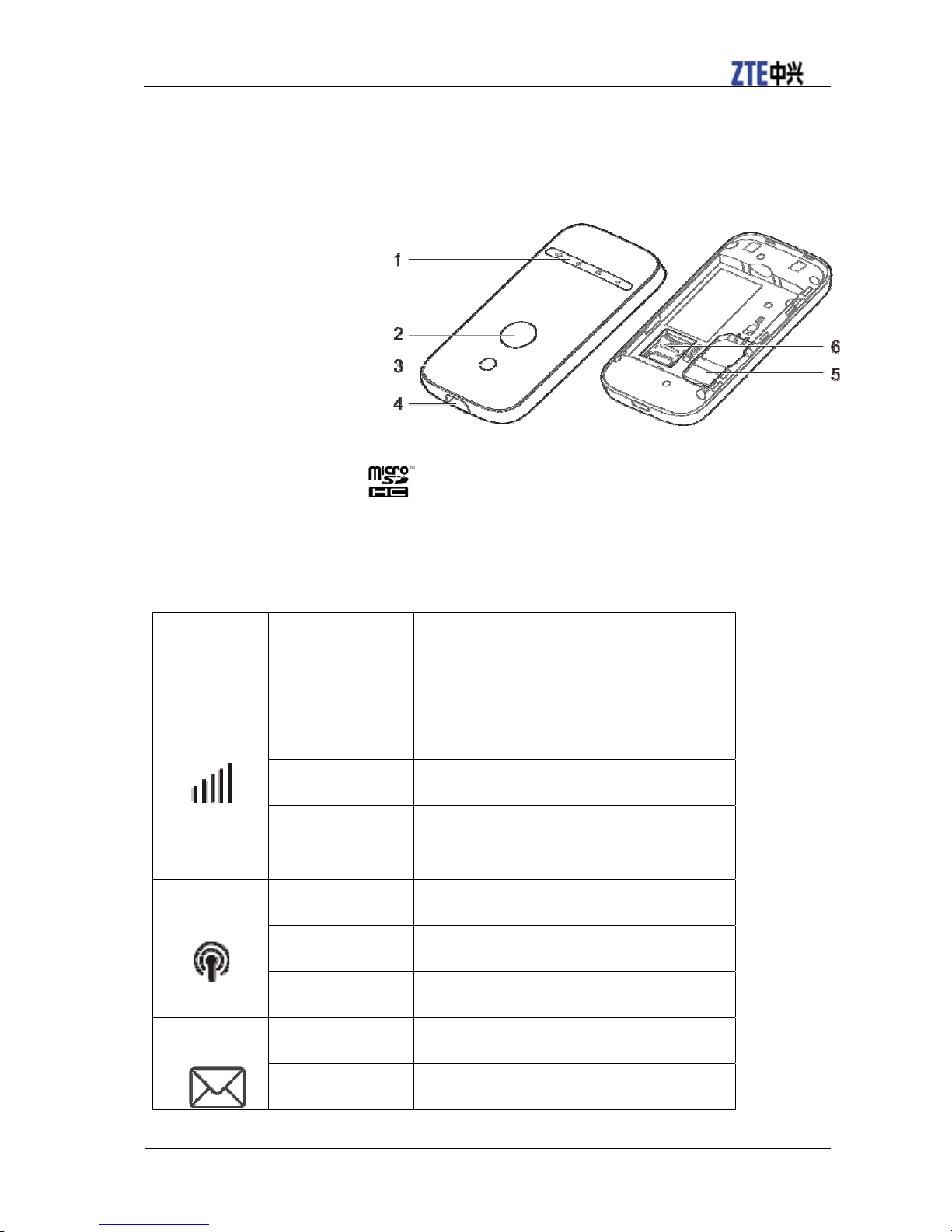

Appearance
The following figure is only for your reference. The actual product may be different.
1. LED Indicators
2. Power Button
3. WPS Button
4. Micro USB Port
5. (U)SIM Card Slot
6. microSDHC Card Slot
NOTE: 1.microSDHC logo is a trademark of SD-3C, LLC.
2. You can hold the Power button and WPS button to reset the device.
Indicators
Indicator Status Description
Network
Red solid Error status. Not registered to the mobile
network, no (U)SIM card inserted or no
network service available.
Green solid Registered to the mobile network.
Green blinking Connected to the mobile network and data is
being transferred.
Wi-Fi
Blue solid Wi-Fi is active.
Blue blinking WPS is active.
LED light off Wi-Fi is off or your device is in sleep mode.
SMS Blue solid You have unread messages.
Blue blinking You have new messages.
VODAFONE R209-Z Quick Guide
4 Confidential and Proprietary Information of ZTE CORPORATION
LED light off No messages.
Battery
Red solid/ blinking The battery is low. Please charge the battery.
Green blinking The battery is being charged.
Green solid The battery level is middle or high.
LED light off Your device is in standby mode and not being
charged, or the battery is not inserted.
Connection Scenario
Your device supports two methods to connect to the Internet and supports multi-clients for
surfing on the Internet at the same time. The following figure is only for your reference.
3G Mode: Use your (U)SIM card to access the Internet.
Internet Wi-Fi Mode: Your device will connect to other WLAN device (hotspot device,
wireless router, etc.) via Wi-Fi to access the Internet. The WLAN device has already
connected to the Internet.
VODAFONE R209-Z Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 5
NOTE:
The subnets of your device and other WLAN device must be different.
Installing Your Device
1. Slide the back cover and remove it
2. Insert the (U)SIM card.
IMPORTANT: Your device does not support Micro/Nano or any other nonstandard SIM cards. To avoid
device damage, please do not use them.
VODAFONE R209-Z Quick Guide
6 Confidential and Proprietary Information of ZTE CORPORATION
3. Insert the microSDHC card if necessary.
4.Insert the battery.
5. Close the back cover.
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the available wireless networks.
VODAFONE R209-Z Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 7
NOTE: Please set the client to obtain an IP address automatically referring to the chapter
“Configuring your PC”, and then the client will get an IP address like “192.168.0.101”.
3. Select the SSID of your device, and then click Connect.
NOTE:
Please check the label on your device to get the default SSID.
4. Input the password, and then click Connect.
VODAFONE R209-Z Quick Guide
8 Confidential and Proprietary Information of ZTE CORPORATION
NOTE:
You may need to input the password for Wi-Fi connection. Please check the label on your device to get
the default.
5. Wait a moment, and then the client will connect to your device successfully.
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. The OS detects and recognizes new hardware and finishes the installation automatically.
NOTE: If the system does not launch installation automatically, you can run the installation program in
path of My Computer > ZTEMODEM.
4. Wait a moment, and then the client will connect to your device successfully.
Accessing the Internet
3G Mode
After the client connected to your device successfully, you can access the Internet in the
Automatic or Manual mode. The default mode is Automatic.
Mode Operations
Automatic Your device will connect to the Internet automatically, and your
clients can surf on the Internet directly.
Manual Log in the webGUI configuration page, and select Settings >
Network Settings > Network Selection > Manual (To change
current setting, please disconnect from network), then Apply.
VODAFONE R209-Z Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 9
NOTE:
If you want to modify the detailed parameters of your device, please log in the webGUI configuration
page by visiting http://192.168.0.1 or http://m.home.The default password is admin.
Internet Wi-Fi Mode
1. Log in the webGUI configuration page.
2. Select Settings > Internet Wi-Fi.
3. Choose the Internet Wi-Fi Switch and Preferred Network,and then click Apply.
NOTE:
You need to enable Internet Wi-Fi switch and select preferred network Wi-Fi.
4. Connect to the Wi-Fi device.
There are two methods for your reference.
Input the Wi-Fi device information in the Wi-Fi Setting area, and then click Apply.
Click for more help.
VODAFONE R209-Z Quick Guide
10 Confidential and Proprietary Information of ZTE CORPORATION
5. After the client connected to the Wi-Fi device successfully, you can access the Internet.

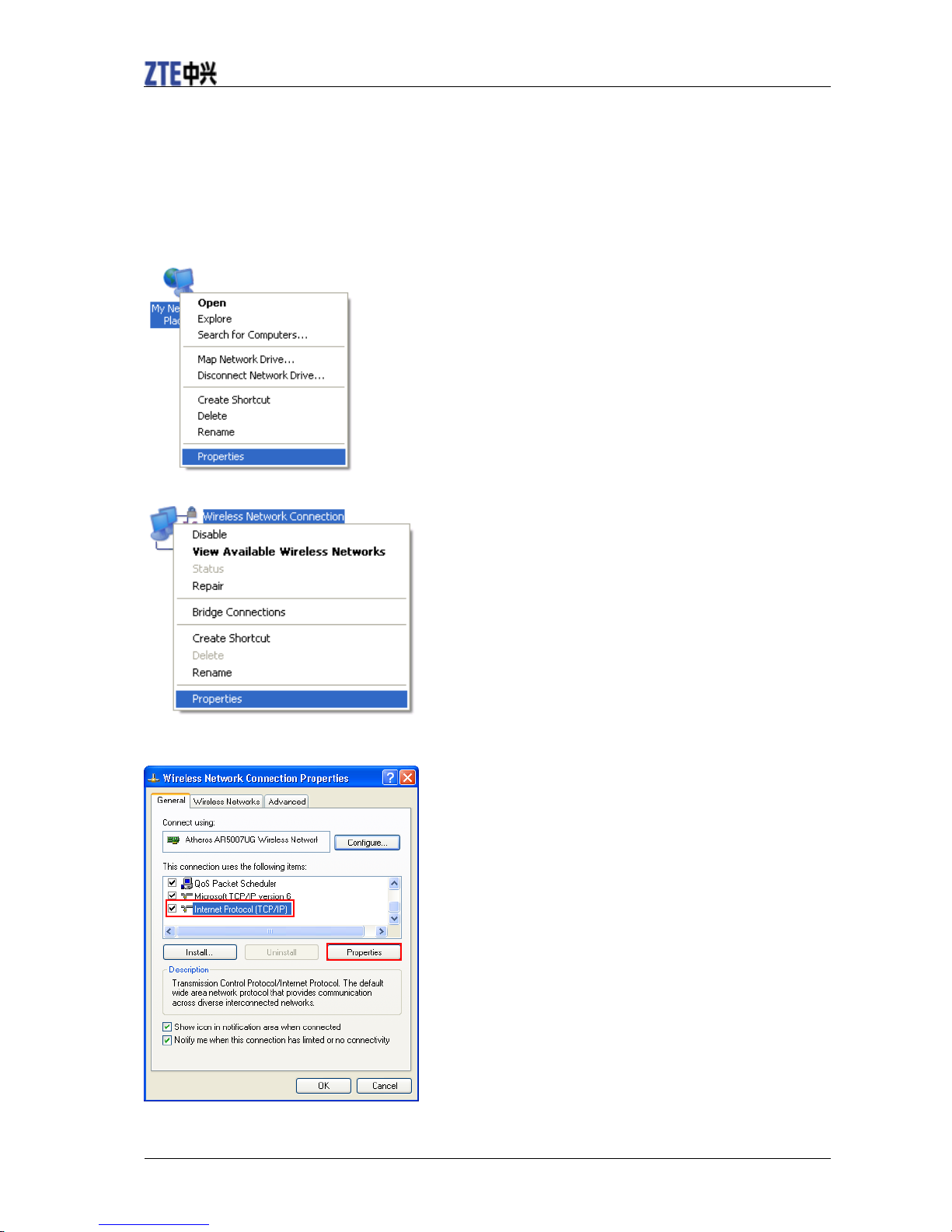

Configuring Your PC
Follow the following steps and figures for Windows XP to configure the Internet Protocol for
your Wi-Fi connection.
.
1. Right-click My Network Places, and then select Properties.
2. Right-click Wireless Network Connection, and then select Properties.
3. Select Internet Protocol(TCP/IP), and then click Properties.
