Acer AR320 F2 specifications

What

Product overview

The AR320 F2 single-socket server delivers great performance and enterprise-level scalability in a

space-saving design. Proactive management utilities effectively handle SMB as well as enterprise

business operations, including departments and branch offices.

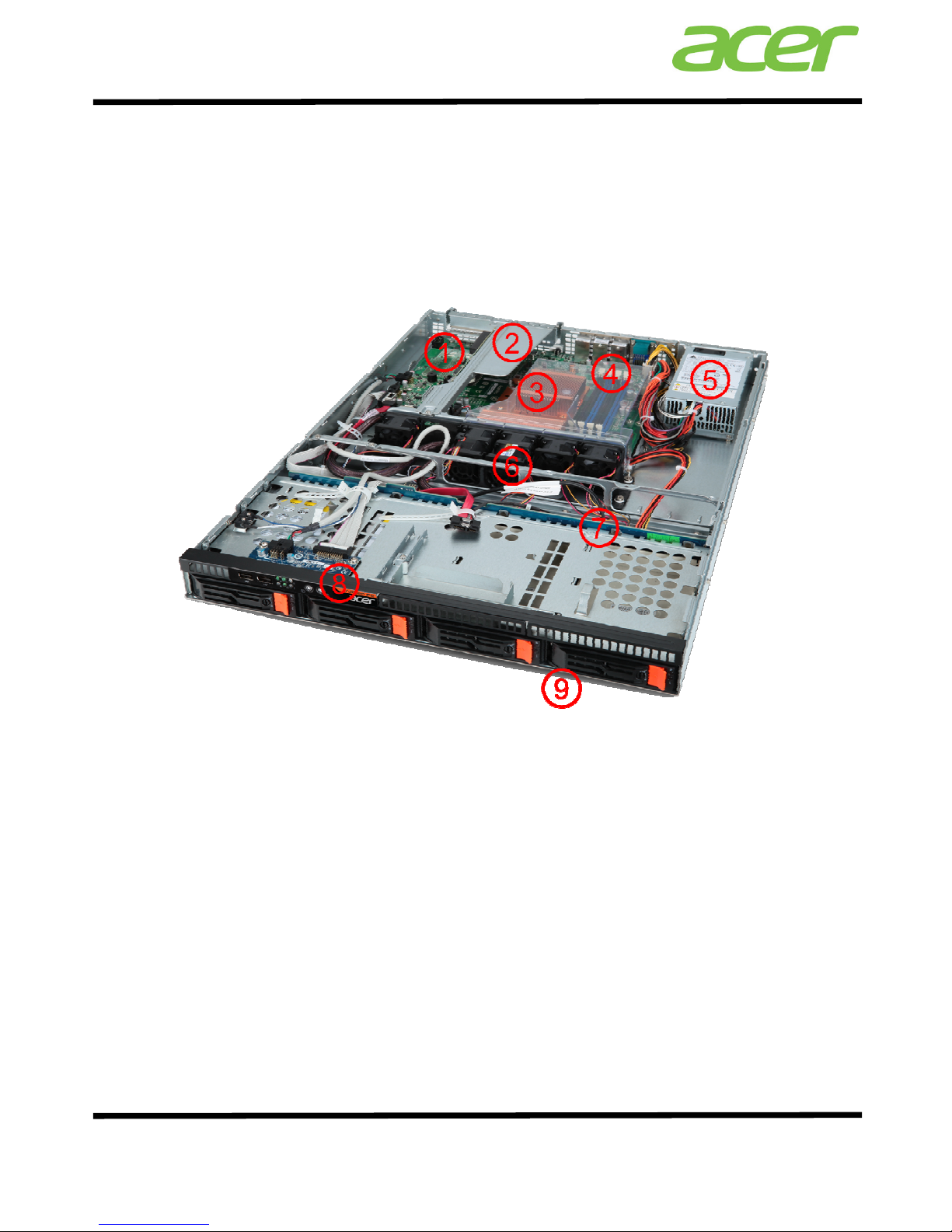

Internal view

1&2

Riser card supporting PCIe, expansion

3 Intel

Xeon

processors E3-1200 series, or Intel

Core™ i3 support

4 4 x DDR3 unbuffered DIMMs, ECC support

5 400W 80 PLUS Gold-level efficient fixed PSU

Optional 2 x 400W 80 PLUS Gold-level (1+1 redundant, hot-swappable)

6 N+1 redundant system fans

7 SAS/SATA backplane

8 Front status indicators, power, and optional slimline optical drive

9 4 x hot-swap 3.5” SAS/SATA HDDs, embedded RAID 0, 1, 5, 10 support

Acer AR320 F2 specifications

Front View

Rear View

Front I/O

1 2 x USB ports

2 Status indicators

3 ID and Power button

Acer AR320 F2 specifications

Rear I/O

1 Serial port

2 2 x Ethernet LAN Ports (RJ-45)

3 Management port (RJ-45)

4 Video port

5 6 x USB ports

6 System ID LED light

What's New

•New Intel® Xeon® E3-1200 series processors

•Hot-pluggable/redundant power supply with 80 PLUS®gold-level efficiency

•Smart Server Manager v1.1 with improved management functionality

Product Specifications

Processors and Chipset

•One Intel® Xeon® E3-1200 series processor

•Chipset: Intel® C204

Memory

•Memory capacity:

Unbufferred DIMM: 1, 2, 4, 8 GB

•Maximum capacity: up to 32 GB unbuffered DIMMs when fully populated using 8 GB ECC un-buffered

DDR3 DIMMs in 4 slots

•Note: Support for 8 GB UDIMMs may vary by regional availability.

Network Controllers

•2 x single-port Intel® Gigabit Ethernet controllers

Storage

•Hard disk form factor: 3.5”

•Type: SAS / SATA with hot-swap capability

•Max 4 HDDs

Storage Controllers

•Integrated Intel® C204 chipset, I/O co- controller (4 x 3 Gb/s and 2 x 6 Gb/s SATA ports) with RAID 0,

1, 5 or 10 support

•Note: Raid 5 only available for Windows OS

•Optional PCIe 4-/8-port SAS RAID card

Expansion slots

•PCIe®2.0 x16 slot (x8 link) low profile (right)

•PCIe®2.0 x8 slot (x8 link) low profile (left)

Management

•Acer Smart Server Manager

•System ID LED buttons, System Health LED

•Acer Smart Console for server management and KVM over IP remote management

Acer AR320 F2 specifications

BIOS

•UEFI

Deployment/Serviceability

•Acer Smart Setup

•BIOS Update Tool

•IPMI Firmware Update Tool

Operating Systems

•Windows Server®2008 SP2

•Windows Server®2008 R2 SP1

•Red Hat®Enterprise Linux®5.6

•Red Hat®Enterprise Linux®6.1

•SuSE®Linux®Enterprise Server 10 SP4

•SuSE®Linux®Enterprise Server 11 SP1

•VMware ESXi™ v4.1 and ESXi 5.0

•VMware ESX™ v4.1

Optical drive

•Optional slimline optical drive bay

Graphics

•Aspeed 2150 controller

•Max resolution: 1600x1200@60Hz

•32 MB dedicated memory

Chassis/Form Factor

•1U rack optimized

Power Supply

•400 W 80 PLUS® gold-level fixed

•Optional 2 x 400 W 80 PLUS® gold-level efficient, easy-swap power supply (1+1 redundant, hot-

pluggable)

Regulatory Compliant Standards

EMC

•FCC (Class A)

•CE (Class A)

•BSMI (Class A)

Safety

•MET

•CB

•Nemko/GS

Environmental Specifications

Dimensions 444 (W) x 638 (D) x 43 (H) mm (17.5 x 25.1 x 1.7 inches)

Weight Maximum 12.7 kg (28.7 lbs.)

Minimum (includes a single HDD, CPU and

RAM, and PSU)

10.3 kg (23.27 lbs.)

Acer AR320 F2 specifications

System inlet

temperature

Operating 0°- 35°C (32°- 95°F)

Non-operating -20°- 60°C (-4°- 140°F)

Relative

humidity

Operating 8 - 90 %

Non-operating 5 - 95 %

Acoustics Idle

LWAd LWAd: 5.1 BA

LpAm LpAm: 40 dBA

Operating

LWAd LWAd: 5.7 BA

LpAm LpAm: 44 dBA

Power Rated Steady –state power 400 W

Maximum Peak Power 398.77 W

BTU rating 1518.268 BTU/hr (at 100 VAC)

1487.135 BTU/hr (at 220 VAC)

Technical specifications

PCIe®specifications

The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the

PCI-E bus segments. Details about each bus segment follow the table.

NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one

direction per lane for Gen 2.

Expansion

slot

Number Type Bus width1 Voltage Connector Location Length

PCIe x16 1 PCIe Gen2 x8 3.3V x16 right side Low profile

PCIe x8 1 PCIe Gen2 x8 3.3V x8 left side Low profile

NOTE:

1. Indicates the number of physical electrical lanes running to a PCIe® connector.

2. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus

assignment number.

3. Slots are enumerated differently based on the operating system. Microsoft® operating systems

enumerate Device ID by bus starting from the lowest bus to the highest.

Acer AR320 F2 specifications

Onboard storage specifications

Item Description

Controller Integrated Intel®C204 chipset

Simultaneous drive transfer channels 6 onboard SATA ports (4 via mini-SAS connector)

Max throughput per channel 2 x 6 Gb/s, 4 x 3 Gb/s

Data transfer method •Non-RAID mode

•RAID mode

Drive type supported Serial ATA

RAID levels support •RAID 0, 1, 10, 5 (Intel software RAID)

•RAID 0, 1, 10 (LSI software RAID)

NOTE: Intel software RAID only supports Windows OS

RAID function support Supports multiple logical volumes

Setup through ROM based Array Configuration Utility

Installation scripting support

NOTE: This controller does not support LED functions

RAID OS support

•

Windows Server 2008

•Windows Server 2008 R2

•Red Hat Enterprise Linux 6

•Novell SuSE Linux Enterprise Server 11

Additional features •NCQ (Native Command Queuing)

•AHCI (Advanced Host Controller Interface)

Onboard LAN specifications

Item Description

Controller 2 x single-port Intel® 82574L/ 82579LM PHY Gigabit Ethernet

controllers

Network interface 10Base-T / 100Base-TX / 1000Base-T

Compatibility standards •IEEE 802.3 Ethernet interface for 10BASE-T

•IEEE 802.3ab Ethernet interface for 1000BASE-T

•IEEE 802.3u Ethernet interface for 100BASE-TX

Manageability •NC-SI, SMBus

•PXE, iSCSI boot

Connector RJ-45

Supported cable type CAT 5e wire

Memory specifications and population

Acer AR320 F2 specifications

Item Description

Supported memory types •Unbuffered ECC DDR3 1066 / 1333 MHz

Population Acer’s validated memory populations are listed below.

NOTE: Support for 8 GB UDIMMs may vary by regional availability.

Memory configuration guide

DIMM # DIMM 1B DIMM 1A DIMM 2B DIMM2A

1 X

2 X X

4 X X X X

Memory Identification

Generally, there are some memory information printed on the label of DIMM, but different vendor may have

different format. For example:

4GB 2Rx4 PC3-10600R xx xx xxx

1. Density

1GB, 2GB, 4GB, 8GB

2. Rank

1R = Single Rank

2R = Dual Rank

4R = Quad Rank

Note: if any quad rank DIMM is used, maximum only 2 DIMM per channel can be supported

3. Bit Organization

This platform supports x8

Note: It’s not recommend to mix DIMM with different bit organization in one system

4. Speed

PC3 – 8500 => DDR3- 1066

PC3 – 10600 => DDR3- 1333

PC3 – 12800 => DDR3- 1600

Acer AR320 F2 specifications

Graphics Specifications

ASpeed 2150 controller

Modes

DCLK

(MHz)

Color

Depth CRT

Bandwidth KVM

Bandwidth DRAM

Bandwidth

CRT

only

CRT +

KVM

640x480x8bpp 60Hz 25 8 25 100 638.4 TRUE TRUE

640x480x8bpp 72Hz 31.5 8 31.5 126 638.4 TRUE TRUE

640x480x8bpp 75Hz 31.5 8 31.5 126 638.4 TRUE TRUE

640x480x8bpp 85Hz 36 8 36 144 638.4 TRUE TRUE

800x600x8bpp 56Hz 36 8 36 144 638.4 TRUE TRUE

800x600x8bpp 60Hz 40 8 40 160 638.4 TRUE TRUE

800x600x8bpp 72Hz 50 8 50 200 638.4 TRUE TRUE

800x600x8bpp 75Hz 49.5 8 49.5 198 638.4 TRUE TRUE

800x600x8bpp 85Hz 56.25 8 56.25 225 638.4 TRUE TRUE

1024x768x8bpp 60Hz 65 8 65 260 638.4 TRUE TRUE

1024x768x8bpp 70Hz 75 8 75 300 638.4 TRUE TRUE

1024x768x8bpp 75Hz 78.75 8 78.75 315 638.4 TRUE TRUE

1024x768x8bpp 85Hz 94.5 8 94.5 378 638.4 TRUE TRUE

1280x1024x8bpp 60Hz 108 8 108 432 638.4 TRUE TRUE

1280x1024x8bpp 75Hz 135 8 135 540 638.4 TRUE FALSE

1280x1024x8bpp 85Hz 157.5 8 157.5 630 638.4 TRUE FALSE

1600x1200x8bpp 60Hz 162 8 162 648 638.4 TRUE FALSE

1280x800x8bpp 60Hz 83.5 8 83.5 334 638.4 TRUE TRUE

1440x900x8bpp 60Hz 106.5 8 106.5 426 638.4 TRUE TRUE

1680x1050x8bpp 60Hz 146.25 8 146.25 585 638.4 TRUE FALSE

640x480x16bpp 60Hz 25 16 50 0 638.4 TRUE TRUE

640x480x16bpp 72Hz 31.5 16 63 0 638.4 TRUE TRUE

640x480x16bpp 75Hz 31.5 16 63 0 638.4 TRUE TRUE

640x480x16bpp 85Hz 36 16 72 0 638.4 TRUE TRUE

800x600x16bpp 56Hz 36 16 72 0 638.4 TRUE TRUE

800x600x16bpp 60Hz 40 16 80 0 638.4 TRUE TRUE

800x600x16bpp 72Hz 50 16 100 0 638.4 TRUE TRUE

800x600x16bpp 75Hz 49.5 16 99 0 638.4 TRUE TRUE

800x600x16bpp 85Hz 56.25 16 112.5 0 638.4 TRUE TRUE

1024x768x16bpp 60Hz 65 16 130 0 638.4 TRUE TRUE

1024x768x16bpp 70Hz 75 16 150 0 638.4 TRUE TRUE

1024x768x16bpp 75Hz 78.75 16 157.5 0 638.4 TRUE TRUE

1024x768x16bpp 85Hz 94.5 16 189 0 638.4 TRUE TRUE

1280x1024x16bpp 60Hz 108 16 216 0 638.4 TRUE TRUE

1280x1024x16bpp 75Hz 135 16 270 0 638.4 TRUE TRUE

1280x1024x16bpp 85Hz 157.5 16 315 0 638.4 TRUE TRUE

1600x1200x16bpp 60Hz 162 16 324 0 638.4 TRUE TRUE

1280x800x16bpp 60Hz 83.5 16 167 0 638.4 TRUE TRUE

1440x900x16bpp 60Hz 106.5 16 213 0 638.4 TRUE TRUE

1680x1050x16bpp 60Hz 146.25 16 292.5 0 638.4 TRUE TRUE

Acer AR320 F2 specifications

640x480x32bpp 60Hz 25 32 100 0 638.4 TRUE TRUE

640x480x32bpp 72Hz 31.5 32 126 0 638.4 TRUE TRUE

640x480x32bpp 75Hz 31.5 32 126 0 638.4 TRUE TRUE

640x480x32bpp 85Hz 36 32 144 0 638.4 TRUE TRUE

800x600x32bpp 56Hz 36 32 144 0 638.4 TRUE TRUE

800x600x32bpp 60Hz 40 32 160 0 638.4 TRUE TRUE

800x600x32bpp 72Hz 50 32 200 0 638.4 TRUE TRUE

800x600x32bpp 75Hz 49.5 32 198 0 638.4 TRUE TRUE

800x600x32bpp 85Hz 56.25 32 225 0 638.4 TRUE TRUE

1024x768x32bpp 60Hz 65 32 260 0 638.4 TRUE TRUE

1024x768x32bpp 70Hz 75 32 300 0 638.4 TRUE TRUE

1024x768x32bpp 75Hz 78.75 32 315 0 638.4 TRUE TRUE

1024x768x32bpp 85Hz 94.5 32 378 0 638.4 TRUE TRUE

1280x1024x32bpp 60Hz 108 32 432 0 638.4 TRUE TRUE

1280x1024x32bpp 75Hz 135 32 540 0 638.4 TRUE TRUE

1280x1024x32bpp 85Hz 157.5 32 630 0 638.4 TRUE TRUE

1600x1200x32bpp 60Hz 162 32 648 0 638.4 FALSE FALSE

1280x800x32bpp 60Hz 83.5 32 334 0 638.4 TRUE TRUE

1440x900x32bpp 60Hz 106.5 32 426 0 638.4 TRUE TRUE

1680x1050x32bpp 60Hz 146.25 32 585 0 638.4 TRUE TRUE

*NOTE: Supported graphics resolutions may vary with monitor model and operating system

Acer AR320 F2 specifications

Power specifications

Fixed 400W Power Supply

Operational Input Voltage

Range (Vrms)

100-127 / 200-240

Frequency Range (Nominal)

(Hz)

60 / 50

Nominal Input Voltage

(Vrms)

100

120

200

208

220

230

240

Max. Rated Output Wattage 398.44 398.17 398.77 398.27 398.39 398.45 398.55

Nominal Input Current (A

rms) 4.66 3.89 2.29 2.17 2.01 1.95 1.85

Max. Rated Input Wattage

Rating 445.24 444.16 437.71 436.88 436.11 435.68 434.12

Max. Rated VA (Volt-Amp) 600 720 600 624 660 690 720

Efficiency (%) at Max. Rated

Output Wattage 0.894888

0.896456

0.911037

0.911623

0.913508

0.914547

0.918064

Power Factor 0.999 0.999 0.999 0.999 0.999 0.999 0.999

Leakage Current (mA) L:0.34

N: 0.34

L:0.37

N:0.37

L: 0.6

N:0.6

L: 0.61

N:0.61

L: 0.63

N: 0.63

L: 0.63

N:0.63

L: 0.66

N:0.65

Max. Inrush Current (A

peak) 20.1 20.6 45.85 46.11 46 46.11 46.78

Max. Inrush Current

Duration (ms) 10 10 10 10 10 10 10

Max. British Thermal Unit

Rating (BTU/hr) 1518.268

1514.586

1492.591

1489.761

1487.135

1485.669

1480.349

Dieses Handbuch passt für folgende Modelle

Andere Acer Server Handbücher

Acer

Acer Altos S700 Series Bedienungsanleitung

Acer

Acer Altos R700 Series Bedienungsanleitung

Acer

Acer Altos RM900 Bedienungsanleitung

Acer

Acer AR385 F1 Bedienungsanleitung

Acer

Acer R310-U-P3200 - Altos - R310 Bedienungsanleitung

Acer

Acer HDS WMS100 Bedienungsanleitung

Acer

Acer Altos G520 series Bedienungsanleitung

Acer

Acer Altos S300 Bedienungsanleitung

Acer

Acer AT310 F1 Series Bedienungsanleitung

Acer

Acer AT310 F2 Bedienungsanleitung

Acer

Acer AT350 F2 Series Bedienungsanleitung

Acer

Acer WT 300 Bedienungsanleitung

Acer

Acer Altos T350 F4 Bedienungsanleitung

Acer

Acer Altos R510 Bedienungsanleitung

Acer

Acer HDS AMS200 Bedienungsanleitung

Acer

Acer AW2000h-AW170h Bedienungsanleitung

Acer

Acer R5250-Q2000 - Altos - 2 GB RAM Bedienungsanleitung

Acer

Acer AW2000ht-AW170ht F1 Bedienungsanleitung

Acer

Acer AT350 F3 Bedienungsanleitung

Acer

Acer Altos T350 F2 Installationsanleitung

Acer

Acer ALTOS R910 Series Bedienungsanleitung

Acer

Acer Altos R700 Series Bedienungsanleitung

Acer

Acer Altos 900 Bedienungsanleitung

Acer

Acer Altos G520 series Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
