ACTi CAM-7100 Bedienungsanleitung

IP Rugged Dome

CAM-7100/CAM-7101

Quick Installation Guide

1 Getting Started

1.1 PACKAGE CONTENTS

CAM-7100/7101 Warranty Card

Software CD Terminal Blocks for Power & DI/O

PowerAdaptor Accessory

1.2 PHYSICAL DESCRIPTION

Rugged Dome Rear Panel

1. WAN port

The IP rugged dome connects to the WAN (wide area network) via a standard RJ45

connector. Supporting NWAY, this IP rugged dome can auto detect the speed of

local network segment (10Base-T/100Base-TX Ethernet). The WAN port is for

FTTH and can connect to a xDSL or cable modem.

With PoE built-in product, you can power the IP rugged dome via WAN port, LAN

port or DC input. You can power the IP rugged dome with multiple power inputs at

the same time. If you do, the IP rugged dome will gets the power from the first

power input plugged into it.

2. Power Input

DC 12V input.

PIN NAME DESCRIPTION

1 12V Power Input (DC +12V)

2 GND Ground Pin of Power Input

3 X No Connection

With PoE built-in product, you can power the IP rugged dome via WAN port, LAN

port or DC input. You can power the IP rugged dome with multiple power inputs at

NOTE: You may find a support package for help you getting

familiar with PoE. Please visit our web site, and get the support

document TS-00040.

the same time. If you do, the IP rugged dome will gets the power from the first

power input plugged into it.

3. Analog Video Output

The IP rugged dome supports one channel analog video output.

4. LAN port

The IP rugged dome connects to the LAN (local area network) via a standard RJ45

connector. Supporting NWAY, this IP rugged dome can auto detect the speed of

local network segment (10Base-T/100Base-TX Ethernet).

With PoE built-in product, you can power the IP rugged dome via WAN port, LAN

port or DC input. You can power the IP rugged dome with multiple power inputs at

the same time. If you do, the IP rugged dome will gets the power from the first

power input plugged into it.

5. Audio Input

Unbalanced, 1.0Vpp, 1Vrms, 3.5mm Jack

6. Reset Button

Step 1: Switch off IP rugged dome by disconnecting the power cable

Step 2: Using a suitable pointed object, press and continue to hold the Reset Button

depressed. While continuing to hold the reset button depressed, reconnect the

power cable.

Step 3: Keep holding the reset button depressed around 6 seconds, release the reset

button. The unit will start up with factory default settings.

7. Action LED Indicator

The LED will light up after IP rugged dome has successfully completed the boot

process.

8. DI/O

The IP rugged dome supports one alarm input and one alarm output.

DI:Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V

DO:Logic Level 0: 0.1~0.6V; Logic Level1: 2.4~5V

NOTE: You may find a support package for help you getting

familiar with PoE. Please visit our web site, and get the support

document TS-00040.

NOTE: You may find a support package for help you getting

familiar with PoE. Please visit our web site, and get the support

document TS-00040.

PIN NAME DESCRIPTION

1 GND Ground Pin

2 DI Digital Input

3 GND Ground Pin

4 DO Digital Output

Camera Dip Switch

Pin Low Hi(ON)(3.3v)

8 AE ME

7 FL 0FF FL ON

6 BLC ON BLC OFF

5 AES Auto Iris

4 AGC Super AGC

3 r =0.45 r = 1

2 ATW AWB

1 ATW PWB

SHUTTER SPEED AE/ME

1/50 (1/60) SEC ME FL OFF BLC AEC

1/120 (1/100) SEC ME FL BLC AEC

1/250 SEC ME FL OFF BLC OFF AEC

1/500 SEC ME FL BLC OFF AEC

1/1000 SEC ME FL OFF BLC AUTO IRIS

1/2000 SEC ME FL BLC AUTO IRIS

1/4000 SEC ME FL OFF BLC OFF AUTO IRIS

1/10000 SEC ME FL BLC OFF AUTO IRIS

AWB mode – Conventional auto white balance

Procedure: Pin 2 set to High first, and then set Pin 1 to Low.

ATW mode – The operating colour temperature range is from 2500°K to 9500°K

approximately.

Procedure: Pin 2 set to Low first, and then set Pin 1 to Low.

PWB mode – Push to lock white balance

Procedure: Pin 2 set to High first, and then set Pin 1 to High.

1.3 CONNECT NECESSARY CABLES

The Ethernet cable and power cable are necessary for previewing function. Make sure all cables are

correctly and firmly connected.

1. Connect an analog monitor to IP rugged dome video out (BNC connector).

2. Connect the power adaptor to IP rugged dome

3. Connect IP rugged dome’s LAN port to an Ethernet (RJ45 connectors). If your IP rugged

dome has PoE built-in, you can regard it as a PD and connect it directly to a PSE

device like PoE switch.

4. Connect a PC to the Ethernet hub (RJ45 connectors)

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

2 Quick Tour

This section guides you with a quick tour on IP rugged dome.

2.1 Configure the IP Rugged Dome

2.1.1 Make sure network environment

Default IP of IP rugged dome is 192.168.0.100. Please make sure IP rugged

dome and your PC are on the same network segment before running the

installation.

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

2.1.2 Open Internet Explorer with IP address

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: The IP rugged dome default IP address is set to 192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

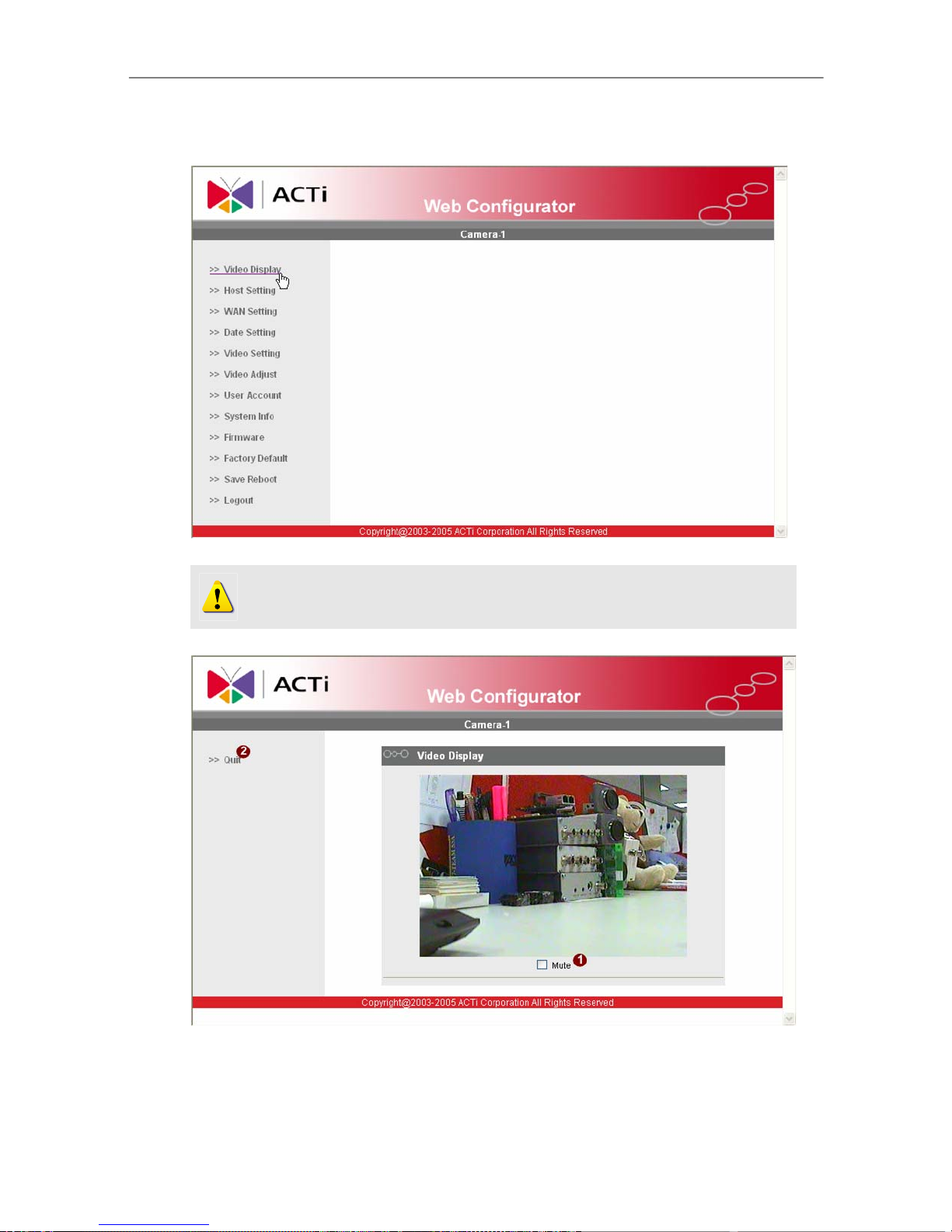

2.1.4 Preview the video

NOTE: In your Client PC, please make sure the setting of Network

Connections Type is set to Auto Negotation, since IP rugged dome follows

MII standard. Otherwise, you might not see the live image.
