Outdoor-Ready Box

Mounting on a Straight Wall

using the Bracket

Installation Guide

For Models:

KCM-5511 / KCM-5611 / KCM-5x11E

www.acti.com

Installation Guide

2

Table of Contents

Installation Procedures .....................................................3

Step 1: Install the Bracket......................................................................... 3

Step 2: Remove the Back Cover............................................................... 4

Step 3: Prepare the Flex Conduit ............................................................. 4

Step 4: Connect the Ethernet Cable......................................................... 7

Step 5: Install the Camera......................................................................... 8

Step 7: Access the Camera Live View ................................................... 10

Appendices.......................................................................11

Connecting a Power Adaptor (Optional).................................................11

Connecting DI/DO Devices (Optional).................................................... 13

Connecting a Serial Device (Optional)................................................... 16

Safety Information............................................................18

www.acti.com

Installation Guide

3

Installation Procedures

This section provides step-by-step procedures in installing the camera using the heavy duty

bracket and how to waterproof the cables.

Before installation, prepare the following tools and accessories which are not included in the

camera package thus must be purchased separately:

Bracket (PMAX-1101)

Flexible Conduit (Trade size = 1/2”)

Ethernet Cable

Screwdriver

Step 1: Install the Bracket

1. Remove the screw to detach the camera holder from the bracket. Set the holder aside for

later use.

2. Attach the bracket to the pole mount using the three (3) screws supplied in the pole mount kit.

www.acti.com

Installation Guide

4

Step 2: Remove the Back Cover

Loosen the four (4) screws to detach the back cover of the camera.

Step 3: Prepare the Flex Conduit

1. From the network side, insert the Ethernet cable and other cables (if any) through the flex

conduit.

NOTE: To connect an external power adaptor, digital input/output (DI/DO) or serial devices,

insert the cables without connectors through the flex conduit and as well as audio

input/output device cables at this point.

www.acti.com

Installation Guide

5

2. Insert the clamping nut through the flex conduit.

3. Insert the sealing insert and attach it at the end of the flex conduit.

4. Detach the conduit gland from the back cover of the camera as shown below:

Sealing Insert

Clamping Nut

Conduit Gland

Body

www.acti.com

Installation Guide

6

5. Insert the Ethernet cable and other cables (if any) without terminal blocks through the conduit

gland body of the back cover.

Ethernet Cable Only Ethernet and Power Adaptor Cable

6. Insert the sealing insert into the conduit gland body.

7. Attach the clamping nut to complete the cable solution.

NOTE: Make sure the clamping nut is tightly attached to the conduit gland body to avoid

water leak.

or

www.acti.com

Installation Guide

7

Step 4: Connect the Ethernet Cable

1. Connect the Ethernet cable to the Ethernet port of the camera.

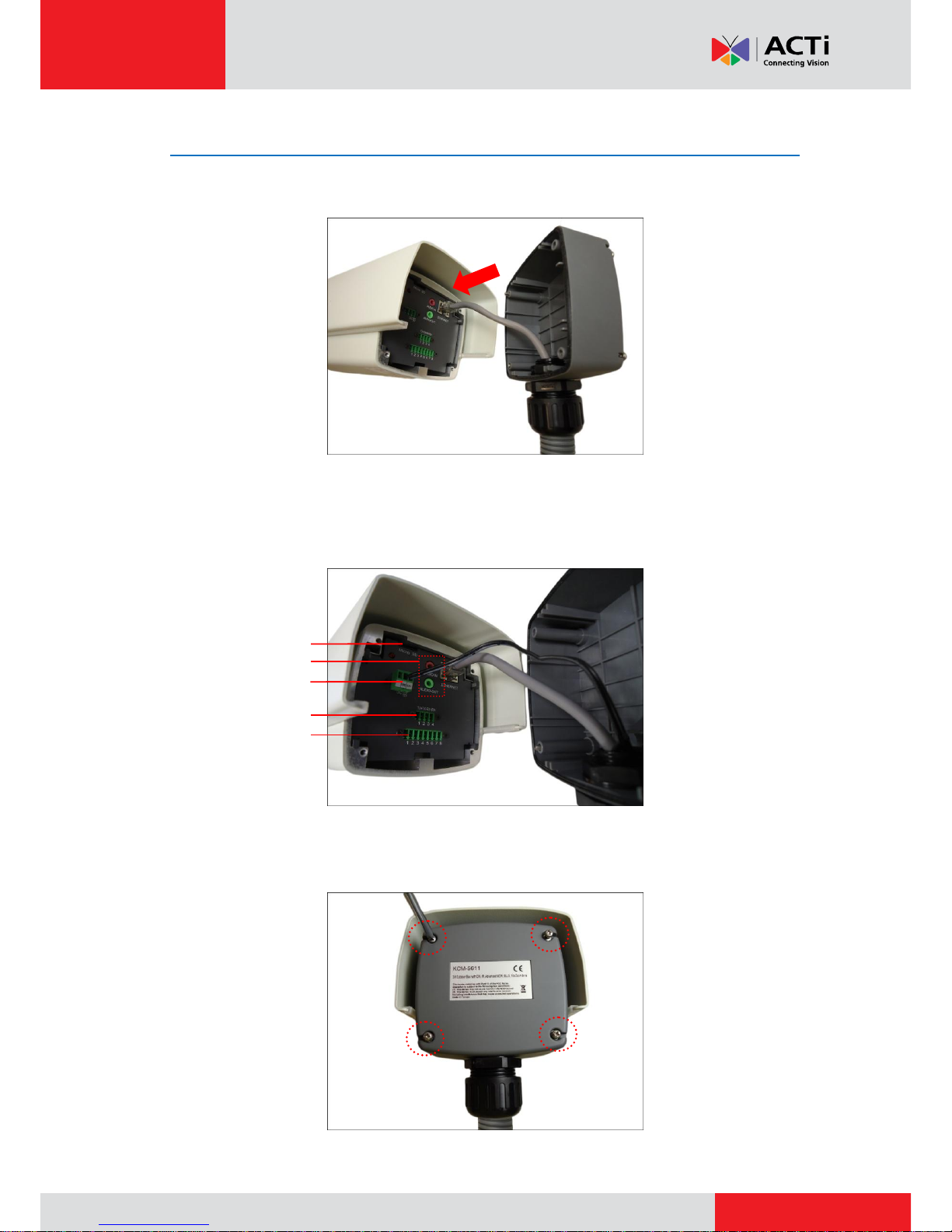

If connecting other cables, such as an external power adaptor, DI/DO or serial devices,

connect the supplied terminal blocks and connect them to the corresponding connectors of

the camera ( see Appendices on page 11 for more information). Sample image below.

2. When done, close the back cover by tightening the three (3) screws.

Memory Card Slot

Audio In /Out Jacks

12V Power Connector

Serial Connector

Digital Input / Output

(DI/DO) Connector

www.acti.com

Installation Guide

8

Step 5: Install the Camera

1. Align the screw holes of the holder to the bottom screw holes of the camera.

2. Attach the two (2) screws (supplied in the bracket package) to secure the camera to the

holder.

3. Align the screw hole of the holder to the bracket as you insert the excess length of flex

conduit back into the pole mount.

www.acti.com

Installation Guide

9

4. Loosely attach the screw to secure the holder to the bracket.

5. As needed, turn the holder left or right to adjust the camera viewing direction. Then, secure

the screw tightly to fix the position.

6. As needed, loosen the two (2) side screws of the holder and then move the camera up or

down to adjust the camera viewing angle. Then, tighten the two (2) side screws to fix the

position.

www.acti.com

Installation Guide

10

Step 6: Access the Camera Live View

Connect the other end of the Ethernet cable to a PoE switch and access the camera live view.

For more information on how to access the camera Live View, download the camera Hardware

Manual from the website (http://www.acti.com)
