Adam Equipment 700660189 Bedienungsanleitung
© Adam Equipment Company 2013
Adam Equipment
IHS/IHSa SERIES (EN)
SERIES IHS (FR)
IHS SERIE (DE)
SERIE IHS/IHSa (ES)
Serie IHS (IT)
(P.N. 700660189, Revision D1, Jul 2013)
Software version 1.0/A1.0
© Adam Equipment Company 2013
ENGLISH: P 1 - 13
FRANÇAIS: P 14 - 27
DEUTSCH: P 28 - 41
ESPAÑOL: P 42 - 56
ITALIANO: P 57 - 70
EU DECLARATION: P 71
EN
© Adam Equipment Company 2013
1700660189RevD1-Jul13
Easy Reference:
Model name of the scale:
Serial number of the unit:
Software revision number
(Displa ed when power is first turned on):
Date of Purchase:
Name of the supplier and place:
EN
© Adam Equipment Company 2013
1700660189RevD1-Jul13
1.0 CONTENTS
1.0 CONTENTS .............................................................................................. 1
2.0 INTRODUCTION ...................................................................................... 2
2.1 INTRODUCTION ................................................................................................ 2
2.2 TECHNICAL SPECIFICATIONS .......................................................................... 3
2.3 SAFETY NOTICE ................................................................................................ 4
2.4 KEY DESCRIPTION .............................................................................................. 5
2.5 DISPLAY ............................................................................................................ 5
3.0 OPERATION .............................................................................................. 7
3.1 SAFETY INSTRUCTIONS .................................................................................... 7
3.2 BATTERY OPERATION ...................................................................................... 8
3.3 CHARGING BATTERY ........................................................................................ 9
3.4 BASIC OPERATIONS ......................................................................................... 9
4.0 CALIBRATION ........................................................................................... 11
5.0 PARAMETER ............................................................................................. 12
EN
© Adam Equipment Company 2013
2700660189RevD1-Jul13
2.0 INTRODUCTION
2.1 INTRODUCTION
The IHS/IHSa Series is a range of heav -dut crane scales used to weigh
ver large masses.
The main features include:
•Eas Operation & Rugged construction
•30mm super big & bright red LED displa with view angle.
•360 degree rotar safet hook design, eas to use
•Hold feature
•Overload safet up to 200%
•One charge can last 150 hours
•Auto power off after 30 minutes of non use
•7.2Vdc 2 amp batter charger
•Aluminum die-casting housing
•Large remote control handset
EN
© Adam Equipment Company 2013
3700660189RevD1-Jul13

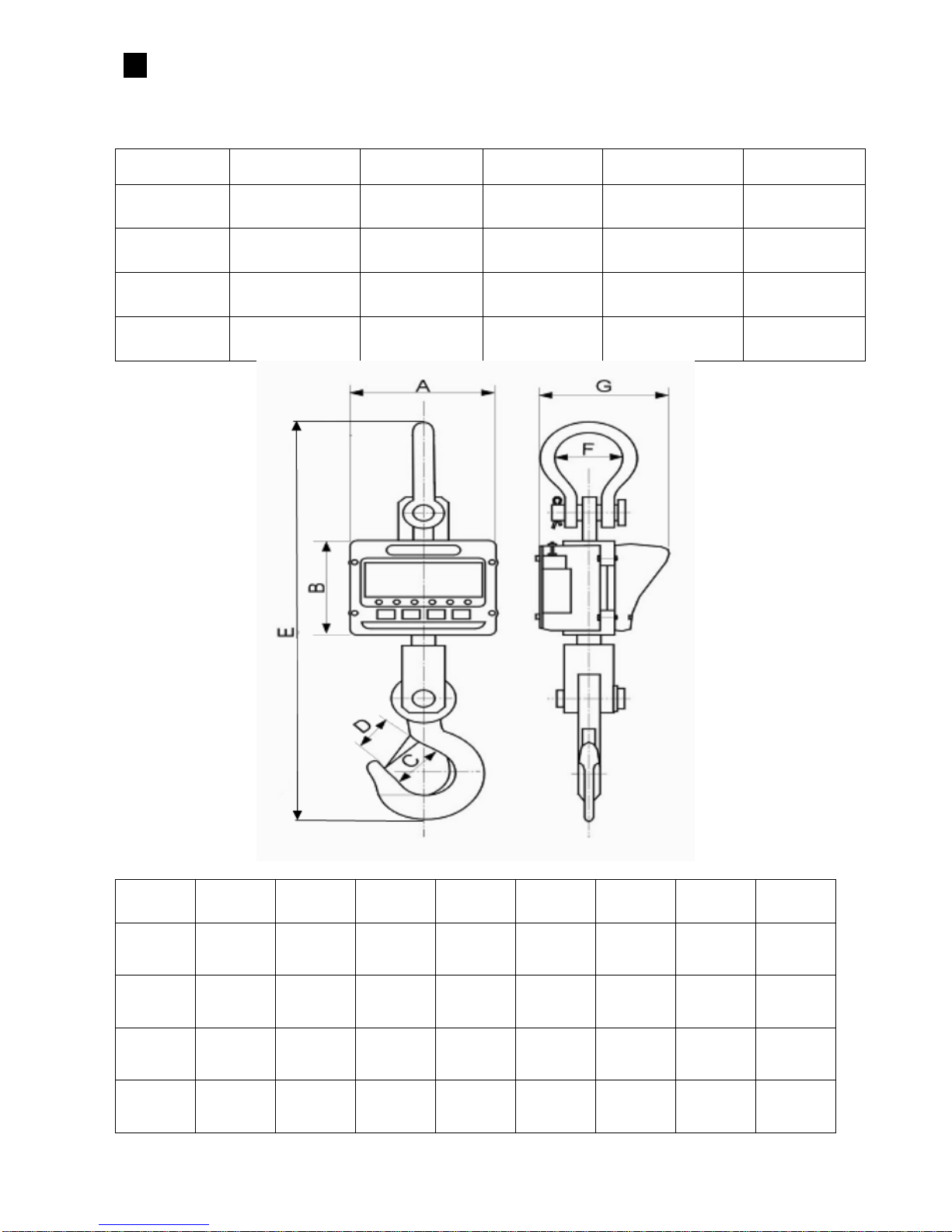

2.2 TECHNICAL SPECIFICATIONS
M
del N
Capacity
Divisi n
M
del N .
Capacity
Divisi n
IHS 1 1000kg 0.2kg/0.5kg IHS 2a 2000lb/1000kg 0.5lb/0.2kg
IHS 3 3000kg 0.5kg/1kg IHS 6a 6000lb/3000kg 1lb/0.5kg
IHS 5 5000kg 1kg/2kg IHS 10a 10000lb/5000kg 2lb/1kg
IHS 10 10000kg 2kg/5kg IHS 20a 20000lb/10000kg
5lb/2kg
M del A B C D E F G Weight
IHS
1/2a
260 203 47 30 628 76 214 12kg
IHS
3/6a
260 203 47 30 628 76 214 14kg
IHS
5/10a
260 203 60 40 723 80 214 19kg
IHS
10/20a
260 203 70 50 837 90 214 31kg
EN
© Adam Equipment Company 2013
4700660189RevD1-Jul13
2.3 SAFETY NOTICE
The limit stated below is the Ultimate Overload Limits of the scales.
Adam Equipment Co. Ltd. Its directors, owners and affiliated companies and
organisations cannot be held liable for an resulting damage or injur sustained as a
result of the machines being used in excess of their stated capacities or ultimate
overload limits.
M del NO. IHS 1/IHS 2a IHS 3/IHS 6a IHS 5/IHS 10a IHS 10/IHS 20a
Max
capacity
1000kg/2000lb 3000kg/6000lb 5000kg/10000lb 10000kg/20000lb
Overl ad
capacity
1500kg/3000lb 4500kg/9000lb 7500kg/15000lb 15000kg/30000lb
NOTICE:
Do not use the scales if an parts are bent or loose or show signs of damage or wear.
Refer to the user manual.
EN
© Adam Equipment Company 2013
5700660189RevD1-Jul13

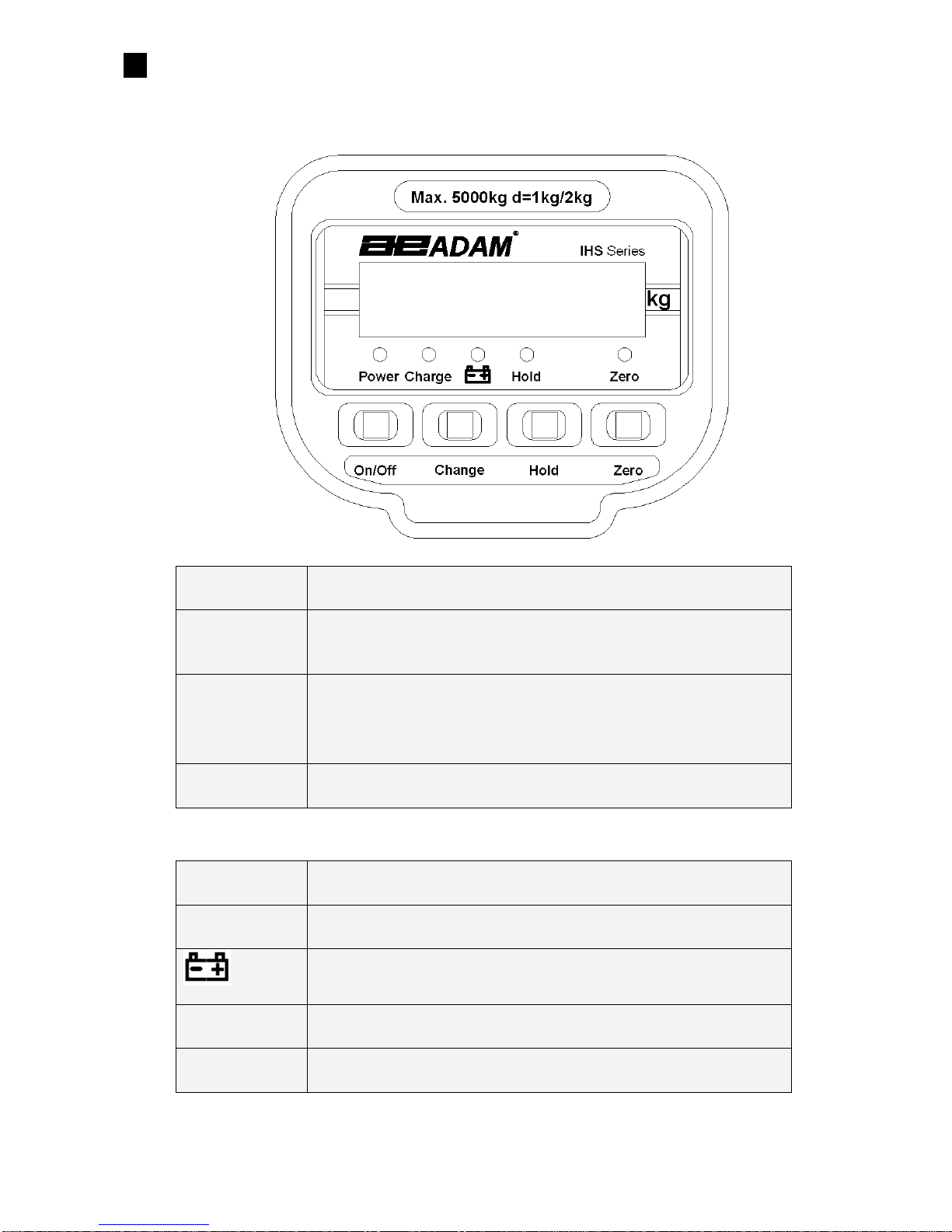

2.4 KEY DESCRIPTION IHS VERSION
[On/Off] Power switch- use this ke to turn on and turn off the scale.
[Change] Division change ke - use this ke to change division. When in
setting mode, use this ke to change parameter.
[H ld] Hold function; use this ke to lock the displa . There is a LED
indication light on the bottom of the displa . Press the [H ld] ke
again, to cancel HOLD function.
[Zer ] Re-zero ke - use this ke to return to zero reading.
2.5 DISPLAY
P wer Power on mode
Charge Charging mode
Low batter
H ld Hold mode
Zer Zero indicator
EN
© Adam Equipment Company 2013
6700660189RevD1-Jul13

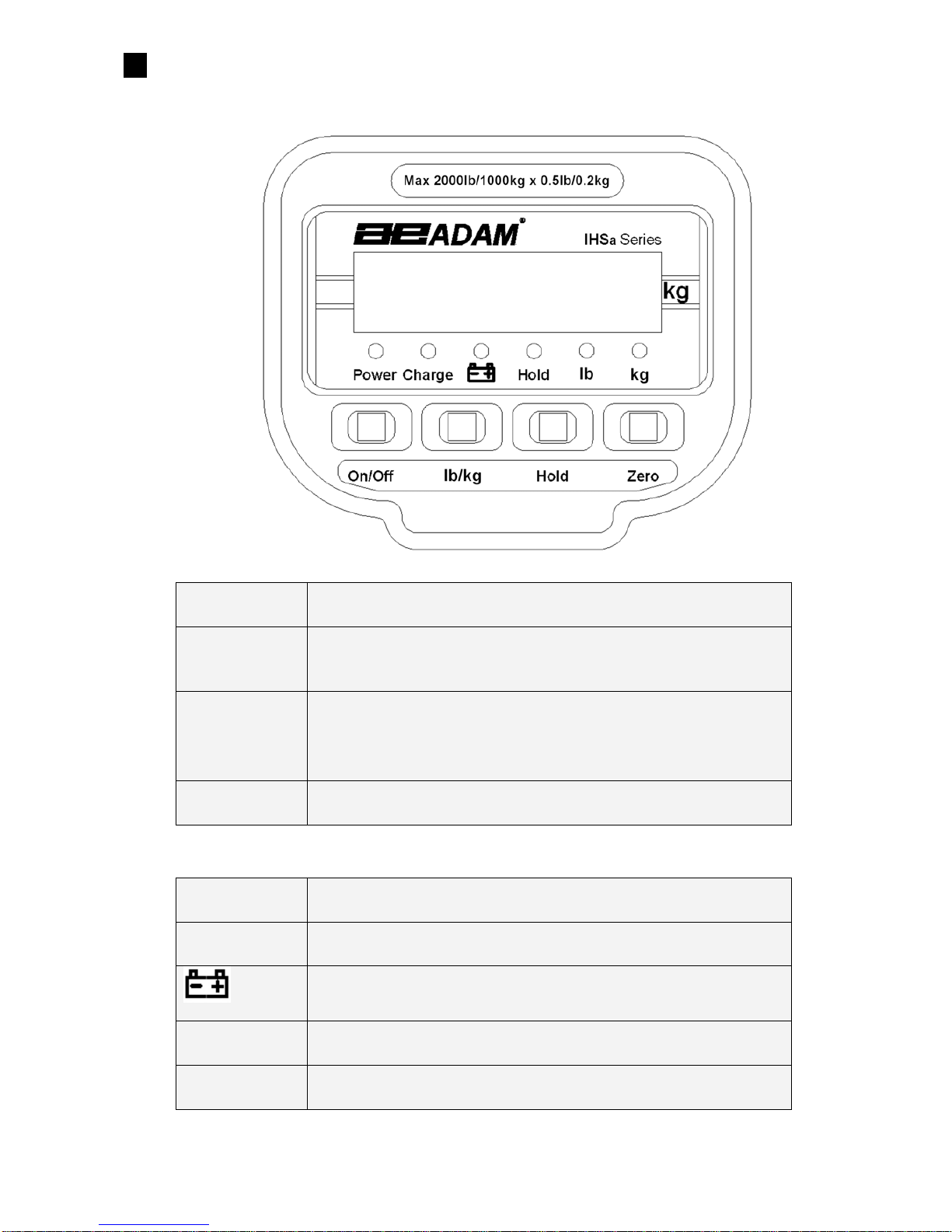

2.4 KEY DESCRIPTION IHSA VERSION
[On/Off] Power switch- use this ke to turn on and turn off the scale.
[lb/kg] Unit change ke -use this ke to select the weighing unit of lb or
kg. When in setting mode, use this ke to change parameter.
[H ld] Hold function, use this ke to lock the displa . There is a LED
indication light on the bottom of the displa . Press the [H ld] ke
again, to cancel HOLD function.
[Zer ] Re-zero ke - use this ke to return to zero reading.
2.5 DISPLAY
Zer Zero indicator
Charge Charging mode
Low batter
H ld Hold mode
lb LB weighing mode
EN
© Adam Equipment Company 2013
7700660189RevD1-Jul13
kg KG weighing mode
3.0 OPERATION
3.1 SAFETY INSTRUCTIONS
Read this manual carefull before ou operate the IHS Crane Scale.
•Unpack the Crane Scale carefull from the packing.
•Attach it to our hoist or equivalent existing equipment securel at the
ground level, in the upright position. Make sure that the equipment to
which the scale is attached is in proper condition. The operator should
be trained for its safe operation.
• Carr out regular visual inspection for an damage or wear and teat on
parts. Particularl the split pins at the hook and e ebolts and the inner
wall of the hook and all joints should be checked regularl . If an
damage or wear has taken place, replace the parts.
•Do all inspection and maintenance work when the scale is not in use.
•Do not expose the scale to extreme temperatures. The operating
temperature range is 0° C to 40° C.
•Secure the sample to be weighed in the hook of the scale. Ensure that
the sprung Safet Lever returns to its resting position which prevents
the sample from slipping out of the hook.
•Do not exceed the maximum capacit of the Scale .
•Clean and protect our scale after use.
