Start

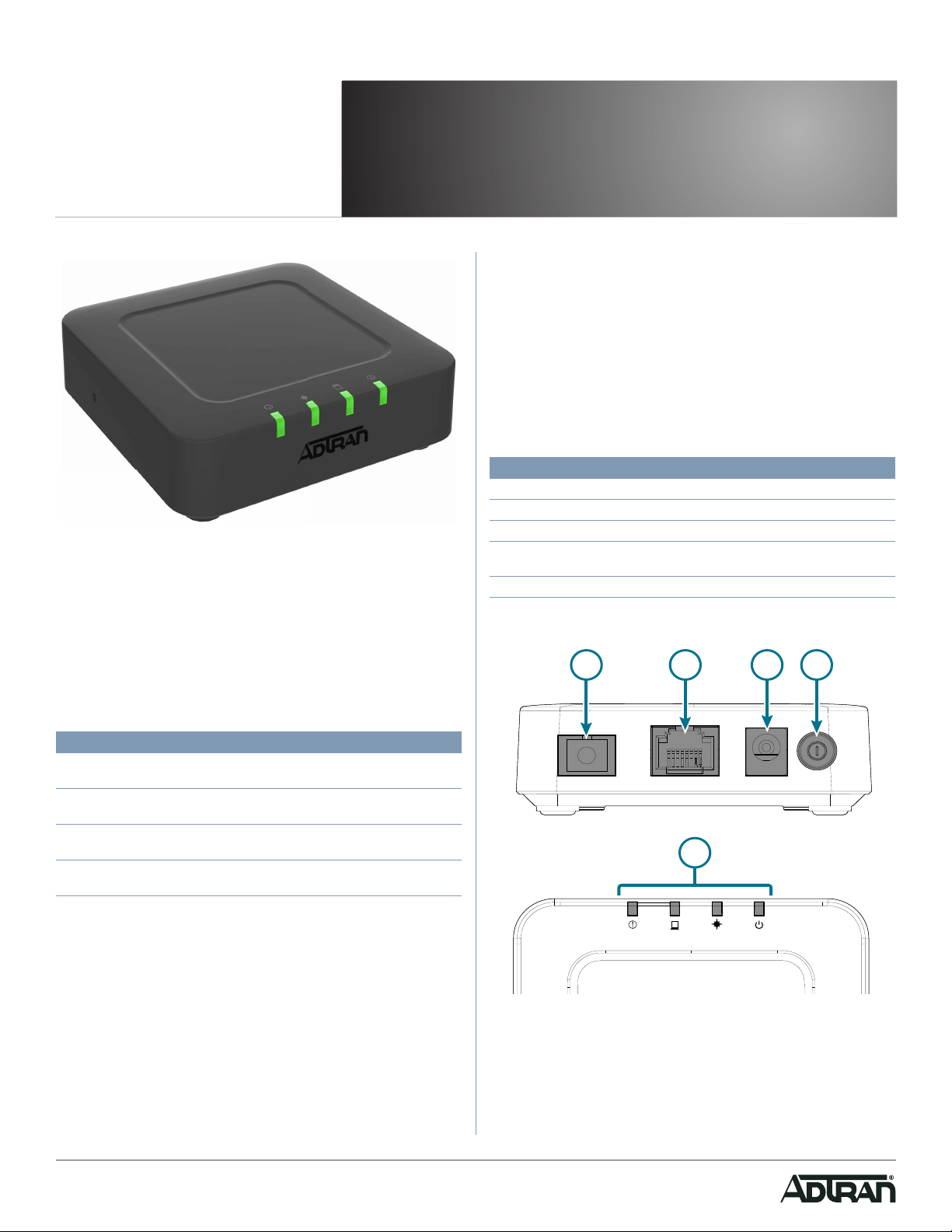

Figure 1. SDX 611 GPON SFU ONT, 1GE

DESCRIPTION

The SDX 611 GPON SFU ONT, 1GE (611 GPON ONT) is an Optical

Network Unit or Terminal that leverages GPON technology for delivering

premium 1GE services.

The 611 GPON ONT is an indoor unit that supports up to 1 Gbps data

rates.

This document supports the following versions of the 611 GPON ONT.

Figure 1 illustrates the 611 GPON ONT.

Decription P/N

SDX 611 GPON SFU ONT, 1GE with NA

power adapter (included)

1287833F1

SDX 611 GPON SFU ONT, 1GE with UK

power adapter (included)

1287833F2

SDX 611 GPON SFU ONT, 1GE with EU

power adapter (included)

1287833F3

SDX 611 GPON SFU ONT, 1GE with AU

power adapter (included)

1287833F4

FEATURES

The basic features of the 611 GPON ONT include the following:

■Single GPON fiber interface with 1.244 Gigabits per 

second upstream and 2.488 Gigabits per second 

downstream

■1 GE (RJ-45) Customer Interface

■Remote activation and deactivation

■Remote firmware upgrades and downgrades

■Remote OMCI management as per ITU-T G.988

Refer to the following table for a description of each feature in Figure 2.

Figure 2. ONT Interfaces

Callout Description

1LEDs

2 GPON fiber interface

3 1 GE, RJ-45 Customer LAN Connection

4 Power Connection for the Supplied AC to DC Power Con-

verter (12 V)

5 On/Off button

ON/OFFPowerGEOptical

5432

SDX

611 GPON ONT

SFU, 1GE

July 2020

61287833F1-13C

261287833F1-13C

3 WARNING!

Ensure that the 611 GPON ONT does not come in contact with

water or other liquids.

Wall Mounting

Refer to Figure 3 when installing the 611 GPON ONT on a wall.

1. Decide on a location for the 611 GPON ONT. Mount below eye-level

so the LEDs are visible.

g NOTE

Supplied hardware is intended for drywall mounting only. For

mounting on surfaces other than drywall, obtain the appropriate

mounting hardware and follow the provided instructions.

Figure 3. Wall Mount Installation

2. Use the keyholes on the rear of the 611 GPON ONT as a template

and mark the wall accordingly. The keyhole spacing for a vertical

mount is 1.97 inches (5 cm).

3. Drill holes using a 1/4” drill bit into the marks on the wall.

4. Use a hammer to lightly tap the included wall anchors into the drilled

holes until anchor is flush with the wall.

5. Install two included screws into the anchor heads. Leave

approximately 1/4 inch (6 mm) protruding from the mounting

surface.

6. Slide the 611 GPON ONT over the screws and exert a small amount

of downward pressure to ensure that the top of the slots are resting

on the shafts of the screws.

Step 2: Connect Ethernet

Refer to Figure 2 on page 1 and insert a Category 5E (or better) RJ-45

cable into the port labeled GE until there is an audible “click”.

Step 3: Connect Fiber

f CAUTION!

To prevent breaking the fiber, do not exceed the fiber bend radius of 3.5 in.

(8.9 cm).

Wall Anchor (2x)

Mounting Screw (2x)

Power

Power is provided by a 12 V DC Power Adapter that is included with the

611 GPON ONT. The power adapter operates from a power source of 100

to 240 V AC, 50 - 60 Hz. For the United States and Canada applications,

an NRTL Listed Limited Power Source (LPS) is needed. For deployment

in international 

applications, an LPS specifically approved for that country, as indicated by

a CE Mark, is needed.

INSTALLATION

After unpacking the unit, inspect it for damage. If damage is noted, file a

claim with the carrier and then contact ADTRAN. For more information,

refer to the warranty.

Installation Guidelines

The following are guidelines for basic installation of the 611 GPON ONT.

f WARNING!

Read all warnings and cautions before installing or servicing the

611 GPON ONT.

Installation Overview

To install the 611 GPON ONT, you will need to complete the following

steps:

■“Step 1: Install the 611 GPON ONT”

■“Step 2: Connect Ethernet”

■“Step 3: Connect Fiber”

■“Step 4: Connect Power”

Required Tools:

Be sure to route and secure the fiber and cables in a manner that will

prevent damage. Standard technician tools and those listed below are

required for installing the 611 GPON ONT.

■Optical power meter with wavelength filtering

■Fiberscope or videoscope

■#2 Phillips-head screw driver

■Drill

■Hammer

For fiber optics connections, the following is required:

■ODC Fiber Cleaning Tool

Step 1: Install the 611 GPON ONT

There are two options to install the 611 GPON ONT: Desk Top and Wall

Mount. Options are described below.

g NOTE

Included with the 611 GPON ONT is a 5-foot (1.5 m) power cord.

All installation locations should be within 5 feet (1.5 m) of a wall

outlet.

Desk Top Installation

The 611 GPON ONT can be located on a desktop.

f CAUTION!

Ensure that the 611 GPON ONT is not located in direct sunlight or next to

any thermal obstructions.

61287833F1-13C 3

CCAUTION!

LASER RADIATION - 1310 nm to 1600 nm

Do not view directly with optical instruments.

Use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Fiber is installed in an SC/APC connector (OPTICAL) located on the rear

of the 611 GPON ONT (see Figure 2 on page 1). Complete the following

steps to install fiber.

1. Remove the Dust Cover from the SC/APC Connector.

2. Clean the end of the Incoming Fiber Connector.

3. Before installing the fiber, use an optical power meter to measure

the dB power. The level should not exceed –8 dB. Use an

appropriate bi-directional optical attenuator if the power levels are at

or above –8 dB. A level between –12 and –27 dBm is acceptable.

4. Connect the Incoming Fiber Connector.

Step 4: Connect Power

To connect power to the 611 GPON ONT, complete the following steps:

1. Plug the supplied 12 V AC/DC Power Adapter into the 12V 

connection on the rear of the 611 GPON ONT.

2. Connect the Power Adapter to a standard 100 - 240 V AC outlet.

3. Press the POWER button to turn the 611 GPON ONT on.

4. Verify power is on by checking the power LED on the 611 GPON

ONT. The LED should be green, indicating local power is on.

g NOTE

ADTRAN recommends only using the DC power adapter that is

provided with the unit.

f CAUTION!

For United States and Canada applications, the DC Power Adapter must

be an NRTL Listed LPS power supply. For 

International applications, the DC Power Adapter must be an LPS power

supply specifically approved for that country.

LEDS

When the 611 GPON ONT first powers up it performs self-tests. Once the

power up self-tests are complete, the status LEDs will reflect the state of

the hardware. The table below details the status indicated by the LEDs.

LED Status Indication

Power 



Off

Green

Green Flashing

Power is off

Power is on, self-test passed,

normal operation

Unit is powering up

Optical 



Green

Green Flashing

(Fast)

Green Flashing

(Slow)

Red

ONU ranged, authenticated, and 

configured with services

ONU is ranging and

synchronization process in

progress

ONU ranged and authenticated but not

configured with services

PON is down due to LOF/LOS

LAN 



Off

Green

Green Flashing

No Ethernet connectivity

Ethernet connectivity present,

no activity

Ethernet connectivity present, activity

detected

Interface operation state is up and 

packets Tx/Rx detected on the interface

Alarm/

Update





Off

Green



Green Flashing

Red

No alarm detected

ONU software download 

complete and software upgrade in 

progress. ONU LED will turn off once

upgrade is successful

ONU software download in 

progress

ONU is powered up and PON 

operational state is up and ONU 

software upgrade failed.

New ONU software not operational due

to any of the following reasons:

■Software image download failed

■Software image flash write failed

■Software image activation failed

■Software image commit failed

CAUTION!

SUBJECT TO ELECTROSTATIC DAMAGE

OR DECREASE IN RELIABILITY

HANDLING PRECAUTIONS REQUIRED

Warranty: ADTRAN will replace or repair this product within the warranty period if it does not

meet its published specifications or fails while in service. Warranty information can be

found online at www.adtran.com/warranty.

Trademarks: Brand names and product names included in this document are trademarks,

registered trademarks, or trade names of their respective holders.

ADTRAN CUSTOMER CARE:

From within the U.S. 1.888.423.8726

From outside the U.S. +1 256.963.8716

PRICING AND AVAILABILITY 1.800.827.0807

*61287833F1-13C*

SPECIFICATIONS

Specifications for the 611 GPON ONT are as follows:

■Electrical

♦Input: 12 V DC, 0.5 A

♦Maximum Power Consumption: 6 W

♦Power Supply Adapter: 12 V DC Power Adapter

●Input Voltage Rating: 100 - 240 V AC, 50/60 Hz

●Output Voltage Rating: 12 V DC

●Output Current Rating: 0.5 A (minimum)

■Physical

♦Height: 0.95 in (2.40 cm)

♦Width: 3.15 in (8.00 cm)

♦Depth: 3.15 in (8.00 cm)

♦Weight: 0.20 lbs (0.09 kg)

■Environmental

♦Operational Temperature Range: 0°C to +40°C

♦Storage Temperature Range: –40°C to +70°C

♦Relative Humidity: up to 95%, noncondensing

■Optical

♦TX min power: +0.5 dBm

♦TX max power: +5.0 dBm

♦RSSI max sensitivity: –27.0 dBm

♦RX overload: –8.0 dBm

♦TX wavelength: 1310 nm typical

♦RX wavelength: 1490 nm typical

MAINTENANCE

The 611 GPON ONT does not require routine hardware 

maintenance for normal operation. ADTRAN does not recommend that

repairs be attempted in the field. Repair services may be obtained by

returning the defective unit to ADTRAN. Refer to the warranty for further

information. Field support for software is provided through upgrade facil-

ities.

SAFETY AND REGULATORY

Refer to the Safety and Regulatory Notice for this product (P/N:

61287833F1-17) for detailed safety and regulatory information.

Consultez l'avis sur la sécurité et la conformité à la réglementation pour ce

produit (61287833F1-17) pour obtenir des renseignements détaillés sur la

sécurité et la réglementation.

Ausführliche Sicherheits- und regulatorische Informationen sind in der

Konformitätserklärung zur Sicherheit und Einhaltung von Normen zu

diesem Produkt (61287833F1-17) aufgeführt.

Documentation for ADTRAN Network Solutions products is available for

viewing and download directly from the ADTRAN Support Community

website.

Go to: https://supportforums.adtran.com/welcome

Registration is required.

ADTRAN offers training courses on our products, including customized

training and courses taught at our facilities or at customer sites.

For inquiries, go to: https://www.adtran.com/index.php/training

The following online documents and resources provide additional information for this product:

ADTRAN Pluggable Optics Compatibility Matrix (online tool, go to:

http://www.adtran.com/pluggableoptics)

SDX 611 SFU GPON ONT, 1 GE Safety and Regulatory Notice

Andere Handbücher für SDX 611 GPON SFU ONT

Inhaltsverzeichnis

Andere ADTRAN Netzwerk-Hardware Handbücher

ADTRAN

ADTRAN Fractional T1 Tandem Channel Unit FT1-TDM Bedienungsanleitung

ADTRAN

ADTRAN 4202023L1 Bedienungsanleitung

ADTRAN

ADTRAN NetVanta 2000 Series Bedienungsanleitung

ADTRAN

ADTRAN Dial Backup Interface Module 1204006L2 Bedienungsanleitung

ADTRAN

ADTRAN Total Access 3000 Benutzerhandbuch

ADTRAN

ADTRAN XFP NG-PON2 ONU Bedienungsanleitung

ADTRAN

ADTRAN NETVANTA OCTAL POE Bedienungsanleitung

ADTRAN

ADTRAN Total Access 900E Series Bedienungsanleitung

ADTRAN

ADTRAN Express 6500 Series Bedienungsanleitung

ADTRAN

ADTRAN DSU IV ESP Bedienungsanleitung

ADTRAN

ADTRAN 17004660F1/F3 Handbuch

ADTRAN

ADTRAN Total Access DSLAM Octal SHDSL Bedienungsanleitung

ADTRAN

ADTRAN AOC QSFP28 100G AOC QSFP28 100G 3M Bedienungsanleitung

ADTRAN

ADTRAN 12804108L1A Benutzerhandbuch

ADTRAN

ADTRAN ISU 512E Bedienungsanleitung

ADTRAN

ADTRAN XFP Bedienungsanleitung

ADTRAN

ADTRAN Total Access 850 Benutzerhandbuch

ADTRAN

ADTRAN 1202295L1 Bedienungsanleitung

ADTRAN

ADTRAN OSU 300 Bedienungsanleitung

ADTRAN

ADTRAN 4202023L5 Bedienungsanleitung

ADTRAN

ADTRAN NxT1 HSSI/V-35 Bedienungsanleitung

ADTRAN

ADTRAN T200 HTU-R Bedienungsanleitung

ADTRAN

ADTRAN Total Access 1100F Bedienungsanleitung

ADTRAN

ADTRAN Total Access 300 Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
