Advantech PCL-734 Bedienungsanleitung

PCL-734

32-channel Isolated

Digital Output Card

This documentation is copyrighted 1996 by Advantech Co., Ltd. All

rights are reserved. Advantech Co., Ltd. reserves the right to make

improvements in the products described in this manual at any time

without notice.

No part of this manual may be reproduced, copied, translated or

transmitted in any form or by any means without the prior written

permission of Advantech Co., Ltd. Information provided in this

manual is intended to be accurate and reliable. However, Advantech

Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties which may result from its use.

Acknowledgments

PC-LabCard is a trademark of Advantech Co., Ltd. IBM and PC are

trademarks of International Business Machines Corporation. MS-

DOS, Microsoft C and Quick BASIC are trademarks of Microsoft

Corporation. BASIC is a trademark of Dartmouth College. Intel is a

trademark of Intel Corporation. TURBO C is a trademark of Borland

International.

Part No. 2003734000 1st Edition

Printed in Taiwan April 1996

Contents

Chapter 1 General information ........................................ 1

IntroductionIntroduction

Introduction ..............................................................

..............................................................

............................... 22

FeaturesFeatures

Features ....................................................................

....................................................................

.................................. 22

ApplicationsApplications

Applications ..............................................................

..............................................................

............................... 22

SpecificationsSpecifications

Specifications ............................................................

............................................................

.............................. 33

Digital output ................................. 3

Dimensions ................................... 3

Connectors ................................... 3

Power consumption ............................. 3

DaughterboardsDaughterboards

Daughterboards ........................................................

........................................................

............................ 33

Chapter 2 Installation........................................................ 5

Initial inspectionInitial inspection

Initial inspection ........................................................

........................................................

............................ 66

Switch and jumper settingsSwitch and jumper settings

Switch and jumper settings ........................................

........................................

.................... 66

Base address selection (SW1) ...................... 6

Hardware installationHardware installation

Hardware installation ................................................

................................................

........................ 99

Installing the card in your computer ................... 9

Chapter 3 Signal connections ........................................ 11

Connector pin assignmentsConnector pin assignments

Connector pin assignments ........................................

........................................

.................... 1212

1212

Isolated OutputIsolated Output

Isolated Output ........................................................

........................................................

............................ 1313

1313

Chapter 4 Register format ............................................. 15

Appendix A PC I/O port address map ............................ 17

Chapter 1 General information 11

General information

CHAPTER

2 PCL-734 User's Manual

Introduction

The PCL-734 offers 32 isolated digital output channels on a PC add-

on card. Its isolated output channels provide 1,000 V of protection.

Each I/O channel corresponds to a bit in a PC I/O port. This makes the

PCL-734 very easy to program.

Features

• 32 isolated digital output channels

• High output driving capacity

• High-voltage isolation on isolated output channels (1,000 VDC)

• Open collector outputs (up to 40 VDC)

• D-type connectors for isolated output channels

• High sink current on isolated output channels (200 mA/channel)

• Suppression diode for inductive loads

Applications

• Industrial ON/OFF control

• Contact closure monitoring

• Switch status sensing

• BCD interfacing

• Digital I/O control

• Industrial and lab automation

Chapter 1 General information 33

Specifications

Digital output

32 optically-isolated outputs

••

•Output voltageOutput voltage

Output voltageOutput voltage

Output voltage: Open collector 5 to 40 VDC

••

•Sink currentSink current

Sink currentSink current

Sink current: 200 mA max.

••

•Isolation voltageIsolation voltage

Isolation voltageIsolation voltage

Isolation voltage: 1,000 VDC

BASE+0 Isolated DO0~DO7

BASE+1 Isolated DO8~DO15

BASE+2 Isolated DO16~DO23

BASE+3 Isolated DO24~DO31

Dimensions

185 mm x 100 mm

Connectors

DB-37 connector for isolated Digital Output

Power consumption

+5 V: 330 mA typical, 500 mA maximum

Daughterboards

PCLD-880

The PCLD-880 is a universal screw terminal board for industrial

wiring. It can be used with the analog or digital ports of various PC-

LabCards via 20-pin flat cables or shielded round cables with DB-37

connectors.

Chapter 2 Installation 55

CHAPTER

Installation

6 PCL-734 User's Manual

Initial inspection

We carefully inspected the PCL-734 both mechanically and electrical-

ly before shipment. It should be free of marks and in perfect order on

receipt.

As you unpack the PCL-734, check it for signs of shipping damage

(damaged box, scratches, dents, etc.). If it is damaged or fails to meet

specifications, notify our service department or your local sales

representative immediately. Also, call the carrier immediately and

retain the shipping carton and packing material for inspection by the

carrier. We will then make arrangements to repair or replace the unit.

Discharge any static electricity on your body before you touch the

board by touching the back of the system unit (grounded metal).

Remove the PCL-734 card from its protective packaging by grasping

the rear metal panel. Handle the card only by its edges to avoid static

electric discharge which could damage its integrated circuits. Keep the

antistatic package. Whenever you remove the card from the PC, please

store the card in this package for protection.

You should also avoid contact with materials that hold static electricity

such as plastic, vinyl and styrofoam.

Switch and jumper settings

The PCL-734 card has one function switch and three jumper settings.

The following sections tell how to configure the card. You may want

to refer to the opposite page for help identifying card components.

Base address selection (SW1)

You control the PCL-734's operation by writing data to the PC's I/O

(input/output) port addresses. The PCL-734 requires four consecutive

address locations. Switch SW1 sets the card's base (beginning)

address. Valid base addresses range from Hex 200 to Hex 3F0.

However, other devices in your system may be using some of these

addresses.

Chapter 2 Installation 77

LabelLabel

Label FunctionFunction

FunctionFunction

Function

CN1CN1

CN1 Isolated output

CN2CN2

CN2 E.GND (external ground)

SW1SW1

S W 1 Card base address

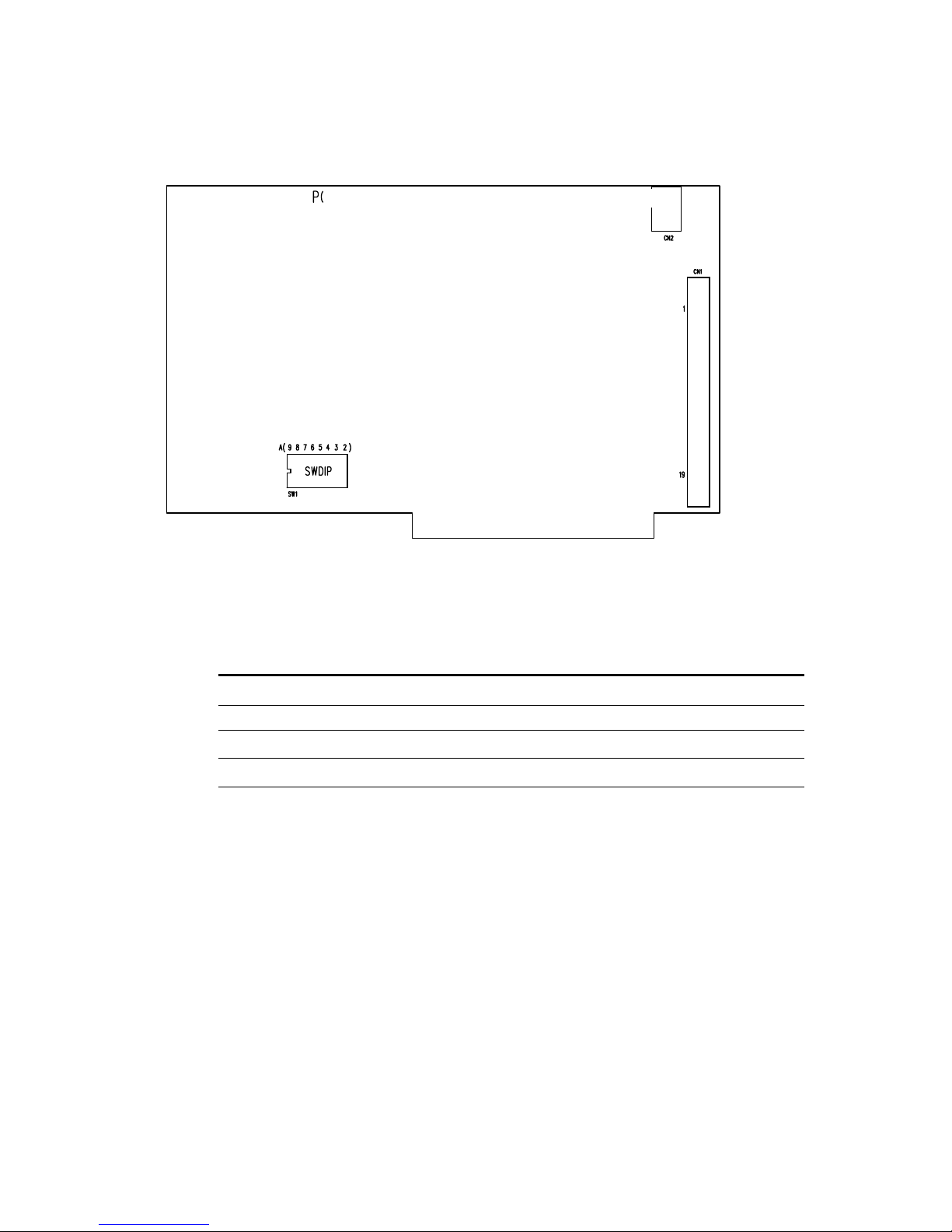

Card connector, jumper and switch locationsCard connector, jumper and switch locations

Card connector, jumper and switch locations

8 PCL-734 User's Manual

We set the PCL-734 for a base address of Hex 300 at the factory. If

you need to adjust it to some other address range, set switch SW1 as

shown in the following table:

Card I/O addresses (SW1)

Range (hex)Range (hex)

Range (hex) Switch positionSwitch position

Switch positionSwitch position

Switch position

12345678

200 - 203 ¡lllllll

204 - 207 ¡llllll¡

*300 - 303 ¡¡llllll

3F0 - 3F3 ¡¡¡¡¡¡l l

¡= Off l= On *= default

Note:Note:

Note: Switches 1-8 control the PC bus address lines as shown

below:

SwitchSwitch

Switch 1 2 3 45678

LineLine

Line A 9 A 8 A 7 A 6 A 5 A 4 A 3 A 2

Appendix A provides a PC I/O port address map to help you avoid the

I/O addresses for standard PC devices.
