Advantech ICR-4401 Bedienungsanleitung

LAN Industrial Router

ICR-4401

USER MANUAL

ICR-4401

2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or

by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval

system without written consent. Information in this manual is subject to change without notice, and does not

represent a commitment on the part of Advantech.

Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

ICR-4401

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL licence

Source codes under GPL licence are available at https://icr.advantech.cz/source-code

address.

Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0064-EN, revision from March 3, 2022. Released in the Czech Republic.

ICR-4401

Contents

1 Product Oveview 2

1.1 Product Introduction ................................. 2

1.2 Product Usage Examples .............................. 3

1.3 Hardware Overview ................................. 5

1.4 Order Codes ..................................... 7

1.5 Package Contents .................................. 8

1.6 Product Dimensions ................................. 9

1.7 Mounting Recommendations ............................ 10

1.8 Wall Mounting ..................................... 11

1.9 DIN Rail Mounting .................................. 12

1.10 Product Label ..................................... 13

2 Hardware Functionality 14

2.1 Antennas Interfaces ................................. 14

2.2 Ethernet Interfaces .................................. 14

2.3 SFP Cage ....................................... 15

2.4 Power Supply ..................................... 16

2.5 I/O Port Interfaces .................................. 18

2.6 Serial Interfaces ................................... 19

2.7 USB Port ....................................... 20

2.8 MicroSD Card Reader ................................ 21

2.9 LED Status Indication ................................ 23

2.10 Reset Functions ................................... 24

3 First Use 26

3.1 Connecting the Router ................................ 26

3.2 Starting up the Router ................................ 26

3.3 Router Conﬁguration ................................. 26

4 Technical Parameters 29

4.1 Basic Parameters ................................... 29

4.2 Standards and Regulations ............................. 30

4.3 Type Tests and Environmental Conditions ..................... 31

4.4 Parameters of WiFi .................................. 32

4.5 Parameters of I/O Ports ............................... 33

4.6 Parameters of PoE .................................. 33

4.7 System Conﬁguration ................................ 34

Appendix A: Troubleshooting 35

iii

ICR-4401

Appendix B: Customer Support 37

Appendix C: Regulatory & Safety Information 38

Appendix D: Related Documents 40

ICR-4401

List of Figures

1 Access to the Internet from LAN .......................... 3

2 Backed up Access to the Internet .......................... 3

3 Using VPN Tunnel .................................. 4

4 Serial Gateway .................................... 4

5 Hardware Overview of the Router .......................... 5

5 Router Dimensions – Front View .......................... 9

6 Router Dimensions – Top View ........................... 9

7 Rotated Wall Mounting Clips ............................. 11

8 Default Position of the DIN Rail Clips ........................ 12

9 Removing Router from the DIN Rail ......................... 12

10 Label Example .................................... 13

5 Ethernet Connector Pinout of RJ45 Socket .................... 14

6 SFP Module Installation ............................... 15

7 Power Connector Pinout ............................... 16

8 Position of the Grounding Screw .......................... 17

9 I/O Connector Pinout ................................. 18

10 Functional Scheme of the Binary Interface ..................... 18

11 Serial Connector Pinout ............................... 19

12 USB Connector Pinnout ............................... 20

13 MicroSD Card Insertion ............................... 21

14 Resetting the Router ................................. 24

15 Router Connection .................................. 26

16 Router’s Web Interface ................................ 28

ICR-4401

List of Tables

1 Hardware Overview of the Router .......................... 6

2 Order Codes Overview ................................ 7

1 Contents of Package ................................. 8

2 Ethernet Connector Pinout Description of RJ45 Socket .............. 14

3 Tested SFP Cages .................................. 15

4 Power connector pinout ............................... 16

5 Connection of I/O Ports ............................... 18

6 Connection of RS232 ................................ 19

7 Connection of CAN Bus ............................... 19

8 Connection of RS485 ................................ 19

9 USB Connector Pinnout ............................... 20

10 Technical Speciﬁcations of MicroSD Card ..................... 21

11 LED Status Indication ................................ 23

12 Overview of Router Reboot and Reset ....................... 25

13 Basic Parameters ................................... 29

14 Standards and Regulations ............................. 30

15 Type Tests and Environmental Conditions ..................... 31

16 Technical Parameters of WiFi ............................ 32

17 Electrical Characteristics of Binary Inputs ..................... 33

18 PoE PSE Parameters ................................ 33

19 System Conﬁguration ................................ 34

ICR-4401

1. Product Oveview

1.1 Product Introduction

The ICR-4401 is a LAN Router &Powerful Edge Computing Gateway focused on the

global market.

This router is an ideal solution for demanding IoT applications such as industrial routers

and gateways, digital signage, industrial computers, and tablets, etc.

The router, assembled in a robust metal box, is equipped with ﬁve 1Gb Ethernet ports,

one SFP cage together with interfaces of RS232,RS485,CAN bus, two binary inputs and

two binary outputs. A microSD card can be inserted under this cover as well. The desig-

nated router models can be equipped with a WiFi module with 3x3 MIMO antennas.

Conﬁguration of the router may be done via a password-protected Web interface. Web in-

terface provides detailed statistics about the router’s activities, signal strength, detailed system

log etc. The router supports VPN tunnels using IPSec (), OpenVPN,GRE,L2TP or PPTP to

make sure safe communication. IPv6 Dual Stack,DHCP,NAT,NAT-T,DynDNS,DNS proxy,

VLAN,QoS,NTP,VRRP, control by SMS, port forwarding, primary connection backup and

many other functions are supported.

The router provides diagnostic functions which include automatically monitoring the PPP

connection, automatic restart in case of connection losses, and a hardware watchdog that

monitors the router status.

The user may insert Linux scripts which are started on various actions. It is possible to

create up to four different conﬁgurations for the same router. These conﬁgurations can be

switched when necessary via Web interface, SMS or binary input status.

The router can automatically upgrade its conﬁguration and ﬁrmware from your central

server. WebAccess/DMP and WebAccess/VPN remote device management platforms are

supported as well.

Examples of possible applications

•ﬂeet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

ICR-4401

1.2 Product Usage Examples

The router is primarily intended for these four basic situations:

I. Access to the Internet from LAN

Figure 1: Access to the Internet from LAN

II. Backed up access to the Internet (from LAN)

Figure 2: Backed up Access to the Internet

ICR-4401

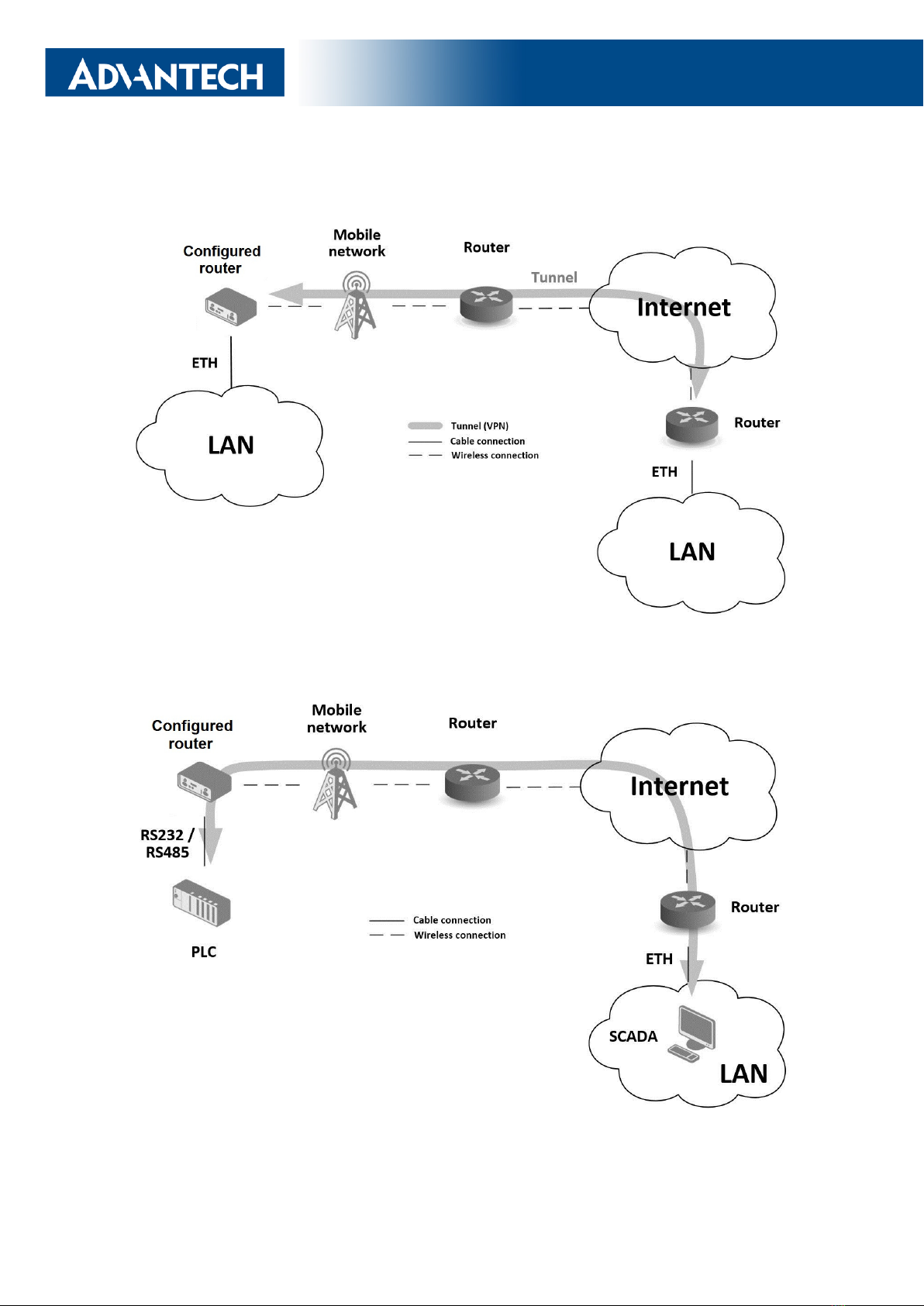

III. Secure networks interconnection or using VPN

Figure 3: Using VPN Tunnel

IV. Serial Gateway

Figure 4: Serial Gateway
