Clamp-on Meter Models 501 and 503

TABLE OF CONTENTS

INTRODUCTION ..................................... 4

1.1 International Electrical Symbols...........5

1.2 Receiving Your Shipment.....................5

1.3 Ordering Information ............................5

PRODUCT FEATURES............................. 6

2.1 Model 501 Control Features.................6

2.2 Model 503 Control Features.................7

2.3 LCD Display .........................................8

SPECIFICATIONS ................................... 9

3.1 ElectricalSpecications .......................9

3.1.1 Model 501..................................9

3.1.2 Model 503................................10

3.2 MechanicalSpecications..................11

3.3 EnvironmentalSpecications.............12

3.4 SafetySpecications.........................12

OPERATION.......................................... 13

4.1 Functions............................................13

4.1.1 Data Hold ................................13

4.1.2 Manual Range Mode

(Model 503 only) ...........................13

4.1.3 (Relative) Zero Mode

(Model 503 only) ...........................13

4.1.4 Disabling Auto Power Off

(Model 503 only).................................... 14

4.2 AC Current Measurement ..................14

4.3 AC Volt Measurement ........................15

Clamp-on Meter Models 501 and 503

4.4 DC Volt Measurement ........................16

4.5 DC Current Measurement (503 only)....17

4.6 Resistance Measurement ..................18

4.7 Continuity Measurement ....................19

4.8 Frequency Measurement

Using Current Input............................20

4.9 Frequency Measuring Using .................

Voltage Input ......................................21

MAINTENANCE..................................... 22

5.1 Warning!.............................................22

5.2 Cleaning.............................................22

5.3 Battery Replacement..........................23

Repair and Calibration........................................24

Technical and Sales Assistance .........................24

Limited Warranty ................................................25

Warranty Repairs................................................25

Clamp-on Meter Models 501 and 503

CHAPTER 1

INTRODUCTION

Warning

● Readtheusermanualbeforeoperatingand

follow all safety information.

● Onlyusethemeterasspeciedinthisuser

manual.

● Neverusethismeteronacircuitwithvolt-

ages greater than 600Vrms @ 50/60Hz.

● Nevermeasurecurrentwhilethetestleads

are connected to the input jacks.

● Donotoperatethemeterifthebodyortest

leads look damaged.

● Checktherotaryrangeswitchandmake

sure it is at the correct position before each

measurement.

● Donotperformresistanceandcontinuity

test on a live circuit.

● Useextremecautionwhenmeasuringlive

systems with voltages greater than 60VDC or

30VAC.

● Useextremecarewhenworkingaroundbus

bars and bare conductors.

● Donotusethemeterinoverrange/overload

conditions (OL).

● Foraccuratereadings,changethebattery

when the symbol appears.

Clamp-on Meter Models 501 and 503

1.1 International Electrical Symbols

This symbol signies that the instrument is pro-

tected by double or reinforced insulation.

This symbol on the instrument indicates a

WARNING and that the operator must refer to the

user manual for instructions before operating the

instrument.Inthismanual,thesymbolpreceding

instructions indicates that if the instructions are

notfollowed,bodilyinjury,installation/sampleand

product damage may result.

Risk of electric shock. The voltage at the parts

marked with this symbol may be dangerous.

1.2 Receiving Your Shipment

Uponreceiving your shipment, make surethat thecon-

tents are consistent with the packing list. Notify your dis-

tributor of any missing items. If the equipment appears to

bedamaged,leaclaimimmediatelywiththecarrierand

notifyyourdistributoratonce,givingadetaileddescrip-

tion of any damage. Save the damaged packing container

to substantiate your claim.

1.3 Ordering Information

Clamp-on Meter Model 501..................... Cat. #2117.21

Includes meter, pair of test leads (red/black with probe

tips), two 1.5V AAA batteries, soft carrying case and a

user manual.

Clamp-on Meter Model 503..................... Cat. #2117.22

Includes meter, pair of test leads (red/black with probe

tips), two 1.5V AAA batteries, soft carrying case and a

user manual.

Clamp-on Meter Models 501 and 503

CHAPTER 2

PRODUCT FEATURES

2.1 Model 501 Control Features

MODEL 501

CLAMP METER

OFFHz

HOLD

COM

Ω

CAT II

600V

600V CAT II

300V CAT III 400A

IEC 1010

600V CAT II

300V CAT III

POLLUTION DEGREE 2

WARNING

TO AV OID ELECTRIC

SHOCK REMOVE ALL

INPUTS BEFORE

OPENING THE CASE

SIZE AAA 1.5V X 2

PLEASE READ

MANUAL FOR SAFETY

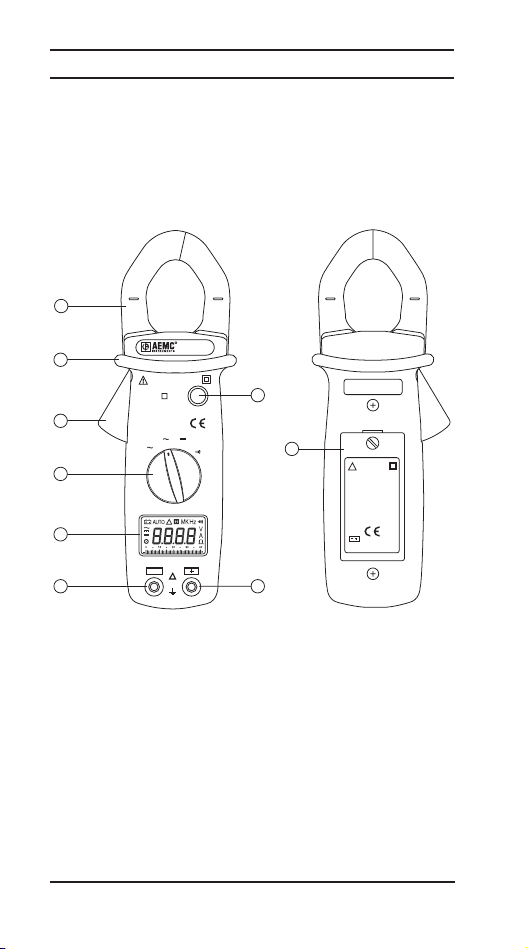

1. Jaw assembly - Ø 1.18" (28mm)

2. Safety barrier – anti-slip guard

3. Lever for jaw opening/closing

4. Rotary range selector switch

5. LCD display with bargraph

6. COM (Black) input terminal jack

7. Positive (Red) input terminal jack

8. Data hold button (Blue)

9. Battery compartment cover

Clamp-on Meter Models 501 and 503

2.2 Model 503 Control Features

1. Jaw assembly - Ø 1.18" (28mm)

2. Safety barrier – anti-slip guard

3. Lever for jaw opening/closing

4. Rotary range selector switch

5. LCD display with bargraph

6. COM (Black) input terminal jack

7. Positive (Red) input terminal jack

8. Data hold & ranging button (Blue)

9. DC zero button (Blue)

10. Battery compartment cover

Clamp-on Meter Models 501 and 503

2.3 LCD Display

0 10 20 30 40

AUTO

Ω

Low Battery

AUTO Auto Range

Manual Range

Data Hold

Continuity

VVoltage Indicator

ACurrent Indicator

AC Inupt

DC Input

Polarity Indicator

Analog Bargraph

MK Hz Frequency Measurement

Zero (Relative)
