USER/INSTALLATION
MANUAL
FP9450G8
Example of factory fitted dual zone stereo
Product overview
This Aerpro FP9450G8 HVAC/Facia Installation Kit is an Australian designed and
engineered product that has been tuned and optimised to work on US delivered
Pontiac G8 Left hand drive vehicles with dual zone climate controls. (OEM system
that has a Full colour Display). This Kit is NOT compatible with single zone
models. This special G8 version can be identified by its start-up screen.
This genuine G8 version will indicate “G8” where the temperature is normally
displayed when it powers on during its opening ceremony.
Please note, Australian versions of this kit are NOT compatible with the G8 and
they can not be modified to do so.

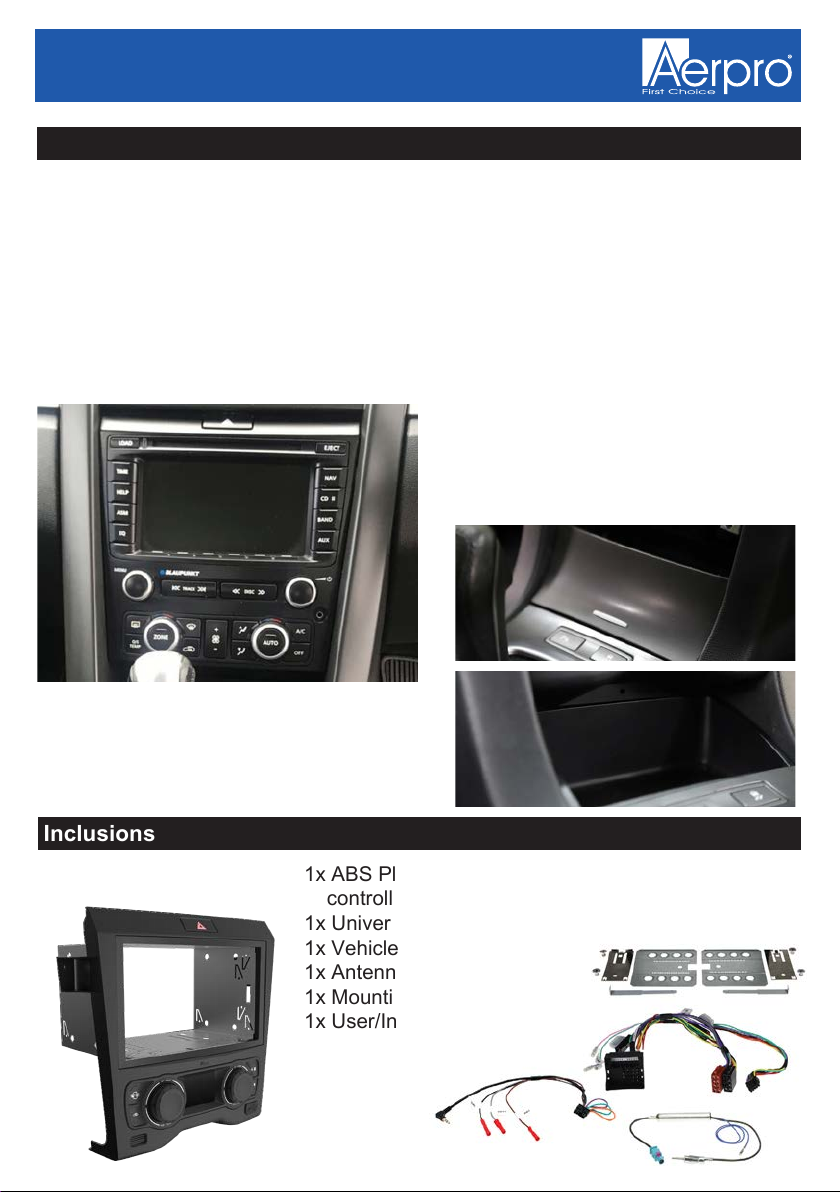

Inclusions
1
NOTE: The FP9450G8 is not compatible with the
factory change pocket that has a opening/closing
door. If you have this type of change pocket you
will need to replace it with either of the following
Aerpro pockets. AWCGM1 (With wireless charging)
or WC62P Pocket without wireless charging.
1x ABS Plastic facia (Black or Grey colour) H-VAC
controller and steering wheel control module built in
1x Universal patch lead
1x Vehicle specific wiring loom
1x Antenna adapter
1x Mounting kit
1x User/Install manual
Product structure
Screen display
1. Front/Rear demister air button
2. Left rotary dial button (Rotate,Tap,Hold)
3. Right rotary dial button (Rotate,Tap,Hold)
4. Fan speed UP
5. Recirculated air on/off button
6. LCD display information screen
7. Fan speed DOWN
8. USB charging and sync port
12 3 4
5687
Rear Demister Front Demister
Manual/Auto
setting
Fan Speed
Air conditioner
Number/Temp
SZ/DZ
Recirculation air
Product structure
Screen display
1. Front/Rear demister air button
2. Left rotary dial button (Rotate,Tap,Hold)
3. Right rotary dial button (Rotate,Tap,Hold)
4. Fan speed UP
5. Recirculated air on/off button
6. LCD display information screen
7. Fan speed DOWN
8. USB charging and sync port
12 3 4
5687
Outside Temp
MAX
MAN
OUTSIDE
TEMP
2
5. Recirculated air on/off button
6. LCD display information screen
7. Fan speed DOWN
8. USB charging and sync port
Functions
Turning air-conditioning ON/OFF
Once powered up, tap and hold the right rotary dial button to turn the
air-conditioner on. The LCD screen illuminates and the air-conditioner icon
(Snowflake) illuminates. Tap and hold again to turn off. When turning on the
air-conditioner the system will remember your previous user settings.
Tap
&Hold
3
Positioning
To select different air positions in the vehicle tap the RIGHT rotary button. Positions
are for the Head/Feet, Chest, Chest/Feet and Feet (See icons below).
Tap
4
Functions
Recirculation/Air Passthrough button
Tap this button to cycle between Recirculation and Air Passthrough.
The corresponding icon will illuminate.
Tap
5
Functions
Front/Rear demister button
When air-conditioner is turned on tap this button to active Rear Demister or hold
this button to activate the Front Demister.
Tap
or
Hold
TAP HOLD
Re-Calibrating your HVAC System
In the case that you may need to
re-calibrate you heater valves or ducting
positions. For exampe, your vents do
not pass air through the correct vents or
hot/cold does not feel correct.
Tap and hold the Front Demister
button for 5 seconds or more until you
hear the actuators in the car begin to
re-calibrate.
Hold
5secs
*NOTE*
Turning on Front Demister will
automatically turn on A/C
6
Fan speed
To adjust the fan speed tap on either of the two right buttons.
Top to increase fan speed and Bottom to lower fan speed.
Air-conditioner temperature
Turn the right rotary dial to the left or right to lower and raise the air-conditioner
temperature. This is a numeric value from 63°F (lowest) to 86°F (highest).
Rotate
Functions
7
Functions

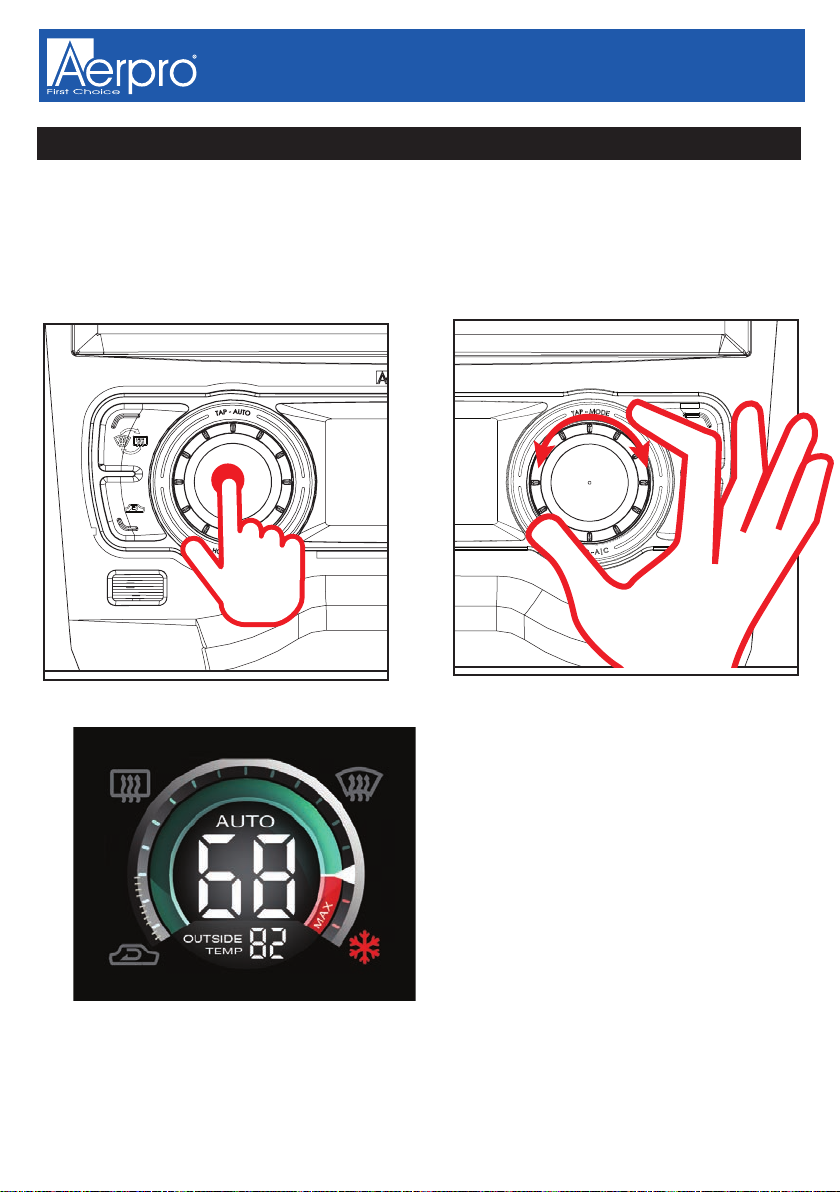

Automatic climate control
To activate auto climate mode, tap the left hand rotary dial and then set the target
temperature by rotating the right hand rotary dial to the desired level. The fans
speed, the vent temperature and the air flow direction is fully automatic and will
adjust itself based on what it needs to get to the required level.
Tap
Rotate
The temperature can be set between
63°F and 86°F when in Climate Mode.
*NOTE*
When the temperature is set to 63°F or
86°F. The AUTO symbol will turn off.
This indicates the system will be
running full COLD or full HOT
8
