A

User’s Guide

Publication number 01170-92005

November 2006

For safety information, regulatory information, and publishing information, see the pages

at the back of this book.

©Copyright Agilent Technologies 1998-2006

1170 Series Low-Mass, Miniature

Passive Oscilloscope Probes

Contents

Inspect the probe 2

Probe parts supplied 4

Probe characteristics 7

Bandwidth considerations 9

Safety considerations 10

Cleaning the probe 10

To connect oscilloscope probes 11

To operate the probe 13

Compensation adjustments 14

Inspect the probe

❏Inspect the shipping container for damage.

Keep a damaged shipping container or cushioning material until the contents of

the shipment have been checked for completeness and the probe has been

checked mechanically and electrically.

❏Check the accessories.

See “Probe parts supplied” on page 4 for a list of accessories supplied with the

probe.

• If the contents are incomplete or damaged, notify your Agilent Technologies

Sales Office.

❏Inspect the instrument.

• If there is mechanical damage or defect, or if the probe does not operate

properly or pass performance tests, notify your Agilent Technologies Sales

Office.

• If the shipping container is damaged, or the cushioning materials show signs

of stress, notify the carrier as well as your Agilent Technologies Sales Office.

Keep the shipping materials for the carrier’s inspection. The Agilent

Technologies office will arrange for repair or replacement at Agilent

Technologies’ option without waiting for claim settlement.

1170 Series Low-Mass, Miniature Passive

Oscilloscope Probes

The 1170 Series Low-Mass, Miniature Passive Oscilloscope Probes are designed

to work with the Wedge Probe Adapter and generally available logic analyzer

accessories. The 1170 Series Probes have an ultra-small probe tip and an ultra-

thin flexible cable. The 1170 Series Probes are high-performance probes that

have low tip capacity and weigh less than one gram.

A range of accessories are available for you to optimize interfacing with surface

mount devices. The 1170 Series Probes will fit directly onto standard board

headers and IC clips. The Wedge Probe Adapter makes convenient connections

to TQFP/PQFP package leads.

The 1170 series probes are compatible with the Infiniium oscilloscope AutoProbe

Interface which completely configures the Infiniium oscilloscope for the probe.

When using a 50 Ωoscilloscope, you must also use an Agilent E2697A 1 MΩ

adapter.

Other key features

• Narrow, sharp, replaceable probe tip.

• Browser attachment with ultra-sharp crown point. Use this

attachment when probing about the circuit in debug mode. The crown

point will not easily slip off of the lead you are probing. The pogo pin

allows hand movement without losing contact.

• Snap-on BNC connector makes it easier to attach the probe to the

oscilloscope.

• An assortment of long and short ground leads for connecting to a wide

variety of points.

• Flexible, light-weight cable with kevlar strengthener.

• This manual provides information on ordering replacement parts and

optional accessories.

• Automatic Probe Identification Pin.

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Probe parts supplied

The following diagram and table show the parts supplied with the 1170 Series

Probes. See Table ‘Replaceable Parts for 1170 Series Probes,” on page 5 for

replaceable parts.

Parts of the 1170 Series Probes

1170 Series Probes Parts Supplied

E2642-60001 — 1170 Series Probes Accessory Kit

Item Description Item Description

1 Pin - pogo 6 Ground extender

2 Ground lead - alligator 7 Probe

3 Ground lead - socketed 8 Browser

4 Walking stick ground 9 Screwdriver

5 Pin - probe 10 SMD clip

Item Description Quantity

1 Pin - pogo 2

2 Ground lead - alligator 2

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Probe parts supplied

Replaceable Parts for 1170 Series Probes

3 Ground lead - socketed 2

4 Walking stick ground 1

5 Pin - probe 4

6 Ground extender 2

8 Browser pogo pin 1

9 Screwdriver 1

10 SMD clip 2

Replaceable Part Agilent Part Number

1170 Series Probe

(For replacement, order the entire probe

assembly.)

1170A, 1171A, 1172A, 1173A

Browser (quantity 1) 5063-2122

BNC-to-Probe Tip Adapter 5063-2174

Item Description Quantity

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Probe parts supplied

Available accessories

• 10467-68701 surface-mount device (SMD) microclips for connection

to surface-mount technology (SMT) parts with lead spacings of

0.5 mm (0.020 inch) to 0.8 mm (0.032 inch).

• 0960-0301 BNC(m)-to-BNC(f) 50-Ωfeedthrough terminator.

• Wedges

Using the Wedge Probe Adapter

The Wedge Probe Adapter probing solution provides accurate and mechanically

non-invasive contact to the TQFP/PQFP package leads. Follow the guidelines

in the Wedge Probe Adapter User’s Guide for problem-free probing.

Connecting the Probe to the Wedge Adapter

Agilent Wedge

Model

Description

E2613A One 0.5 mm x 3-signal Wedge Probe Adapter

E2613B Two 0.5 mm x 3-signal Wedge Probe Adapters

E2614A One 0.5 mm x 8-signal Wedge Probe Adapter

E2615A One 0.65 mm x 3-signal Wedge Probe Adapter

E2615B Two 0.65 mm x 3-signal Wedge Probe Adapters

E2616A One 0.65 mm x 8-signal Wedge Probe Adapter

Check your Wedge Probe Adapter User’s Guide to verify the latest Wedge models.

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Probe characteristics

Operating and environmental characteristics of the 1170 Series Probes are

shown below.

1170 Series Probes Operating Characteristics

Installation category (overvoltage category) I: Signal level, special equipment

or parts of equipment, telecommunication, electronic etc., with smaller transient

overvoltages than installation category (overvoltage category) II.

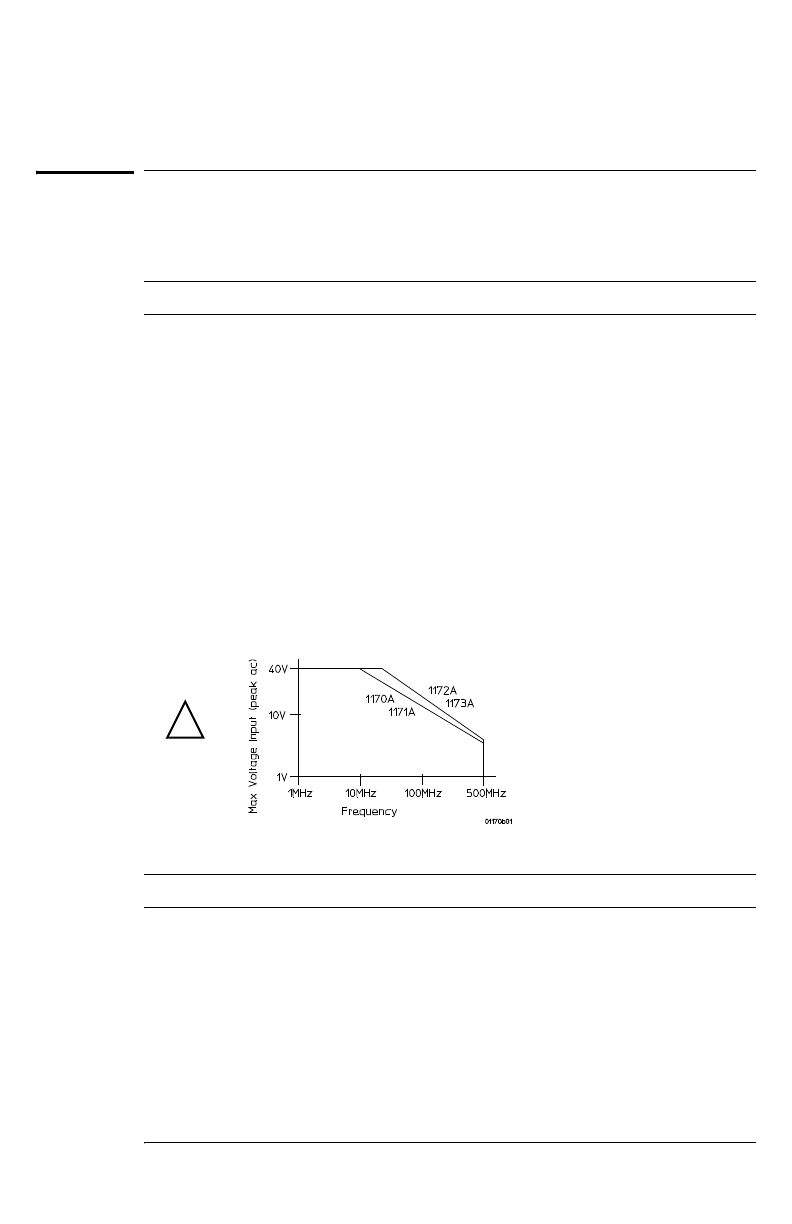

Voltage versus Frequency Rating Curve

Environmental Characteristics

1170 7 ns approximate propagation delay

1171 6.5 ns approximate propagation delay

1172 6 ns approximate propagation delay

1173 5.5 ns approximate propagation delay

Maximum input voltage 40 V (dc + peak ac), CAT I

Safety Meets IEC1010-2-31

Pull strength (BNC to probe tip)≤12 lb static pull

Pollution degree 2 Normally only non-conductive pollution occurs.

Occasionally, however, a temporary conductivity

caused by condensation must be expected.

Temperature (operating) 0 °C to +55 °C

Humidity (operating) Up to 95% relative humidity at 40 °C

Altitude (operating) Up to 4,600 meters (15,000 ft)

Shock 50 g (400 g tip only)

Weight 2.6 oz

Indoor Use

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Probe characteristics

This symbol indicates that the 1170 Series Probes are in compliance

with European product regulations, including the

EMC Directive and the Low Voltage Directive.

This symbol indicates that the 1170 Series Probes are in compliance

with Austrailian product regulations.

CAT I and CAT II Definitions

Installation category (overvoltage category) I: Signal level, special equipment

or parts of equipment, telecommunication, electronic etc., with smaller transient

overvoltages than installation category (overvoltage category) II.

Installation category (overvoltage category) II: Local level, appliances, portable

equipment etc., with smaller transient overvoltages than installation category

(overvoltage category) III.

1170 Series Low-Mass, Miniature Passive Oscilloscope Probes

Bandwidth considerations

The dominant probe limitation to system bandwidth is its input capacitance,

assuming that the high-frequency compensation adjustments have been made.

The displayed bandwidth of any measurement system using an oscilloscope and

probe is determined by four factors: probe input capacitance, source impedance,

source bandwidth, and oscilloscope bandwidth.

1170 Series Probes Selection Guide

NOTE: An E2697A 1 MΩinput adapter is required to use this probe with a 50 Ω

oscilloscope. The E2697A includes one 10073C general purpose 100 MHz, 10:1

passive probe.

1170 Series Probe and Infiniium Oscilloscope Compatability

Agilent

Model

Number

Type of Probe Bandwidth

Scope/

Probe

System

Division

Ratio

Input R Input C Scope

Input R

Comp

Range

Length

1170A High-

impedance,

passive

500 MHz 10:1 10 MΩ9 pF 1 MΩ6-9 pF 1.5 M

1171A High-

impedance,

passive

500 MHz 10:1 10 MΩ9 pF 1 MΩ12-14 pF 1.4 M

1172A High-

impedance,

passive

500 MHz 20:1 10 MΩ4 pF 1 MΩ6-9 pF 1.3 M

1173A High

impedance

passive

500 MHz 20:1 10 MΩ4 pF 1 MΩ12-14 pF 1.2 M

Infiniium

Oscilloscope

Compatable

1170 Series Probe

Infiniium

Oscilloscope

Compatable

1170 Series Probe

54810A 1170A, 1172A 54833A/D 1171A, 1173A

54815A 1170A, 1172A 54835A 1171A, 1173A

54820A 1170A, 1172A 54845A/B 1171A, 1173A

54825A 1170A, 1172A 54846A/B 1171A, 1173A

54830B/D 1171A, 1173A MSO/DSO8104A 1171A, 1173A

54831B/D 1171A, 1173A MSO/DSO8064A 1171A, 1173A

54832B/D 1171A, 1173A

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Agilent Technologies Messgerät Handbücher

Agilent Technologies

Agilent Technologies 490 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 42941A Bedienungsanleitung

Agilent Technologies

Agilent Technologies TS-5410 Betriebsanleitung

Agilent Technologies

Agilent Technologies 1156A Bedienungsanleitung

Agilent Technologies

Agilent Technologies B2901 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 34136A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 77-4 Montage- und Bedienungsanleitung

Agilent Technologies

Agilent Technologies 85097B Bedienungsanleitung

Agilent Technologies

Agilent Technologies 86122A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 86082A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 4418B Bedienungsanleitung

Agilent Technologies

Agilent Technologies 1290 Infinity II Bedienungsanleitung

Agilent Technologies

Agilent Technologies WireScope 350 Bedienungsanleitung

Agilent Technologies

Agilent Technologies E4404B Kurzanleitung

Agilent Technologies

Agilent Technologies 8510XF Service-Handbuch

Agilent Technologies

Agilent Technologies E4419B Bedienungsanleitung

Agilent Technologies

Agilent Technologies HP 8719D Bedienungsanleitung

Agilent Technologies

Agilent Technologies E4445A PSA Series Kurzanleitung

Agilent Technologies

Agilent Technologies N4376B Bedienungsanleitung

Agilent Technologies

Agilent Technologies Agile or Elusive Signals Using Handbuch

Agilent Technologies

Agilent Technologies Cary 100 Bedienungsanleitung

Agilent Technologies

Agilent Technologies E5500A Bedienungsanleitung

Agilent Technologies

Agilent Technologies 1145A Handbuch

Agilent Technologies

Agilent Technologies ESA-E E4407B Installations- und Betriebshandbuch

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
