ADMINISTRATIVE INFORMATION

SERVICE NOTE CLASSIFICATION:

MODIFICATION RECOMMENDED

ACTION [[]] IMMEDIATELY STANDARDS:

CATEGORY: X ON SPECIFIED FAILURE LABOR: 2.0 Hours

[[]] AGREEABLE TIME

LOCATION [[]] CUSTOMER INSTALLABLE SERVICE [[]] RETURN USED X RETURN

CATEGORY: [[]] ON-SITE INVENTORY: [[]] SCRAP PARTS: [[]] SCRAP

X SERVICE CENTER [[]] SEE TEXT [[]] SEE TEXT

AVAILABILITY: PRODUCT’S SUPPORT LIFE AGILENT RESPONSIBLE UNTIL: March 2007

AUTHOR: jm PRODUCT LINE: WN

ADDITIONAL INFORMATION:

PRINTED IN U.S.A.

July 31, 2006

Page 1 of 5

E5062A-04A

S E R V I C E N O T E

Supersedes:

E5062A-04

E5062A ENA-L RF Network Analyzer, 300 kHz to 3 GHz

Serial Numbers: JP1KLxxxxx,

MY44100102 to MY44101554

SG44100101 to SG44100124.

A2 receiver board fails System Dynamic Range specification due to a very few

clock signal generation component might not work properly.

To Be Performed By: Agilent-Qualified Personnel

Parts Required:

P/N Description Qty.

E5062-69011 A2 Receiver 50 Ohm (Exchange) 1

E5062-62011 A2 Receiver 50 Ohm 1

E5062-69012 A2 Receiver 75 Ohm (Exchange) 1

E5062-62012 A2 Receiver 75 Ohm 1

Page 2 of 5 E5062A-04A

Situation:

A very few of clock signal generation component in the receiver board might not work properly and as

a result, the noise floor increases although the IFBW is set to narrower bandwidth.

The typical phenomenon is that the system dynamic range exceeds the following specification right

after the E5062A power is turned on, especially in a low temperature environment.

System dynamic range Specification Supplemental information

300 kHz to 3 GHz, IF bandwidth = 3 kHz 90 dB 95 dB

300 kHz to 3 GHz, IF bandwidth = 10 Hz 115 dB 120 dB

Solution/Action:

Replace A2 receiver module.

(For 50 Ohm Option; Opt. 150 and Opt. 250)

P/N Description Qty

E5062-69011 A2 Receiver 50 Ohm (Exchange) 1

E5062-62011 A2 Receiver 50 Ohm 1

(For 75 Ohm Option; Opt. 175 and Opt. 275)

P/N Description Qty

E5062-69012 A2 Receiver 75 Ohm (Exchange) 1

E5062-62012 A2 Receiver 75 Ohm 1

Page 3 of 5 E5062A-04A

How to identify “good” A2 Receiver Module for this issue

For temporary solution, A2 Receiver Module is reworked by AMC or by CM.

Then for permanent solution, PCA in A2 Receiver Module is revised.

Any of these three cases are “good” A2 receiver module, otherwise return the “bad” module to factory

through exchange program.

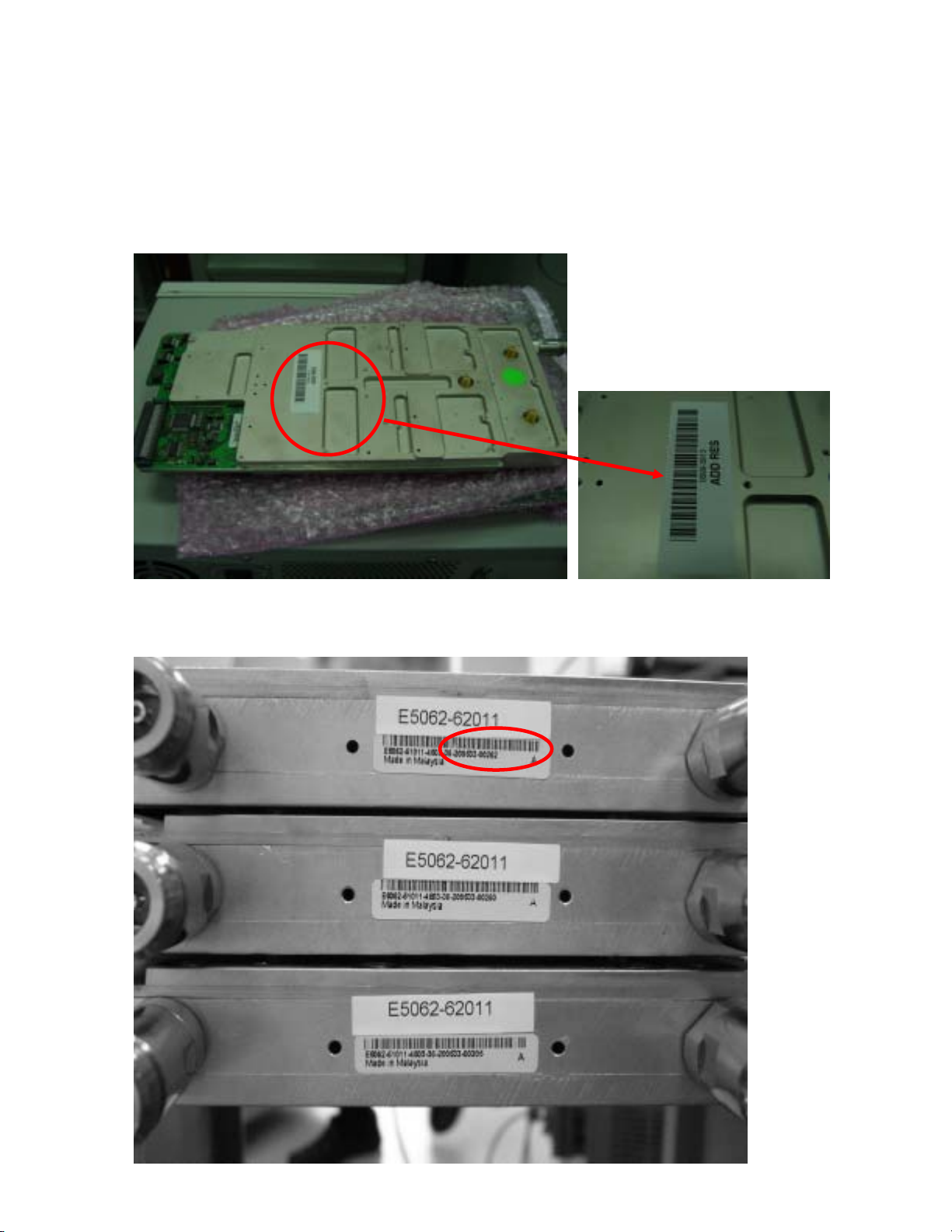

(1) A2 Receiver Module with “ADD RES” sticker. (Temporary solution by AMC)

(2) A2 Receiver Module with BARCODE which date code suffix is -200607-xxxxx or later

(Temporary solution by CM)

Page 4 of 5 E5062A-04A

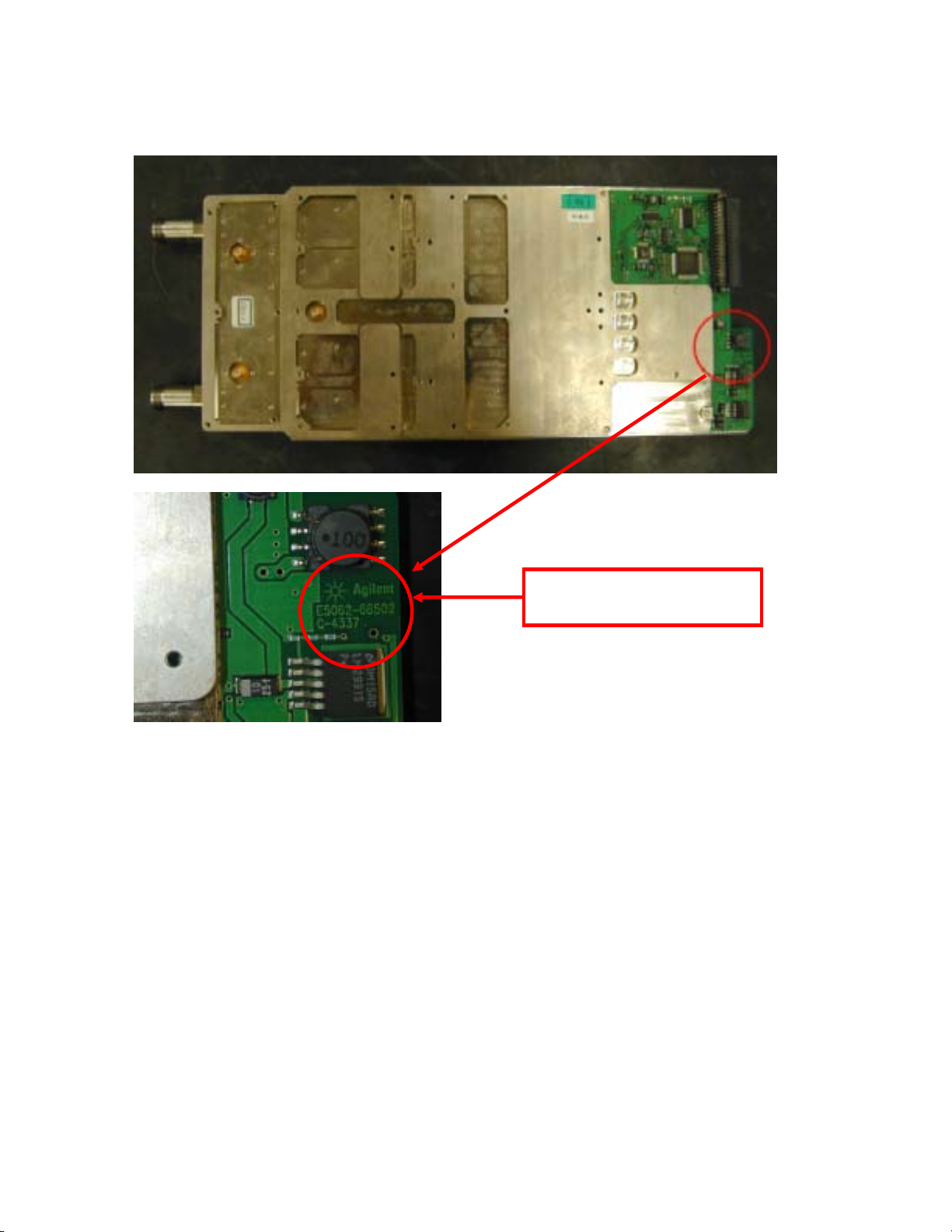

(3) PCA in A2 Receiver Module is changed from E5062-66502 to E5062-66512. (Permanent

solution)

Procedures:

For the detailed Replacement Procedure and Post-Repair Procedures, please see Service Guide of

E5061A/E5062A.

[Replacement Procedure]

Chapter 6: Replacement Procedure -> A2 Receiver Board Replacement

[Post-Repair Procedure]

Chapter 7: Post-Repair Procedures -> Table 7-1 A2 Receiver Board.

-Frequency Reference Adjustment

-Local Output Power Adjustment

-Source Output Power Adjustment

-Receiver IF Range Adjustment

-Receiver Ports Characteristics Adjustment

-Diagnostic Test

-Frequency Accuracy Test

E5062-66502 should be changed to

E5062-66512

Page 5 of 5 E5062A-04A

-RF Output Level Accuracy and Flatness Test

-RF Output Level Linearity Test

-Trace Noise Test

-Crosstalk & System Dynamic Range Test

-Dynamic Accuracy Test

-Uncorrected System Performance Test

Retrofit Time:

Assembly Time: 0.5 hour

Adjustment Time: 0.75 hour

Performance Tests Time: 0.75 hour

Total Time: 2.0 hours

- End of Document -
