Agilent U1731A/U1732A

Dual Display Handheld

LCR Meter

Quick Start Guide

1 U1731A/U1732A Quick Start Guide

The Agilent U1731A and U1732A are safety-certified in

compliance with the following safety and EMC

requirements:

•IEC 61010-1:2001/EN 61010-1:2001 (2nd Edition)

•CISPR 11:2003+A1:2004

•IEC 61000-4-2:1995+A1:1998 +A2:2000

•IEC 61000-4-3:2006

•IEC 61000-4-4:2004

•IEC 61000-4-5:2005

•IEC 61000-4-6:2003+A1:2004+A2:2006

•IEC 61000-4-11:2004

•Canada: ICES-001:2004

•Australia/New Zealand: AS/NZS CISPR11:2004

Safety Notices

CAUTION

A CAUTION notice denotes a hazard. It calls attention to an

operating procedure, practice, or the like that, if not correctly

performed or adhered to, could result in damage to the

product or loss of important data. Do not proceed beyond a

CAUTION notice until the indicated conditions are fully

understood and met.

WARNING

WARNING notice denotes a hazard. It calls attention to an

operating procedure, practice, or the like that, if not cor-

rectly performed or adhered to, could result in personal

injury or death. Do not proceed beyond a WARNING notice

until the indicated conditions are fully understood and met.

Safety Symbols

Direct current

Alternating current

Three-phase alternating current

Both direct and alternating current

Earth (ground) terminal

Equipotentiality

Caution: hot surface

Off (supply)

On (supply)

Protective conductor terminal

Caution: risk of electric shock

Out position of a bi-stable control

In position of a bi-stable control

Frame or chassis terminal

Equipment protected throughout by

double insulation or reinforced

insulation

Caution: risk of danger (refer to this

manual for specific Warning or Caution

information)

Safety Information

U1731A/U1732A Quick Start Guide 2

Special indication characters

Indicates short connectors

Indicates open connectors

Indicates CAL function mode

Indicates damaged or open fuse

NOTE

Your multimeter is capable of remote data logging. To use this feature, you will need an

IR-USB cable (U5481A, purchased separately) and the Agilent GUI Data Logger Software

(downloadable from www.agilent.com/find/hhTechLib).

WARNING

To avoid damaging this instrument, do not exceed the input limit.

Annunciator

Keypad

Input

U1731A/U1732A Dual Display Handheld LCR Meter

3 U1731A/U1732A Quick Start Guide

Display Annunciators

No. Descriptions No. Descriptions

1 Low battery indicator 14 Quality factor indicator

2 Reading out of LO limit 15 Secondary display

3 Primary display 16 Audible alert for tolerance and compare mode

4 Reading out of HI limit 17 Unit for tolerance display (percentage)

5 Auto power off indicator 18 Unit for phase angle (degree)

(only applicable for U1732A)

6 Tolerance mode, to set 1%, 5%, 10%, and 20% for

sorting capacitance

19 Unit for Beeper Frequency as setup mode

7 AUTO range 20 Parallel mode indicator

8 Inductance, Capacitance, or Resistance (L,C, or

R) function indicator

21 Series mode indicator

9 Static recording mode for MAX, MIN, AVG and

Present (MAXAVGMIN)

22 Unit for resistance (kΩand MΩ)

10 Relative mode 23 Unit for inductance (µH and mH)

11 Data hold to hold the displayed digital value 24 Unit for capacitance (pF, nF, µF, and mF)

12 Phase angle indicator (only applicable for

U1732A)

25 Remote control

13 Dissipation factor indicator

10 129

U1731A/U1732A Quick Start Guide 4

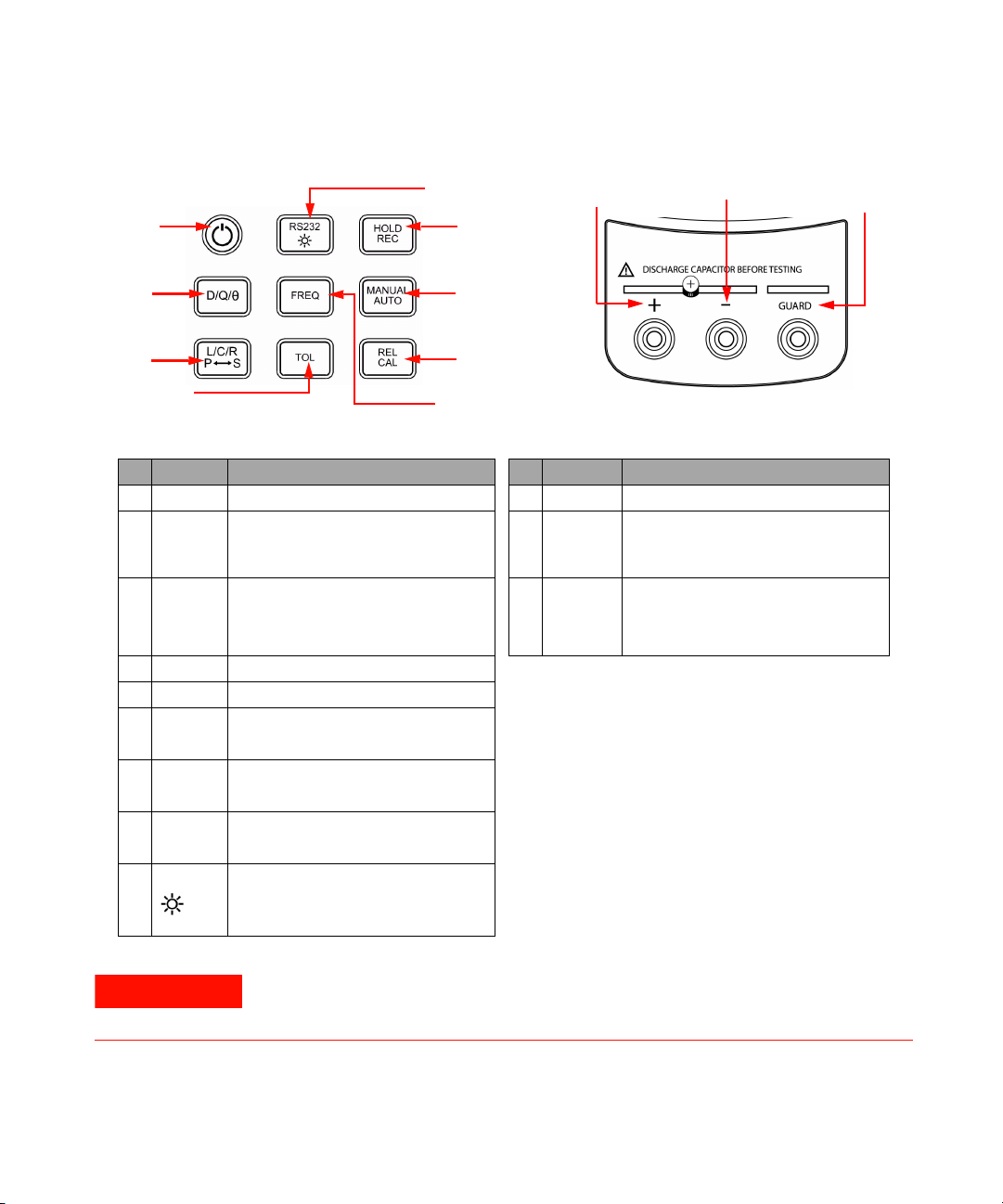

No. Keys Functions No. Terminals Functions

1 Power To turn ON/OFF the instrument 10 + Positive terminal/socket

2 D/Q/θTo select dissipation factor, quality

factor, and phase angle display (only

applicable for U1732A)

11 – Negative terminal/socket

3L/C/R

P↔S

To select inductance, capacitance, and

resistance measurement

To toggle parallel and series mode

12 GUARD Guard terminal/socket

4TOL Tolerancemode

5 FREQ To select test frequency

6REL

CAL

Relative mode

CAL function mode

7Manual

AUTO

Manual range

Auto range

8 HOLD

REC

Data hold

Static recording mode

9 RS232 To toggle ON/OFF the remote function

Backlight display (only applicable for

U1732A)

WARNING

To avoid damaging this instrument, do not exceed the input limit. Do not apply

voltage to input terminals. Discharge the capacitor before testing.

Keypad Operations

10 12

Terminals

5 U1731A/U1732A Quick Start Guide

Inductance/Capacitance/Resistance Measurement

Procedure:

1Press the L/C/R key to select inductance (L), capacitance (C), or resistance (R)

measurement.

2Connect the red test clip or SMD tweezers to the +terminal and the black test

clip to the – terminal.

3Connect both the test clips to the component leads as required or use the SMD

tweezers to measure SMD components.

4Press the FREQ key to select the testing frequency.

5Press the D/Q/θ key to select Q or D factor for secondary display as required.

6Ensure that your hands are not touching the clips before taking the readings on

the display.

7The LCR measurements setup are shown in Figure 1- 1 to Figure 1- 1.

CAUTION

Degradation of some product specifications can occur in the presence of ambient

electromagnetic (EM) fields and noise that affects the product’s power line or I/O

cables. The product self-recovers and operates to all specifications when:

•the source of the ambient EM field and noise is removed,

•the product is protected from the ambient EM field, or

•the product cabling is shielded from the ambient EM noise.

U1731A/U1732A Quick Start Guide 6

Figure 1-1 Inductance measurement

Figure 1-1 Capacitance measurement

Figure 1-1 Resistance measurement

7 U1731A/U1732A Quick Start Guide

General Specifications

Parameter U1731A U1732A

Power supply Single standard 9 V battery (Alkaline)

External DC adaptor (DC 12 VMIN — 15 VMAX, Load 50 mA minimum)

Display L/C/R: Maximum display 19999

D/Q: Maximum display 999 (Auto Range)

Measurements L/C/R/D/Q L/C/R/D/Q/θ

Measuring circuit mode Inductance (L): Defaults to series mode

Capacitance/Resistance (C/R): Defaults to parallel mode

Ranging mode Auto & Manual

Measuring terminals Three terminals with sockets

Tolerance mode 1%, 5%, 10% 1%, 5%, 10%, 20%

Test signal level ~0.6 VRMS

Test frequency accuracy: ±0.1% 120 Hz = 120 Hz

1 kHz = 1010 Hz

100 Hz = 100 Hz

120 Hz = 120 Hz

1 kHz = 1010 Hz

10 kHz = 9.6 kHz

Measuring rate 1 time/s, nominal

Response time ~1 s/ (manual range)

Auto power-off ~5 mins without operations

Low battery indicator ~6.8 V

Operating temperature 0 °C – 40 °C

Storage temperature –20 °C – 60 °C (without battery)

Storage humidity 0 – 80% R.H.

Relative Humidity (R.H.) 0 – 70% R.H.

Temperature coefficient 0.15 x (Specified accuracy)/°C (0 °C – 18 °C or 28 °C – 40 °C)

Battery type Alkaline: ANSI/NEDA: 1604A/IEC: 6LR61

Power consumption ~40 mA for operation

0.08 mA after auto power-off

Protective fuse 0.1 A/250 V fuse (input protective)

Battery life 5 to 7 hours typical (without backlight based on new alkaline)

Backlight display Not available Available

Weight 330 g

Dimension (W x L x H) 87 mm x 184 mm x 41 mm

Safety Designed in compliance with IEC 61010-1 for Pollution Degree 2

U1731A/U1732A Quick Start Guide 8

Parameter U1731A U1732A

Warranty 3 years

Standard accessories •Agilent U1731A/U1732A Product Reference CD-ROM

•Agilent U1731A/U1732A Quick Start Guide

•Alligator clip leads

•9 V alkaline battery

•Certificate of Calibration

Optional accessories •IR to USB cable (ordering option: U5481A-FG)

•Power adaptor (ordering option: U1780A-FG)

•SMD tweezers (ordering option: U1782-FG)

•Soft carrying case (ordering option: U1174A-FG)

9 U1731A/U1732A Quick Start Guide

U1731A Electrical Specifications

Accuracy is expressed as ± (% of reading + number of least significant digits) at

23 °C ± 5 °C and <75% R.H.

Resistance (Parallel Mode), Test Frequency = 120 Hz/1 kHz

Range Maximum Display Accuracy Specified Note

@ 120 Hz @ 1 kHz

10 MW9.999 MW2.0% + 8 2.0% + 8*

* This specification is based on the battery operation.

After open cal.

2000 kW1999.9 kW0.5% + 5 0.5% + 5 After open cal.

200 kW199.99 kW0.5% + 3 0.5% + 3 -

20 kW19.999 kW0.5% + 3 0.5% + 3 -

2000 W1999.9 W0.5% + 3 0.5% + 3 -

200 W199.99 W0.8% + 5 0.8% + 5 After short cal.

20 W19.999 W1.2% + 40 1.2% + 40 After short cal.

NOTE

1This specification is based on the measurement performed at the test socket.

2Device Under Test (DUT) and test leads need to be properly shielded to GUARD if necessary.
