Airlink101 AWLL5026 Bedienungsanleitung

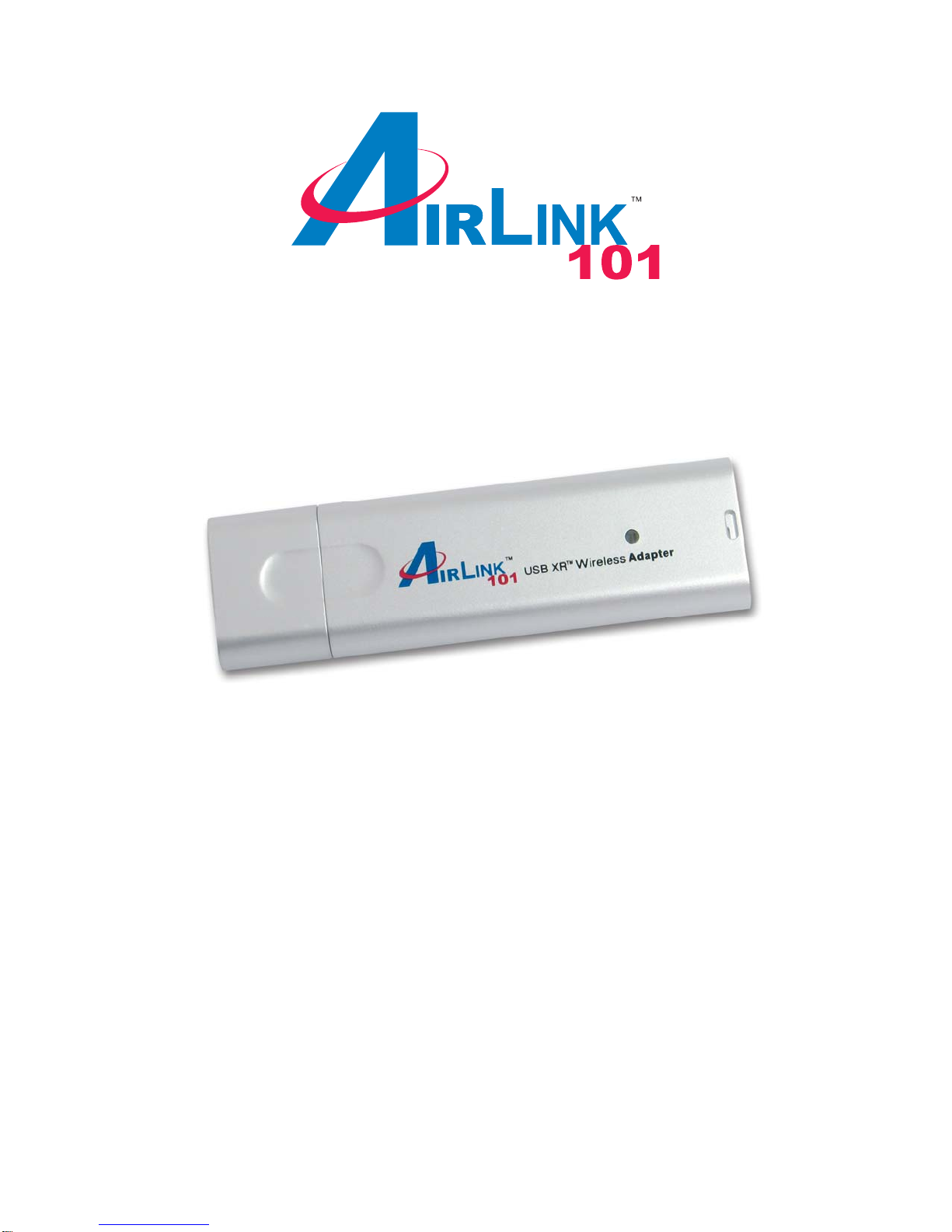

802.11g USB XR™ Adapter
Model # AWLL5026
User’s Manual
Ver. 1A
2
Table of Contents
1. Introduction................................................................................................................................. 3
1.1 Package Contents.................................................................................................................. 3
2. Installation................................................................................................................................... 4
2.1 Install Driver & Utility.......................................................................................................... 4
2.2 Verify Driver Installation...................................................................................................... 9
3. Configure the USB Adapter...................................................................................................... 11
4. Configure the Wireless Utility.................................................................................................. 16
4.1 Link Information................................................................................................................. 16
4.2 AP List................................................................................................................................ 19
4.3 Configure Encryption Settings............................................................................................ 20
4.4 Profile Setting ..................................................................................................................... 25
4.5 Static IP Setting................................................................................................................... 29
4.6 About................................................................................................................................... 30
Appendix....................................................................................................................................... 31
Technical Support......................................................................................................................... 33
3
1. Introduction
Thank you for purchasing the 802.11g USB XR™ Adapter. When used with other
Airlink101™ MIMO XR™ wireless products, the wireless signal range extends farther
than standard 802.11g devices.
This Adapter supports 64/128-bit WEP data encryption that protects your wireless
network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature
that combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies.
Client users are required to authorize before accessing the APs or AP Routers, and the
data transmitted through the network is encrypted/decrypted by a dynamically changing
secret key.
1.1 Package Contents
Before you begin the installation, please check the items of your package. The package
should include the following items:
•One 802.11g USB XR™ Adapter
•One Quick Installation Guide
•One USB cable
•One Installation CD (Driver/Utility/Manual)
4
2. Installation
2.1 Install Driver & Utility
This section provides instructions on how to install the 802.11g USB XR™ Adapter.
The driver is installed along with the utility.
Note: Do not connect the USB Adapter to your computer until you have reached the
appointed step.
For Windows 98SE and ME users, you may be prompted to insert the Windows 98SE or
ME CD during the driver installation. Be sure to have your Windows 98SE or ME CD
ready.
Step 1 Insert the Driver & Utility CD into your CD drive and select Install Utility and
Driver from the menu.
Note: If the Autorun screen doesn’t appear automatically go to Start, Run, and type
D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK.
5
Step 2 Click Next at the welcome screen.
Step 3 Click Next to accept the default destination folder.
6
Step 4 Verify Yes, I want to restart my computer now is selected and click Finish to
restart your computer.
Step 5 After the computer is restarted, connect the USB Adapter to your computer’s
USB port.
Step 6 If Windows asks to connect to Windows Update, select No, not this time and
click Next.
7
Step 7 Select Install the software automatically and click Next.
For Windows 98SE and ME, select Search for the best driver for your device and
click Next. Verify all the check boxes are checked and click Next.

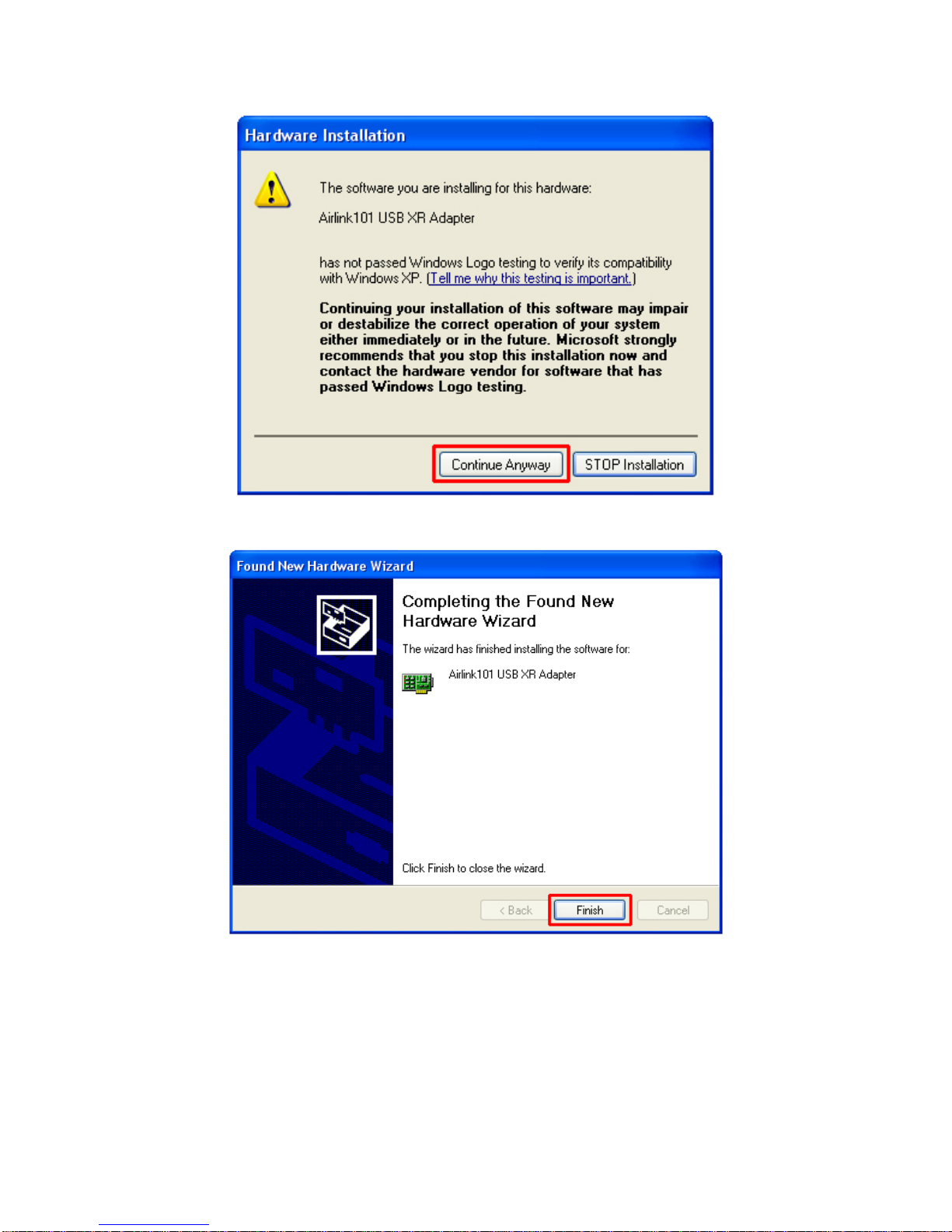

Step 8 Click Continue Anyway at the Windows Logo Screen.
(For Windows 2000, click Yes at the Digital Signature Not Found prompt).
8
Step 9 Click Finish. (Restart the computer for Windows 98SE and ME).
9
2.2 Verify Driver Installation
To verify if the driver has been installed successfully, please perform the following steps.
Step 1 Right-click on My Computer from your desktop and select Properties.

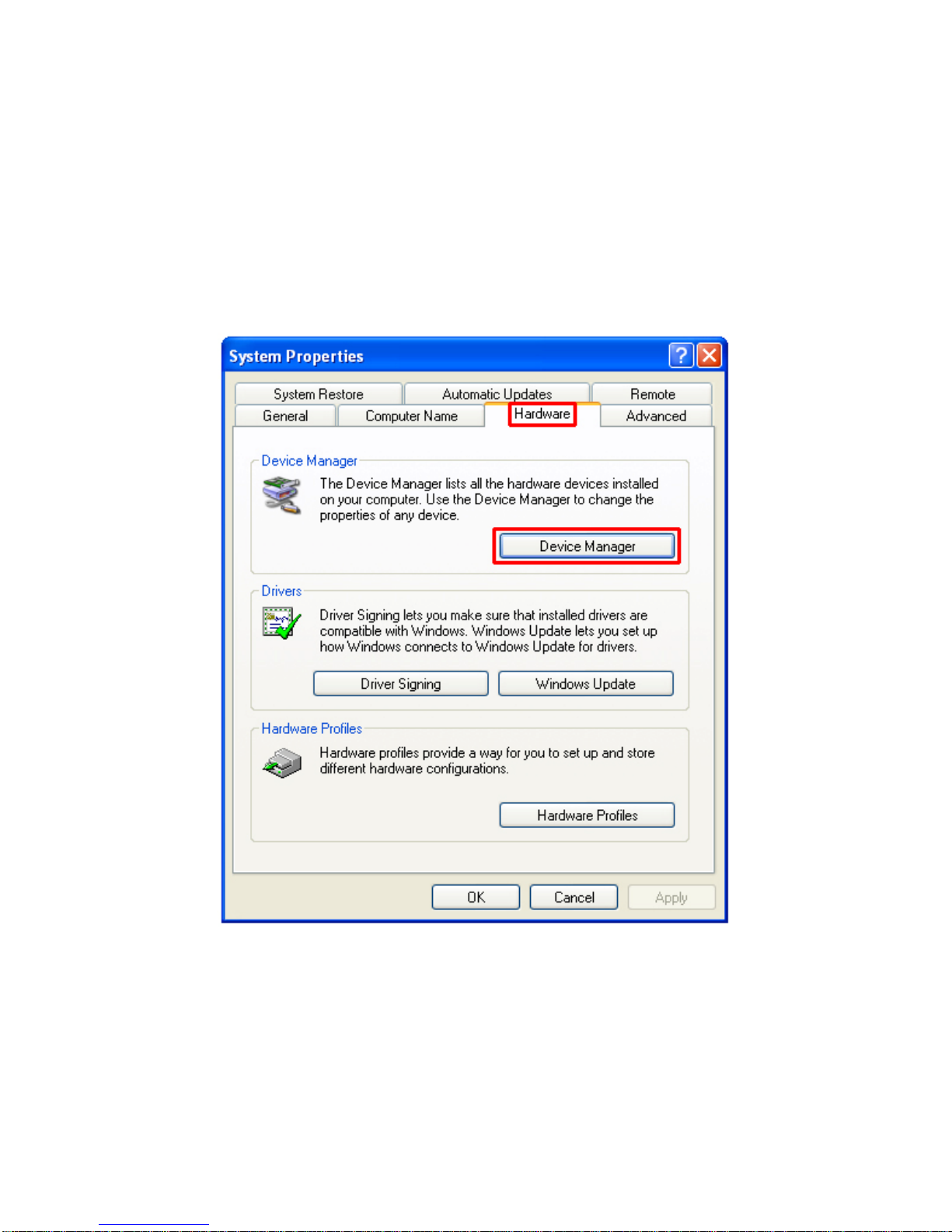

Step 2 Select the Device Manager tab. (For Windows 2000/XP, select the Hardware
tab first then click on Device Manager).
10
Step 3 Expand Network adapters from the list and verify that Airlink101 USB XR
Adapter is listed and no yellow question mark is beside it.
If Airlink101 USB XR Adapter is not listed, or you see a yellow question mark beside it,
please re-install the driver again.
