Quick Installation Guide

Dual Band Wireless N USB Adapter

Model # AWLL7025

Ver. 1A

Thank you for purchasing Airlink101 Dual Band Wireless N USB Adapter.

Please follow the Quick Installation Guide to configure this product. For

detailed installation instructions on advanced features, please refer to the

User’s Manual that can be found on the provided CD.

Before you begin the installation, please check the items of your package:

Install Utility and Driver

Step 1 Insert the USB adapter into an available USB port of your computer.

Step 2 Windows will launch the Found New Hardware Wizard. The Found

New Hardware Wizard appears differently depending on your computer

operating system, click Cancel to quit the wizard and insert the Installation

CD in the CD drive. Continue to Step 3.

Section 1

Package Contents:

•Dual Band Wireless N USB Adapter

•USB Extension Cable

•Driver & Utility CD

•Quick Installation Guide

Step 3 The Autorun screen will pop up. Click Install Utility and Driver from

the menu.

Note: If the Autorun screen doesn’t appear automatically go to Start, Run,

and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and

click OK.

Windows Vista Users:At this point, you may get a warning message like

the one below. Make sure that you click Allow to continue with the

installation.

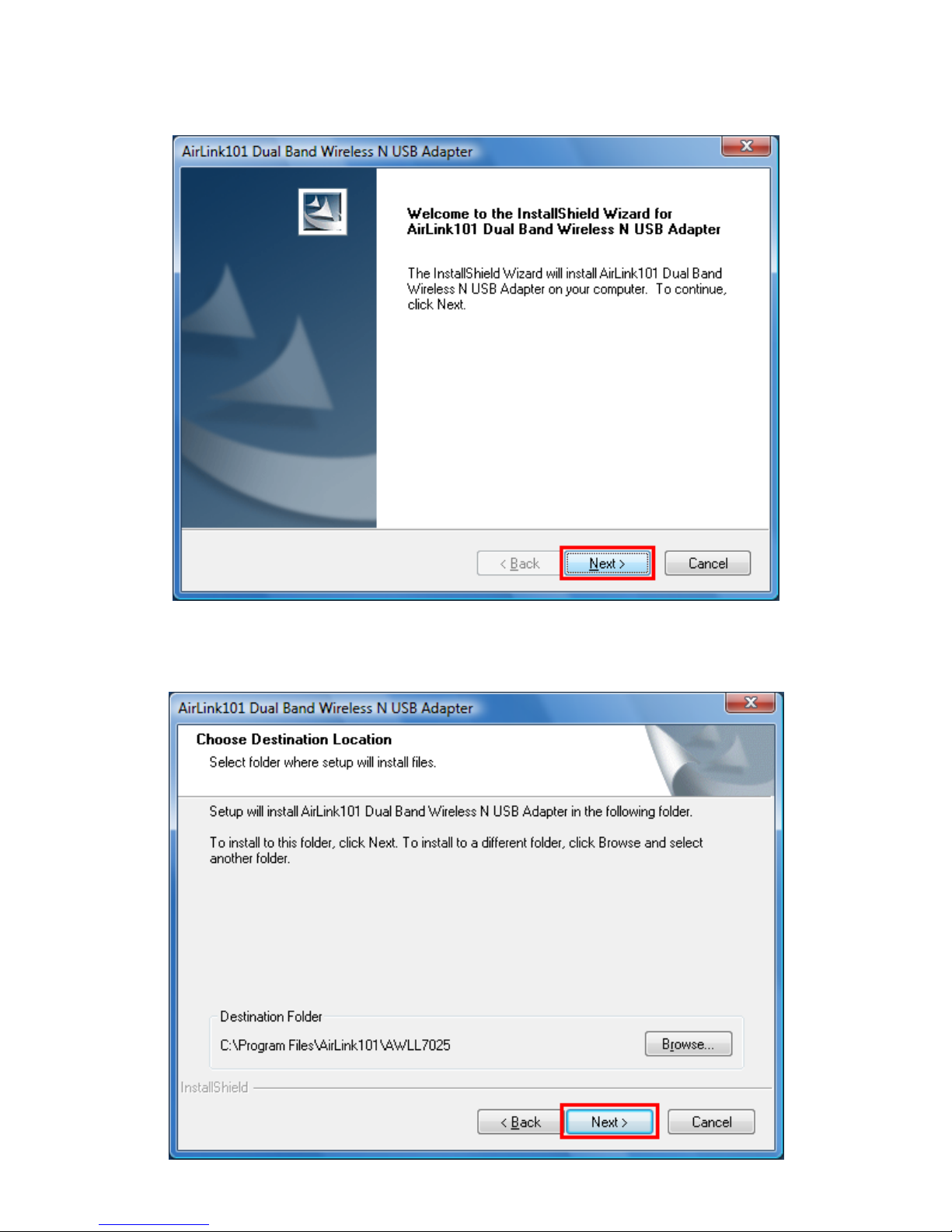

Step 4 The InstallShield Wizard will pop up. Click Next at the screen.

Step 5 Click Next to begin the installation.

Step 6 Give Permission to Window to install the driver software

For Windows Vista, click the Install this driver software anyway.

For Windows XP click Continue Anyway at the Windows Logo Screen.

For Windows 2000, click Yes at the Digital Signature Not Found prompt.

Step 7 Click Finish to complete the installation.

Configure the Wireless Adapter

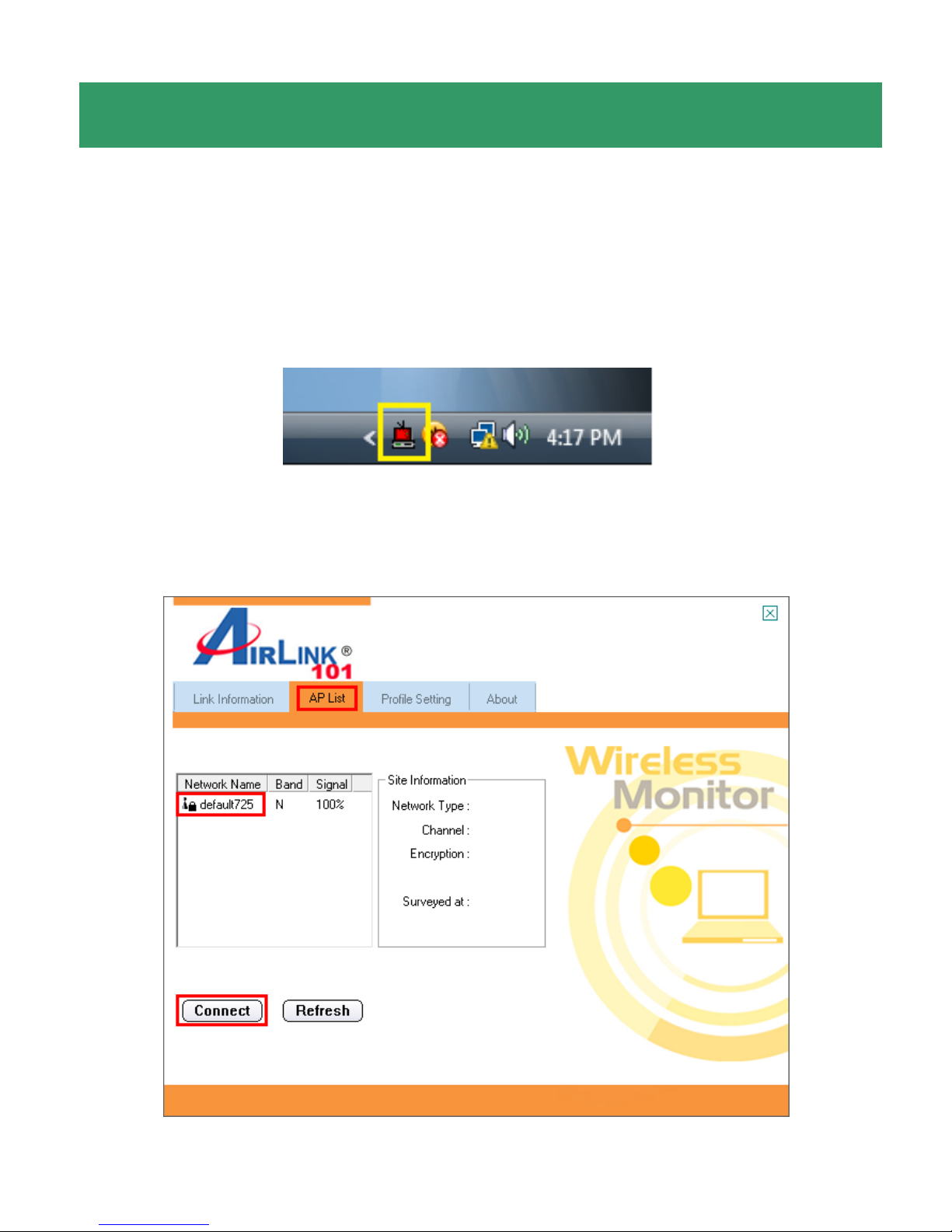

Open the Airlink101 Wireless Monitor utility by double clicking on the

Airlink101 Wireless Monitor Utility icon in the system tray at the bottom right-

hand corner of your screen.

Step 1 Click on AP List tab and select a Network Name (SSID) from the list

you want to connect to and click Connect.

Section 2

Step 2 If encryption is not enabled for the selected access point / router,

skip to Step 7. Otherwise, enter a Profile Name for your wireless setting

and click Next.

Step 3 Verify that the Network Name matches the wireless network you

selected to connect and click Next.

Step 4 Verify that the Authentication Mode and Input Method match to your

wireless router’s settings and click Next.

Step 5 Input the encryption key for your wireless network and click Next.

Step 6 Keep the default IP Setting and click Complete.

Step 7 You should see a blue circle around the antenna icon indicating a

valid connection.
