Airlink101 AWLL4030 Bedienungsanleitung

Ver. 1A

PackageContents:

•SuperGUSB2.0Adapter

•USB2.0ExtensionCable

•Installation CD

•Quick Installation Guide

Note: Wheneverthe FoundNew HardwareWizard appears,click Cancel toquit

the wizard and continue with the installation.

Step 1 Insert the Wireless USBAdapter to the computer’s USB port.

Step 2 Insert theInstallation CDinto theCD drive andwait forthe autorunscreen

toappear.

Note: If the autorun screen doesn’t appear automatically go to Start, Run, and

type D:\autorun.exe (where D is the letter of your CD drive) and click OK.

Section 1

Installation

Quick Installation Guide

Model#AWLL4030

Super G Wireless USB 2.0 Adapter

The following steps are for Windows 2000/XP. Please refer to the User’s

Manual on the provided CD for Windows 98SE/ME.

For Windows 2000/XP, you must update your USB driver to USB 2.0

For Windows XP you must install Service Pack 2 prior to installing the USB

Adapter.

Step 4 Click Next at the welcome screen.

Step 3 Click Install Driver (Windows 2000/XP).

Continue on back...

ContinueonBack

Step 5 Click Next to accept the LicenseAgreement.

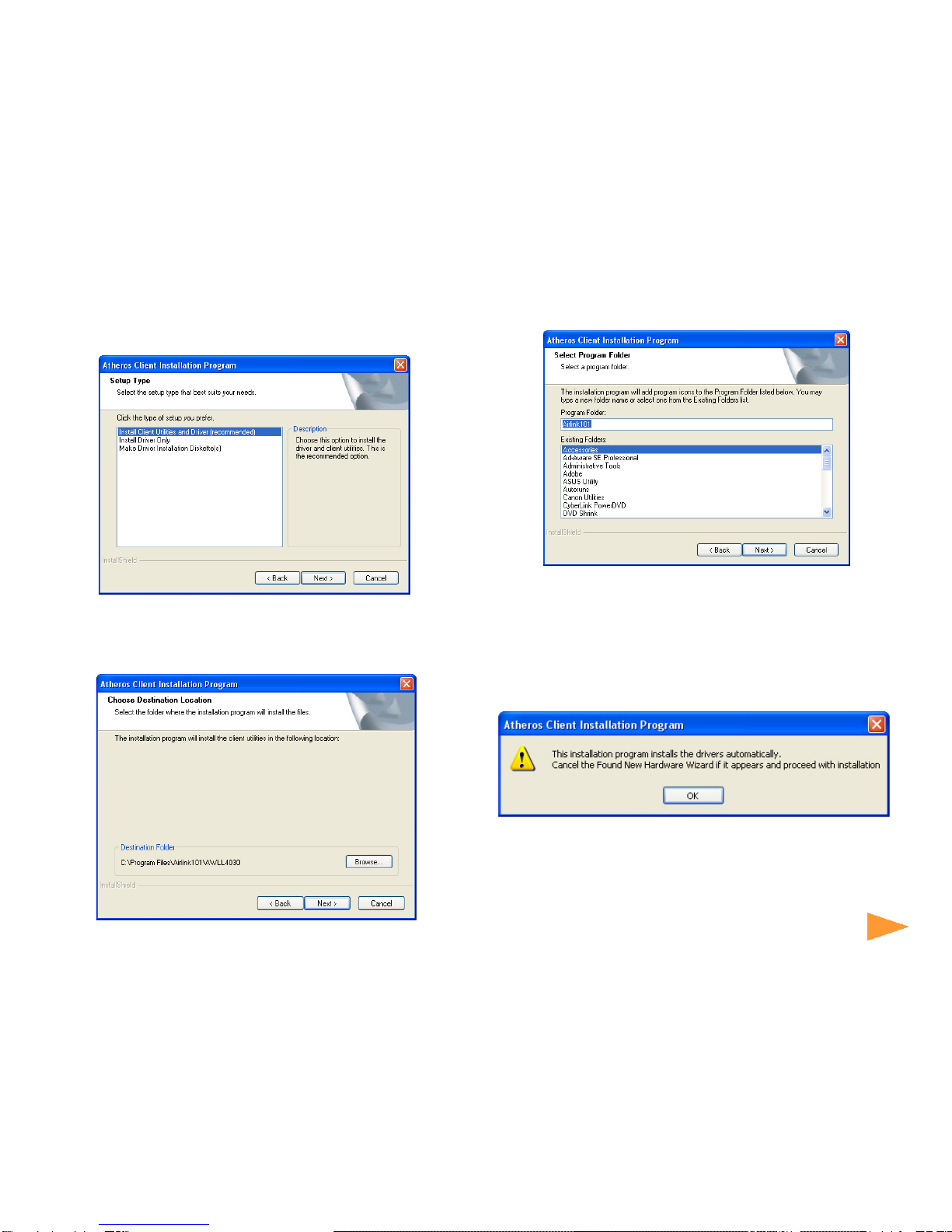

Step 6 Verify Install Client Utilities and Driver is selected and click Next.

Step 7 Click Yes to acknowledge the need for a reboot after the installation.

Step 8 Click Next to accept the default Destination Folder.

Step 9 Click Next to accept the default Program Folder.

Step 10 Read the notes carefully and click Next.

Step 11 Verify Atheros Client Utlity and Supplicant is selected and click Next.

Step 12 Click OK to acknowledge the prompt.

Section 3

Step 13 Click Continue Anyway at the Windows Logo prompt for the Bootloader

Download.(ClickYes forWindows2000).

Step 14 Click Continue Anyway at the Windows Logo prompt for the Wireless

NetworkAdapter (ClickYes forWindows2000).

Step 15 Click OK to reboot your computer.

Section 2

Configure USB Adapter

Step 1 Start the Atheros Client Utility by double-clicking on it from your desktop.

Step 2 If there is no Signal Strength and/or the IPAddress is all 0’s, select the

Profile Managment tab.

The following steps are for Windows 98SE/ME/2000/XP.

If you already have signal strength and valid IP address, you do not need

to perform the following steps.

E-mail:[email protected]

TollFree:1-888-746-3238

WebSite:www.airlink101.com

Section 3

Technical Support

Section 4

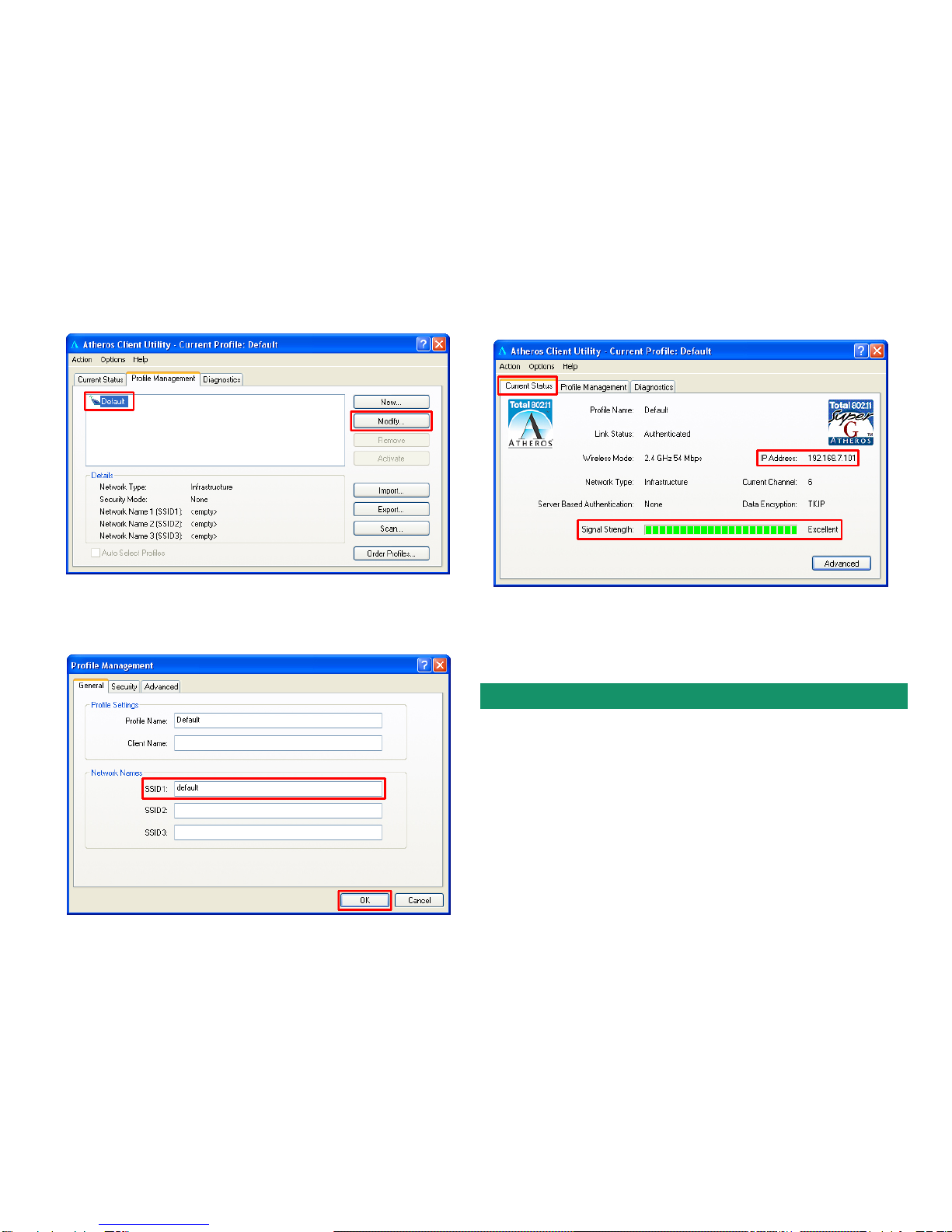

Step 3 Select the Default profile and click Modify.

andlogosthatareidentifiedastrademarksand/or service marks are, unless notedotherwise,thetrademarksandservicemarksofAirLink101.

Allotherproductorservicenamesarethepropertyoftheirrespectiveholders.AirLink101 products are protected under numerous U.S. and

foreignpatentsandpendingapplications,maskworkrights,andcopyrights.

*TheoreticalmaximumwirelesssignalratebasedonIEEEstandard802.11gspecifications.Actualdatathroughputwillvary.Networkconditions

andenvironmentalfactors,includingvolumeofnetworktraffic,buildingmaterialsandconstruction,mixofwirelessproductsused,radio

frequencyinterference(e.g.,cordlesstelephonesandmicrowaves)aswell as network overhead lower actual datathroughputrate.

Step 4 Enter the SSID (Network Name) that your wireless router/access point is

using in the SSID field and click OK.

Step 5 Return to the Current Status tab and verify that you have signal strength

andvalid IPaddress.

If your wireless router/access point has encryption enabled, you’ll need to apply

the same encryption settings to theAdapter as well. For information on how to

configureencryption, pleaserefer tothe User’sManual inthe suppliedInstallation

CD.
