Airlink101 AWLL5166HP Bedienungsanleitung

Quick Installation Guide

Wireless N 150 High Power USB Adapter

With 5dBi High Gain Antenna

Model # AWLL5166HP

Install the Wireless USB Adapter

This Quick Installation Guide only provides the basic installation instructions.

For detailed instructions of other advanced features, please refer to the User’s

Manual that can be found on the provided CD.

For Macintosh users, please install the driver before plugging in the USB

adapter. You can find the drivers and installation instruction for MAC 10.4, 10.5,

10.6 under the MAC folder on the provided CD.

Step 1.1 Fasten the provided 5dBi antenna to the USB adapter.

Section 1

Ver.

1

.0

Package Contents:

•Wireless N 150 High Power

USB Adapter

•5dBi High Gain Antenna

•Driver & Utility CD

•Quick Installation Guide

Step 1.2 Insert the USB adapter into an available USB port of your computer.

Step 1.3 Click Cancel when you see the Found New Hardware Wizard.

Windows XP/2000 Users:

Windows Vista Users:

Step 1.4 Insert the Installation CD in the CD drive. The Autorun screen will pop

up. Select Install Utility and Driver from the menu.

Note: If the Autorun screen doesn’t appear automatically, go to to My

Computer →Explore the CD Drive →go to Utility folder, then run Setup.exe.

Windows 7/Vista Users:When you get warning message(s), make sure that

you give permission to continue with the installation of the driver software.

Step 1.5 Click Next to start the installation.

Step 1.6 Please wait when Windows is installing the driver for Airlink101

Wireless Adapter.

Step 1.7 Windows XP Users: click on Continue Anyway.

Windows 7/Vista Users: click on Install this driver software anyway.

Step 1.8 Select Yes, I will restart my computer now. Click Finish to

complete the installation.

The driver and utility have been installed. Please continue to Section 2.

Connect to Wireless Network

Step 2.1 Open the Airlink101 Wireless Monitor utility by double clicking on the

icon in the system tray at the bottom right-hand corner of your screen.

Or you can double click on the Airlink101 Wireless Monitor icon on the desktop.

Section 2

The Airlink101 Wireless Monitor will come up:

Step 2.2 (Optional)

The Easy Setup Button (Wi-Fi Protected Setup) is a new and easy way to

configure the encryption for your wireless network clients. In order to use it, you

need to have a router that supports this feature.

Note: If your router doesn’t support Easy Setup Button function (Wi-Fi

Protected Setup), please go to Step 2.3.

1. Push the Easy Setup Button of the Adapter until you see the following

window pops up on your computer monitor.

This window pops up to acknowledge you the wireless adapter is starting to

establish a connection with the Router/AP.

2. Within the following 2 minutes, push the Easy Setup Button (WPS Button)

on the back of the Router. The picture shows Airlink101 AR570W Wireless N

150 Router.

3. The router will now start to synchronize the encryption settings with the

wireless adapter. The connection will be established in few seconds.

Continue to Step 2.5.

If the connection is unable to establish, continue to Step 2.3.

Step 2.3 Click the Available Network tab of the Wireless Monitor, select the

wireless network that you wish to connect to, and click Add to Profile.

If the network that you are attempting to connect does not have encryption

enabled, you will receive a warning about connecting to an unsecured network.

Click OK to complete the connection. Go to Step 2.5.

Step 2.4 Enter the wireless security key into the Network Key and Confirm

Network Key boxes. Click OK.

The wireless adapter will automatically detect the type of Network

Authentication and the Data encryption. All you need to do is to enter the

Network Key in the appropriate boxes according to the settings of the wireless

router and click OK to connect.

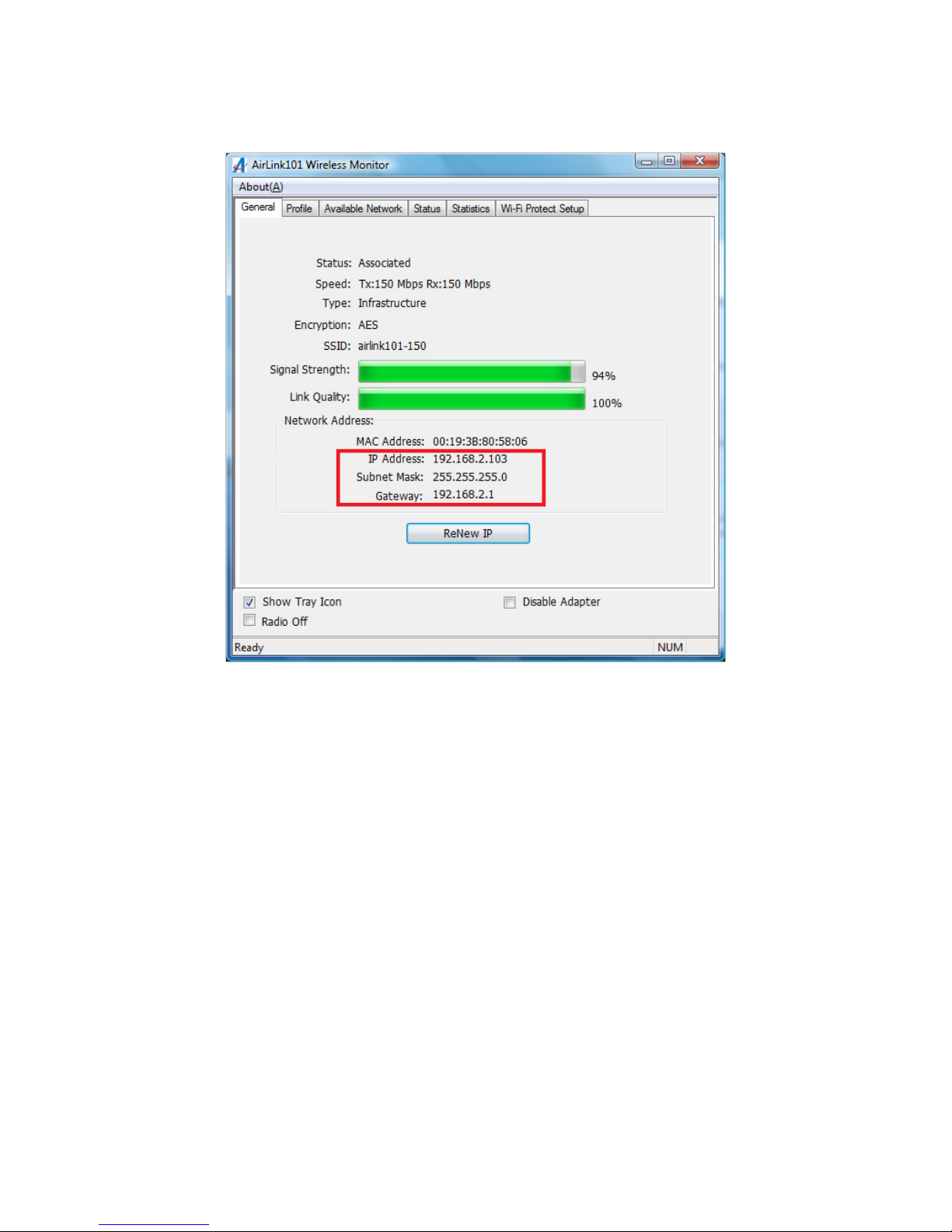

Step 2.5 The connection should be now established. Under the utility

Airlink101 Wireless Monitor, go to General tab to check the status of the

connection. Verify that IP Address, Subnet Mask and Gateway have valid

numbers assigned to them (instead of all 0’s). The Status should be Associated,

and there should be green bars next to Signal Strength and Link Quality.

Congratulations! You have now connected to the wireless network

successfully.
