Airlink101 AWLL6077V2 Bedienungsanleitung

Golden 300N Wireless USB Adapter

Model #: AWLL6077v2

Installation Instructions for

MAC OS 10.4/10.5

Rev. 1.0

2

1. Install Wireless USB Adapter

This section provides instructions on how to install the Golden 300N Wireless USB

Adapter. The driver is installed along with the utility.

Step 1 Insert the USB adapter into an available USB port of the computer. Insert the

provided CD into the CD drive.

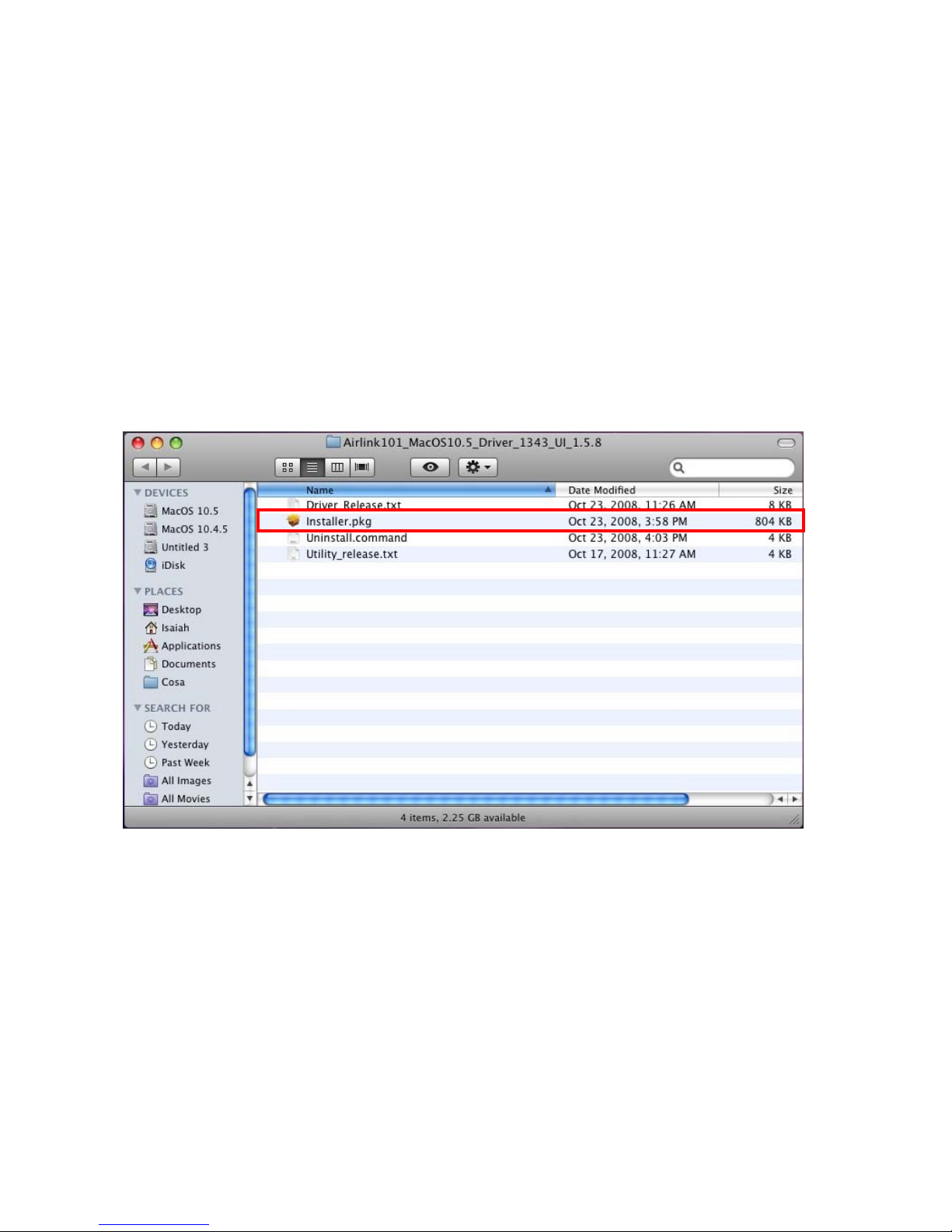

Step 2 Explore the CD content, go to MAC > Airlink101_USB_MACOS10.4_Driver or

Airlink101_USB_MACOS10.5_Driver (depends on your MAC OS version).

Double click Installer.pkg from the driver folder.

Step 3 Introduction: The “Install Airlink101 Wireless N USB Adapter” window will pop

up. Click Continue.

3

Step 4 Read Me: Click Continue to begin the installation.

4

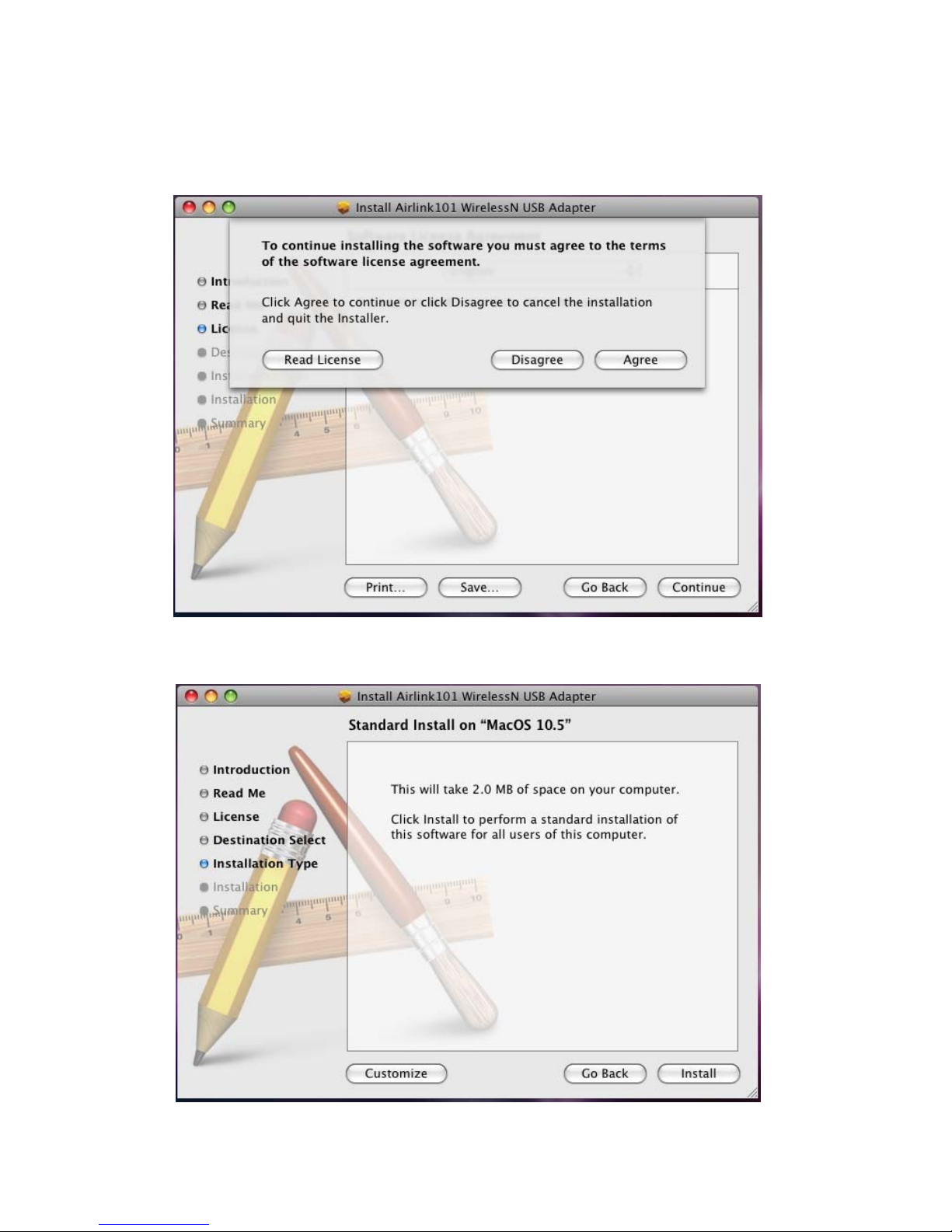

Step 5 License: Click Continue.

ClickAgree to install.

Step 6 Installation Type: click Install to perform a standard installation.

5

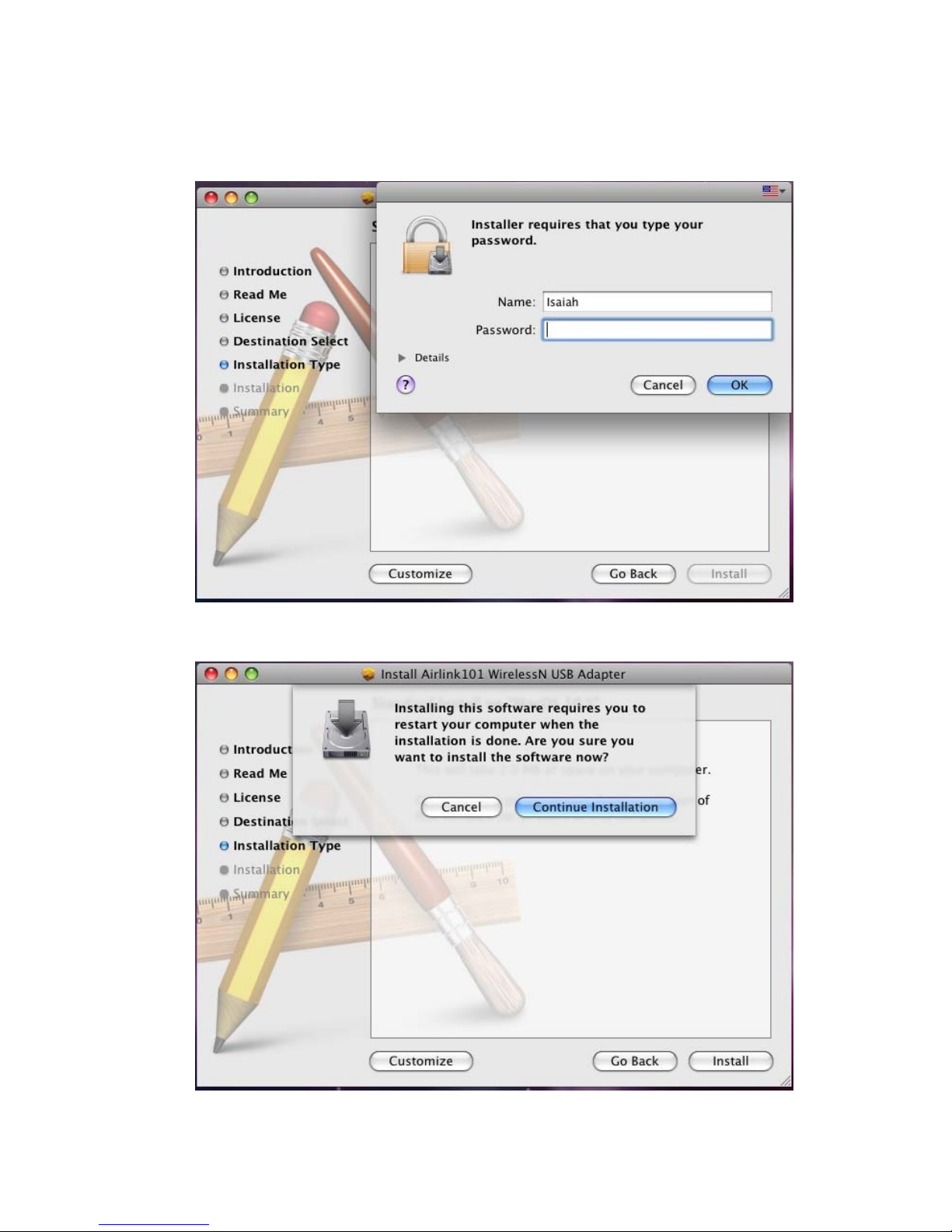

Enter your password and click OK.

Click Continue Installation.

6

Step 7 Installation: Wait while the software is being installed.

Step 8 Summary: Click Restart to restart your computer.

7

2. Connect to Wireless Network

This section describes how to connect your wireless USB adapter to a wireless network.

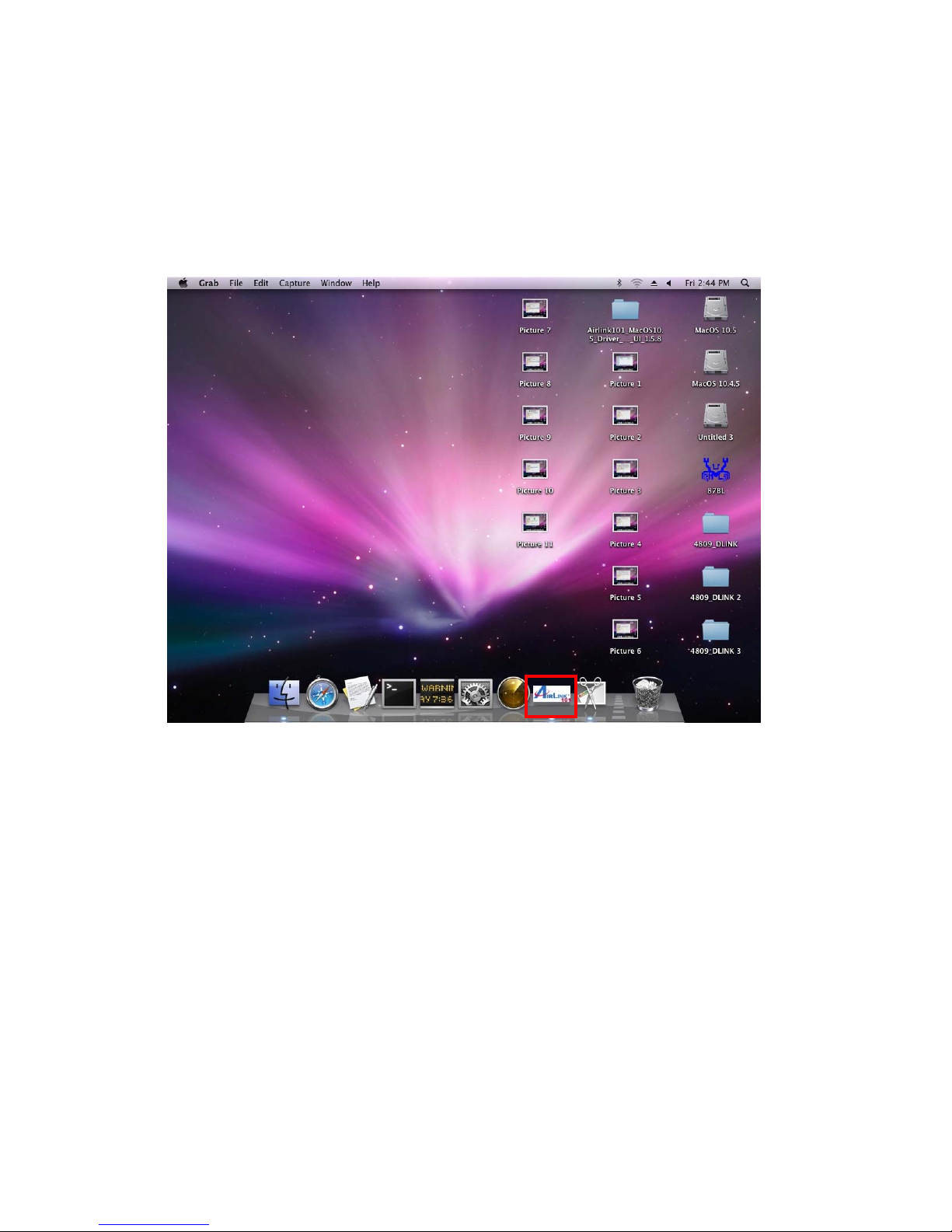

Open the Airlink101 Wireless Monitor utility by double clicking on its icon in the system

tray at the bottom of your screen.

Please select the wireless USB adapter you just installed in System Preferences//

Network and click Apply Now.

8

Step 1 Click the Available Network tab, select the SSID (Network Name) of the

wireless network you wish to connect to, and click Add to Profile.

If the network that you are attempting to connect does not have encryption enabled, you

will receive a warning about connecting to an unsecured network. Click OK to complete

the connection. Go to Step 3.

If the network that you are attempting to connect is configured for encryption, the

Wireless Network Properties window will appear:

9

Step 2 Enter the network security key of your wireless router or AP into Network key and

Confirm network key boxes.

The Adapter may automatically detect the type of Network Authentication and Data

Encryption. You need to enter the security settings in the Network key, Confirm

network key boxes according to the settings of the wireless router or AP then click OK

to connect.

Step 3 The connection is now established. You can check the status of your connection

under “Link Status” tab. The Connection should be Connected, and there should be a

blue bar displaying the Signal Strength.

10

Congratulations! You have now successfully connected to the wireless network. You may

refer to the User Manual in this Installation CD for detailed instructions of other advanced

features of Airlink101 Wireless Monitor.
