Allied Telesis AT-XEM-12S Bedienungsanleitung

x900 Series Switch and SwitchBlade®x908

Expansion Module

Installation Guide

XEM-1XP

XEM-12S

XEM-12T

XEM-STK

x900 Series Switch and SwitchBlade

x908

Expansion Module Installation Guide

XEM-1XP

XEM-12S

XEM-12T

XEM-STK

Download the complete document set from

www.alliedtelesis.com/support/software

XEM_IG.fm Page 1 Monday, July 23, 2007 3:19 PM

Expansion Modules

x900 Series Switch and SwitchBlade®x908 Expansion Module Installation Guide

Document Number 613-000032 REV F

may be reproduced without prior written permission from Allied Telesis, Inc.

Allied Telesis, Inc. reserves the right to change specifications and other

information in this document without prior written notice. The information

provided herein is subject to change without notice. In no event shall Allied

Telesis, Inc. be liable for any incidental, special, indirect, or consequential

damages whatsoever, including but not limited to lost profits, arising out of or

related to this manual or the information contained herein, even if Allied Telesis,

Inc. has been advised of, known, or should have known, the possibility of such

damages.

Allied Telesis, AlliedWare, AlliedWare Plus, and SwitchBlade are trademarks or

registered trademarks in the United States and elsewhere of Allied Telesis, Inc.

Adobe, Acrobat, and Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

Microsoft and Visio are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries. Additional brands,

names and products mentioned herein may be trademarks of their respective

companies.

XEM_IG.fm Page 2 Monday, July 23, 2007 3:19 PM

Installation Guide

Contents

About this Guide .............................................................................................................. 4

Compatible Switches and Operating Systems ........................................................... 4

Package Contents ............................................................................................................. 4

XEM-1XP 10Gigabit XFP Port ...................................................................................... 5

XEM-12S 100/1000BASE-X SFP Ports ........................................................................ 7

XEM-12T 10/100/1000BASE-T RJ-45 Ports ............................................................... 9

XEM-STK Stacking Ports .............................................................................................. 10

Installation Procedure .................................................................................................... 12

Obtaining Documentation and Resources ............................................................... 15

XEM_IG.fm Page 3 Monday, July 23, 2007 3:19 PM

Expansion Modules

About this Guide

Optional expansion modules (XEMs) enable economical combinations of port

type, speed and density in a single switch. Front bays in the switch allow quick

and easy installation.

This Installation Guide describes how to install the following XEMs:

■XEM-1XP, a single XFP port for high-speed fibre connections

■XEM-12S, 12 SFP ports for copper and fibre links

■XEM-12T, 12 x 10/100/1000Mbps RJ-45 ports for maximum port density

■XEM-STK, dual stacking ports for scalability and high availability

You can download the complete document set for x900 Series switches and

SwitchBlade® x908 from www.alliedtelesis.com/support/software. For more

information about the document set and other resources, see “Obtaining

Documentation and Resources” on page 15.

Compatible Switches and Operating Systems

XEMs can be installed in the following switches:

■x900-12XT/S

■x900-24XT

■x900-24XT-N

■x900-24XS

■SwitchBlade x908

The AlliedWare Plus™ Operating System supports all XEMs. The AlliedWare®

Operating System supports all XEMs except the XEM-STK.

Package Contents

The following items are included with each XEM. Contact your authorised Allied

Telesis distributor or reseller if any items are damaged or missing.

■this Installation Guide

■one warranty card

XEM_IG.fm Page 4 Monday, July 23, 2007 3:19 PM

Installation Guide

XEM-1XP 10Gigabit XFP Port

The XEM-1XP single-port 10Gigabit Ethernet expansion module features:

■one XFP port

■LEDs showing port status

■32MBytes of DDR SDRAM for packet buffering

■support for hot-swappable XFP transceiver modules

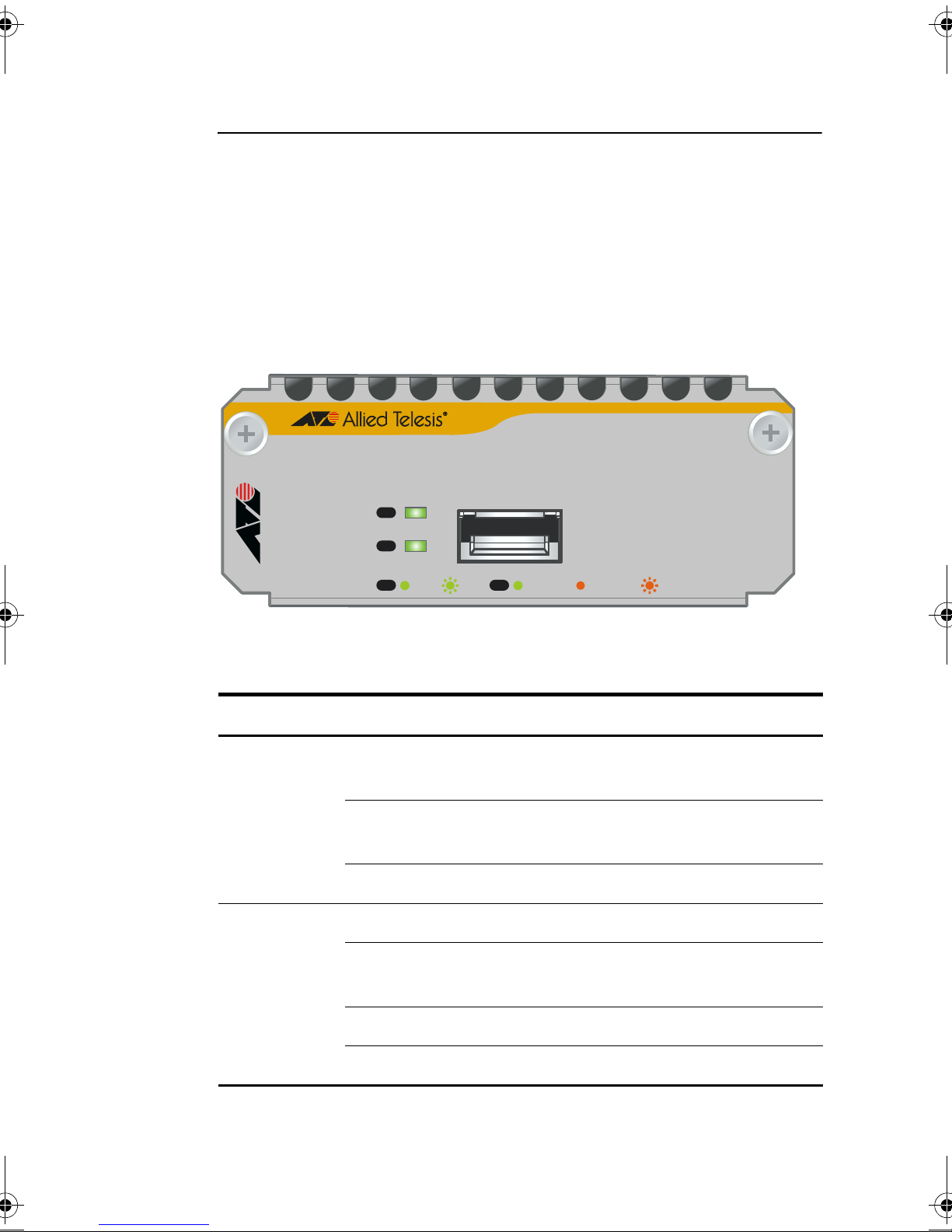

Front view XEM-1XP

The following LEDs report operations and faults on the XEM-1XP.

LED State Description

L/A

(Link Activity)

Green An XFP transceiver is installed and a 10Gb

link has been established.

Green flashing An XFP transceiver is installed and link

activity is occurring.

Off A link has not been established.

XFP Green An XFP transceiver is installed and enabled.

Amber An XFP transceiver is installed but not

operating or is disabled.

Amber flashing The installed XFP transceiver has a fault.

Off An XFP transceiver is not installed.

XFP

L/A

LINK ACT ENABLED DISABLED FAULT

XEM-1XP

XEM_IG.fm Page 5 Monday, July 23, 2007 3:19 PM

Expansion Modules

The following XFP transceiver modules are approved for use with the XEM-1XP.

For the latest list of approved XFP transceiver modules, contact your authorised

Allied Telesis distributor or reseller.

Product No. Media Type Description

AT-XPSR 10GBASE-SR 850nm short-haul transmission, 300m with

MM fibre.

AT-XPLR 10GBASE-LR 1310nm medium-haul transmission, 10km

with SM fibre.

AT-XPER40 10GBASE-ER 1550nm long-haul transmission, 40km with

SM fibre.

XEM_IG.fm Page 6 Monday, July 23, 2007 3:19 PM

Installation Guide

XEM-12S 100/1000BASE-X SFP Ports

The XEM-12S 12-port 100/1000BASE-X expansion module features:

■two rows of 6 SFP ports

■LEDs showing port status

■32MBytes of DDR SDRAM for packet buffering

■support for hot-swappable SFP transceiver modules

■NEBS compliant

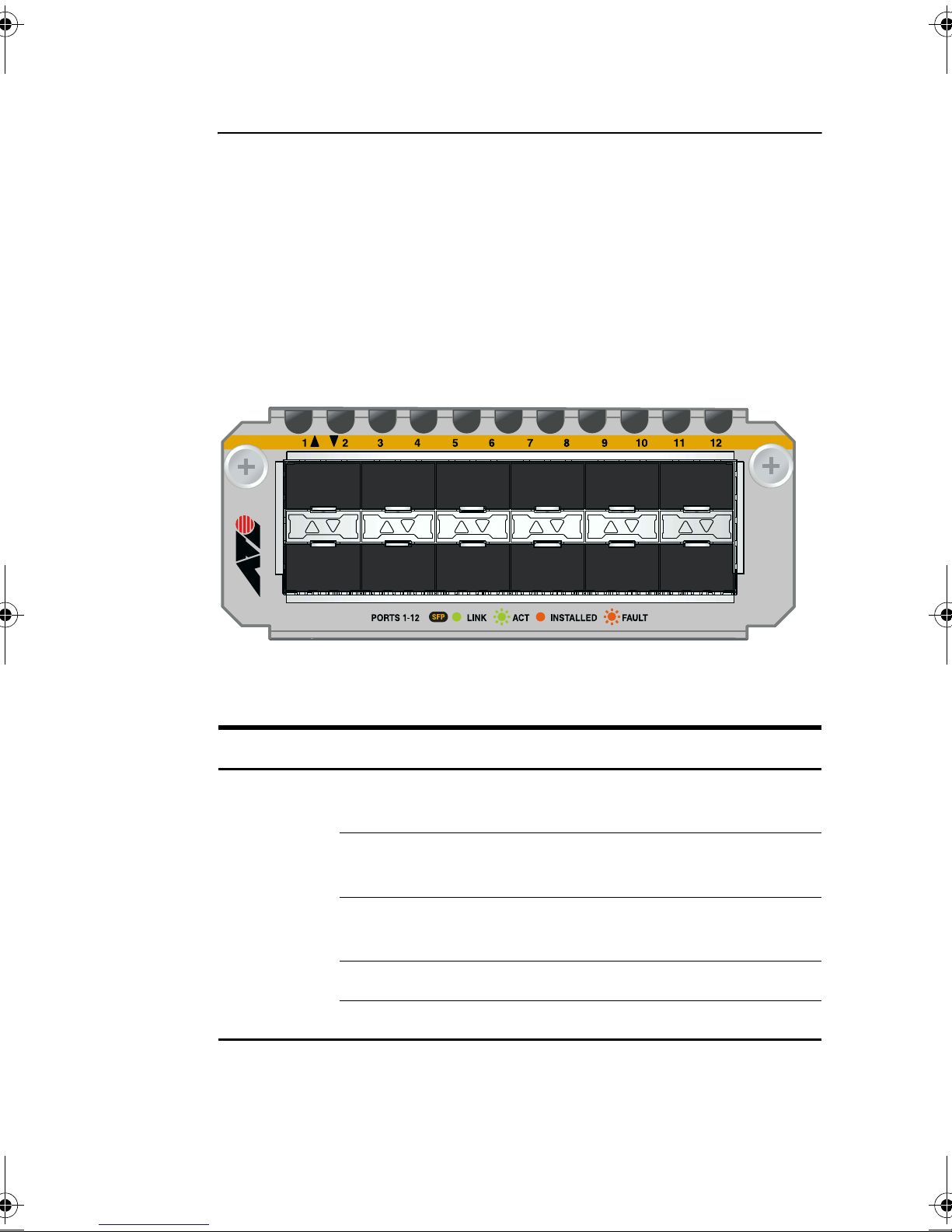

Front view XEM-12S

The following LEDs report operations and faults on the XEM-12S.

LED State Description

SFP Green An SFP transceiver is installed and a link has

been established.

Green flashing An SFP transceiver is installed and link

activity is occurring.

Amber An SFP transceiver is installed but a link has

not been established.

Amber flashing An SFP is installed but there is a fault.

Off An SFP is not installed.

XEM-12S

XEM_IG.fm Page 7 Monday, July 23, 2007 3:19 PM

Expansion Modules

The following SFP transceiver modules are approved for use with the XEM-12S.

For the latest list of approved SFP transceiver modules, contact your authorised

Allied Telesis distributor or reseller.

Product No. Media Type Description

AT-SPTX 10/100/1000BASE-T Copper, 100m at 1000Mbps,

RJ-45 connector.

AT-SPFXBD-LC-131

1. Both ends of an individual fibre must use SFPs of a compatible wavelength.

100BASE-BX Bi-Di (1550nm Tx, 1310nm Rx) SM

fibre up to 15km.

AT-SPFXBD-LC-151 100BASE-BX Bi-Di (1310nm Tx, 1550nm Rx) SM

fibre up to 15km.

AT-SPFX/2 100BASE-FX 1310nm MM fibre up to 2km.

AT-SPFX/15 100BASE-FX 1310nm SM fibre up to 15km.

AT-SPFX/40 100BASE-FX 1310nm SM fibre up to 40km.

AT-SPSX 1000BASE-SX 850nm, 2 to 550 m with 50/125µm

MM fibre, 2m to 275m with 62.5/

125µm MM fibre, LC connector.

AT-SPLX10 1000BASE-LX 1310 nm, 2 m to 10km with 9µm SM

fibre, 2 m to 550 m with 50µm MM

fibre, 2m to 550m with 62.5µm MM

fibre, LC connector.

AT-SPLX40 1000BASE-LX 1310nm SM fibre up to 40km,

LC connector.

AT-SPLX40/1550 1000BASE-LX 550nm SM fibre up to 40km,

LC connector.

AT-SPZX80 1000BASE-ZX 1550nm, 80km with 9µm SM fibre,

LC connector.

AT-SPZX80/xxxx1

where xxxx is:

1610, 1590, 1570,

1550, 1530, 1510,

1490, 1470, or 1310

1000BASE-ZX

CWDM

1610nm to 1470nm (20nm

intervals) and 1310nm, 80km with

9µm SM fibre, LC connector.

XEM_IG.fm Page 8 Monday, July 23, 2007 3:19 PM

Installation Guide

XEM-12T 10/100/1000BASE-T RJ-45 Ports

The XEM-12T 12-port RJ-45 expansion module features:

■two rows of 6 RJ-45 ports

■gigabit ports that support speeds of 10/100/1000Mbps

■LEDs showing port status

■32MBytes of DDR SDRAM for packet buffering

■cable fault detection and distance-to-fault diagnostics on switches running

the AlliedWare operating system (see the Test Facility chapter in the Software

Reference for the switch)

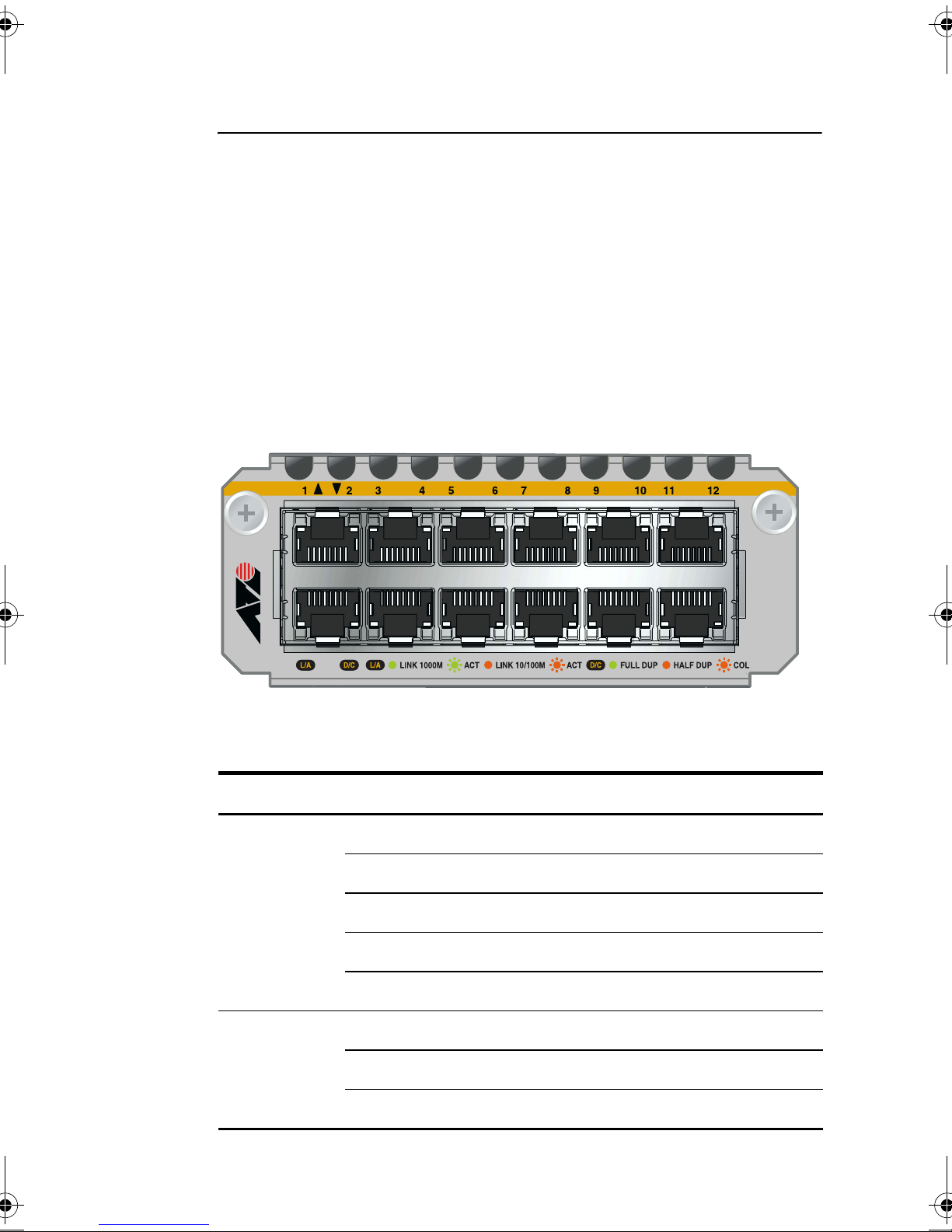

Front view XEM-12T

The following LEDs report operations and faults on the XEM-12T.

LED State Description

L/A

(Link Activity)

Green A 1000Mbps link has been established.

Green flashing 1000Mbps activity is occurring.

Amber A 10/100Mbps link has been established.

Amber flashing 10/100Mbps activity is occurring.

Off A link has not been established.

D/C

(Duplex/

Collision)

Green The port is operating in full duplex mode.

Amber The port is operating in half duplex mode.

Amber flashing Collisions are occurring.

XEM-12T

XEM_IG.fm Page 9 Monday, July 23, 2007 3:19 PM
