AT-FS705PD

Fast Ethernet Switch

Installation Guide

PN 613-50465-00 Rev B

960 Stewart Drive Suite B, Sunnyvale CA 94085, USA

permission from Allied Telesyn, Inc.

Ethernet is a registered trademark of Xerox Corporation. All other product names,

company names, logos or other designations mentioned herein are trademarks or

registered trademarks of their respective owners.

Allied Telesyn, Inc. reserves the right to make changes in specifications and other

information contained in this document without prior written notice. The information

provided herein is subject to change without notice. In no event shall Allied Telesyn,

Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever,

including but not limited to lost profits, arising out of or related to this manual or the

information contained herein, even if Allied Telesyn, Inc. has been advised of, known, or

should have known, the possibility of such damages.

iii

Electrical Safety and Emission Compliance

Statements

Standards: This product meets the following standards:

U.S. Federal Communications Commission

Declaration Of Conformity

Manufacturer Name: Allied Telesyn, Inc.

Manufacturer Address: 960 Stewart Drive, Suite B

Sunnyvale, CA 94085 USA

Manufacturer Telephone: 408-730-0950

Declares that the product: Fast Ethernet Switch

Model Numbers: AT-FS705PD

This product complies with FCC Part 15B, Class B Limits:

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device must not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Radiated Energy

Note: This equipment has been tested and found to comply with the limits

for a Class B digital device pursuant to Part 15 of FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with instructions, may cause harmful interference to radio or

television reception, which can be determined by turning the equipment

off and on. The user is encouraged to try to correct the interference by one

or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes and modifications not expressly approved by the manufacturer

or registrant of this equipment can void your authority to operate this

equipment under Federal Communications Commission rules.

Industry Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur le matériel brouilleur du Canada.

Electrical Safety and Emission Compliance Statements

RFI Emission FCC Class B, EN55022 Class B,

VCCI Class B, C-TICK  1

Immunity EN55024

2

Electrical Safety EN60950 (TUV), UL60950 (cULus), CE3

Important: Appendix B contains translated safety statements for installing

this equipment. When you see the , go to Appendix B for the translated

safety statement in your language.

Wichtig: Anhang B enthält übersetzte Sicherheitshinweise für die

Installation dieses Geräts. Wenn Sie sehen, schlagen Sie in Anhang B

den übersetzten Sicherheitshinweis in Ihrer Sprache nach.

Vigtigt: Tillæg B indeholder oversatte sikkerhedsadvarsler, der vedrører

installation af dette udstyr. Når De ser symbolet , skal De slå op i tillæg

B og finde de oversatte sikkerhedsadvarsler i Deres eget sprog.

Belangrijk: Appendix B bevat vertaalde veiligheidsopmerkingen voor het

installeren van deze apparatuur. Wanneer u de ziet, raadpleeg

Appendix B voor vertaalde veiligheidsinstructies in uw taal.

Important: L'annexe B contient les instructions de sécurité relatives à

l'installation de cet équipement. Lorsque vous voyez le symbole ,

reportez-vous à l'annexe B pour consulter la traduction de ces instructions

dans votre langue.

Tärkeää: Liite B sisältää tämän laitteen asentamiseen liittyvät käännetyt

turvaohjeet. Kun näet -symbolin, katso käännettyä turvaohjetta

liitteestä B.

Importante: l’Appendice B contiene avvisi di sicurezza tradotti per

l’installazione di questa apparecchiatura. Il simbolo , indica di consultare

l’Appendice B per l’avviso di sicurezza nella propria lingua.

Viktig: Tillegg B inneholder oversatt sikkerhetsinformasjon for installering

av dette utstyret. Når du ser , åpner du til Tillegg B for å finne den

oversatte sikkerhetsinformasjonen på ønsket språk.

Importante: O Anexo B contém advertências de segurança traduzidas para

instalar este equipamento. Quando vir o símbolo , leia a advertência de

segurança traduzida no seu idioma no Anexo B.

Importante: El Apéndice B contiene mensajes de seguridad traducidos

para la instalación de este equipo. Cuando vea el símbolo , vaya al

Apéndice B para ver el mensaje de seguridad traducido a su idioma.

Obs! Bilaga B innehåller översatta säkerhetsmeddelanden avseende

installationen av denna utrustning. När du ser , skall du gå till Bilaga B

för att läsa det översatta säkerhetsmeddelandet på ditt språk.

Table of Contents

Electrical Safety and Emission Compliance Statements .....................iii

Table of Contents ............................................................................................ v

Welcome to Allied Telesyn ..........................................................................vii

Where to Find Related Guides.........................................................................vii

Documentation Conventions............................................................................vii

Contacting Allied Telesyn ...............................................................................viii

Online Support .........................................................................................viii

E-mail and Telephone Support................................................................viii

Returning Products ..................................................................................viii

For Sales or Corporate Information ........................................................viii

Chapter 1

Overview ........................................................................................................... 1

Key Features....................................................................................................... 2

Status LEDs........................................................................................................ 3

Powering Options ........................................................................................ 4

Twisted Pair Ports.............................................................................................. 4

Port Speed........................................................................................................... 5

Duplex Mode ....................................................................................................... 5

Auto MDI/MDI-X ................................................................................................ 6

MAC Address Table............................................................................................ 6

Store and Forward.............................................................................................. 7

Network Topologies ............................................................................................ 8

Standalone ................................................................................................... 8

Uplink .......................................................................................................... 9

Chapter 2

Installation ..................................................................................................... 11

Verifying the Package Contents ...................................................................... 11

Planning the Installation ................................................................................. 12

Selecting a Site .......................................................................................... 13

Reviewing Safety Guidelines .................................................................... 14

Installing the Switch on a Desktop..................................................................15

Wall-Mounting the Switch ...............................................................................17

Warranty Registration .....................................................................................20

Chapter 3

Troubleshooting ............................................................................................21

Appendix A

Technical Specifications .............................................................................23

Physical .............................................................................................................23

Environmental ..................................................................................................23

Electrical Rating ...............................................................................................23

Agency Compliance...........................................................................................24

Pinout Assignments..........................................................................................24

Appendix B

Translated Safety and Emission Information ........................................27

vii

This guide contains instructions on how to install and configure the

AT-FS705PD Fast Ethernet Switch.

Where to Find Related Guides

The Allied Telesyn web site at www.alliedtelesyn.com offers you an easy

way to access the most recent documentation, software, and technical

information for all of our products. For product guides, select “Support &

Services” from our web site.

Documentation Conventions

This guide uses the following conventions:

Note

Notes provide additional information.

Caution

Cautions indicate that performing or omitting a specific action may

result in equipment damage or loss of data.

Warning

Warnings indicate that performing or omitting a specific action may

result in bodily injury.

Welcome to Allied Telesyn

viii

Contacting Allied Telesyn

This section provides Allied Telesyn contact information for technical support

as well as sales or corporate information.

Online Support

You can request technical support online by accessing the Allied Telesyn

Knowledge Base from the following web site: http://kb.alliedtelesyn.com.

You can use the Knowledge Base to submit questions to our technical support

staff and review answers to previously asked questions.

E-mail and Telephone Support

For Technical Support via E-mail or telephone, refer to the Support & Services

section of the Allied Telesyn web site: http://www.alliedtelesyn.com.

Returning Products

Products for return or repair must first be assigned a Return Materials

Authorization (RMA) number. A product sent to Allied Telesyn without a

RMA number will be returned to the sender at the sender’s expense.

To obtain a RMA number, contact Allied Telesyn’s Technical Support at our

web site: http://www.alliedtelesyn.com.

For Sales or Corporate Information

You can contact Allied Telesyn for sales or corporate information at our web

site: http://www.alliedtelesyn.com. To find the contact information for your

country, select “Contact Us” then “Worldwide Contacts.”

Chapter 1

Overview

The AT-FS705PD is a 5-port Unmanaged Fast Ethernet Switch that includes

one Power-Over-Ethernet (POE) port. This switch is considered a Class 1

Powered Device (PD) and can be used in pair with any IEEE 802.3af/D4.3 or

later compliant Power Sourcing Equipment (PSE).

This switch offers a range of features and capabilities that can be used in a

variety of network configurations and topologies. It also serves the following

functions:

❑Creating small workgroups with dedicated 10 megabits per second

(Mbps) and 100 Mbps links to your network devices, such as

workstations, servers, printers, and routers.

❑Interconnecting Ethernet hubs or switches to provide a bridge

between the different workgroups of your network.

❑Connecting to other Ethernet switches so that they can be part of a

larger Ethernet network.

❑Maximizing your existing network by providing full-duplex operation

over a twisted pair port.

❑Receiving both data and power through its POE port.

The POE port allows data and power be transmitted over the same single

twisted pair cable without power sourcing consideration or electric rewires.

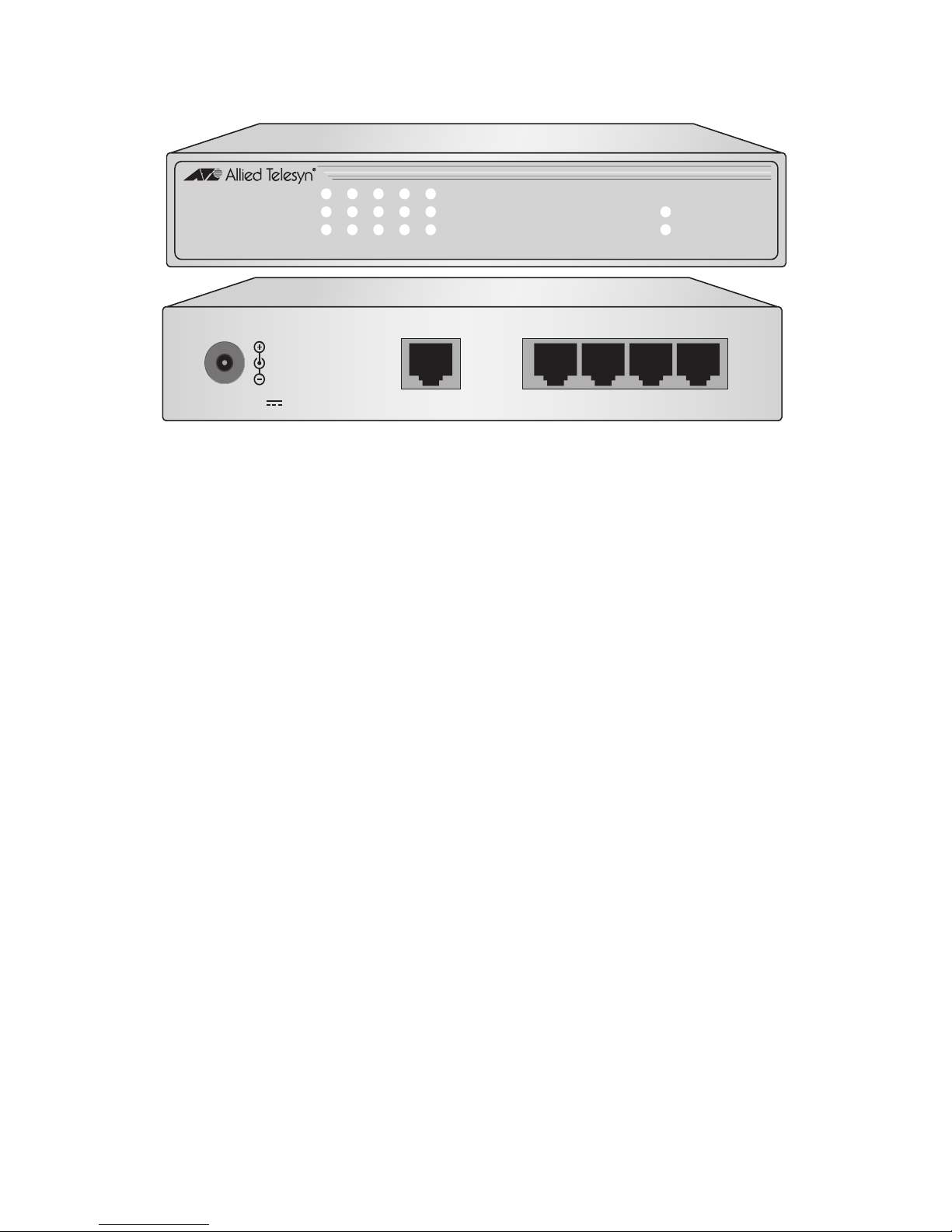

The AT-FS705PD switch features five 10/100 Mbps twisted pair ports with

one port dedicated for POE operation. Each twisted pair port has an RJ-45

connector with a maximum operating distance of 100 meters (328 feet). The

twisted pair port can operate at 10 Mbps or 100 Mbps and in half- or full-

duplex mode.

The AT-FS705PD switch can be used on a desktop or mounted on a wall. The

switch is easy to install and does not require software configuration or

management.

Overview

Figure 1 illustrates the front and back panels of the AT-FS705PD switch.

Figure 1 AT-FS705PD Switch Front and Back Panels

Key Features

The AT-FS705PD switch has the following key features:

❑Five 10/100Base-TX ports using RJ-45 twisted pair connectors

❑Power-Over-Ethernet PD Support

❑System and port LEDs

❑Auto MDI/MDI-X on all ports

❑Auto-Negotiation on all ports (IEEE 802.3u-compliant)

❑Non-blocking architecture

❑Store and forward packet handling

❑Backpressure and flow control (IEEE 802.3x-compliant)

❑Storage for up to 2,048 MAC addresses with aging time at 300 seconds

❑Maximum frame size of 1536 Byte

❑For use on a desktop or wallmount

AT-FS705PD

5 Port Fast Ethernet Switch

Powered Device

100M

54321

LINK /ACT

FDX

PWR

POE

WALL

24V D C 12345

POE

Inhaltsverzeichnis

Andere Allied Telesis Netzwerk-Router Handbücher

Allied Telesis

Allied Telesis AR400 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9000/12PoE Bedienungsanleitung

Allied Telesis

Allied Telesis AR410 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8000GS/24 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-AR236E Bedienungsanleitung

Allied Telesis

Allied Telesis AT-AR236E Bedienungsanleitung

Allied Telesis

Allied Telesis AR400 Series Originalbetriebsanleitung

Allied Telesis

Allied Telesis AT-AR415S Bedienungsanleitung

Allied Telesis

Allied Telesis AR745 Bedienungsanleitung

Allied Telesis

Allied Telesis AR725 Installations- und Betriebsanleitung

Allied Telesis

Allied Telesis AT-TN7100 Bedienungsanleitung

Allied Telesis

Allied Telesis AR100 series Bedienungsanleitung

Allied Telesis

Allied Telesis AR Router Kurzanleitung

Allied Telesis

Allied Telesis AT-AR256E Bedienungsanleitung

Allied Telesis

Allied Telesis Patch 54266-02 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-GS950/8 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-AR256E Bedienungsanleitung

Allied Telesis

Allied Telesis AT-AR240E Bedienungsanleitung

Allied Telesis

Allied Telesis AlliedWare NetScreen Routers Montage- und Wartungsanleitung

Allied Telesis

Allied Telesis AT-FS202 Series Bedienungsanleitung

Allied Telesis

Allied Telesis VPN Bedienungsanleitung

Allied Telesis

Allied Telesis AT-GS950/8 Bedienungsanleitung

Allied Telesis

Allied Telesis Rapier AR 300 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9724TS Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
