Allied Telesis CentreCOM FS980M Series Bedienungsanleitung
613-003080 Rev A
'# ( %.3D.'
CentreCOM® FS980M Series
Fast Ethernet Switches
AlliedWare Plus™
FS980M/9 FS980M/9PS
FS980M/18 FS980M/18PS
FS980M/28 FS980M/28PS FS980M/28DP
FS980M/52 FS980M/52PS
Quick Installation Guide
2 CentreCOM FS980M Series Quick Installation Guide
Introduction
This Quick Installation Guide contains a short version of the
installation instructions for the CentreCOM FS980M Series of Fast
Ethernet Managed Access Switches. For more instructions, refer to
the FS980M Series Fast Ethernet Switch Series Installation Guide on
the Allied Telesis web site at www.alliedtelesis.com/us/en/
services-support. This guide contains the following sections:
“Front Panels” next
“PoE+ Power Budgets” on page 6
“Combo Ports” on page 6
“VCStack Feature” on page 7
“Beginning the Installation” on page 8
“Installing the Switch” on page 12
“Ports” on page 17
“Powering On the Switch” on page 20
“LEDs” on page 21
“Starting a Local Management Session” on page 25
“Disabling the VCStack Feature” on page 26
“Troubleshooting” on page 27

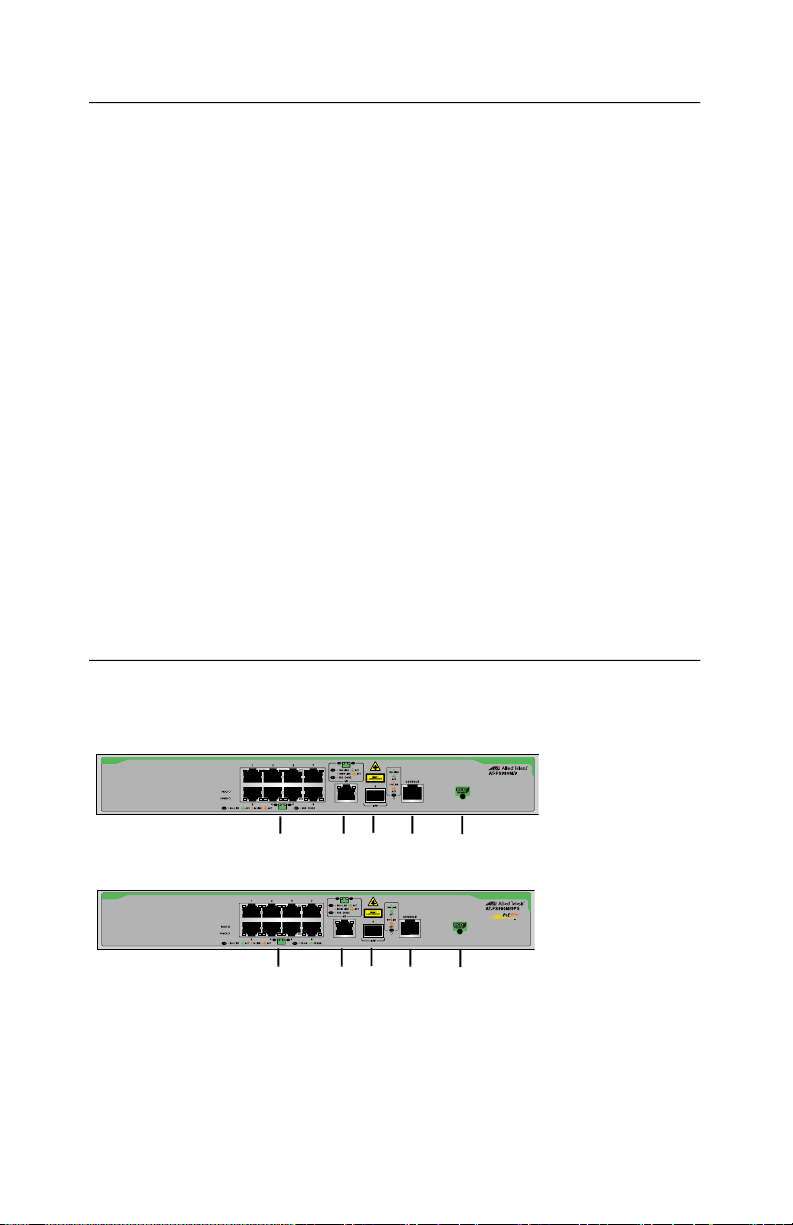

Front Panels
Here are the front panels of the FS980M Switches.
FS980M/9
1 2 456
32456
FS980M/9PS
CentreCOM FS980M Series Quick Installation Guide 3
FS980M/18
FS980M/18PS
FS980M/28
FS980M/28PS
FS980M/28DP
FS980M/52
FS980M/52PS
12456
32456
1456
34 5 6
34 5 6
14 5 6
34 5 6
4 CentreCOM FS980M Series Quick Installation Guide
Here are the 10/100Mbps Ethernet copper ports.
Here are the 10/100/1000Mbps Ethernet copper ports.
1 10/100 Mbps Ethernet copper ports
2 10/100/1000Mbps Ethernet copper ports
3 10/100Mbps Ethernet copper ports with PoE+
4 100/1000Mbps SFP transceiver ports
5 Console port
6 eco-friendly button
Switch 10/100Mbps Copper
Ports
10/100Mbps Copper
Ports with PoE+
FS980M/9 1 to 8 -
FS980M/9PS - 1 to 8
FS980M/18 1 to 16 -
FS980M/18PS - 1 to 16
FS980M/28 1 to 24 -
FS980M/28PS - 1 to 24
FS980M/28DP - 1 to 24
FS980M/52 1 to 48 -
FS980M/52PS - 1 to 48
Switch 10/100/1000Mbps Copper Ports
FS980M/9 9R (Combo)
FS980M/9PS 9R (Combo)
FS980M/18 17R and 18R (Combo)
FS980M/18PS 17R and 18R (Combo)
FS980M/28 -
CentreCOM FS980M Series Quick Installation Guide 5
Here are the 100/1000Mbps SFP ports.
Power Supplies
All the FS980M Switches, except for the FS980M/28DP Switch, have
one AC power supply and one AC power cord connector on the back
panel.
The FS980M/28DP Switch has two AC power supplies and two AC
power cord connectors on the back panel for redundant system and
PoE+ power. When both power supplies are receiving power, one
power supply is active and the other is redundant power. If the active
power supply loses power, the redundant power supply automatically
becomes active and supplies system and PoE+ power for the switch.
FS980M/28PS -
FS980M/28DP -
FS980M/52 -
FS980M/52PS -
Switch 100/1000Mbps SFP Ports
FS980M/9 9 (Combo)
FS980M/9PS 9 (Combo)
FS980M/18 17 and 18 (Combo)
FS980M/18PS 17 and 18 (Combo)
FS980M/28 25 to 28
FS980M/28PS 25 to 28
FS980M/28DP 25 to 28
FS980M/52 49 to 52
FS980M/52PS 49 to 52
Switch 10/100/1000Mbps Copper Ports
6 CentreCOM FS980M Series Quick Installation Guide
PoE+ Power Budgets
The PoE+ power budgets of the PoE+ switches are listed here.
Power budgets are the maximum amounts of power that PoE+
switches can provide to powered devices on the Ethernet copper
ports.
The switches support IEEE 802.3at PoE+ Classes 0 to 4 devices.
(Maximum 30.0W at the switch ports.)
The PoE+ budget of the FS980M/28DP Switch is 375W when one or
both power supplies are powered on.
Note: The maximum number of powered devices that the switches
can support simultaneously will depend on the power requirements
of the devices.
Combo Ports
The FS980M/9, FS980M/9PS, FS980M/18, and FS980M/18PS
Switches have one or two combo ports. The combo ports have one
10/100/1000Mbps Ethernet copper port and one SFP transceiver
port. The Ethernet copper ports have the letter “R” for “Redundant” on
the front panels of the switches. The combo ports are listed here.
Switch PoE+ Power Budget
FS980M/9PS 150 watts
FS980M/18PS 250 watts
FS980M/28PS 375 watts
FS980M/28DP 375 watts: 1 or 2 active power supplies
FS980M/52PS 375 watts
CentreCOM FS980M Series Quick Installation Guide 7
Here are the guidelines:
Only one port in a combo is active at a time. It can be either the
Ethernet copper port or a corresponding SFP module.
The Ethernet copper port is the active combo port when its SFP
port is empty or the SFP module is not linked to an end node.
The SFP port is the active combo port when its SFP transceiver
establishes a link with a network device. The Ethernet port is
placed in a blocking state.
VCStack Feature
The VCStack feature is used to manage up to four FS980M Switches
as a single virtual unit. The switches synchronize their actions so that
switching operations (such as spanning tree protocols, virtual LANs,
and static port trunks) span across all the ports and switches. Two
advantages of stacks are:
You can manage multiple units simultaneously, which can
simplify network management.
You can add redundancy to your network topology by distributing
network functions across different switches. For example, the
ports of a static port trunk on a standalone switch have to be from
on the same switch. In contrast, the ports of a static trunk in a
stack can be from different switches in the same stack.
For instructions on VCStack, refer to the CentreCOM FS980M
Series Command Reference for AlliedWare Plus.
Switch
Combo Ports
Ethernet Copper
Port SFP port
FS980M/9 and
FS980M/9PS 9R 9
FS980M/18
and FS980M/
18PS
17R 17
18R 18
8 CentreCOM FS980M Series Quick Installation Guide
Note: The FS980M/9, FS980M/9PS, FS980M/18, and FS980M/
18PS Switches do not support VCStack.
Beginning the Installation
Reviewing Safety Precautions
Review the following safety precautions before installing the product.
Note: The symbol indicates that a translation of the safety
statement is available in the PDF document “Translated Safety
Statements” on the Allied Telesis website at
www.alliedtelesis.com/us/en/documents/translated-safety-
statements.
Warning: Class 1 Laser product.
L1
Warning: Do not stare into the laser beam.
L2
Warning: Power cord is used as a disconnection device.
To de-energize equipment, disconnect the power cord.
E3
Warning: To prevent electric shock, do not remove the
cover. No user-serviceable parts inside. This unit
contains hazardous voltages and should only be opened
by a trained and qualified technician. To avoid the
possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the
cables. E1
Warning: Class I Equipment. This equipment must be
earthed. The power plug must be connected to a
properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on
accessible metal parts. E4
CentreCOM FS980M Series Quick Installation Guide 9
Installation Options
Here are the installation options.
Warning: The device is heavy. Always ask for
assistance before moving or lifting it to avoid injuring
yourself or damaging the equipment. E122
Warning: To reduce the risk of electric shock, the PoE
ports on this product must not connect to cabling that is
routed outside the building where this device is located.
E40
Table
Standard 19-inch
equipment rack
Wall
10 CentreCOM FS980M Series Quick Installation Guide
Unpacking the Switch
Here are the contents of the shipping boxes.
Item
FS980M/
9
9PS
18
18PS
28
52
28PS
52PS 28DP
Wall/equip-
ment rack
brackets
Eight bracket
screws
Four
equipment
rack screws
Four plastic
feet
Four wall
mount
screws
Four wall
mount
anchors
M4 x 6.8mm flat-head
screws
M4 x 32mm round-head
wood screws
round-head
6mm x 30mm nylon anchors
