Altronix TROVE T1RAG3F8 Bedienungsanleitung
T1RAG3F8
Fully assembled kit includes:
- Trove1R rack enclosure with TAG1R Altronix/AMAG backplane
- (1) eFlow6NB - Power Supply/Charger
- (1) VR6 - Voltage Regulator
- (1) ACMS8 - Fused Dual Output Access Power Controller
Access & Power Integration
Rev. T1RAG3F8_031021 More than just power.TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Installation Guide
All registered trademarks are property of their respective owners.
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding
Sub-Assembly Installation Guides for further information.
- 2 - T1RAG3F8 Installation Guide
Overview:
Altronix T1RAG3F8 Trove rack kit is pre-assembled and consist of Trove rack enclosure/backplane with factory
installed Altronix power supply/charger and sub-assemblies. Kits accommodate up to two (2) AMAG M4000
modules for up to eight (8) doors in a single enclosure.
Configuration Chart:
Altronix
Model
Number
120VAC
60Hz
Input
Current
Power
Supply
Board
Input
Fuse
Rating
Power
Supply
Board
Battery
Fuse
Rating
Nominal DC
Output Voltage Maximum Supply
Current for Main
and Aux. Outputs on
Power Supply board
and ACMS8 Access
Power Controller’s
outputs
Fail-Safe/
Fail-Secure or
Dry Form “C”
Outputs
ACMS8
Board
Input
Fuse
Rating
ACMS8
Board
Output
Fuse
Rating
[DC] [Aux]
Output
Range
(VDC)
Output
Range
(VDC)
T1RAG3F8 3.5A 5A/
250V
15A/
32V
20.17-
26.4
20.28-
26.4 24VDC @ 5.4A 815A/
32V
3A/
32V
Hardware and Accessories:
Specifications:
Spacer | 5/16” Pan Head Screw | Lock Nut
Agency Listings:
• CE European Conformity.
Mechanical:
• Black enclosure with ample knockouts for
convenient access.
• Includes: tamper switch, cam lock and
mounting hardware.
• Modular 2U standard EIA 19” drawer with
extendable slides up to 48”.
• Dimensions (H x W x D): 3.375” x 19.0” x 26.5”
(85.8mm x 482.6mm x 673.1mm)
Included Accessories:
• One (1) tamper switch
(Altronix Model TS112 or equivalent).
• Cam lock.
Available Accessories (not included):
• RE2: Rack Mount Battery Enclosure
accommodates up to four (4) 12VDC/7AH batteries.
• WM5, WM25, WM100: Magnetic Cable Tie Mounts
(5, 25, 100 counts).
T1RAG3F8 Installation Guide - 3 -
Installation Instructions for T1RAG3F8:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local
codes and authorities having jurisdiction. These products are for indoor use only and must be installed within
the protected premises.
Note: First assemble and Install Z Bracket Wire Management Accesory
(refer to Z Bracket Installation pg. 4)
1. Remove backplane from enclosure prior to installing into rack cabinet
(do not discard hardware).

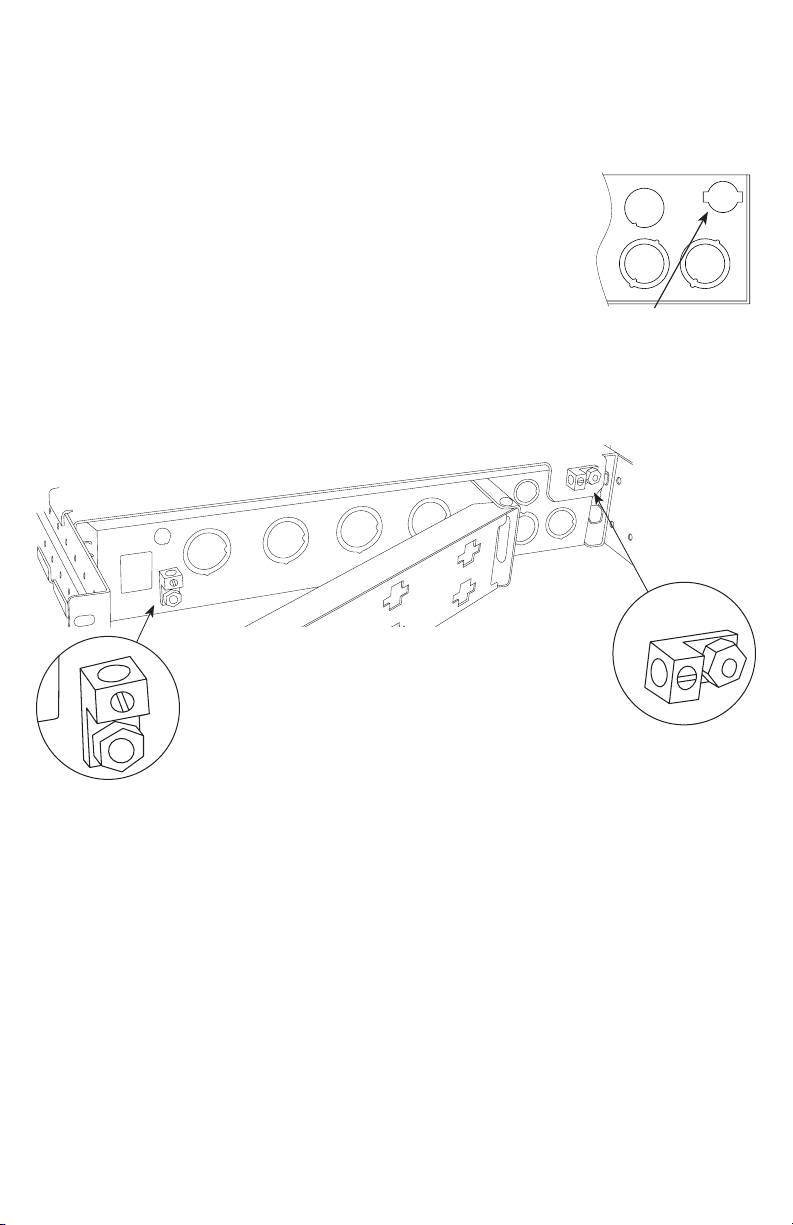

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or
equivalent) turn the enclosure upside down. Punch out the knockout in
designated location, on the back of the unit, from outside of the drawer
(Fig. 1, pg. 3). Insert the tamper switch into the knockout from outside of the
drawer with the button facing outwards and spaded connectors inside the drawer.
Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the rack enclosure into an open 2U location in the four post rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Secure the rack cover (Fig. 2a, pg. 3) and rack drawer to earth ground (Fig. 2b, pg. 3).
7. Ensure that all internal cofigurations (voltage selection, switch settings, etc.) are completed before
mounting backplane back into Trove rack enclosure.
8. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB,
and corresponding Sub-Assembly Installation Guide for ACMS8and VR6 for further installation instructions.
Fig. 1
Back of the drawer,
viewed from outside.
Tamper Switch
mounting location
Fig. 2
Fig. 2a
Fig. 2b
- 4 - T1RAG3F8 Installation Guide
Assembling and Attaching
Z Bracket Wire Management Accessory (included):
Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.
Hardware (included):
Ten (10) bolts and eight (8) lock nuts.
1. Carefully unpack Z Bracket. Do not discard hardware
(included) (Fig. 3, pg. 4).
2. Attach arms to each other using bolts and
lock nuts (Fig. 3a, pg. 4).
3. Attach the hinge brackets to the ends of
arms using bolts and nuts positioning
them as shown on (Fig. 3b, pg. 4).
4. Make sure that all nuts are tightened.
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable slide using bolts and lock nuts
(included) (Fig. 4, 4a, pg. 4).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts
(included).
Fig. 4
Fig. 4a
Fig. 3b
Two (2)
Fig. 3
Fig. 3a
T1RAG3F8 Installation Guide - 5 -
T1RAG3F8:

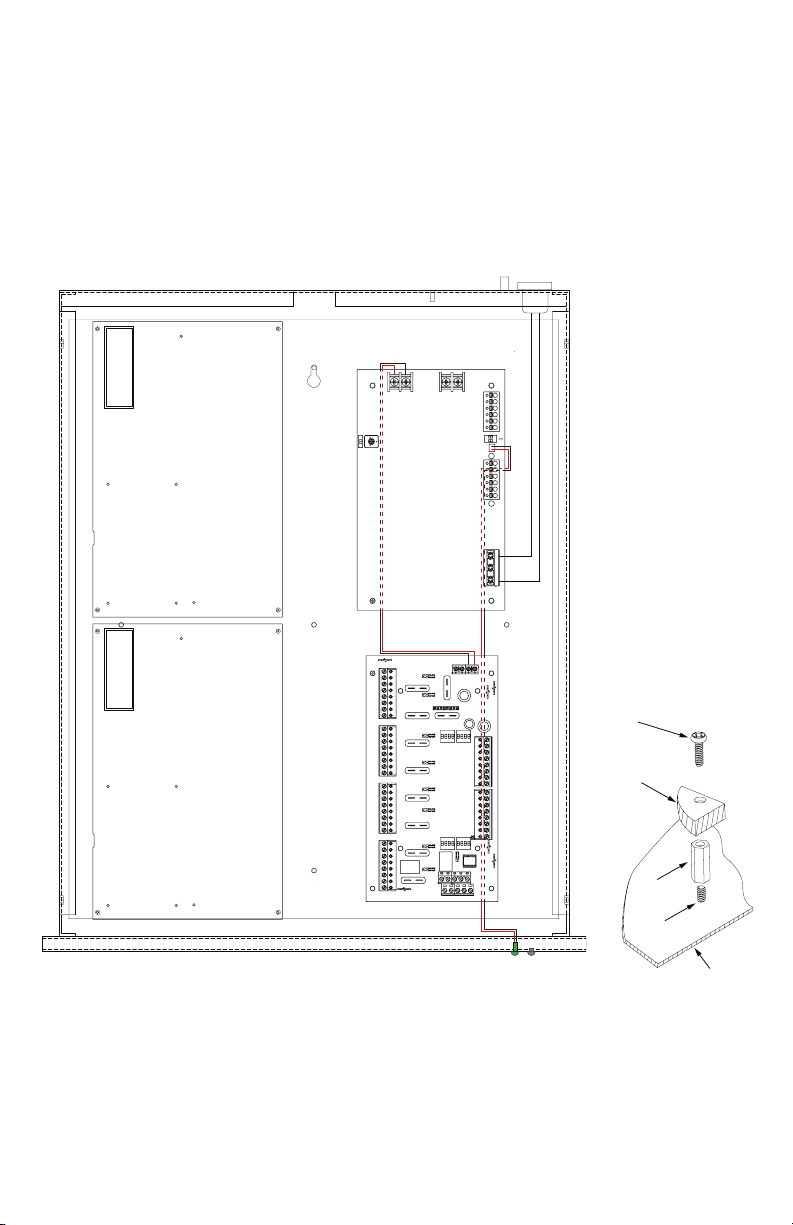

Configuration of AMAG M4000 Modules
1. Align the AMAG M4000 modules on the backplane to match the boards’ mounting holes with
corresponding pems.
2. Fasten spacers (provided) onto metal pems (Fig. 5a, pg. 3).
3. Mount AMAG M4000 modules to spacers utilizing pan head screws (provided) (Fig. 5a, pg. 3).
Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly,
as shown in Fig. 5 below.
4. Fasten TAG1R backplane to Trove1R rack enclosure utilizing hardware (provided).
Fig. 5
Altronix - eFlow6NB
AC
L G N
DCAC1 1min
enable
2hr.
disable
OFF - 24V
ON - 12V
ON
TRIGGER EOL
SUPERVISED
--- BAT+ --- DC +
NC C NO
AC FAIL
NC C NO
BATFA IL
+AUX ---
NO GND
RESET
Altronix - ACMS8
PWR1 +
PWR2 +
COM -
COM -
PWR2 +
PWR1 +
+ PWR2 --
+ PWR1 --
VR6 is
mounted
under
ACMS8
AMAG - M4000
SCREEN
AMAG - M4000
SCREEN
To IEC
connector
To LED
lense
Pem
Spacer
Backplane
Pan Head
Screw
Hirsch
Controller/Accessory
Fig. 5a
- 6 - T1RAG3F8 Installation Guide
Notes:
T1RAG3F8 Installation Guide - 7 -
Notes:
- 8 - T1RAG3F8 Installation Guide
Trove1R Enclosure Dimensions:
3.375” x 19.0” x 26.5” (85.8mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
0.1”
2.5mm
1.5”
38.1mm
11.175” (283.8mm)
2.4”
61mm
4.57”
116.1mm
3.375”
85.8mm
26.5”
673.1mm
19” (482.6mm)
R 1.27” (32.3mm)
1” (25.4mm)
0.55” (14mm)
3.62”
92mm
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
IIT1RAG3F8 I01U MEMBER
