Altronix TROVE TDMD2 Bedienungsanleitung

Rev. TDMD2062119

TDMD2

- DMP door backplane for Trove2 and Trove3

Installation Guide

All registered trademarks are property of their respective owners. More than just power.™

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

Access & Power Integration

- 2 - TDMD2 - DMP Door Backplane

DMP

714-8 0r 714-16

DMP

714-8 0r 714-16

DMP

714-8 0r 714-16

DMP

XR150 orXR550

Bracket

Pem

Standoff

DMP Board Backplane

Pan Head

Screw

Step 1Step 2

Pan Head Screw

Back of TDMD2

Lock Nut

Step 3

XR150 or XR550

Mounting Bracket

XR150 or XR550

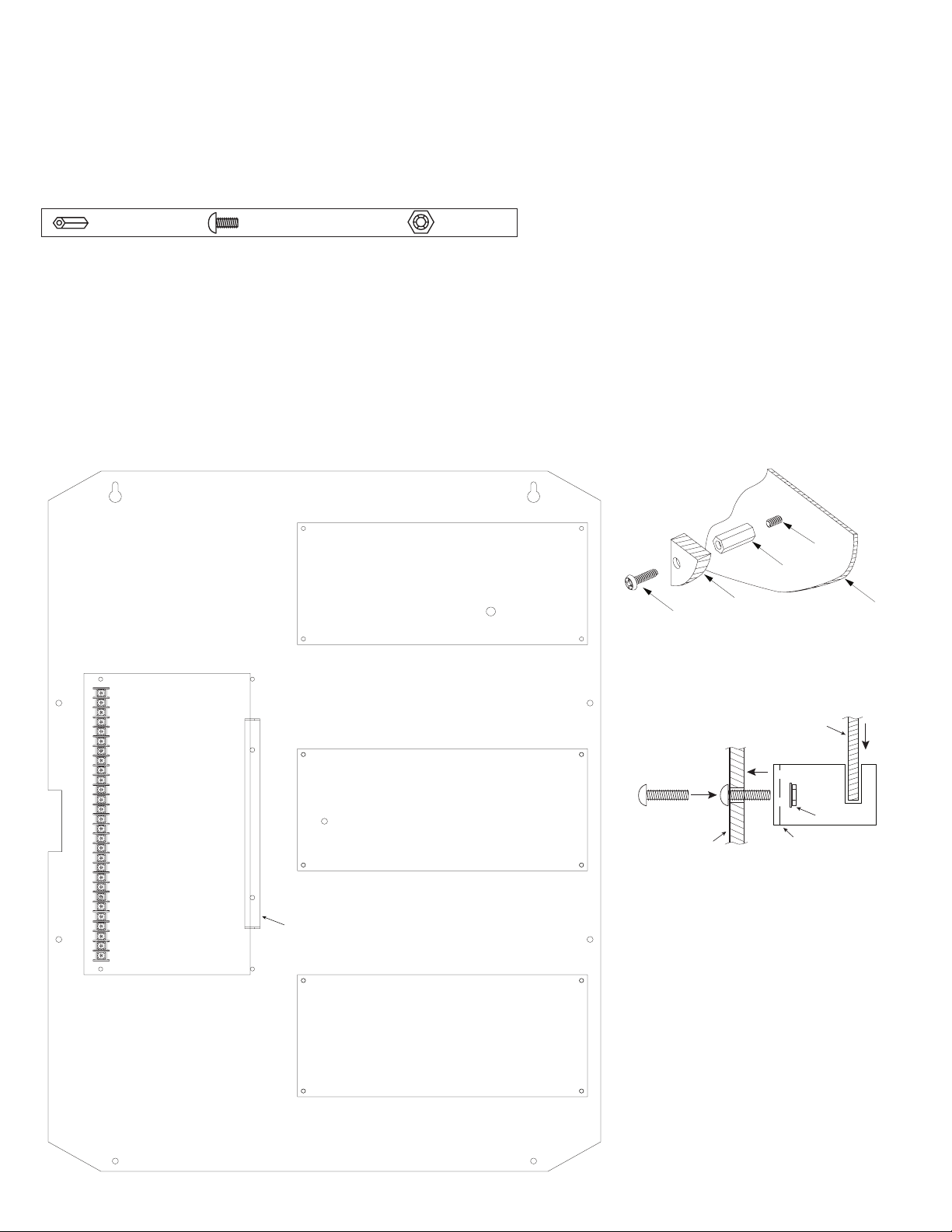

Fig. 1a

Fig. 1b

Overview:

TDMD2 accommodates a combination of the following DMP boards: one (1) XR150 or XR550 board and up to three (3) multi-zone 714

expansion boards for up to forty-eight (48) zones.

Specifications:

• 16 Gauge backplane.

Dimensions (H x W x D): 23.75” x 18.125” x 0.3125” (603.3mm x 460.3mm x 7.9mm).

Hardware:

TDMD2: Configuration of DMP Boards:

1. Mounting 714 expansion boards:

a. Fasten standoffs (provided) into a corresponding pem configuration of backplane (Fig. 1, pg. 2).

b. Mount boards to standoffs utilizing 5/16” pan head screws (provided) (Fig. 1a, pg. 2).

2. Mounting XR150 or XR550 board utilizing a bracket (provided):

a. Push two (2) pan head screws (provided) through the corresponding holes from the back of the backplane (Fig. 1b, pg. 2, Step 1).

b. Mount bracket with slits to the left on screws and secure it with two (2) lock nuts (provided) (Fig. 1b, pg. 2, Step 2).

c. Fasten two (2) standoffs (provided) onto the mounting pems.

d. Orient DMP XR150 or XR550 so the terminal block is to the left. Slide the opposite edge of the board into the bracket’s slits

(Fig. 1b, pg. 2, Step 3) and secure the board to standoffs with two (2) pan head screws (provided).

3. Mount backplane to enclosure’s door with hardware.

Nylon Standoff | 5/16” Pan Head Screw | Lock Nut

Fig. 1

TDMD2 - DMP Door Backplane - 3 -

Notes:

- 4 - TDMD2 - DMP Door Backplane

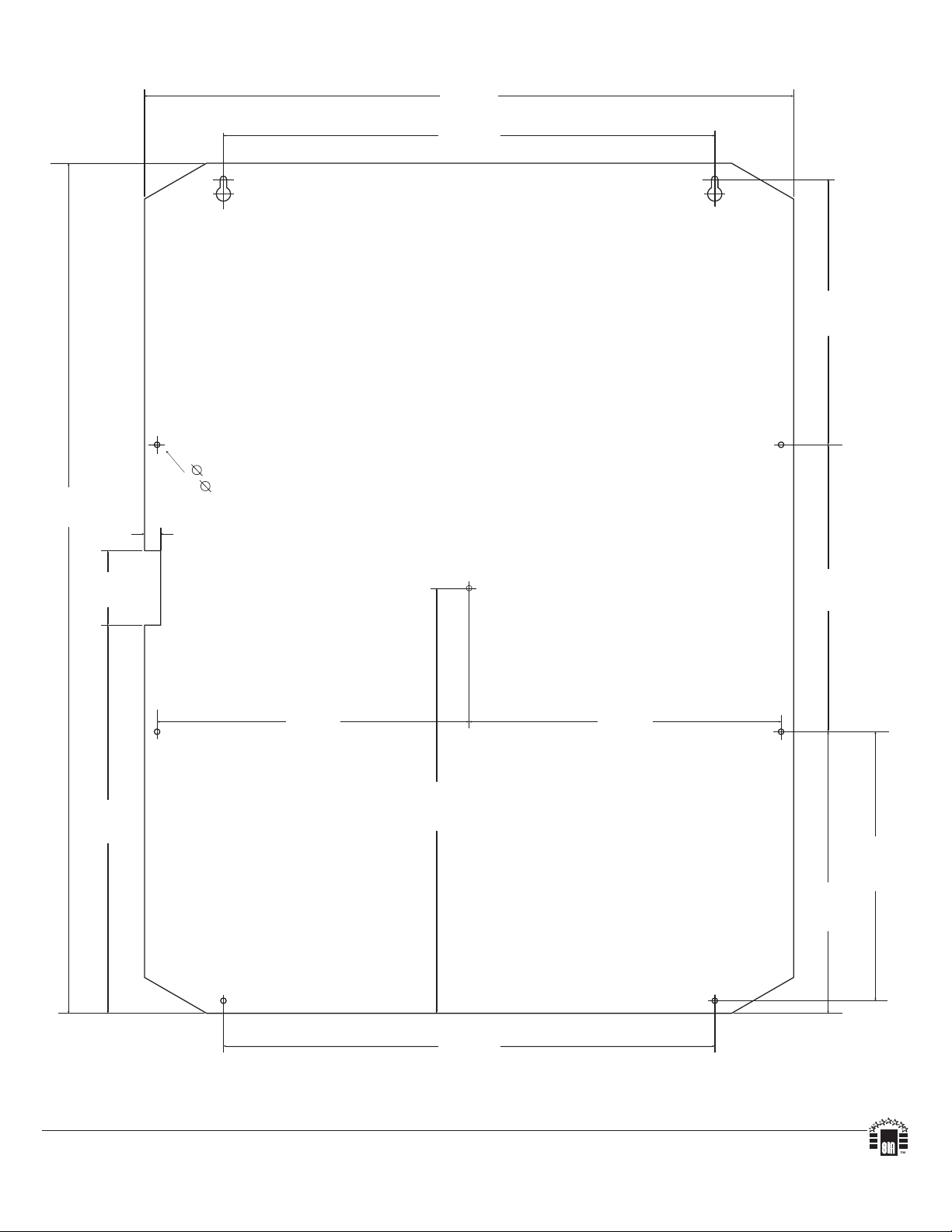

TDMD2 Backplane Dimensions (H x W x D):

23.75” x 18.125” x 0.3125” (603.3mm x 460.3mm x 7.9mm)

13.7”

(350mm)

13.7”

(350mm)

7.4”

(188mm)

8”

(203.2mm)

7.85”

(199.4mm)

7.5”

(190.5mm)

18.125”

(460.3mm)

10.82”

(274.8mm)

2.075”

(52.7mm)

23.75”

(603.3mm) 0.45”

(11.4mm)

8.7”

(221mm)

11.8”

(299.7mm)

8.7”

(221mm)

0.156”

( 4mm)

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

web site: www.altronix.com | e-mail: [email protected] | Made in U.S.A.

IITDMD2 F21S
